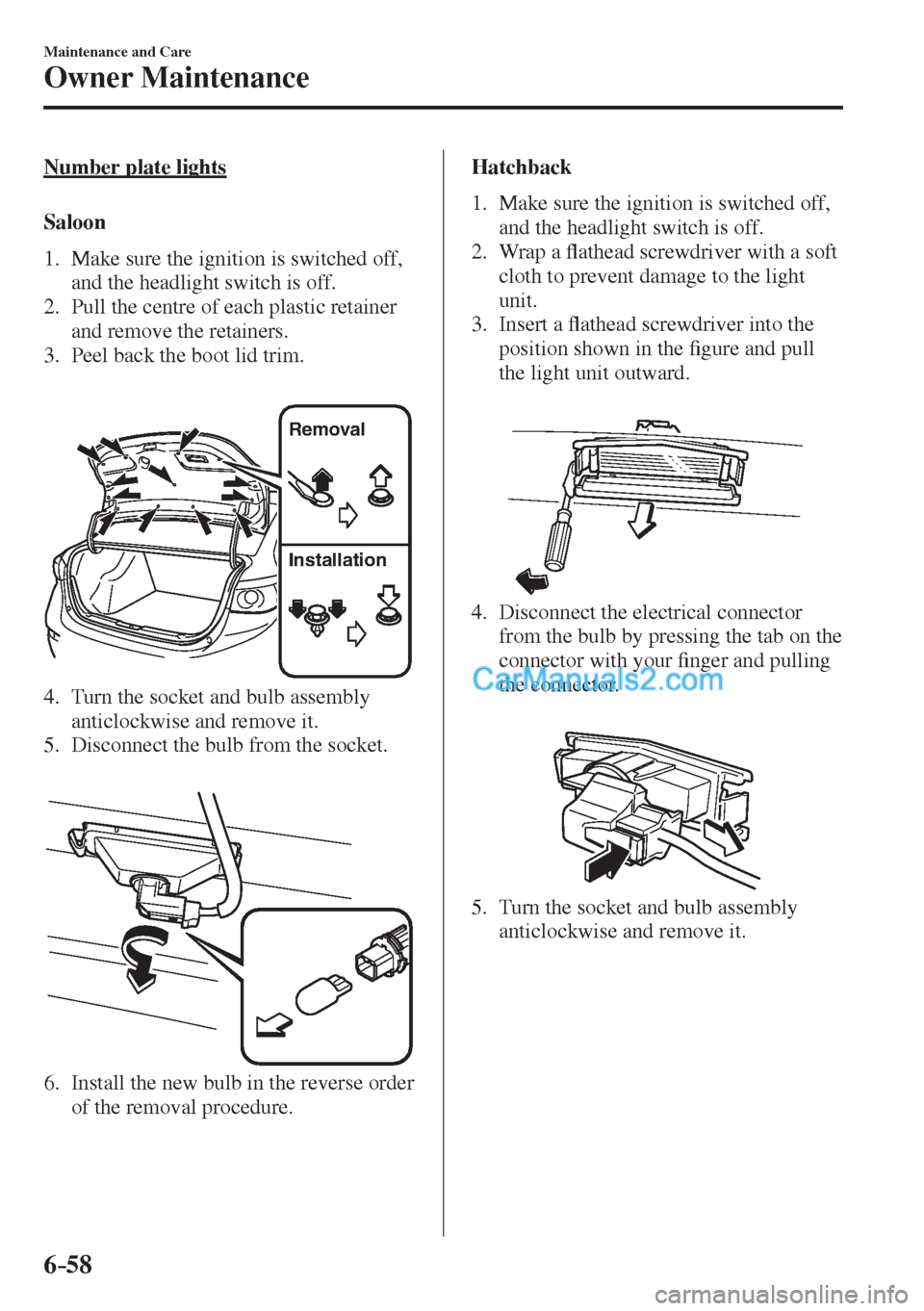

Maintenance and Care
Owner Maintenance
Number plate lights
S a l o o n
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the centre of each plastic retainer
and remove the retainers.
3. Peel back the boot lid trim.


Removal
Installation

4. Turn the socket and bulb assembly
anticlockwise and remove it.
5. Disconnect the bulb from the socket.



6. Install the new bulb in the reverse order
of the removal procedure.

Hatchback
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Wrap a À athead screwdriver with a soft
cloth to prevent damage to the light
unit.
3. Insert a À athead screwdriver into the
position shown in the ¿ gure and pull
the light unit outward.



4. Disconnect the electrical connector
from the bulb by pressing the tab on the
connector with your ¿ nger and pulling
the connector.



5. Turn the socket and bulb assembly
anticlockwise and remove it.

9–9
Speci¿ cations
Speci¿ cations
*Some models.
Light Bulbs
Exterior light
Light bulb Category
Wattage UNECE *1 (SAE)
Headlights Halogen bulb headlights High/Low
beam 60/55 H4 (H4)
LED headlights High beam LED
*2 — (—)
Low beam LED *2 — (—)
Running lights
* With halogen bulb headlights 21/5 *3 W21/5W (7443)
With LED headlights LED *2 — (—)
Position lights With halogen bulb headlights With running
lights 21/5
*4 W21/5W (7443)
Without
running lights 5 W5W (—)
With LED headlights LED
*2 — (—)
Front direction indicator lights 21 WY21W (7443NA)
Front fog lights
* L E D *2 — (—)
Side direction indicator lights LED *2 — (—)
High-mount brake light LED *2 — (—)
Rear direction indicator lights 21 WY21W (7443NA)
Brake lights/Tail lights Bulb type 21/5 W21/5W (7443)
LED type LED
*2 — (—)
Reverse lights 16 W16W (921)
Rear fog light
* 21 W21W (7440)
Number plate lights 5 W5W (—)
*1 UNECE stands for United Nations Economic Commission for Europe.
*2 LED is the abbreviation for Light Emitting Diode.
*3 Double-¿ lament light bulb, however, only 21 W ¿ lament bulb is used in the running lights.
*4 Double-¿ lament light bulb, however, only 5 W ¿ lament bulb is used in the position lights.


Interior light
Light bulb Category
Wattage UNECE *1
Boot light (Saloon) 3 —
Luggage compartment light (Hatchback) 5 —
Overhead light (Front) With map lights 8 —
Without map lights 10 —
Overhead light (Rear)
* 10 —
*1 UNECE stands for United Nations Economic Commission for Europe.
