5–86
Interior Features
Audio Set [Type B (touchscreen)]
Volume/Display/Sound Controls

Volume dial Commander switchAudio control switch
Volume switch

Volume adjustment
Turn the commander switch volume dial.
The volume switch on the steering switch
can also be pressed.
Display setting
Select the icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Display OFF/Clock
The centre display can be turned off.
Select
to turn the display off.
When
is
selected the centre display turns off and
the clock is displayed.
The centre display can be turned back on
as follows:



 Touch the centre display.



 Operate the commander switch.
Daytime/nighttime (Mode) screen
setting
The daytime or nighttime screen can be
selected.

: Switches screen automatically
according to headlight illumination
condition
*1

: Daytime screen setting

: Nighttime screen setting
*1 The display is constantly on daytime
screen when the illumination dimmer is
cancelled.

Brightness adjustment
Adjust the centre display brightness using
the slider.
Contrast adjustment
Adjust the centre display contrast using
the slider.
Display setting reset
All of the screen setting values can be
reset to their initial settings.

1. Select .
2. Select
.

5–137
Interior Features
Audio Set [Type B (touchscreen)]
Settings
NOTE
Depending on the grade and speci¿ cation, the screen display may differ.
Select the
icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:

Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page
4-35 .
Display Refer to Volume/Display/Sound Controls on page 5-86 .
Safety Distance Recognition Support System
SBS/SCBS
Other Refer to Personalisation Features on page
9-13 .
Sound Refer to Volume/Display/Sound Controls on page 5-86 .
Clock Adjust Time Displays the currently set time is displayed.
Press
to advance the hour/minute, and select
to move the hour/minute back.
AM/PM can only be selected with the 12-hour
clock display.
GPS Sync Synchronizes with GPS when turned on.
When turned off, the time can be changed from
“Adjust Time”.
Time Format Changes the display between 12 and 24-hour
clock time.
Time Zone Select When it's not synchronized with GPS, select
the region you want to specify.
Daylight Savings Time Turns the daylight saving time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.
Vehicle Rain Sensing Wiper
Other Refer to Personalisation Features on page
9-13 .
Devices Bluetooth Refer to Bluetooth
® Preparation on page
5-111 .
Network Management Wi-Fi
™ is used to obtain Navi POI/Real Time
Traf¿ c function (Such as gas prices, weather,
nearest restaurant)

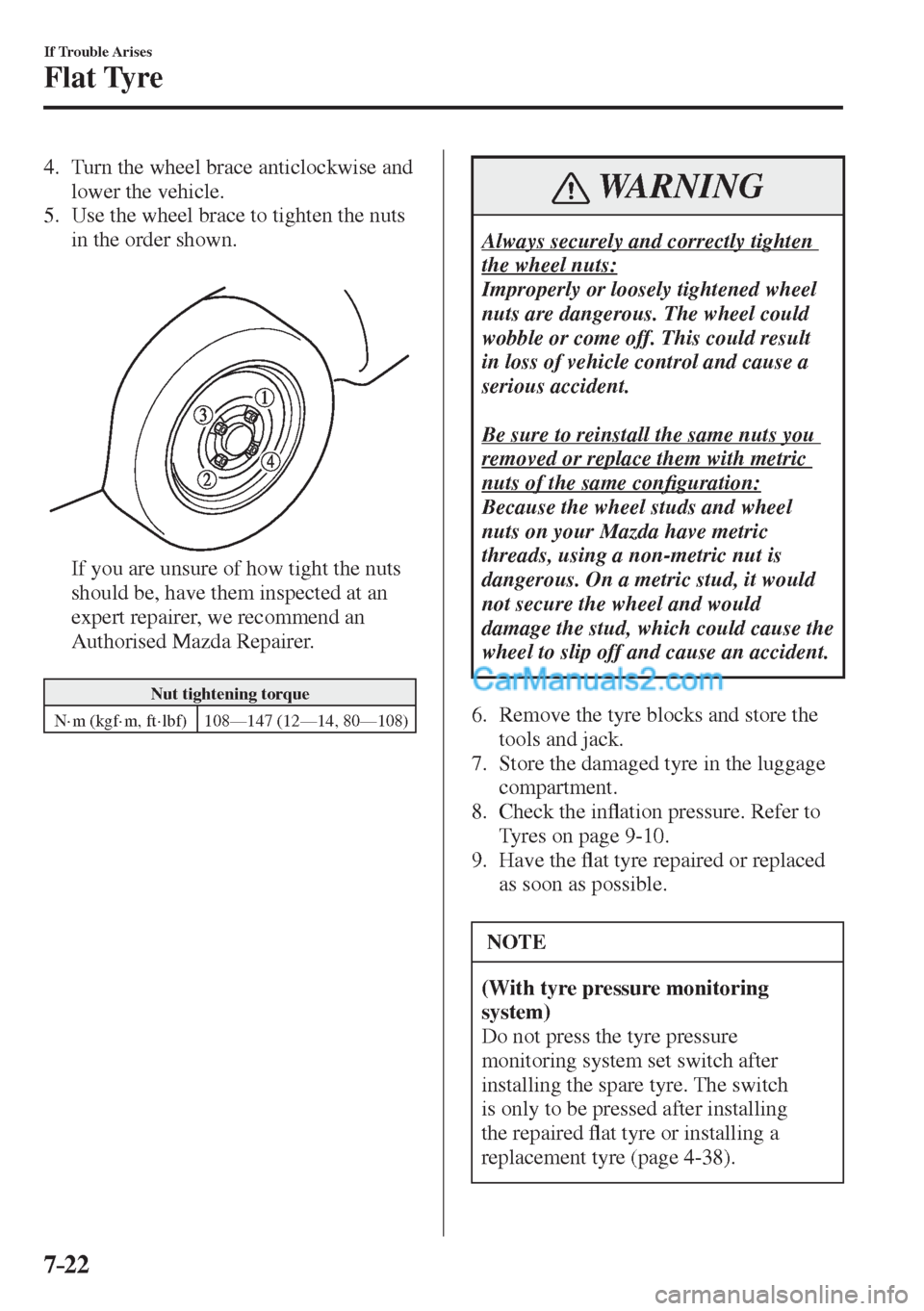

7–22
If Trouble Arises
Flat Tyre
4. Turn the wheel brace anticlockwise and
lower the vehicle.
5. Use the wheel brace to tighten the nuts
in the order shown.



If you are unsure of how tight the nuts
should be, have them inspected at an
expert repairer, we recommend an
Authorised Mazda Repairer.

Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)

WARNING
Always securely and correctly tighten
the wheel nuts:
Improperly or loosely tightened wheel
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.

Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same con¿ guration:
Because the wheel studs and wheel
nuts on your Mazda have metric
threads, using a non-metric nut is
dangerous. On a metric stud, it would
not secure the wheel and would
damage the stud, which could cause the
wheel to slip off and cause an accident.
6. Remove the tyre blocks and store the
tools and jack.
7. Store the damaged tyre in the luggage
compartment.
8. Check the inÀ ation pressure. Refer to
Tyres on page 9-10 .
9. Have the À at tyre repaired or replaced
as soon as possible.

NOTE
(With tyre pressure monitoring
system)
Do not press the tyre pressure
monitoring system set switch after
installing the spare tyre. The switch
is only to be pressed after installing
the repaired À at tyre or installing a
replacement tyre (page 4-38 ).

10–2
Index
1
120 km/h warning beep ....................... 7-52
A
Accessory Socket .............................. 5-159
Active Driving Display ....................... 4-35
Adaptive LED Headlights (ALH) ..... 4-108
Add-On Non-Genuine Parts and
Accessories ........................................... 8-3
Adjustable Speed Limiter ........ 4-32, 4-148
Activation/deactivation ............... 4-152
Adjustable speed limiter set indication
(green) ......................................... 4-150
Adjustable speed limiter set indication
(white)/indicator light (green) ..... 4-150
Adjustable Speed Limiter Display ...... 4-32
Advanced Key
Advanced keyless entry system ...... 3-9
Operational range .......................... 3-10
Air Bag/Seat Belt Pretensioner System
Warning Beep ...................................... 7-50
Air Bag Systems ................................. 2-41
Air-Conditioning System ...................... 5-4
Fully Automatic Type .................... 5-14
Manual Type .................................... 5-7
Operating Tips ................................. 5-4
Vent Operation ................................ 5-5
Ambient Temperature Display ............ 4-31
Antilock Brake System (ABS) ............ 4-86
Audio Control Switch
Adjusting the Volume .................... 5-18
Mute Switch .................................. 5-18
Seek Switch ................................... 5-19 Audio Set [Type A (non-touchscreen)]
AUX .............................................. 5-37
Bluetooth
® ..................................... 5-46
CD Player ...................................... 5-34
Clock ............................................. 5-28
Error Indications............................ 5-45
iPod mode...................................... 5-42
Power/Volume/Sound Controls ..... 5-26
Radio ............................................. 5-30
Radio (RDS) .................................. 5-30
Troubleshooting ............................ 5-76
USB ............................................... 5-38
Voice Recognition ......................... 5-72
Audio Set [Type B (touchscreen)]
Applications ................................ 5-139
AUX ............................................ 5-100
Bluetooth
® ................................... 5-107
CD Player ...................................... 5-94
DVD Player ................................... 5-97
Digital Audio Broadcasting (DAB)
Radio ............................................. 5-91
Radio ............................................. 5-88
Radio (RDS) .................................. 5-88
Settings ........................................ 5-137
Troubleshooting .......................... 5-140
USB ............................................. 5-101
Voice Recognition ....................... 5-134
Volume/Display/Sound Controls ... 5-86
Audio System
Aerial ............................................. 5-23
Appendix ..................................... 5-144
Audio Control Switch ................... 5-18
Audio Set
[Type A (non-touchscreen)] ........... 5-26
Audio Set
[Type B (touchscreen)] .................. 5-80
AUX/USB mode ........................... 5-20
Before Using the Audio System .... 5-18
