MAZDA MODEL 2 2017 (in English) Owner's Manual

2–3
Essential Safety Equipment
Seats
WARNING
Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do
not get the full protection from seat belts. During sudden braking or a collision, you can
slide under the lap belt and suffer serious internal injuries. For maximum protection,
sit well back and upright.

Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident,
injury or death.

Do not place objects under the seat:
The object could get stuck and cause the seat to not be ¿ xed securely, and result in an
accident.

Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During
sudden braking or a collision, objects can À y around and become projectiles that may
hit and injure passengers.

Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.

Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit
up on the folded seatback while the vehicle is moving is particularly dangerous. In a
sudden stop or even a minor collision, a child not in a proper seat or child-restraint
system and seat belt could be thrown forward, back or even out of the vehicle resulting
in serious injuries or death. The child in the baggage area could be thrown into other
occupants and cause serious injury.

Never give the car keys to children and do not allow them to play in the vehicle
(Saloon):
Playing with the folding rear seats is dangerous. Once the seatbacks are back up, a
child in the boot would not be able to get out the way they had entered. If you have
small children, keep the seatbacks locked.

2–4
Essential Safety Equipment
Seats
WARNING
Always leave your car locked and keep the car keys safely away from children (Saloon):
Leaving your car unlocked or the keys in reach of children is dangerous. Children
who ¿ nd their way into the boot through an unlocked rear seatback or an open boot
can become accidentally locked in the boot. This could result in death or brain damage
from heat prostration, particularly in the summer. Always lock the doors and the boot,
and as an added measure, keep the rear seatbacks locked, whether you have children in
your home or not.
CAUTION
  When operating a seat, be careful not to put your hands or ¿ ngers near the moving
parts of the seat or on the side trim to prevent injury.
  When moving the seats, make sure there is no cargo in the surrounding area. If the
cargo gets caught it could damage the cargo.
  When moving the seats forward and rearward or returning a rear-reclined seatback
to its upright position, make sure you hold onto the seatback with your hand while
operating. If the seatback is not held, the seat will move suddenly and could cause
injury.
NOTE
When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.

2–5
Essential Safety Equipment
Seats
*Some models.
Front Seat
Seat Operation


Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.

Height Adjustment *

To adjust the seat height, move the lever up or down.

Seat Recline
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.

2–6
Essential Safety Equipment
Seats
*Some models.

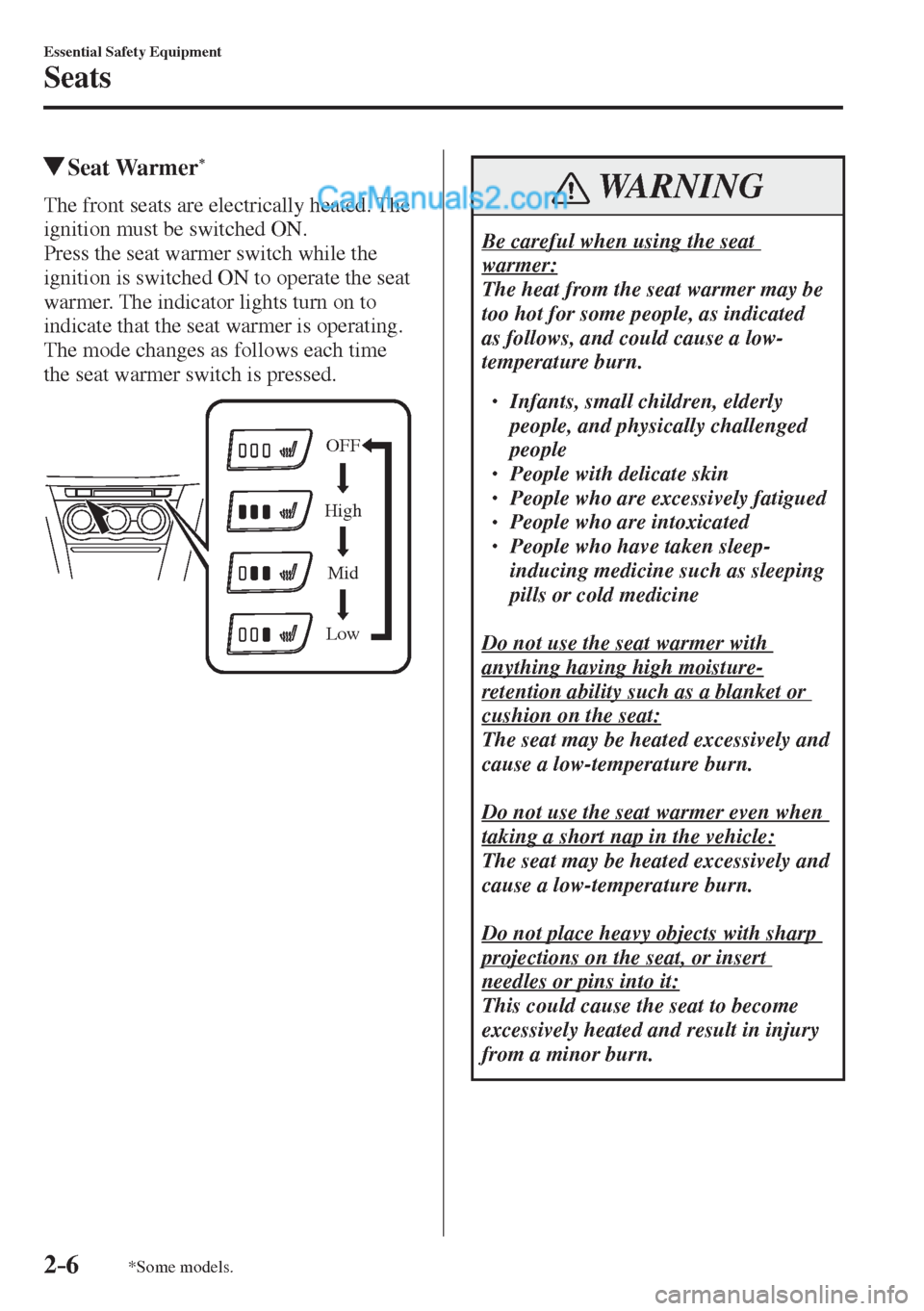

Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.

OFF
High
Mid
Low

WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
as follows, and could cause a low-
temperature burn.

 Infants, small children, elderly
people, and physically challenged
people
  People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine

Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.

Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.

Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.

2–7
Essential Safety Equipment
Seats
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
  If the ignition is switched off while
the seat warmer is operating (High,
Mid or Low) and then switched
ON again, the seat warmer will
automatically operate at the
temperature set before switching off
the ignition.
  Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine
not running could cause the battery
power to be depleted.
  The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
Rear Seat
Split/One-piece Folding the
Seatback
By lowering the rear seatback(s) the
luggage compartment space can be
expanded.

2–8
Essential Safety Equipment
Seats
WARNING
Do not drive the vehicle with occupants
on folded down seatback(s) or in the
luggage compartment.
Putting occupants in the luggage
compartment is dangerous because seat
belts cannot be fastened which could
lead to serious injury or death during
sudden braking or a collision.

Do not allow children to play inside the
vehicle with the seatback(s) lowered.
Allowing children to play in the vehicle
with the seatback(s) folded down is
dangerous. If a child enters the luggage
compartment and the seatback(s) were
raised back up, the child may become
trapped in the luggage compartment
which could lead to an accident.

Tightly secure cargo in the luggage
compartment when it is transported
with the seatback(s) folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or
a collision resulting in an unexpected
accident.

When transporting cargo, do not allow
the cargo to exceed the height of the
seatback(s).
Transporting cargo stacked higher
than the seatback(s) is dangerous
as visibility to the rear and sides of
the vehicle is reduced which could
interfere with driving operations and
lead to an accident.
Lowering the seatback(s)
CAUTION
  (Hatchback)  When folding the seatback forward,
always support the seatback with
your hand. If it is not supported by a
hand, ¿ ngers or the hand pressing the
push knob could be injured.
  Check the position of a front seat
before folding a rear seatback.
 Depending on the position of a front
seat, it may not be possible to fold
a rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Remove the head restraint on the rear
outboard seat if necessary.

2–9
Essential Safety Equipment
Seats
(Saloon)
1. If your vehicle is equipped with the
head restraint, lower it all the way
down.
Refer to Head Restraints on page
2-11 .
2. (Split-folding type seat)
Open the boot lid and pull the lever of
the seatback you want to fold down.
(One-piece folding type seat)
Open the boot lid and pull the lever of
the seatback.

*1: With split-folding
type seat only*1

3. Open a rear door and fold the rear seat
forward.

(Hatchback)

1. Lower the head restraint all the way
down.
Refer to Head Restraints on page
2-11 .
2. Press the push knob to fold down the
seatback.


3. Secure the rear seat belt in the belt clip.

Belt clip

2–10
Essential Safety Equipment
Seats
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback
and the 3-point seat belt is not twisted.
If the seat belt is used while it is twisted
and caught in the seatback, the seat
belt cannot function at its full capacity,
which could cause serious injury or
death.

When returning a seatback to its
upright position, make sure that it is
¿ rmly locked and the red indication is
not visible (Hatchback).
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.

Locked position
Unlocked position
Red indication
(Saloon)

1. Make sure that the seat belt passes
through the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.

Seat belt guide

2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.

(Hatchback)
1. Verify that the seat belt is secured in
the belt clip.

Belt clip
2. Lift the seatback upright.
3. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.

2–11
Essential Safety Equipment
Seats
4. Make sure that the seat belt is neither
stuck in the rear seat nor twisted, then
remove the seat belt from the belt clip.

Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear centre seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted.
In addition, always raise the head
restraints on all rear seat when they are
being used:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be seriously
injured in a collision.
Height Adjustment
Adjust the head restraint so that the centre
is even with the top of the passenger's ears.



To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.

2–12
Essential Safety Equipment
Seats
Front outboard seat



Rear outboard seat



Rear centre seat



Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.

After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
effectiveness of the head restraint will
be compromised which could cause it to
unexpectedly detach from the seat.
