5–17
Interior Features
Air-Conditioning System
Windscreen Defrosting and
Defogging
Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windscreen and side windows (page
5-6 ). AirÀ ow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
( position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air À ow temperature and
defog the windscreen more quickly.
Sunlight/Temperature Sensor
Sunlight sensor
Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.

Sunlight sensor

Interior temperature sensor
Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.

Interior temperature sensor

5–18
Interior Features
Before Using the Audio System
*Some models.
Audio Control Switch *
Without Bluetooth ® Hands-Free



With Bluetooth
® Hands-Free



Adjusting the Volume
To increase the volume, press up the
volume switch (
).
To decrease the volume, press down the
volume switch (
).


Mute Switch *
Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition is switched off with the
audio muted, the mute will be cancelled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch (
).

5–19
Interior Features
Before Using the Audio System
*Some models.
Seek Switch
A M * /MW * /LW * /FM radio
Press the seek switch (
, ). The radio
switches to the next/previous stored station
in the order that it was stored.
Press and hold the seek switch (
, ) to
seek all usable stations at a higher or lower
frequency whether programmed or not.

Radio stations which have been previously
stored in the auto memory tuning (Type A)/
favourite radio (Type B) can be called up
by pressing the seek switch (
, ) while
any radio station stored in the auto memory
tuning (Type A)/favourite radio (Type B) is
being received. Radio stations can be
called up in the order they were stored with
each press of the switch (
, ).



DAB radio (Type B)
Press the Seek switch (
, ) while
listening to DAB radio to call up a station
previously stored to the favourites list.
With each operation of the switch, radio
stations can be called up in the order they
were stored.
Press and hold the seek switch (
) to go
to the next station, (
) to return to the
previous station.
USB Audio/Bluetooth ® Audio (Type B)/
CD
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press the seek switch (
) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch (
) after a few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch (
, ) to
continuously switch the tracks up or down.
DVD (Type B)
Press the seek switch (
) to skip forward
to the beginning of the next chapter.
Press the seek switch (
) to return to the
beginning of the previous chapter.
Aha
™/Stitcher™ Radio (Type B)
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press and hold the seek switch (
) to
evaluate the playback of the current song
as “Like”.
Press and hold the seek switch (
) to
evaluate the playback of the current song
as “Dislike”.

5–20
Interior Features
Before Using the Audio System
AUX/USB mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug lead is required.
Contact an expert repairer, we recommend
an Authorised Mazda Repairer for details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine)
with stored map data is inserted into the
SD card slot and used.
Type A (Without CD player)


Auxiliary jack/USB port
Type A (With CD player)


Auxiliary jack/USB port

Ty p e B


USB port
Auxiliary jack





How to use AUX mode
(Type A) .................................page 5-37



How to use USB mode
(Type A) .................................page 5-38



How to use iPod mode
(Type A) .................................page 5-42



How to use AUX mode
(Type B) ...............................page 5-100



How to use USB mode
(Type B) ...............................page 5-101

5–21
Interior Features
Before Using the Audio System
WARNING
Do not adjust the portable audio unit
or a similar product while driving the
vehicle:
Adjusting the portable audio unit
or a similar product while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident. Always adjust the portable
audio unit or a similar product while
the vehicle is stopped.
CAUTION
Depending on the portable audio device,
noise may occur when the device is
connected to the vehicle accessory
socket. (If noise occurs, do not use the
accessory socket.)
NOTE
  This mode may not be usable
depending on the portable audio
device to be connected.
  Before using the auxiliary jack/USB
port, refer to the instruction manual
for the portable audio device.
  Use a commercially-available,
non-impedance (3.5
) stereo mini
plug for connecting the portable
audio unit to the auxiliary jack.
Before using the auxiliary jack, read
the manufacturer's instructions for
connecting a portable audio unit to
the auxiliary jack.
  To prevent discharging of the battery,
do not use the auxiliary input for
long periods with the engine off or
idling.
  When connecting a device to the
auxiliary jack or USB port, noise
may occur depending on the
connected device. If the device is
connected to the vehicle's accessory
socket, the noise can be reduced by
unplugging it from the accessory
socket.

5–22
Interior Features
Before Using the Audio System
How to connect USB port/
Auxiliary jack
Type A (Without CD player)


USB port Auxiliary jack

Type A (With CD player)


USB port Auxiliary jack

Ty p e B


USB port Auxiliary jack

Connecting a device
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the connector on the device to
the USB port.

Connecting with a connector lead
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the device plug/connector lead
to the auxiliary jack/USB port.

WARNING
Do not allow the connection plug cord
to get tangled with the parking brake
or the shift lever (manual transaxle)/
selector lever (automatic transaxle):
Allowing the plug cord to become
tangled with the parking brake or
the shift lever (manual transaxle)/
selector lever (automatic transaxle) is
dangerous as it could interfere with
driving, resulting in an accident.
CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.

5–23
Interior Features
Before Using the Audio System
*Some models.
NOTE
  Insert the plug into the auxiliary jack/
USB port securely.
  Insert or pull out the plug with the
plug perpendicular to the auxiliary
jack/USB port hole.
  Insert or remove the plug by holding
its base.
Aerial
T y p e A *
To remove the aerial, turn it anticlockwise.
To install the aerial, turn it clockwise.
Make sure the aerial is securely installed.

Install Remove

CAUTION
To prevent damage to the aerial, remove
it before entering a car wash facility
or passing beneath a low overhead
clearance.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
aerial and store it inside the vehicle.

5–24
Interior Features
Before Using the Audio System
*Some models.
Type B *

Aerial

Type C
*
The aerial is embedded into the window
glass.
CAUTION
When washing the inside of the window
which has an aerial, use a soft cloth
dampened in lukewarm water, gently
wiping the aerial lines.
Use of glass cleaning products could
damage the aerial.

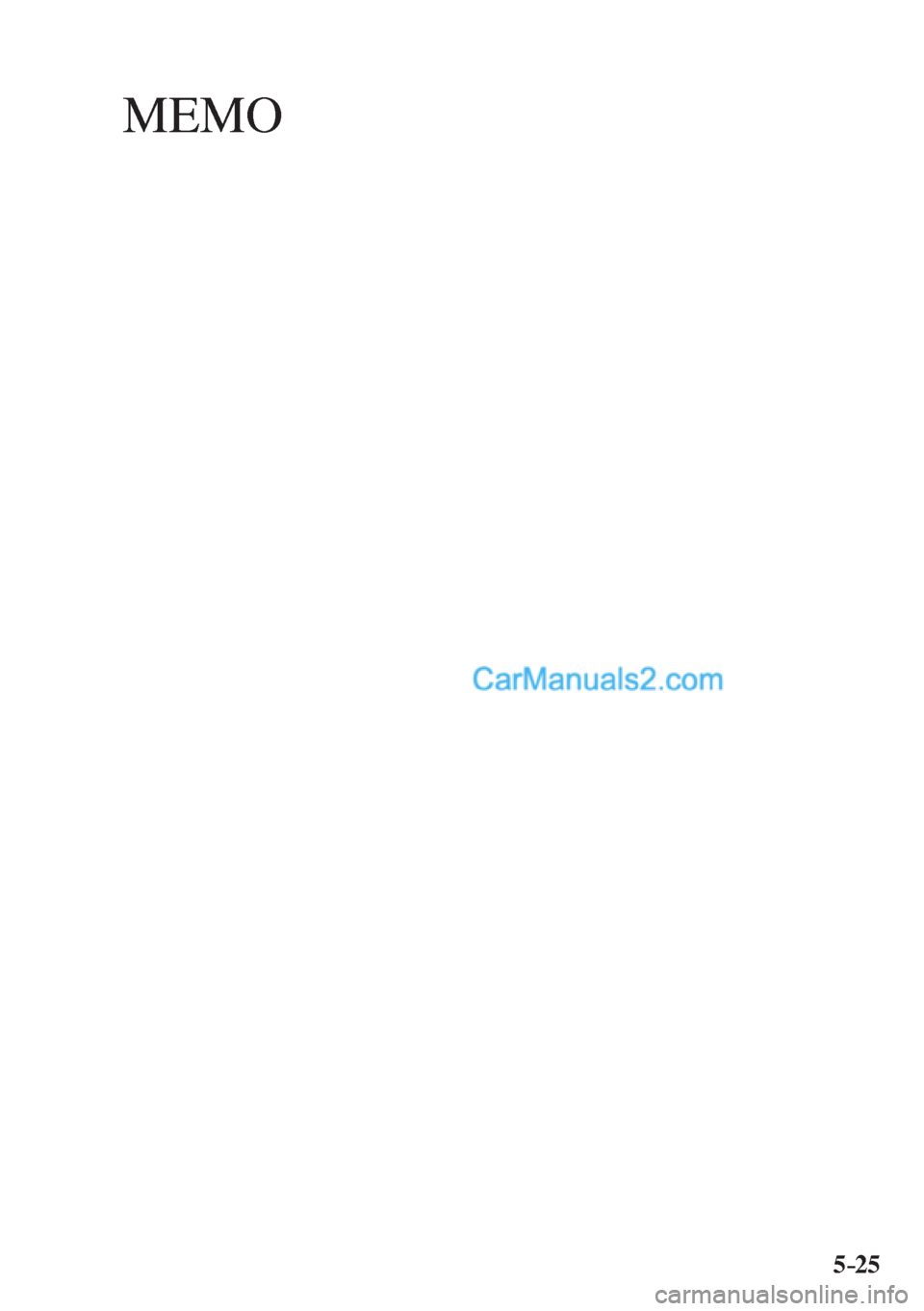

MEMO
5–25

5–26
Interior Features
Audio Set [Type A (non-touchscreen)]
Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.
Audio sound adjustment
1. Press the menu button ( ) to select
the function. The selected function will
be indicated.
2. Turn the audio control dial to adjust the
selected functions as follows:

Indication Setting value
Tu r n
Anticlockwise Tu r n
Clockwise
AF
*1
(Setting Alternative
Frequency (AF)) Off On
R E G
*1
(Setting Regional
Programme (REG)) Off On
A L C
(Automatic volume
adjustment) Level decrease Level
increase
Indication Setting value
Tu r n
Anticlockwise Tu r n
Clockwise
BASS
(Low pitch sound) Decrease bass Increase
bass
T R E B
(Treble sound) Decrease treble Increase
treble
FADE
(Front/back volume
balance) Shift the sound
to the front Shift the
sound to
the rear
B A L
(Left/right volume
balance) Shift the sound
to the left Shift the
sound to
the right
BEEP
(Audio operation
sound) OFF ON
BT SETUP
*2 Select mode
12HR
24HR
(12 HR/24 HR time
adjustment) 12HR
(Flashing) 24HR
(Flashing)
*1 With Radio Data System (RDS)
*2 Depending on the model, this function may not be
available.
NOTE
If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (
) for
2 seconds. The unit will beep and
“ CLEAR ” will be displayed.
