When Driving
Parking Sensor System
Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.

Rear Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Farthest distance Approx. 150—60 cm (59.0—23.6 in)

Slow intermittent sound
Far distance Approx. 60—45 cm (23.6—17.7 in)

Medium intermittent sound
Middle distance Approx. 45—35 cm (17.7—13.7 in)

Fast intermittent sound
Close distance Within approx. 35 cm (13.7 in)

Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

4–211
When Driving
Parking Sensor System
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 50—37 cm (19.0—15.0 in)

Medium intermittent sound
Middle distance Approx. 37—25 cm (14.0—9.8 in)

Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)

Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.


NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.

4–212
When Driving
Parking Sensor System
When Warning Beep is Activated
The system noti¿ es the driver of an abnormality by activating the beep sound and the
indicator light.

Indicator/Beep How to check
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an expert
repairer, we recommend an Authorised Mazda Repairer as soon as possible.
The intermittent sound of the
buzzer is heard ¿ ve times. Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
A certain obstruction detection
indicator is continuously
displayed. Refer to Obstruction Detection Indication on page 4-208 .

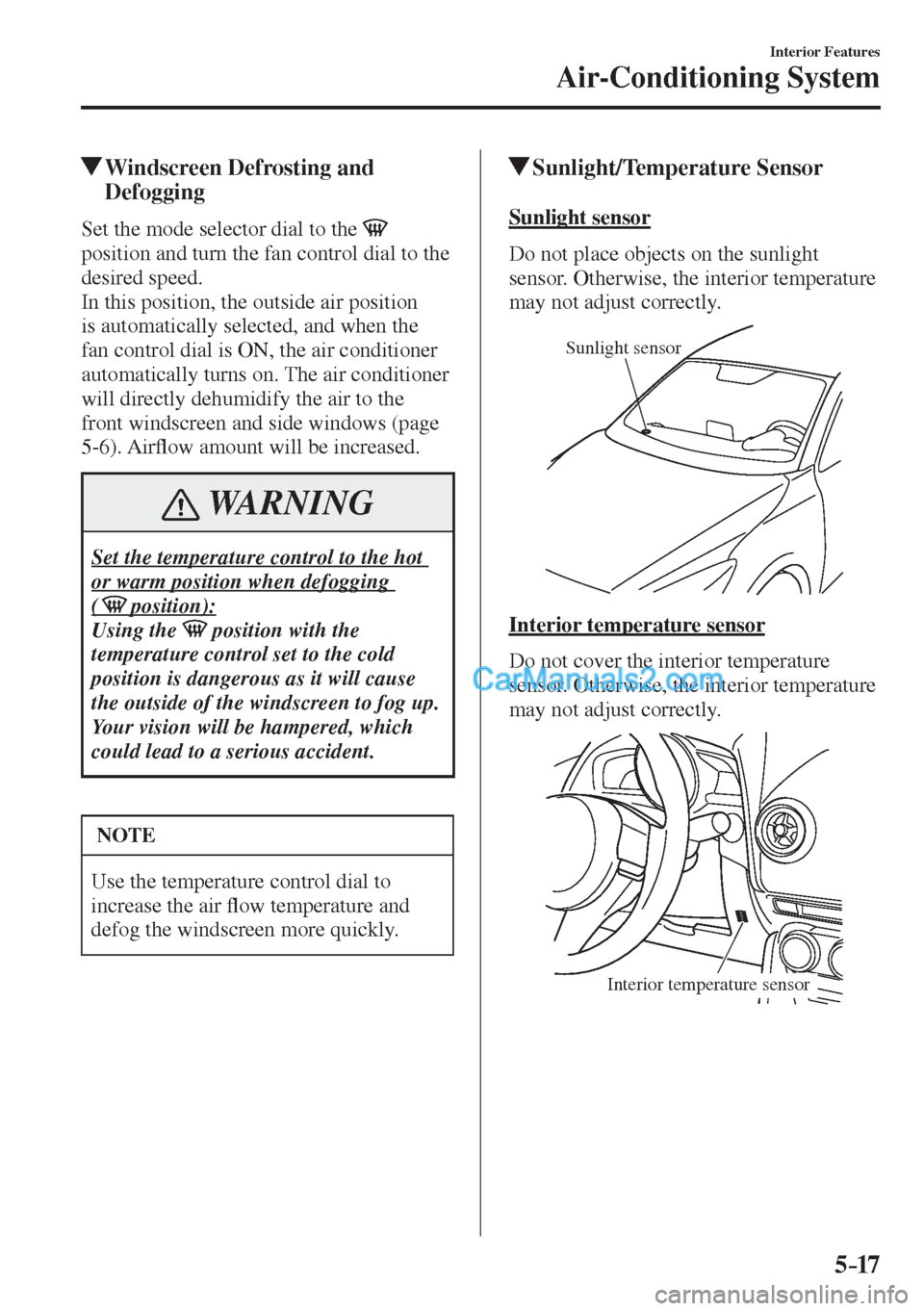

5–17
Interior Features
Air-Conditioning System
Windscreen Defrosting and
Defogging
Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windscreen and side windows (page
5-6 ). AirÀ ow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
( position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air À ow temperature and
defog the windscreen more quickly.
Sunlight/Temperature Sensor
Sunlight sensor
Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.

Sunlight sensor

Interior temperature sensor
Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.

Interior temperature sensor

6–33
Maintenance and Care
Owner Maintenance
Body Lubrication
All moving points of the body, such as
door and bonnet hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the bonnet's secondary latch
keeps the bonnet from opening when the
primary latch is released.
Wiper Blades
CAUTION
  Hot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.
  To prevent damage to the wiper
blades, do not use petrol, paraf¿ n,
paint thinner, or other solvents on or
near them.
  When the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may move
automatically in the following cases:



 If the windscreen above the rain
sensor is touched.



 If the windscreen above the rain
sensor is wiped with a cloth.



 If the windscreen is struck with a
hand or other object.



 If the rain sensor is struck with a
hand or other object from inside
the vehicle.
  Be careful not to pinch hands or
¿ ngers as it may cause injury, or
damage the wipers. When washing or
servicing the vehicle, make sure the
wiper lever is in the OFF position.
Contamination of either the windscreen or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.

6–68
Maintenance and Care
Appearance Care
Maintaining the Finish
W a s h i n g
CAUTION
  When the wiper lever is in the
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:



 If the windscreen above the rain
sensor is touched or wiped with a
cloth.



 If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
  Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the
position and the ignition
is switched ON as ¿ ngers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically.
 If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.

 Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems or
damage to electrical parts.
  When washing and waxing the
vehicle, be careful not to apply
excessive force to any single area
of the vehicle roof or the aerial.
Otherwise, you could dent the
vehicle or damage the aerial. To help protect the ¿ nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface when:



 The vehicle is washed without ¿ rst
rinsing off dirt and other foreign matter.



 The vehicle is washed with a rough, dry,
or dirty cloth.



 The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.



 Cleansers or wax containing abrasives
are used.

NOTE
  Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.
  Scratches are more noticeable on
vehicles with darker paint ¿ nishes.
To minimize scratches on the vehicle's
paint ¿ nish:




 Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.



 Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.



 Rub gently when washing or drying the
vehicle.



 Take your vehicle only to a car wash
that keeps its brushes well maintained.



 Do not use abrasive cleansers or wax
that contain abrasives.

7–39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning


Master Warning
Light
Vehicles with type B audio
The light turns on when the system has a malfunction.
Operate the centre display and verify the content.
Refer to If a Warning Light Turns On or Flashes on page 7-35 .
Vehicles with type A audio
The light illuminates continuously if any one of the following occurs. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.

There is a malfunction in the battery management system.
There is a malfunction in the brake switch.
(SKYACTIV-D 1.5) There is a malfunction in the engine's hydraulic control.
There is a malfunction in the engine's timing chain.
There is a malfunction in the blow-by heater.
There is a malfunction in the oil level sensor.


Check Engine Light If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an expert repairer, we
recommend an Authorised Mazda Repairer.
The check engine light may illuminate in the following cases:
The engine's electrical system has a problem.
The emission control system has a problem.
(SKYACTIV-G 1.3, SKYACTIV-G 1.5) The fuel tank level being very low or approaching empty.
The fuel-¿ ller cap is missing or not tightened securely. If the check engine light remains on, or it À ashes continuously , do not drive at high speeds
and consult an expert repairer, we recommend an Authorised Mazda Repairer as soon as
possible.


(Amber)
i-stop warning light
*
When the light is turned on
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
The light does not turn on when the ignition is switched ON.
The light continues to remain on even though the i-stop OFF switch has been pressed
while the engine is running.
When the light is À ashing
The light continues to À ash if the system has a malfunction. Have your vehicle inspected at
an expert repairer, we recommend an Authorised Mazda Repairer.


(Amber)
i-ELOOP Warning
Light
* The light turns on if there is any malfunction in the i-ELOOP system. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.

7–42
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning


(Amber)
Adaptive LED
Headlights (ALH)
Warning Light
* The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.


Lane Departure
Warning System
(LDWS) Warning
Light
*
The warning light remains turned on if there is a problem with the system. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.

The LDWS does not operate when the warning light illuminates.
CAUTION
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.

When the light remains turned on while driving the vehicle.
When the system is cancelled automatically, the light turns on. Normally, the system
restores automatically and the light turns off, however, if the light remains turned on,
there may be a problem with the system.

The light does not illuminate when the ignition is switched ON.
Always use tyres for all wheels that are of the speci¿ ed size, and the same
manufacture, brand, and tread pattern. In addition, do not use tyres with signi¿ cantly
different wear patterns on the same vehicle. If such improper tyres are used, the
LDWS may not operate normally.

When an emergency spare tyre is used, the system may not operate normally.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.


Blind Spot
Monitoring (BSM)
OFF Indicator
Light
* A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda
Repairer.
The light does not turn on when the ignition is switched ON.
The light remains on even when the Blind Spot Monitoring (BSM) system can be
operated.

The light turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traf¿ c and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator
light in the instrument cluster illuminates). However, it does not indicate a malfunction.

7–44
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken


Seat Belt
Warning Light
(Front seat) The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the
ignition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light À ashes. After a short time,
the warning light stops À ashing, but remains
illuminated. If a seat belt remains unfastened,
the warning light À ashes again for a given
period of time.
NOTE
If the driver or front passenger's seat
belt is unfastened after the warning light
turns on, and the vehicle speed exceeds
20 km/h (12 mph), the warning light
À ashes again.

Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.

To allow the front passenger's seat
weight sensor to function properly, do
not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly
because the additional seat cushion could
cause sensor interference.

If a small child is seated on the front
passenger's seat, the warning light may
not operate. Fasten the seat belts.


(Red)
Seat Belt
Warning Light
(Rear seat)
* If the rear seat belts are not fastened while the
ignition is switched ON , the driver and the
passenger are alerted by the warning light.
The warning light operates even if there is no
passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a
certain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.

7–47
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken


(Amber)
Smart Brake
Support/Smart
City Brake
Support (SBS/
SCBS) Warning
Light
* The light turns on if the windscreen or
the radar sensor are dirty, or there is a
malfunction in the system.
Vehicles with type B audio
Verify the reason why the warning light
is illuminated on the centre display (page
7-35 ).
If the reason why the warning light is
illuminated is due to a dirty windscreen, clean
the windscreen.
If the warning light is illuminated because of
a dirty radar sensor, clean the front emblem.
For any other reasons, have the vehicle
inspected at an expert repairer, we recommend
an Authorised Mazda Repairer.
Vehicles with type A audio
If the reason why the warning light is
illuminated is due to a dirty windscreen, clean
the windscreen. For any other reasons, have
the vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer.


KEY Warning Light
Take the appropriate action and verify that the warning light turns off.

Signal Cause Action to be taken


(Red)
(Flashing) The advanced key battery is dead. Replace the key battery (page 6-41 ).
The advanced key is not within the
operation range.
Bring the advanced key into the operation
range (page 3-7 ). The advanced key is placed in areas inside
the cabin where it is dif¿ cult for the key to
be detected.
A key from another manufacturer similar to
the advanced key is in the operation range. Take the key from another manufacturer
similar to the advanced key out of the
operation range.
Without the ignition switched off, the
advanced key is taken out of the cabin, and
then all the doors are closed. Bring the advanced key back into the
cabin.
