CD player MAZDA MODEL 2 2017 Owners Manual (in English)

1–4
Pictorial Index
Interior Overview (Left-Hand Drive Model)
Interior Equipment (View B)



SRS air bags .......................................................................................................... page 2-41



Active driving display ........................................................................................... page 4-35



Air-conditioning system .......................................................................................... page 5-4



Rear window defogger switch............................................................................... page 4-78



Audio system................................................................................................page 5-26 , 5-80



Seat warmer switches .............................................................................................. page 2-6



CD player .....................................................................................................page 5-34 , 5-94



Accessory sockets ............................................................................................... page 5-159



External input terminal.......................................................................................... page 5-20



Drive selection switch ......................................................................................... page 4-100



Shift lever/Selector lever ..............................................................................page 4-46 , 4-49


Fuse block (Left side) ........................................................................................... page 6-61
The equipment and installation position varies by vehicle

1–8
Pictorial Index
Interior Overview (Right-Hand Drive Model)
Interior Equipment (View B)




SRS air bags .......................................................................................................... page 2-41



Air-conditioning system .......................................................................................... page 5-4



Rear window defogger switch............................................................................... page 4-78



Audio system................................................................................................page 5-26 , 5-80



Seat warmer switches .............................................................................................. page 2-6



Active driving display ........................................................................................... page 4-35



CD player .....................................................................................................page 5-34 , 5-94



DVD player ........................................................................................................... page 5-97



Accessory sockets ............................................................................................... page 5-159



External input terminal.......................................................................................... page 5-20



Drive selection switch ......................................................................................... page 4-100



Shift lever/Selector lever ..............................................................................page 4-46 , 4-49


Fuse block (Left side) ........................................................................................... page 6-61
The equipment and installation position varies by vehicle

5–1*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.

Air-Conditioning System .................... 5-4
Operating Tips ................................ 5-4
Vent Operation ............................... 5-5
Manual Type .................................. 5-7
Fully Automatic Type ................... 5-14

Before Using the Audio System ........ 5-18
Audio Control Switch
* ................. 5-18
AUX/USB mode .......................... 5-20
Aerial ............................................ 5-23

Audio Set
[Type A (non-touchscreen)] .............. 5-26
Power/Volume/Sound Controls .... 5-26
Clock ............................................ 5-28
Operating the Radio ..................... 5-30
Operating the Compact Disc (CD)
Player
* .......................................... 5-34
How to use AUX mode ................ 5-37
How to use USB mode ................. 5-38
How to use iPod mode ................. 5-42
Error Indications .......................... 5-45
Bluetooth
® * ................................... 5-46
Bluetooth® Preparation * ............... 5-49
Available Language * .................... 5-60
Security Setting * ........................... 5-61
Bluetooth® Audio * ........................ 5-62
Bluetooth® Hands-Free * ............... 5-65
Voice Recognition * ....................... 5-72
Voice Recognition Learning Function
(Speaker Enrolment)
* ................... 5-73
Troubleshooting * .......................... 5-76
Audio Set [Type B (touchscreen)] .... 5-80
Basic Operation Method .............. 5-80
Home screen ................................. 5-85
Volume/Display/Sound
Controls ........................................ 5-86
Operating the Radio ..................... 5-88
Operating the Digital Audio
Broadcasting (DAB) Radio
* ......... 5-91
Operating the Compact Disc
(CD) Player .................................. 5-94
Operating the Digital Versatile Disc
(DVD) Player
* .............................. 5-97
How to use AUX mode .............. 5-100
How to use USB mode ............... 5-101
Bluetooth
® .................................. 5-107
Bluetooth® Preparation ............... 5-111
Available Language * .................. 5-113
Bluetooth® Audio ....................... 5-114
How to Use Aha™ ....................... 5-118
How to Use Stitcher™ Radio ...... 5-122
Bluetooth® Hands-Free .............. 5-124
Voice Recognition ...................... 5-134
Settings ....................................... 5-137
Applications ............................... 5-139
Troubleshooting ......................... 5-140

Appendix .......................................... 5-144
Things You Need to Know ......... 5-144

5–20
Interior Features
Before Using the Audio System
AUX/USB mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug lead is required.
Contact an expert repairer, we recommend
an Authorised Mazda Repairer for details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine)
with stored map data is inserted into the
SD card slot and used.
Type A (Without CD player)


Auxiliary jack/USB port
Type A (With CD player)


Auxiliary jack/USB port

Ty p e B


USB port
Auxiliary jack





How to use AUX mode
(Type A) .................................page 5-37



How to use USB mode
(Type A) .................................page 5-38



How to use iPod mode
(Type A) .................................page 5-42



How to use AUX mode
(Type B) ...............................page 5-100



How to use USB mode
(Type B) ...............................page 5-101

5–22
Interior Features
Before Using the Audio System
How to connect USB port/
Auxiliary jack
Type A (Without CD player)


USB port Auxiliary jack

Type A (With CD player)


USB port Auxiliary jack

Ty p e B


USB port Auxiliary jack

Connecting a device
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the connector on the device to
the USB port.

Connecting with a connector lead
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the device plug/connector lead
to the auxiliary jack/USB port.

WARNING
Do not allow the connection plug cord
to get tangled with the parking brake
or the shift lever (manual transaxle)/
selector lever (automatic transaxle):
Allowing the plug cord to become
tangled with the parking brake or
the shift lever (manual transaxle)/
selector lever (automatic transaxle) is
dangerous as it could interfere with
driving, resulting in an accident.
CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.

5–34
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Operating the Compact Disc (CD) Player *

CD eject button CD slotMedia/Scan buttonFolder down button Folder up button Play/Pause button
Random button Repeat button
Audio display Text button
Track down/
Reverse button
Track up/
Fast-forward button

Type Playable data
Music/MP3/WMA/
AAC CD player
Music data (CD-DA)
MP3/WMA/AAC ¿ le

NOTE
If a disc has both music data (CD-
DA) and MP3/WMA/AAC ¿ les,
playback of the two or three ¿ le types
differs depending on how the disc was
recorded.
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play.
NOTE
There will be a short lapse before play
begins while the player reads the digital
signals on the CD.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.

5–49
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Bluetooth ® Preparation *
Bluetooth ® Hands-Free
Preparation
Pairing code setting
The 4-digit pairing code setting for
registration of your cell phone (pairing)
can be set beforehand.
NOTE
The initial setting value is “0000”.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:
Pair, Edit, Delete, List, or Set pin
Code.”
6. Say: [Beep] “Set pin code”
7. Prompt: “Your current pin code is
XXXX. Do you want to change it to a
different pairing pin code?”
8. Say: [Beep] “Yes”
9. Prompt: “Please say a 4-digit pairing
code.”
10. Say: [Beep] “YYYY”
11. Prompt: “YYYY is this correct?”
12. Say: [Beep] “Yes” or “No”
13. If “Yes”, go to Step 14. If “No”, the
procedure returns to Step 9.
14. Prompt: “Your new pairing pin code is
YYYY. Use this pin code when pairing
devices to the Hands free system. Do
you want to pair a device now?” 15. Say: [Beep] “Yes” or “No”
16. If “Yes”, the system switches to the
device registration mode. If “No”, the
system returns to standby status.

Device pairing (Bluetooth ® Hands-
Free)
To use Bluetooth ® Hands-Free, the device
equipped with Bluetooth ® has to be paired
to the Bluetooth ® unit using the following
procedure.
A maximum of seven devices including
hands-free mobile phones and Bluetooth
®
audio devices can be paired to one vehicle.
NOTE
  A device can be paired only when
the vehicle is parked. If the vehicle
starts to move, the pairing procedure
will end. Pairing is dangerous while
driving - pair up your device before
you start driving. Park the car in a
safe place before paired.
  If a Bluetooth ® device has already
been paired to the vehicle as a
Bluetooth
® audio device, it does not
need to be paired again when using
the device as a hands-free mobile
phone. Conversely, it does not need
to be paired again as a Bluetooth
®
audio device if it has already been
paired as a hands-free mobile phone.
  Since the communication range of
a Bluetooth ® equipped device is
about 10 meters (32 ft), if a device is
placed within a 10-meter
(32 ft) radius of the vehicle, it may
be detected/paired unintentionally
while another device is being paired.

5–50
Interior Features
Audio Set [Type A (non-touchscreen)]
1. Activate the Bluetooth ® application of
the device.
NOTE
For the operation of the device, refer to
its instruction manual.
2. Press the pick-up button or talk button
with a short press.
3. Say: [Beep] “Setup”
4. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
5. Say: [Beep] “Pairing options”
6. Prompt: “Select one of the following:
Pair, edit, delete, list, or set pin code.”
7. Say: [Beep] “Pair”
8. Prompt: “Start the pairing process on
your Bluetooth
® device. Your pin code
is 0000 (XXXX). Input this on your
Bluetooth
® device. See device manual
for instructions.”
9. Using the device, perform a search
for the Bluetooth
® device (Peripheral
device).
NOTE
For the operation of the device, refer to
its instruction manual.
10. Select “Mazda” from the device list
searched by the device.
11. Input the 4-digit pairing code to the
device.
12. Prompt: “Please say the name of the
device after the beep.”
13. Say: [Beep] “XXXX - - -” (Speak a
“device tag”, an arbitrary name for the
device.)
Example: “Stan's device.”
NOTE
Say a paired “device tag” within
10 seconds.
If more than two devices are to be
paired, they cannot be paired with the
same or similar “device tag”.
14. Prompt: “Adding XXXXXX - - - (Ex.
“Stan's device”) (Device tag). Is this
correct?”
15. Say: [Beep] “Yes”
16. Prompt: “Pairing complete”


After a device is registered, the system
automatically identi¿ es the device. By
activating Bluetooth
® Hands-Free again,
or by activating Bluetooth ® Hands-Free
¿ rst after switching the ignition from
OFF to ACC, the system reads out a voice
guidance, “XXXXXX - - - (Ex. “Stan's
device”) (Device tag) is connected”.
NOTE
  When the pairing is completed, the
symbol is displayed.
  Some Bluetooth ® audio devices need
a certain amount of time before the

symbol is displayed.
  Device registration can also be done
by operating the audio unit.
  Depending on the device, the
registration status may be lost after a
certain period of time. If this occurs,
repeat the entire process from Step 1.

5–51
Interior Features
Audio Set [Type A (non-touchscreen)]
Registered device read-out
Bluetooth
® Hands-Free can read-out the
devices registered to its system.
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to
be effective.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:
Pair, edit, delete, list, or set pin code.”
6. Say: [Beep] “List” 7. Prompt: “XXXXX..., XXXXX...,
XXXXX... (Ex. Device A, device B,
device C)” (The voice guidance reads
out the device tags registered to the
hands-free system.)

Press the talk button with a short press
during the read-out at the desired
device, and then say one of the
following voice commands to execute
it.



 “Select phone”: Selects device
(Mobile phone) when the talk button
is short-pressed.



 “Select music player”: Selects device
(Music player) when the talk button is
short-pressed.



 “Edit”: Edits device when the talk
button is short-pressed.



 “Continue”: Continues the list read-
out.



 “Delete”: Deletes the registered
device when the talk button is short-
pressed.



 “Previous”: Returns to the previous
device in read-out when the talk
button is short-pressed.

8. Prompt: “End of list, would you like to
start from the beginning?”
9. Say: [Beep] “No”
10. Prompt: “Returning to main menu.”

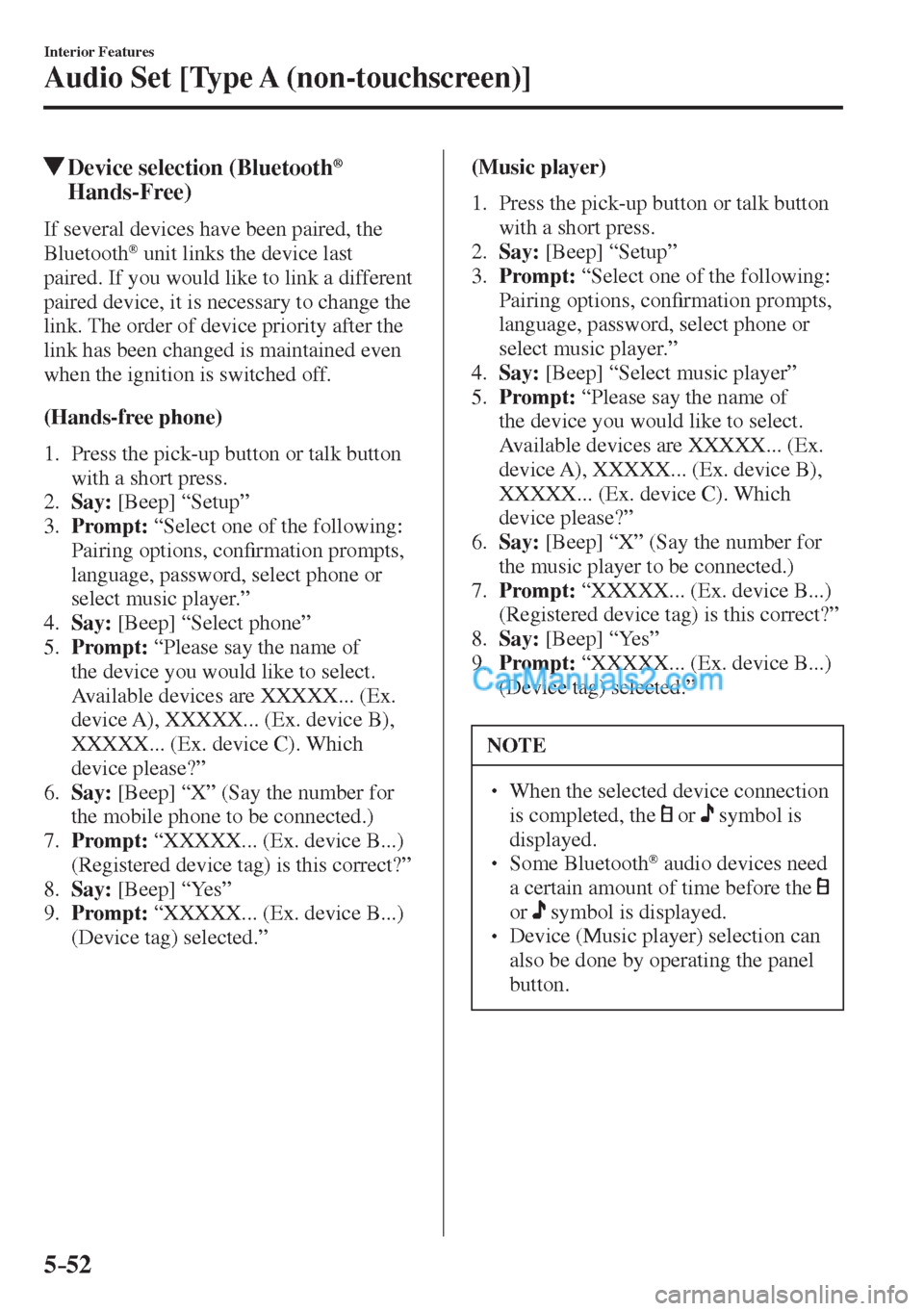

5–52
Interior Features
Audio Set [Type A (non-touchscreen)]
Device selection (Bluetooth ®
Hands-Free)
If several devices have been paired, the
Bluetooth ® unit links the device last
paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.
(Hands-free phone)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Select phone”
5. Prompt: “Please say the name of
the device you would like to select.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device B),
XXXXX... (Ex. device C). Which
device please?”
6. Say: [Beep] “X” (Say the number for
the mobile phone to be connected.)
7. Prompt: “XXXXX... (Ex. device B...)
(Registered device tag) is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “XXXXX... (Ex. device B...)
(Device tag) selected.”

(Music player)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Select music player”
5. Prompt: “Please say the name of
the device you would like to select.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device B),
XXXXX... (Ex. device C). Which
device please?”
6. Say: [Beep] “X” (Say the number for
the music player to be connected.)
7. Prompt: “XXXXX... (Ex. device B...)
(Registered device tag) is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “XXXXX... (Ex. device B...)
(Device tag) selected.”

NOTE
  When the selected device connection
is completed, the
or symbol is
displayed.
  Some Bluetooth ® audio devices need
a certain amount of time before the

or
symbol is displayed.   Device (Music player) selection can
also be done by operating the panel
button.
