MAZDA MODEL 3 4-DOOR 2005 Owners Manual

Black plate (141,1)
Meters and Gauges
(Black-out meter)
When the ignition switch is in the ON position, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-28
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-28
Tachometer ........................................................................................................ page 5-30
Engine Coolant Temperature Gauge .................................................................. page 5-30
Fuel Gauge ........................................................................................................ page 5-30
Instrument Cluster Dimmer Select Button (Black-out meter) ............................ page 5-31
Driving Your Mazda
Instrument Cluster and Indicators
5-27
Mazda3_8T96-EA-04J_Edition3 Page141
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (142,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Trip meter
Odometer
Odometer
Odometer Trip meter A
Press the selector
Press the selector
Trip meter B
5-28
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8T96-EA-04J_Edition3 Page142
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (143,1)
NOTE
l(Standard meter)
The odometer and trip meter can be
displayed as follows even when the
ignition switch is in the ACC or
LOCK position.
lDisplays for 10 minutes after the
ignition switch is turned to the
ACC or LOCK position from the
ON position.
lDisplays for 10 minutes after the
driver's door is opened.
l(Black-out meter)
When the ignition switch is in the
ACC or LOCK position, the
odometer or trip meters cannot be
displayed, however, pressing the
selector button can inadvertently
switch the trip meters or reset them
during an approximate ten-minute
period in the following cases:
lAfter the ignition switch is turned
to the ACC or LOCK position
from the ON position.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to
“0.0 ”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:
lThe power supply is interrupted
(blown fuse or the battery is
disconnected).
lThe vehicle is driven over 999.9
km (mile).
Driving Your Mazda
Instrument Cluster and Indicators
5-29
Mazda3_8T96-EA-04J_Edition3 Page143
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (144,1)
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Don't run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
qEngine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
CAUTION
Driving with an overheated engine can
cause serious engine damage (page
7-12).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel
warning light
NOTE
The direction of the arrow () shown
next to the low fuel warning light
indicates that the fuel-filler lid is on the
right side of the vehicle.
5-30
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8T96-EA-04J_Edition3 Page144
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (145,1)

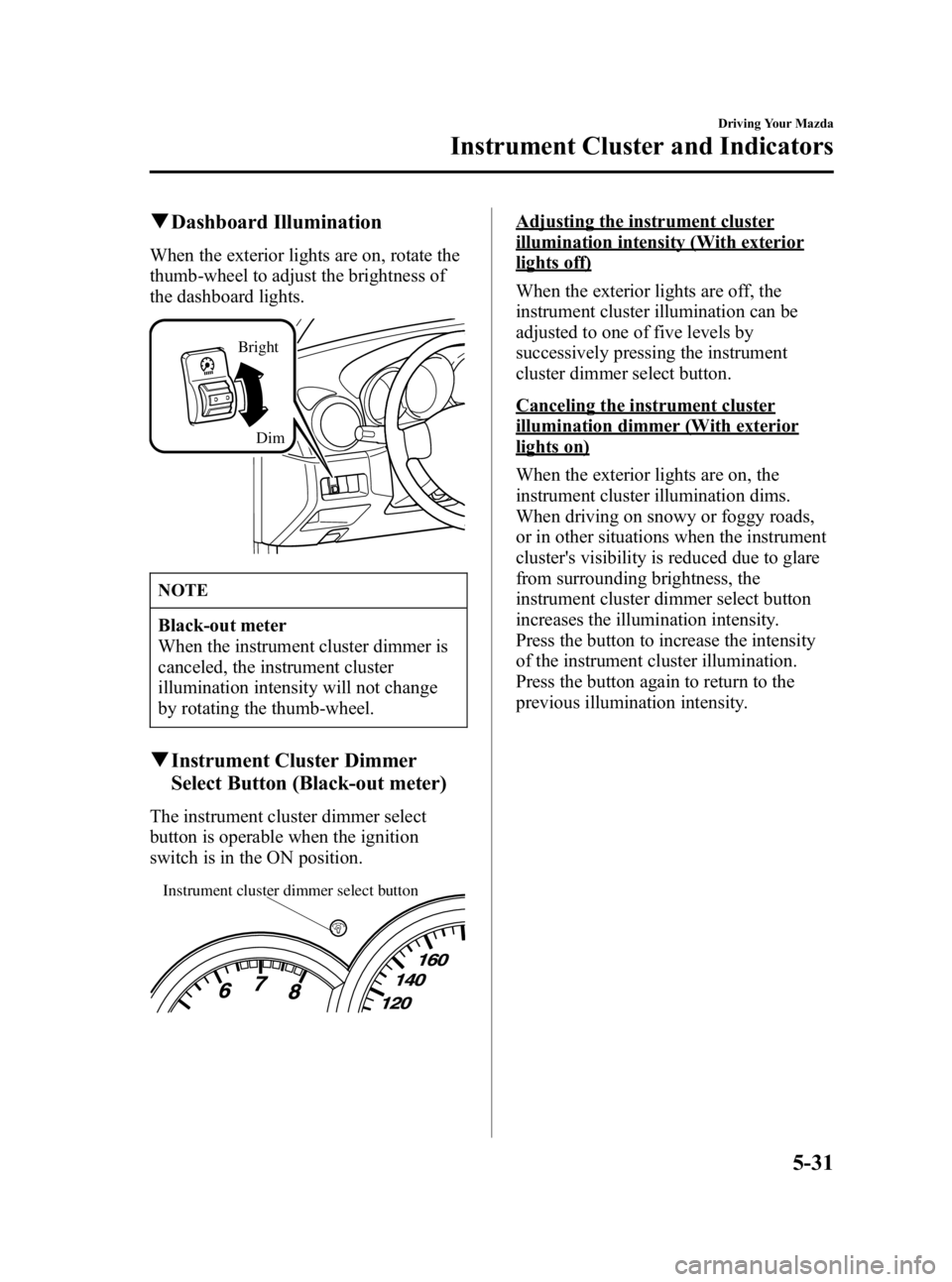

qDashboard Illumination
When the exterior lights are on, rotate the
thumb-wheel to adjust the brightness of
the dashboard lights.
Bright
Dim
NOTE
Black-out meter
When the instrument cluster dimmer is
canceled, the instrument cluster
illumination intensity will not change
by rotating the thumb-wheel.
qInstrument Cluster Dimmer
Select Button (Black-out meter)
The instrument cluster dimmer select
button is operable when the ignition
switch is in the ON position.
Instrument cluster dimmer select button
Adjusting the instrument cluster
illumination intensity (With exterior
lights off)
When the exterior lights are off, the
instrument cluster illumination can be
adjusted to one of five levels by
successively pressing the instrument
cluster dimmer select button.
Canceling the instrument cluster
illumination dimmer (With exterior
lights on)
When the exterior lights are on, the
instrument cluster illumination dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster's visibility is reduced due to glare
from surrounding brightness, the
instrument cluster dimmer select button
increases the illumination intensity.
Press the button to increase the intensity
of the instrument cluster illumination.
Press the button again to return to the
previous illumination intensity.
Driving Your Mazda
Instrument Cluster and Indicators
5-31
Mazda3_8T96-EA-04J_Edition3 Page145
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (146,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
SignalWarning/Indicator Lights Page
Brake System Warning Light 5-34
Charging System Warning Light5-35
Engine Oil Pressure Warning Light5-36
Check Engine Light5-36
ABS Warning Light5-34
Air Bag/Front Seat Belt Pretensioner System Warning Light5-37
Low Fuel Warning Light5-37
5-32
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8T96-EA-04J_Edition3 Page146
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (147,1)
SignalWarning/Indicator Lights Page
Seat Belt Warning Light/Beep 5-37
Door-Ajar Warning Light5-38
Low Washer Fluid Level Warning Light5-39
Automatic Transaxle Warning Light5-39
Tire Pressure Monitoring System Warning Light5-39
Security Indicator Light5-41
Headlight High-Beam Indicator Light5-41
Shift Position Indicator Light5-41
Cruise Main Indicator Light5-42
Cruise Set Indicator Light5-42
Light-On Indicator Light5-42
Power Steering Malfunction Indicator Light5-42
Turn Signal/Hazard Warning Indicator Lights5-43
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-33
Mazda3_8T96-EA-04J_Edition3 Page147
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (148,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-20).
2. After adding fluid, check the light again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes out have your brake
system inspected as soon as possible by
an Authorized Mazda Dealer.
NOTE
Having to add brake fluid is sometimes
an indicator of leakage. Consult an
Authorized Mazda Dealer as soon as
possible even if the brake light is no
longer illuminated.
WARNING
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or
that they could completely fail at any
time. If this light remains on, after
checking that the parking brake is
fully released, have the brakes
inspected immediately. Don't drive
with this light on, have the vehicle
towed to an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
q ABS Warning Lightí
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
5-34
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda3_8T96-EA-04J_Edition3 Page148
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (149,1)
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light and the ABS warning light
on at the same time. The problem is likely
to be an electronic brake force distribution
system.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, have
the vehicle towed to an Authorized
Mazda Dealer to have the brakes
inspected as soon as possible.
qCharging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-35
Mazda3_8T96-EA-04J_Edition3 Page149
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J

Black plate (150,1)
CAUTION
Don't continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Pressure Warning
Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
This warning light indicates low engine
oil pressure.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and inspect the engine oil level (page 8-15). If it's low,
add oil.
3. Check the light.
If the light remains illuminated even after
you add oil, have your vehicle towed to
an Authorized Mazda Dealer.
CAUTION
Don't run the engine if oil pressure is
low. It could result in extensive engine
damage.
q Check Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
5-36
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8T96-EA-04J_Edition3 Page150
Wednesday, May 11 2005 3:37 PM
Form No.8T96-EA-04J
