Black plate (300,1)

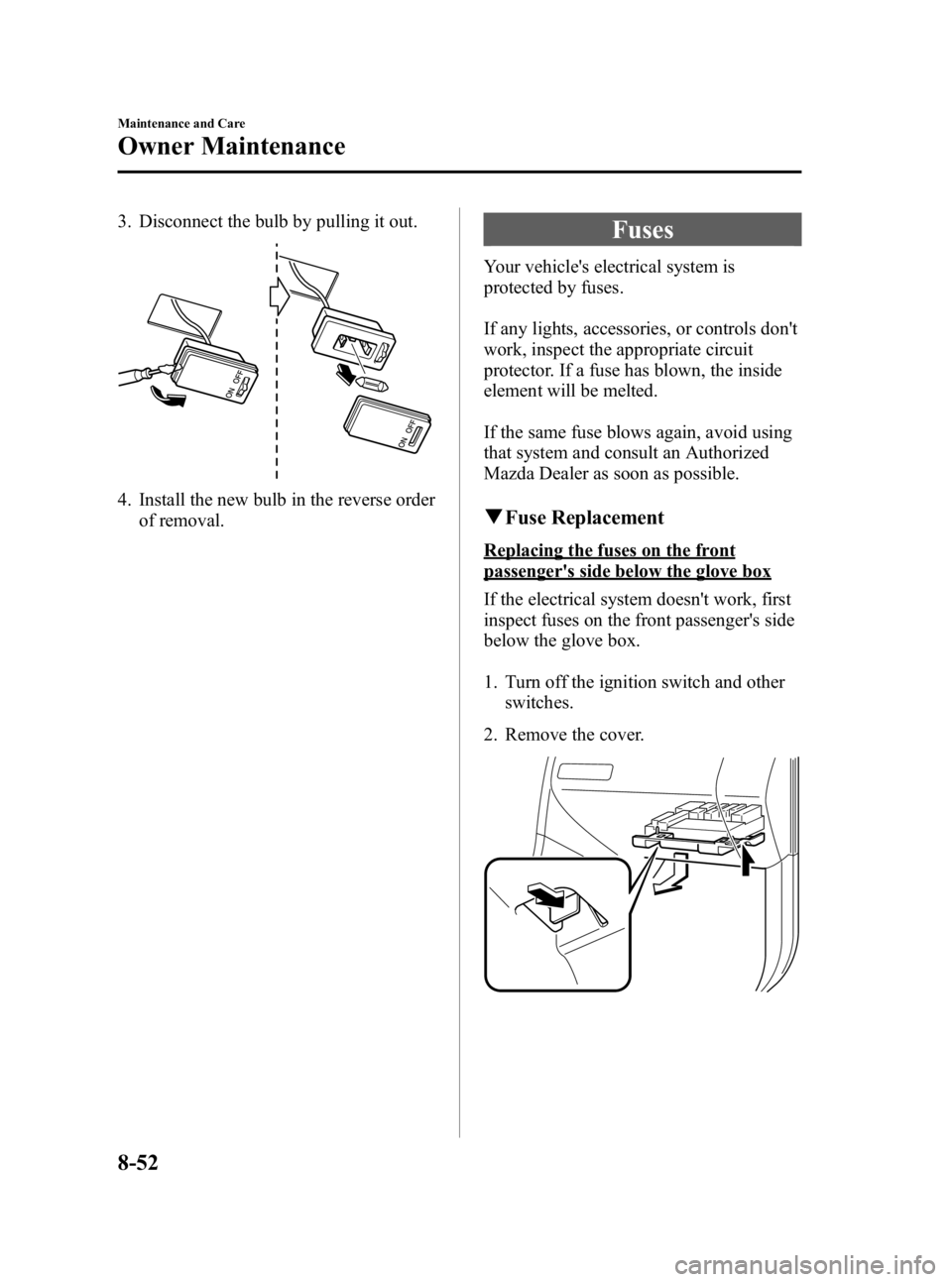

3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system doesn't work, first
inspect fuses on the front passenger's side
below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page300
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (369,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-32
Daytime Running Lights ................... 5-48
DefrosterRear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-14Flooded engine ........................... 7-14
Jump-starting .............................. 7-15
Push-starting .............................. 7-18
Emergency Towing ........................... 7-19
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-12
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-12
E
Engine Coolant Temperature
Gauge ................................................ 5-31
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-61
F
FlasherHazard warning .......................... 5-55
Headlights .................................. 5-46
Flat Tire ............................................... 7-3 Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-54
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-18
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52 Panel description ........................ 8-55
Replacement ............................... 8-52
G
Glove Box ......................................... 6-52
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-8
Index
11-3
Mazda3_8U55-EA-05G_Edition3 Page369
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G
