Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
(Except 4 Door)
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
(4 Door)
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, or
become trapped by climbing into the
trunk, which could result in death.
Also, a vehicle left unlocked becomes
an easy target for thieves and
intruders.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
NOTE
If your vehicle is equipped with a front
passenger door key slot, the door can be
locked/unlocked with the key.
3-8
Knowing Your Mazda
Doors and Locks
Mazda3_8Y64-EA-08A_Edition1 Page84
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (85,1)
qLocking, Unlocking with
Transmitterí
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, push the
door-lock knob.
To unlock, pull it out.
This does not operate the other door
locks.
Unlock Lock
To lock any door with the door-lock knob
from the outside, push the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
(Lock position)
NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
q
Power Door Locksí
Vehicle lock-out prevention
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with either
front door open.
Knowing Your Mazda
Doors and Locks
3-9íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page85
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (86,1)

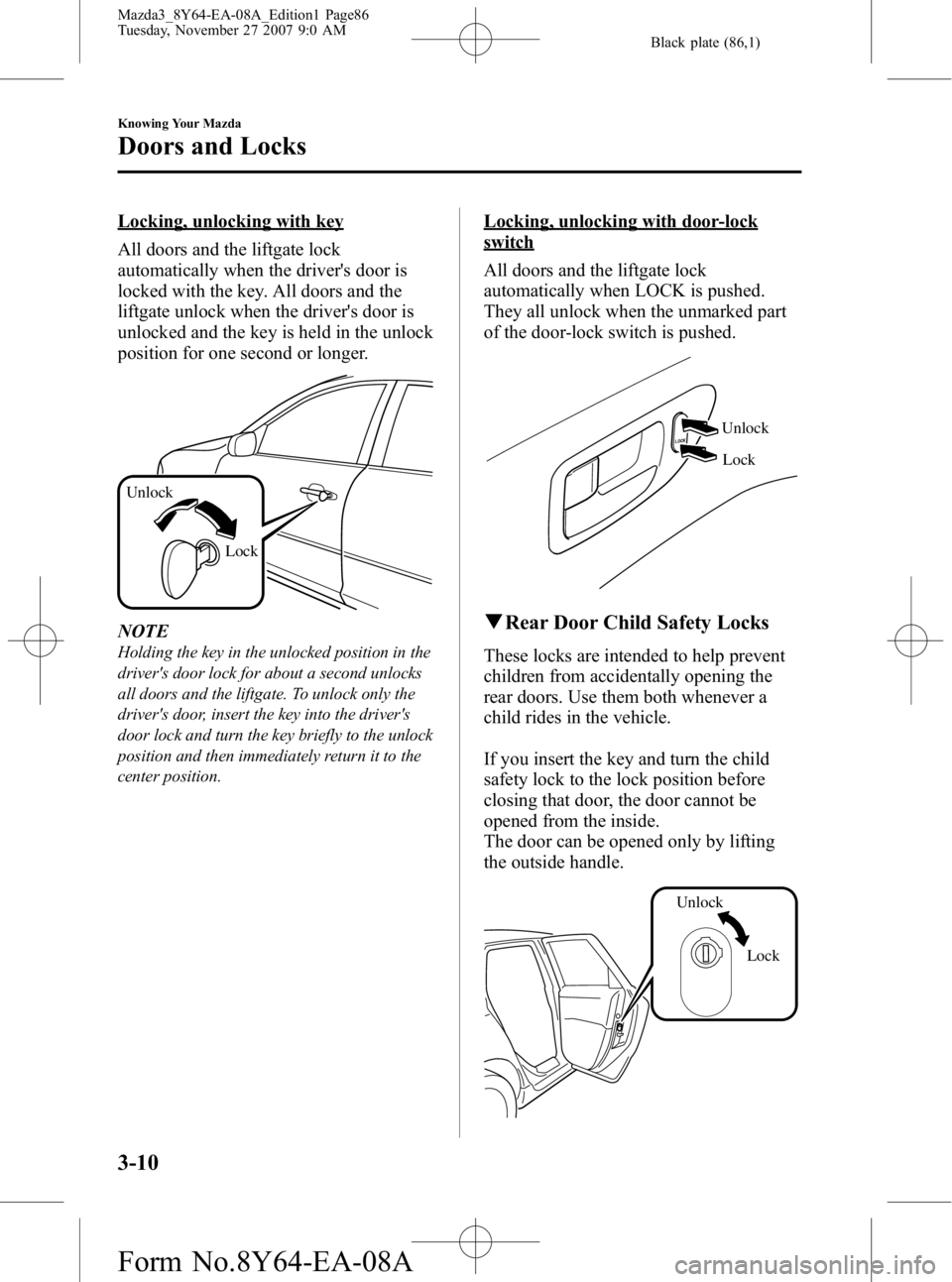

Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key. All doors and the
liftgate unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
UnlockLock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when LOCK is pushed.
They all unlock when the unmarked part
of the door-lock switch is pushed.
UnlockLock
q Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you insert the key and turn the child
safety lock to the lock position before
closing that door, the door cannot be
opened from the inside.
The door can be opened only by lifting
the outside handle.
Lock
Unlock
3-10
Knowing Your Mazda
Doors and Locks
Mazda3_8Y64-EA-08A_Edition1 Page86
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (87,1)
Liftgate (5 Door)
WARNING
Never allow a person to ride in the
luggage compartment:Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
qLocking, Unlocking with Keyí
To lock the liftgate with the key, insert the
key and turn it counterclockwise.
To unlock the liftgate with the key, insert
the key and turn it clockwise.
Unlock
Lock
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-9).
qLocking, Unlocking with Transmitter
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
q
Locking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-9).
qOpening and Closing the Liftgate
Opening the liftgate
Pull the handle and lift up the liftgate.
Knowing Your Mazda
Doors and Locks
3-11íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page87
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (90,1)

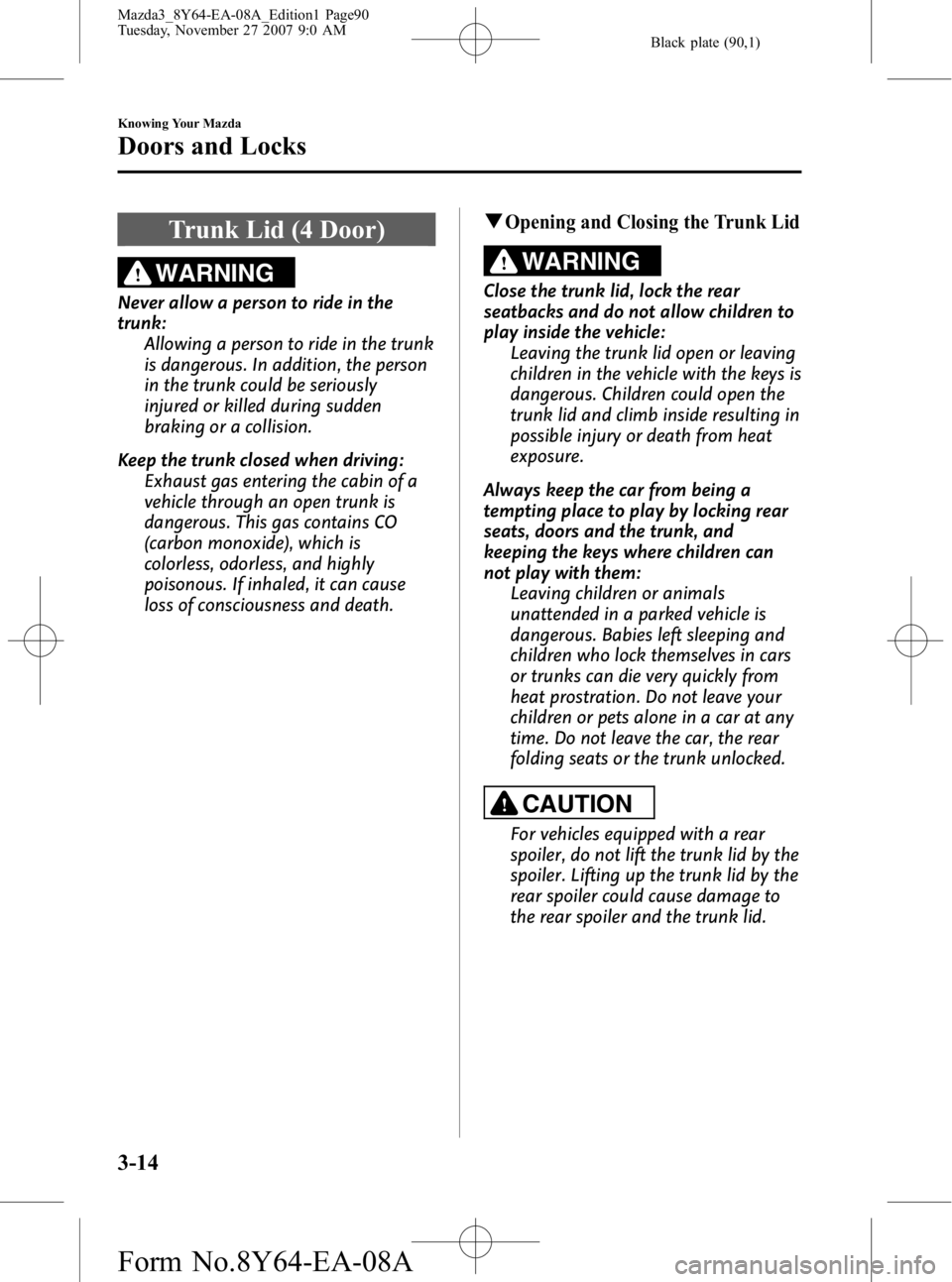

Trunk Lid (4 Door)
WARNING
Never allow a person to ride in the
trunk:Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving: Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to
the rear spoiler and the trunk lid.
3-14
Knowing Your Mazda
Doors and Locks
Mazda3_8Y64-EA-08A_Edition1 Page90
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (91,1)

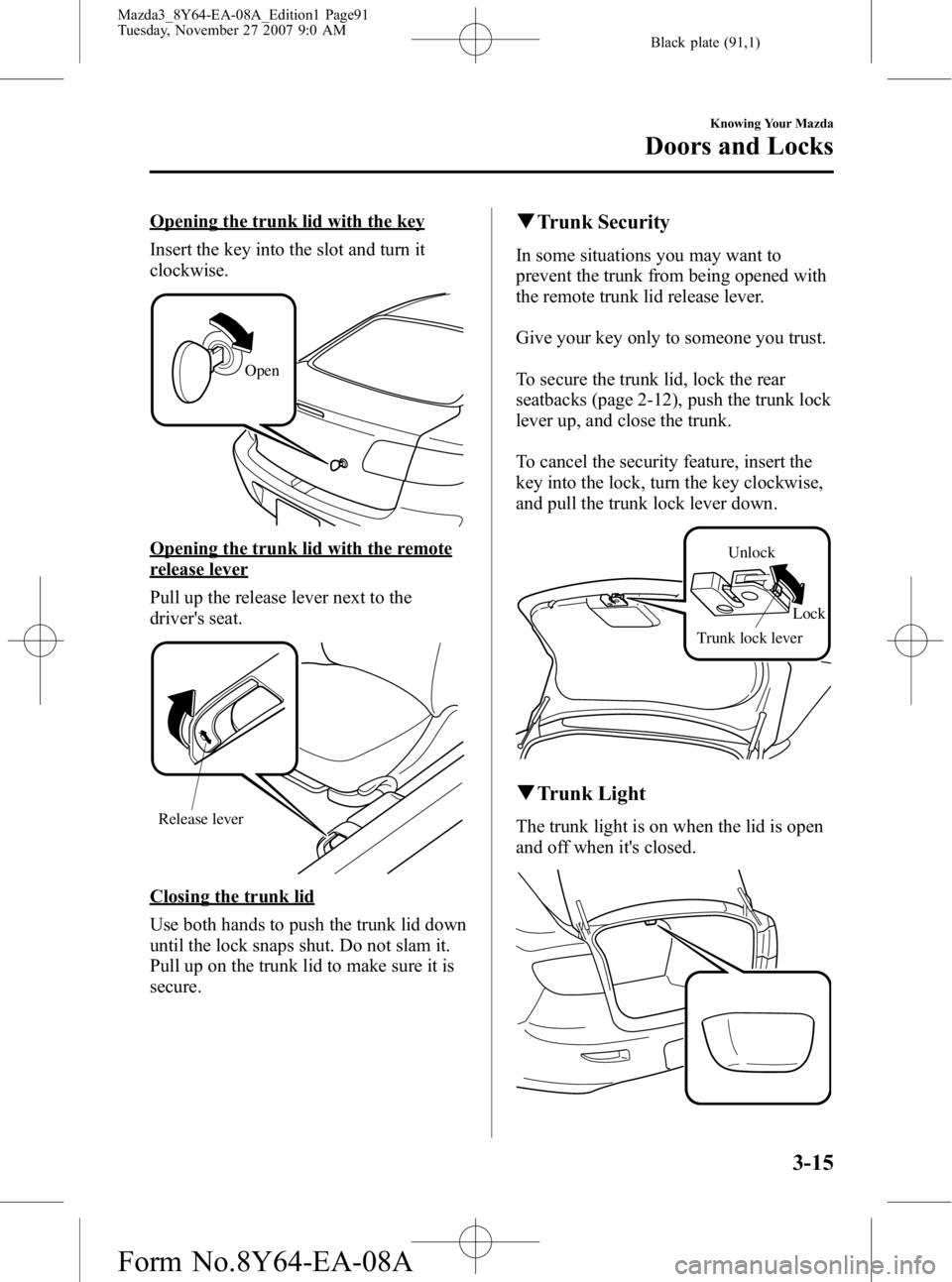

Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the remote
release lever
Pull up the release lever next to the
driver's seat.
Release lever
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Security
In some situations you may want to
prevent the trunk from being opened with
the remote trunk lid release lever.
Give your key only to someone you trust.
To secure the trunk lid, lock the rear
seatbacks (page 2-12), push the trunk lock
lever up, and close the trunk.
To cancel the security feature, insert the
key into the lock, turn the key clockwise,
and pull the trunk lock lever down.
Unlock
Lock
Trunk lock lever
q Trunk Light
The trunk light is on when the lid is open
and off when it's closed.
Knowing Your Mazda
Doors and Locks
3-15
Mazda3_8Y64-EA-08A_Edition1 Page91
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (92,1)

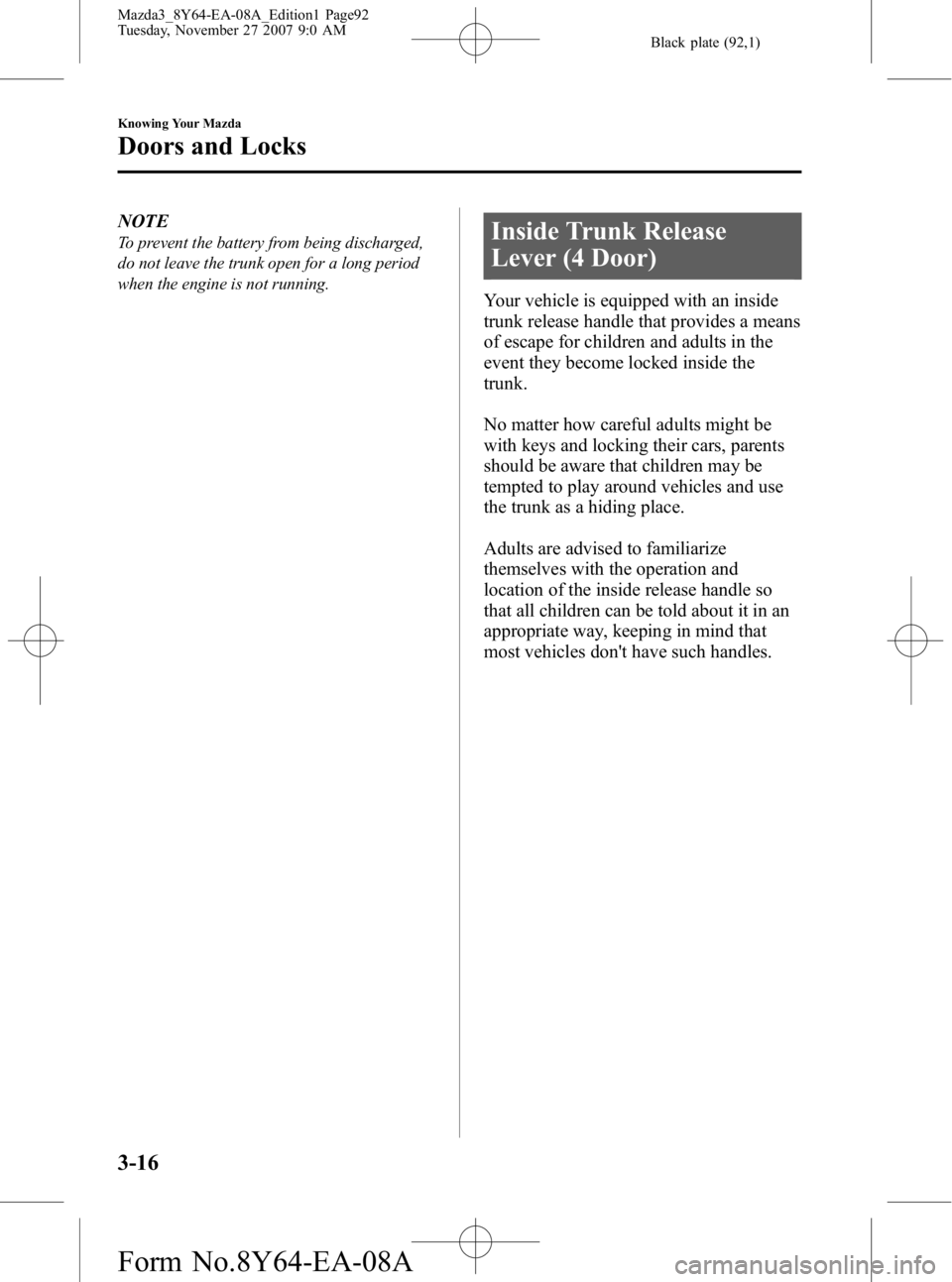

NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.Inside Trunk Release
Lever (4 Door)
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don't have such handles.
3-16
Knowing Your Mazda
Doors and Locks
Mazda3_8Y64-EA-08A_Edition1 Page92
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (93,1)

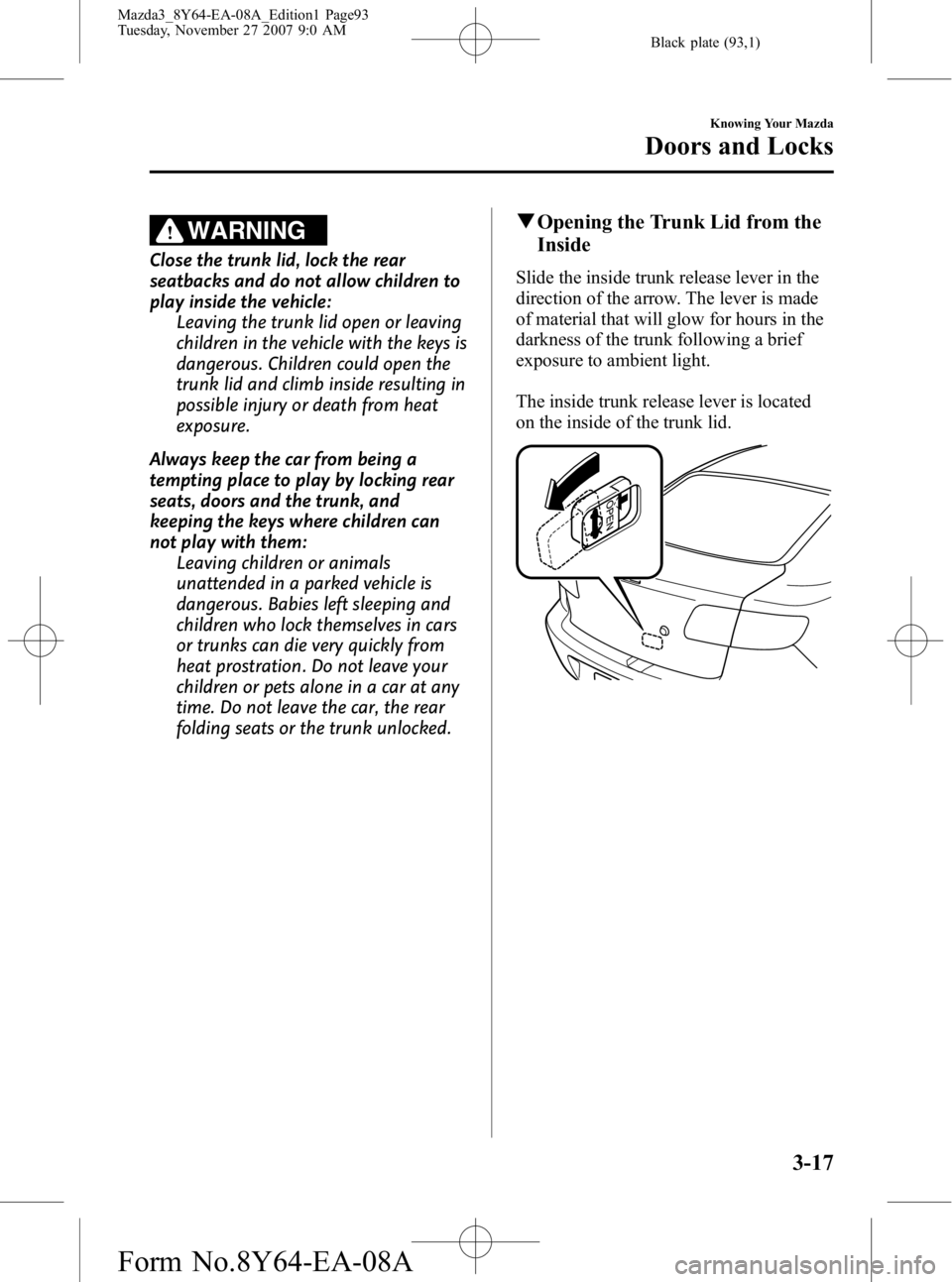

WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Knowing Your Mazda
Doors and Locks
3-17
Mazda3_8Y64-EA-08A_Edition1 Page93
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (101,1)

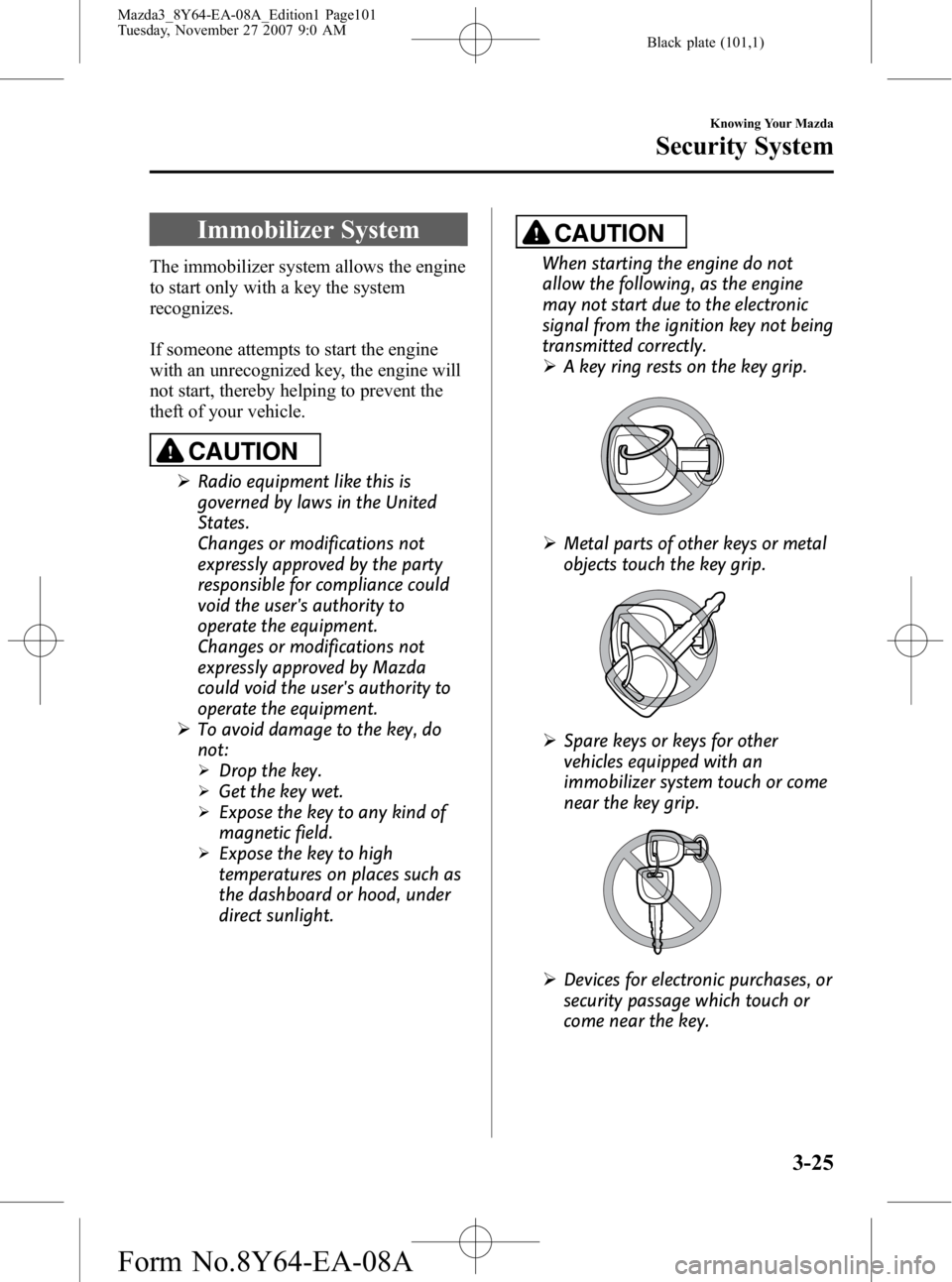

Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Changes or modifications not
expressly approved by Mazda
could void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
Knowing Your Mazda
Security System
3-25
Mazda3_8Y64-EA-08A_Edition1 Page101
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (102,1)
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument cluster flashes every two
seconds until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about three seconds and goes out. If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lIf the security indicator light comes on and
stays on when the ignition switch is turned
to the ON position, the engine will not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it doesn't start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, don't
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you won't be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
3-26
Knowing Your Mazda
Security System
Mazda3_8Y64-EA-08A_Edition1 Page102
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A
