display MAZDA MODEL 3 4-DOOR 2008 Owners Manual

Black plate (9,1)
Headlight leveling switch .................................................................................. page 5-52
Dashboard illumination knob ............................................................................ page 5-35
Lighting control/Turn signal .............................................................................. page 5-50
Instrument cluster .............................................................................................. page 5-32
SRS air bags ...................................................................................................... page 2-44
Cruise control switches ...................................................................................... page 5-19
Wiper and washer lever ..................................................................................... page 5-54
Hazard warning flasher switch .......................................................................... page 5-60
Information display ............................................................................................ page 6-67
Audio system ..................................................................................................... page 6-16
Glove box .......................................................................................................... page 6-74
Center console ................................................................................................... page 6-75
Parking brake ....................................................................................................... page 5-6
Cup holder ......................................................................................................... page 6-73
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-12
Lighter ............................................................................................................... page 6-72
Rear window defroster switch ........................................................................... page 5-58
Ashtray ............................................................................................................... page 6-72
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-29
Audio control switches ...................................................................................... page 6-58
Remote fuel-filler lid release ............................................................................. page 3-20
Hood release handle .......................................................................................... page 3-21
Outside mirror switch ........................................................................................ page 3-29
Interior lights ..................................................................................................... page 6-64
Sunvisor ............................................................................................................. page 6-64
Rearview mirror ................................................................................................. page 3-30
Vanity mirror ...................................................................................................... page 6-64
Front seat ............................................................................................................. page 2-2
Seat belt ............................................................................................................. page 2-14
Rear seat ............................................................................................................ page 2-10
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda3_8Y64-EA-08A_Edition1 Page9
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (155,1)

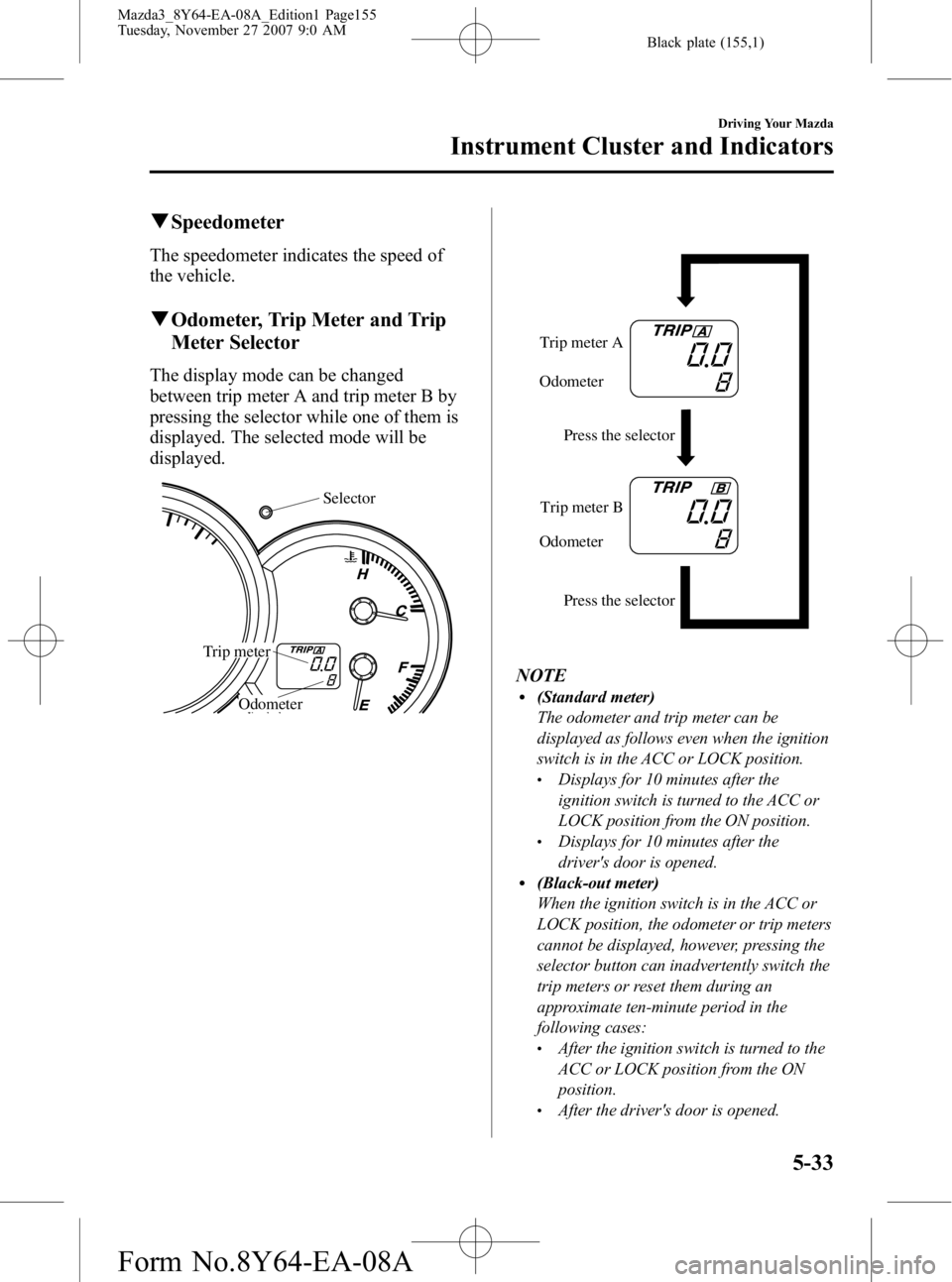

qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Trip meter
Odometer
Odometer
Odometer Trip meter A
Press the selector
Press the selector
Trip meter B
NOTEl(Standard meter)
The odometer and trip meter can be
displayed as follows even when the ignition
switch is in the ACC or LOCK position.
lDisplays for 10 minutes after the
ignition switch is turned to the ACC or
LOCK position from the ON position.
lDisplays for 10 minutes after the
driver's door is opened.
l(Black-out meter)
When the ignition switch is in the ACC or
LOCK position, the odometer or trip meters
cannot be displayed, however, pressing the
selector button can inadvertently switch the
trip meters or reset them during an
approximate ten-minute period in the
following cases:
lAfter the ignition switch is turned to the
ACC or LOCK position from the ON
position.
lAfter the driver's door is opened.
Driving Your Mazda
Instrument Cluster and Indicators
5-33
Mazda3_8Y64-EA-08A_Edition1 Page155
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (156,1)
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
With turbocharger
Without turbocharger
CAUTION
Don't run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
5-34
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8Y64-EA-08A_Edition1 Page156
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (169,1)

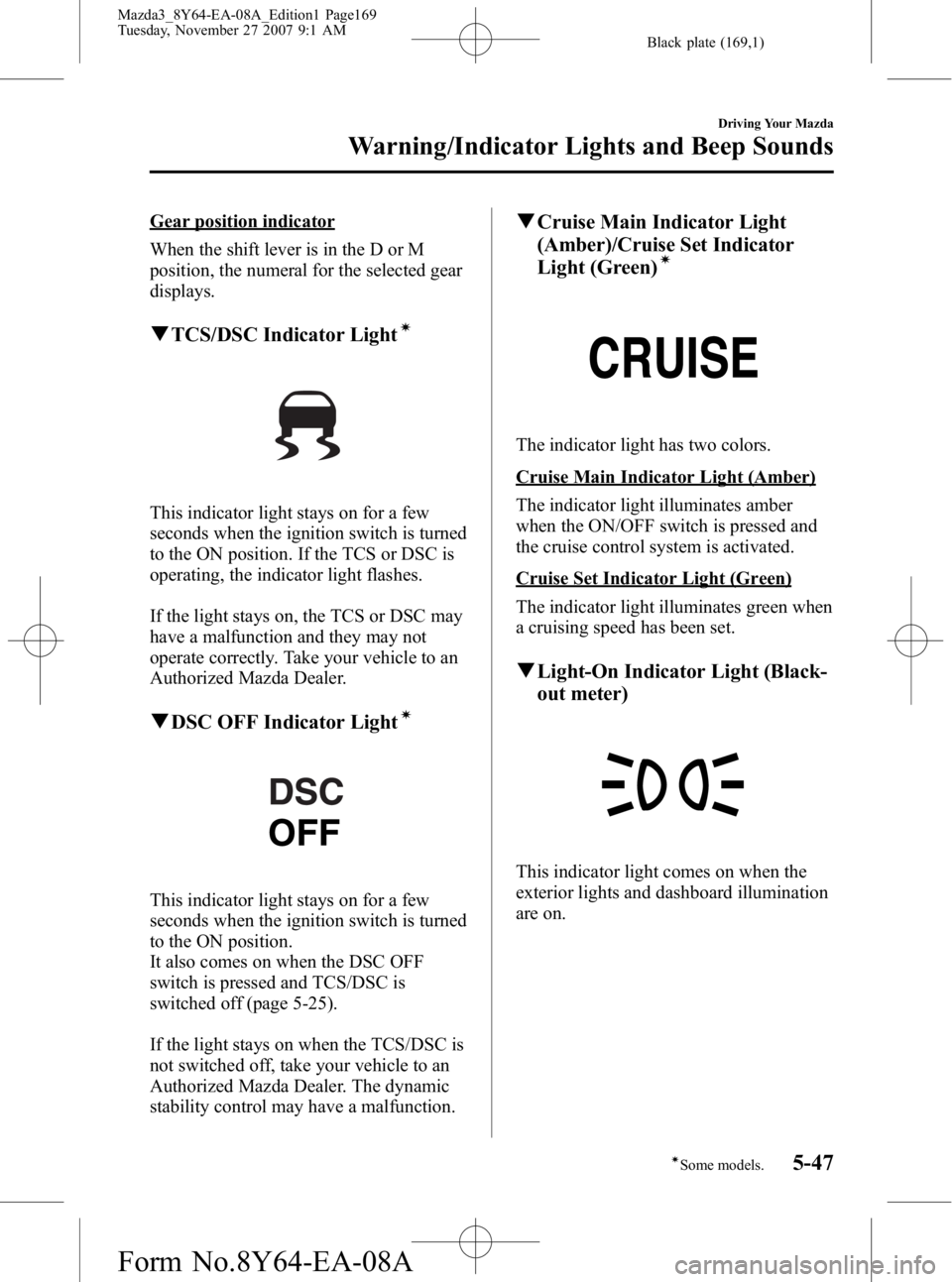

Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
qTCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-25).
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
í
The indicator light has two colors.
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON/OFF switch is pressed and
the cruise control system is activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qLight-On Indicator Light (Black-
out meter)
This indicator light comes on when the
exterior lights and dashboard illumination
are on.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page169
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (183,1)

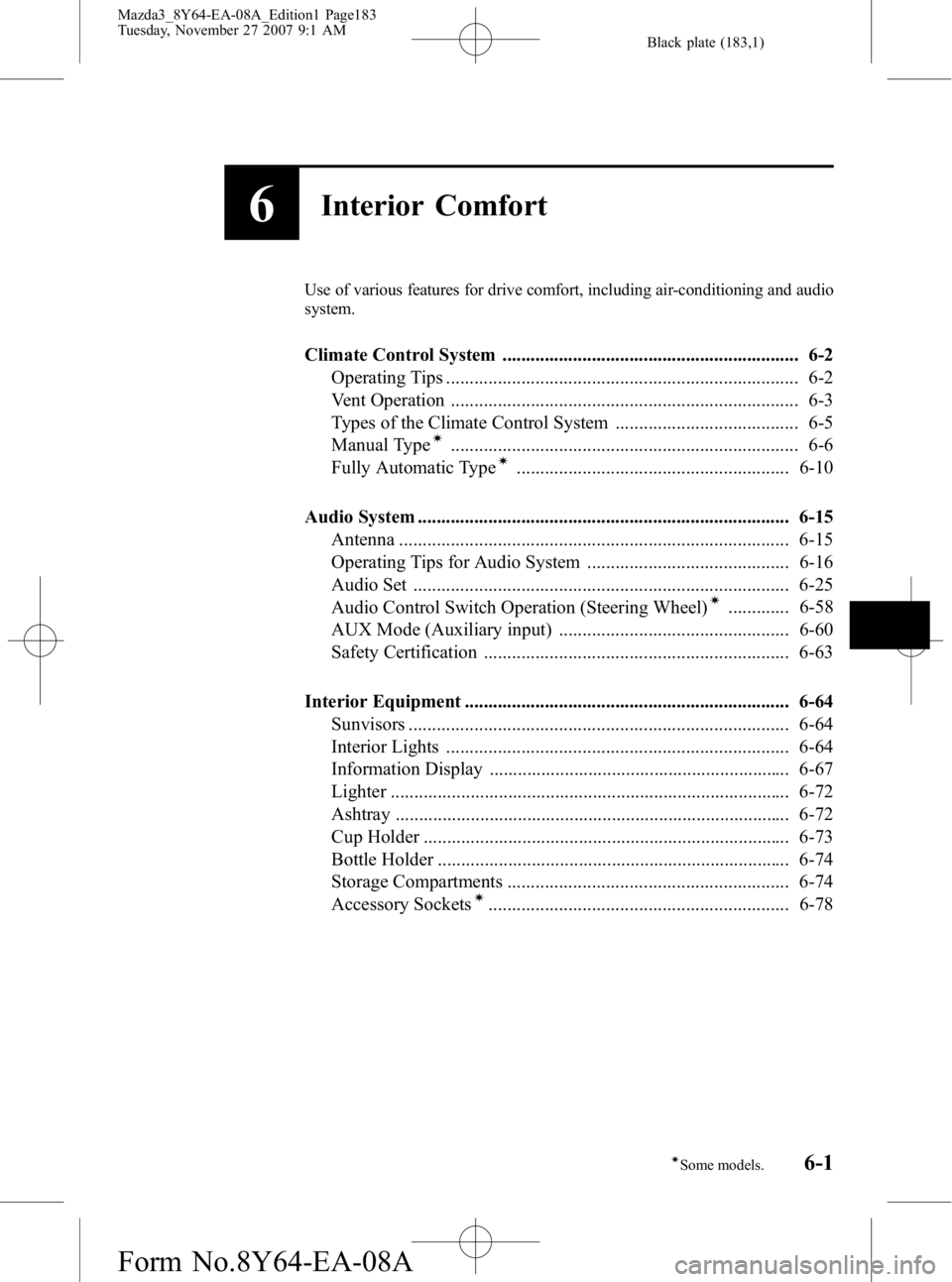

6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí.......................................................... 6-10
Audio System ............................................................................... 6-15 Antenna ................................................................................... 6-15
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-25
Audio Control Switch Operation (Steering Wheel)
í............. 6-58
AUX Mode (Auxiliary input) ................................................. 6-60
Safety Certification ................................................................. 6-63
Interior Equipment ..................................................................... 6-64 Sunvisors ................................................................................. 6-64
Interior Lights ......................................................................... 6-64
Information Display ................................................................ 6-67
Lighter ..................................................................................... 6-72
Ashtray .................................................................................... 6-72
Cup Holder .............................................................................. 6-73
Bottle Holder ........................................................................... 6-74
Storage Compartments ............................................................ 6-74
Accessory Sockets
í................................................................ 6-78
6-1íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page183
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (192,1)

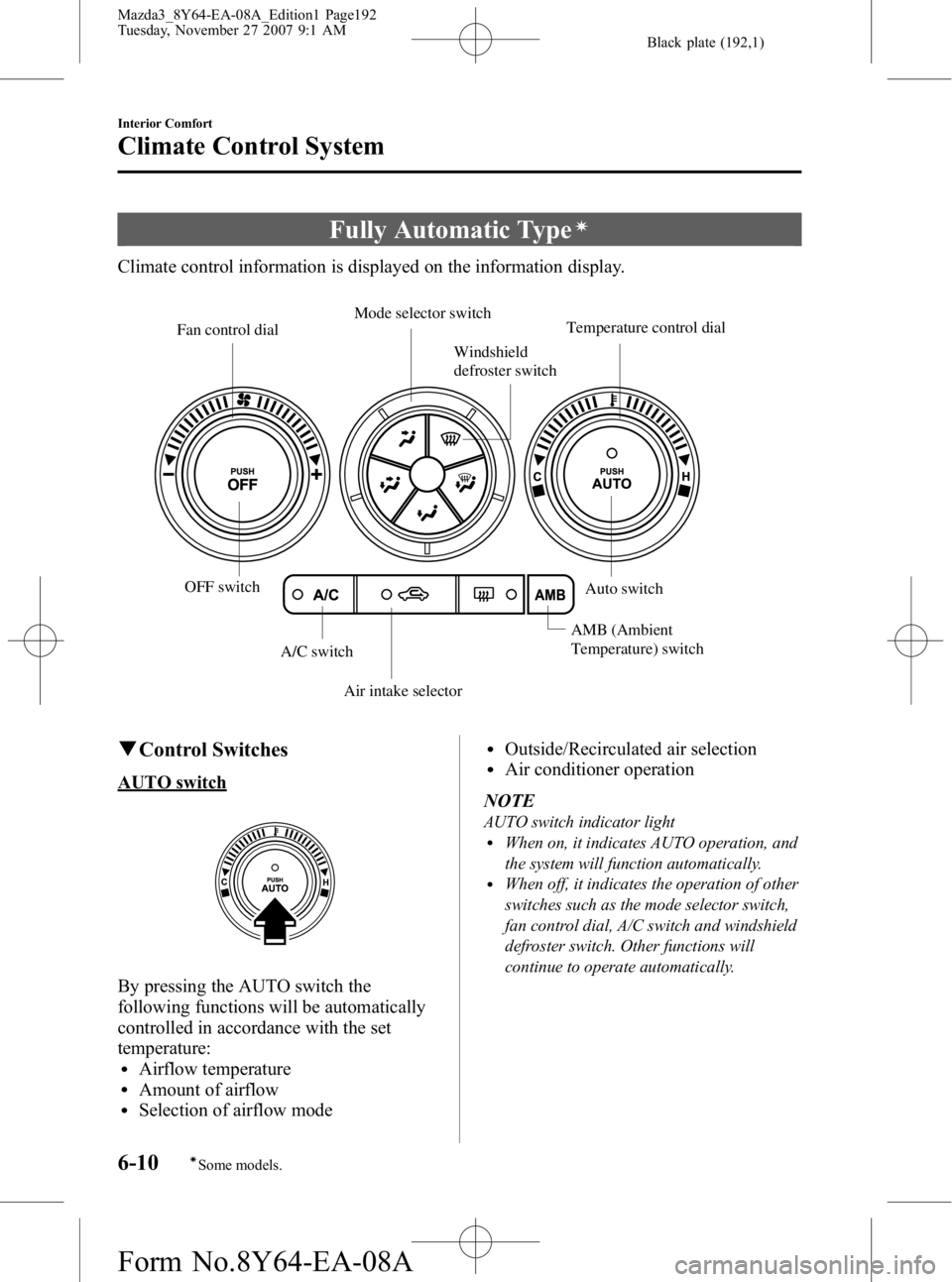

Fully Automatic Typeí
Climate control information is displayed on the information display.
AMB (Ambient
Temperature) switch
Windshield
defroster switch
Fan control dial
Temperature control dial
Mode selector switch
OFF switch Auto switch
A/C switch Air intake selector
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow mode
lOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial, A/C switch and windshield
defroster switch. Other functions will
continue to operate automatically.
6-10
Interior Comfort
íSome models.
Climate Control System
Mazda3_8Y64-EA-08A_Edition1 Page192
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (193,1)

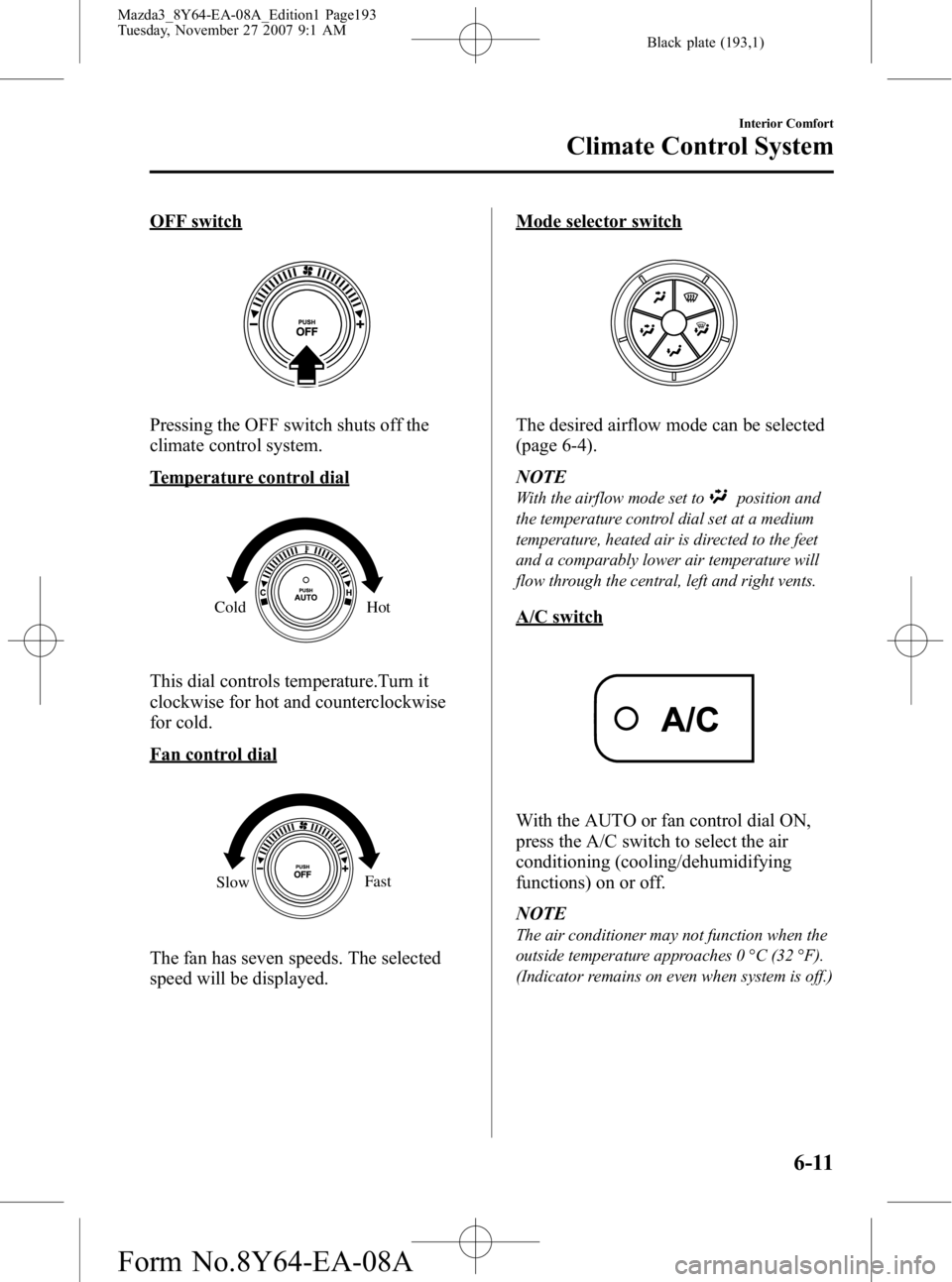

OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
ColdHot
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
SlowFast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
With the airflow mode set toposition and
the temperature control dial set at a medium
temperature, heated air is directed to the feet
and a comparably lower air temperature will
flow through the central, left and right vents.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).
(Indicator remains on even when system is off.)
Interior Comfort
Climate Control System
6-11
Mazda3_8Y64-EA-08A_Edition1 Page193
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (194,1)

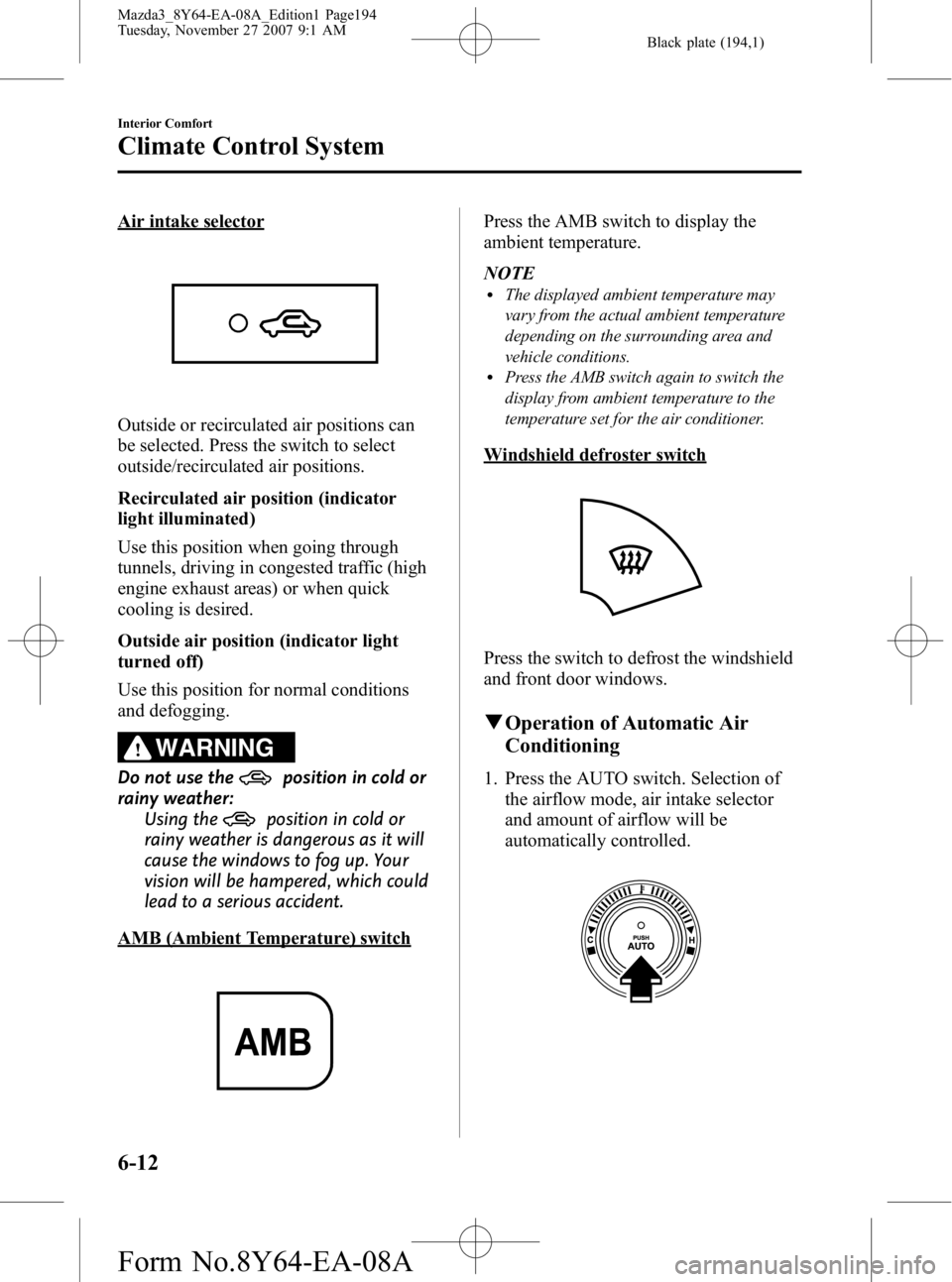

Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position (indicator
light illuminated)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (indicator light
turned off)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in cold or
rainy weather:
Using the
position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
AMB (Ambient Temperature) switch
Press the AMB switch to display the
ambient temperature.
NOTE
lThe displayed ambient temperature may
vary from the actual ambient temperature
depending on the surrounding area and
vehicle conditions.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
q Operation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
6-12
Interior Comfort
Climate Control System
Mazda3_8Y64-EA-08A_Edition1 Page194
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (202,1)

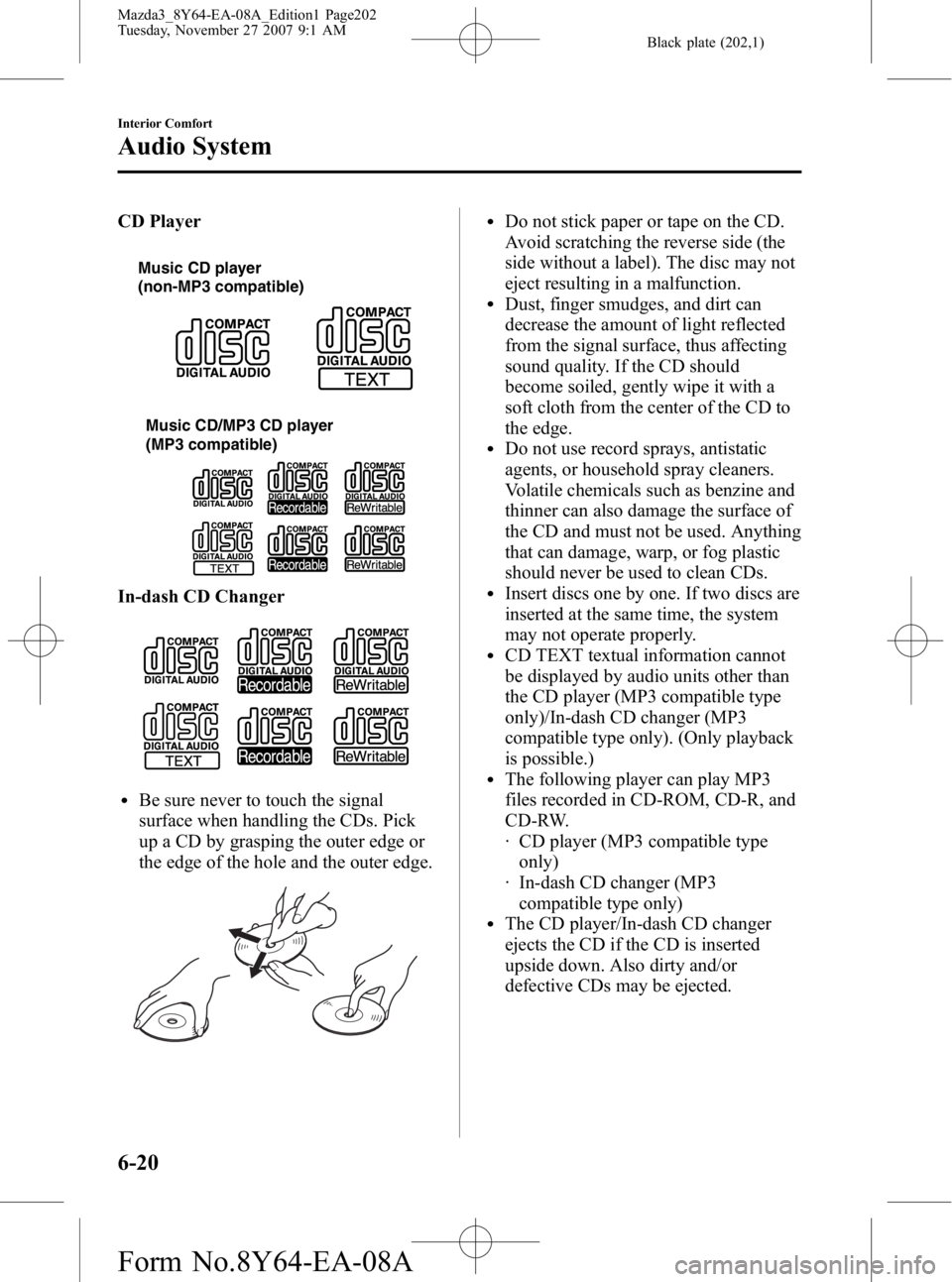

CD Player
Music CD player
(non-MP3 compatible)
Music CD/MP3 CD player
(MP3 compatible)
In-dash CD Changer
lBe sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.
lDo not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.
lDust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.
lDo not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
lInsert discs one by one. If two discs are
inserted at the same time, the system
may not operate properly.
lCD TEXT textual information cannot
be displayed by audio units other than
the CD player (MP3 compatible type
only)/In-dash CD changer (MP3
compatible type only). (Only playback
is possible.)
lThe following player can play MP3
files recorded in CD-ROM, CD-R, and
CD-RW.
· CD player (MP3 compatible typeonly)
· In-dash CD changer (MP3 compatible type only)
lThe CD player/In-dash CD changer
ejects the CD if the CD is inserted
upside down. Also dirty and/or
defective CDs may be ejected.
6-20
Interior Comfort
Audio System
Mazda3_8Y64-EA-08A_Edition1 Page202
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (203,1)

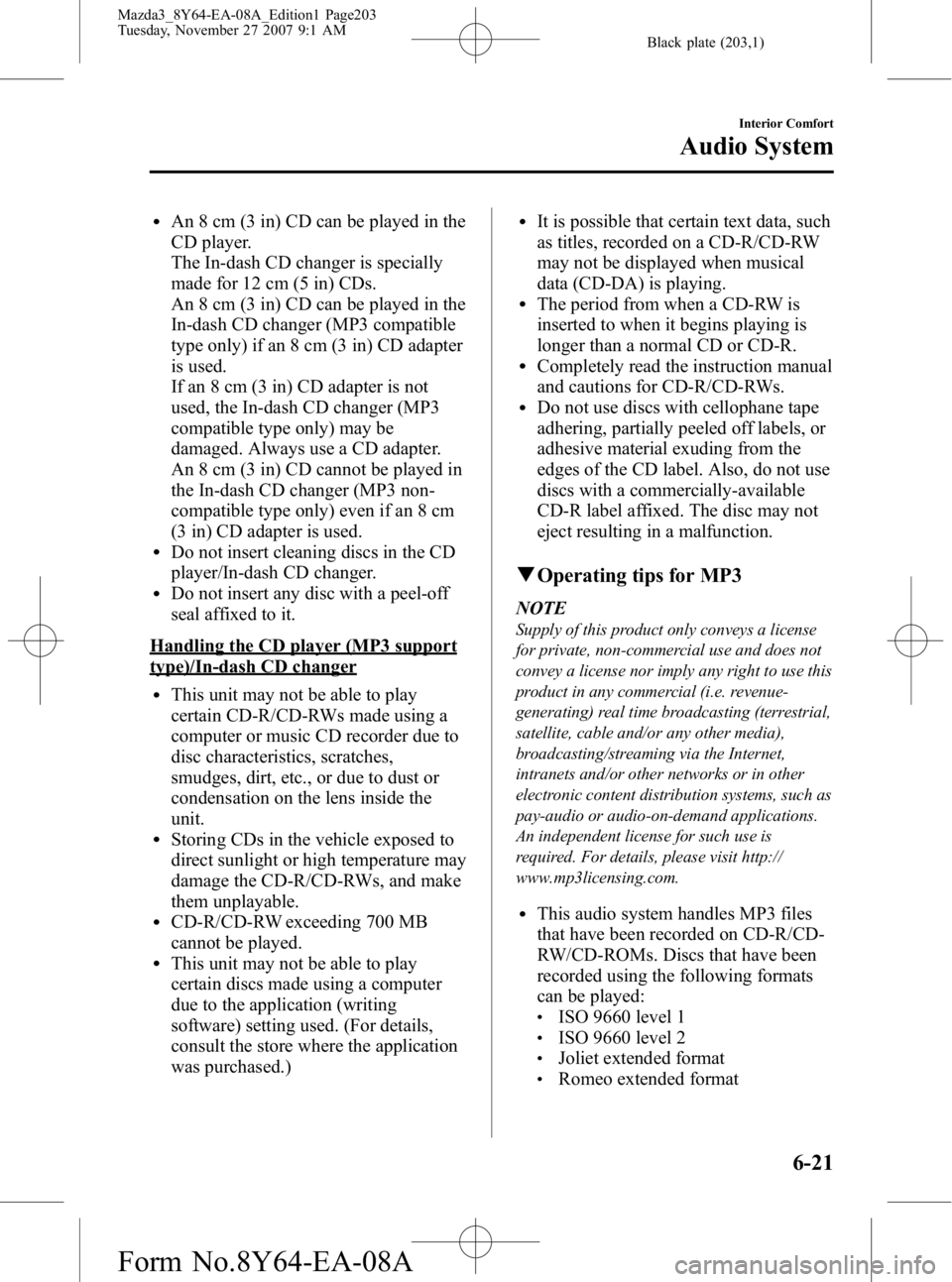

lAn 8 cm (3 in) CD can be played in the
CD player.
The In-dash CD changer is specially
made for 12 cm (5 in) CDs.
An 8 cm (3 in) CD can be played in the
In-dash CD changer (MP3 compatible
type only) if an 8 cm (3 in) CD adapter
is used.
If an 8 cm (3 in) CD adapter is not
used, the In-dash CD changer (MP3
compatible type only) may be
damaged. Always use a CD adapter.
An 8 cm (3 in) CD cannot be played in
the In-dash CD changer (MP3 non-
compatible type only) even if an 8 cm
(3 in) CD adapter is used.
lDo not insert cleaning discs in the CD
player/In-dash CD changer.
lDo not insert any disc with a peel-off
seal affixed to it.
Handling the CD player (MP3 support
type)/In-dash CD changer
lThis unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.
lStoring CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
lCD-R/CD-RW exceeding 700 MB
cannot be played.
lThis unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)
lIt is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.
lThe period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
lCompletely read the instruction manual
and cautions for CD-R/CD-RWs.
lDo not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.
qOperating tips for MP3
NOTE
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use this
product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems, such as
pay-audio or audio-on-demand applications.
An independent license for such use is
required. For details, please visit http://
www.mp3licensing.com.
lThis audio system handles MP3 files
that have been recorded on CD-R/CD-
RW/CD-ROMs. Discs that have been
recorded using the following formats
can be played:
lISO 9660 level 1lISO 9660 level 2lJoliet extended formatlRomeo extended format
Interior Comfort
Audio System
6-21
Mazda3_8Y64-EA-08A_Edition1 Page203
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A
