engine coolant MAZDA MODEL 3 4-DOOR 2009 User Guide

Black plate (299,1)
qSchedule 2
Maintenance Interval Number of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine valve clearance Audibly inspect every 120,000 km, if noisy, adjust
Drive belts (tension) I
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system I
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others R
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2
Hoses and tubes for emissionI*2
Fuel filter R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections III
Brake and clutch fluid level I I II I
Brake fluid R
Disc brakes IIIIII
Tire (Rotation) Rotate every 10,000 km
Tire inflation pressure and tire wear IIIIII
Steering operation and linkages IIIIII
Power steering fluid level IIIIII
Front and rear suspension, ball joints and wheel
bearing axial play III
Driveshaft dust boots III
Exhaust system and heat shields III
All locks and hinges LLLLLL
Washer fluid level IIIIII
Bolts and nuts on chassis and body TTT
Maintenance and Care
Scheduled Maintenance
8-11
Mazda3_8Z87-EA-08F_Edition2 Page299
Thursday, July 31 2008 10:9 AM
Form No.8Z87-EA-08F

Black plate (301,1)
(Cont.)Maintenance Interval Number of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
ENGINE
Engine valve clearance Audibly inspect every 120,000 km, if noisy, adjust
Drive belts (tension) II
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system II
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others R R
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2I
Hoses and tubes for emission I*2I
Fuel filter R R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections III
Brake and clutch fluid level II I I
Brake fluid RR
Disc brakes IIIIII
Tire (Rotation) Rotate every 10,000 km
Tire inflation pressure and tire wear IIIIII
Steering operation and linkages IIIIII
Power steering fluid level IIIIII
Front and rear suspension, ball joints and wheel
bearing axial play III
Driveshaft dust boots III
Exhaust system and heat shields III
All locks and hinges LLLLLL
Washer fluid level IIIIII
Bolts and nuts on chassis and body TTT
Maintenance and Care
Scheduled Maintenance
8-13
Mazda3_8Z87-EA-08F_Edition2 Page301
Thursday, July 31 2008 10:9 AM
Form No.8Z87-EA-08F

Black plate (303,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-23)lEngine coolant level (page 8-21)lEngine oil level (page 8-20)lWasher fluid level (page 8-27)
qAt Least Monthly
Tire inflation pressures (page 8-35)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lAutomatic transaxle fluid level (page 8-25)lPower steering fluid level (page 8-24)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 8-21)lEngine oil (page 8-18)
Maintenance and Care
Owner Maintenance
8-15
Mazda3_8Z87-EA-08F_Edition2 Page303
Thursday, July 31 2008 10:9 AM
Form No.8Z87-EA-08F

Black plate (305,1)

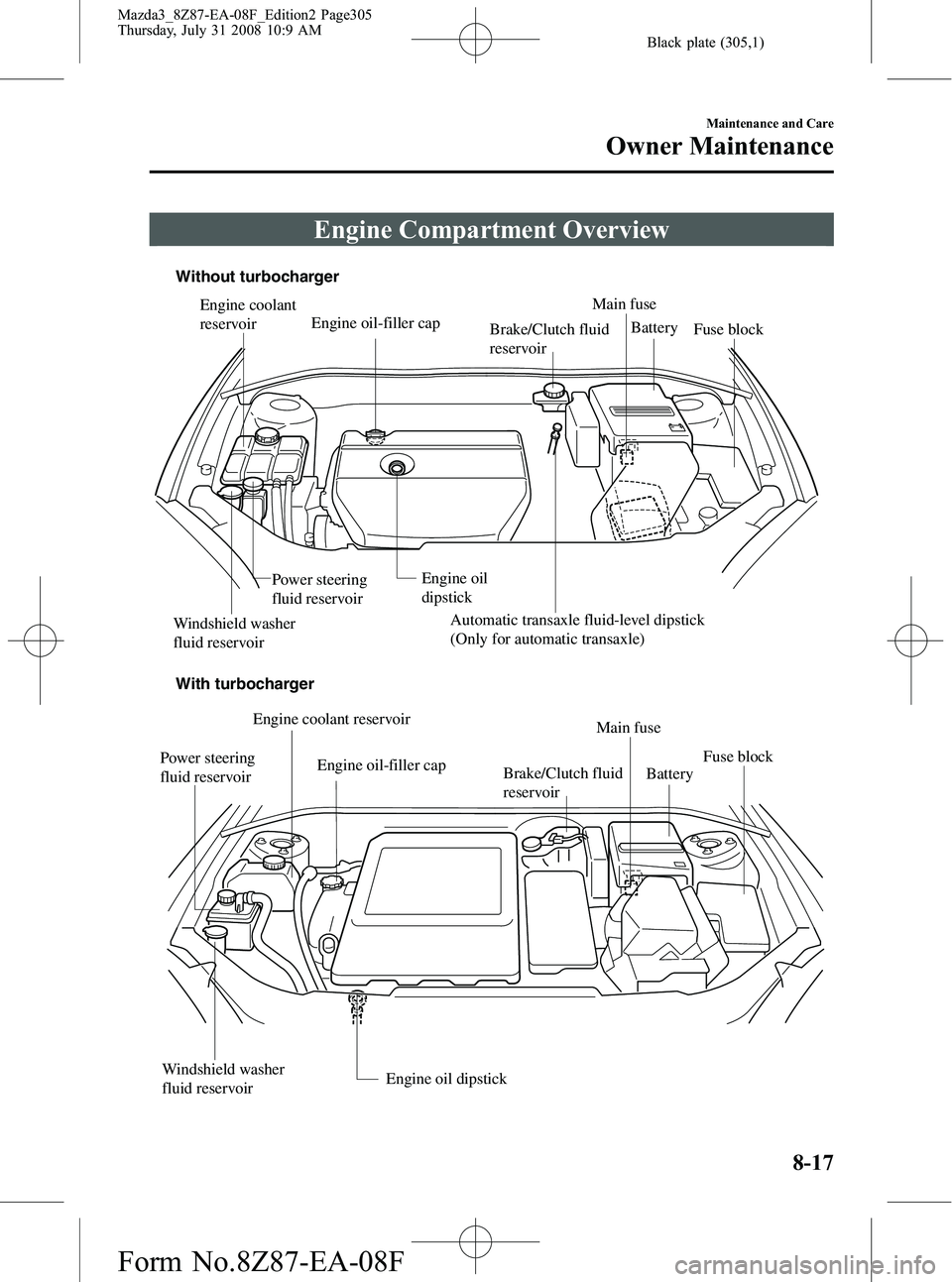

Engine Compartment Overview
Main fuse
Automatic transaxle fluid-level dipstick
(Only for automatic transaxle) Brake/Clutch fluid
reservoir
Engine coolant
reservoir
Engine oil
dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil-filler cap BatteryFuse block
Without turbocharger
Main fuse
Brake/Clutch fluid
reservoir
Engine coolant reservoir
Engine oil dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil-filler cap BatteryFuse block
With turbocharger
Maintenance and Care
Owner Maintenance
8-17
Mazda3_8Z87-EA-08F_Edition2 Page305
Thursday, July 31 2008 10:9 AM
Form No.8Z87-EA-08F

Black plate (309,1)
Engine Coolant
qInspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become
very hot. You could be burned.
Carefully inspect the engine coolant
in the coolant reservoir, but do not
open it.
Turn off the ignition switch and
make sure the fan is not running before
attempting to work near the cooling
fan: Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove the cooling
system cap when the engine and
radiator are hot: When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
NOTE
Changing the coolant should be done by an
Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year ―at the beginning of the
winter season ―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the MAX or F and
MIN or L marks on the coolant reservoir
when the engine is cool.
Without turbocharger
With turbocharger
If it's at or near MIN or L, add enough
coolant to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to MAX or F.
Maintenance and Care
Owner Maintenance
8-21
Mazda3_8Z87-EA-08F_Edition2 Page309
Thursday, July 31 2008 10:9 AM
Form No.8Z87-EA-08F

Black plate (310,1)
CAUTION
ØRadiator coolant will damage
paint.
Rinse it off quickly if spilled.
Ø Use only soft (demineralized)
water in the coolant mixture.
Water that contains minerals will
cut down on the coolant's
effectiveness.
Ø Don't add only water. Always add
a proper coolant mixture.
Ø The engine has aluminum parts
and must be protected by an
ethylene-glycol-based coolant to
prevent corrosion and freezing.
Ø DO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
Ø DO NOT MIX alcohol or methanol
with the coolant. This could
damage the cooling system.
Ø Don't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness. NOTE
If the
“FL22” mark is shown on or near the
cooling system cap, use FL22 type engine
coolant. If engine coolant other than FL22
type is used, the engine coolant must be
replaced earlier than the specified replacement
interval indicated in the scheduled
maintenance (page 8-3).
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
8-22
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page310
Thursday, July 31 2008 10:9 AM
Form No.8Z87-EA-08F

Black plate (407,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil Without turbocharger
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
With turbocharger With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil Without turbocharger
2.87 L (3.03 US qt, 2.53 Imp qt)
With turbocharger 2.5 L (2.6 US qt, 2.2 Imp qt)
Automatic transaxle fluid 4-speed transaxle
7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 55.0 L
(14.5 US gal, 12.1 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Model
4 Door 5 Door
Overall length Without
turbocharger STANDARD TYPE 4,505 mm (177.4 in)
―
SPORTY TYPE 4,510 mm (177.6 in) 4,490 mm (176.8 in)
With turbocharger ―4,490 mm (176.8 in)
Overall width Without
turbocharger Without side molding 1,745 mm (68.7 in) 1,745 mm (68.7 in)
With side molding 1,755 mm (69.1 in) 1,755 mm (69.1 in)
With turbocharger ―1,765 mm (69.5 in)
Overall height 1,465 mm (57.7 in) 1,465 mm (57.7 in)
Front tread Without turbocharger 1,530 mm (60.2 in) 1,530 mm (60.2 in)
With turbocharger
―1,535 mm (60.4 in)
Rear tread Without turbocharger 1,515 mm (59.6 in) 1,515 mm (59.6 in)
With turbocharger
―1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in) 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8Z87-EA-08F_Edition2 Page407
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (413,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-54
DefrosterMirror ......................................... 5-60
Rear window .............................. 5-60
Dimensions ....................................... 10-5
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving ............................ 4-10
Dynamic Stability Control (DSC) ..... 5-24 DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-25
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-4
E
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-22
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher Hazard warning .......................... 5-61
Headlights .................................. 5-51
Flat Tire ............................................... 7-3 Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-74
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-55
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-21
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
Mazda3_8Z87-EA-08F_Edition2 Page413
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F
