clock MAZDA MODEL 3 4-DOOR 2009 Owner's Guide

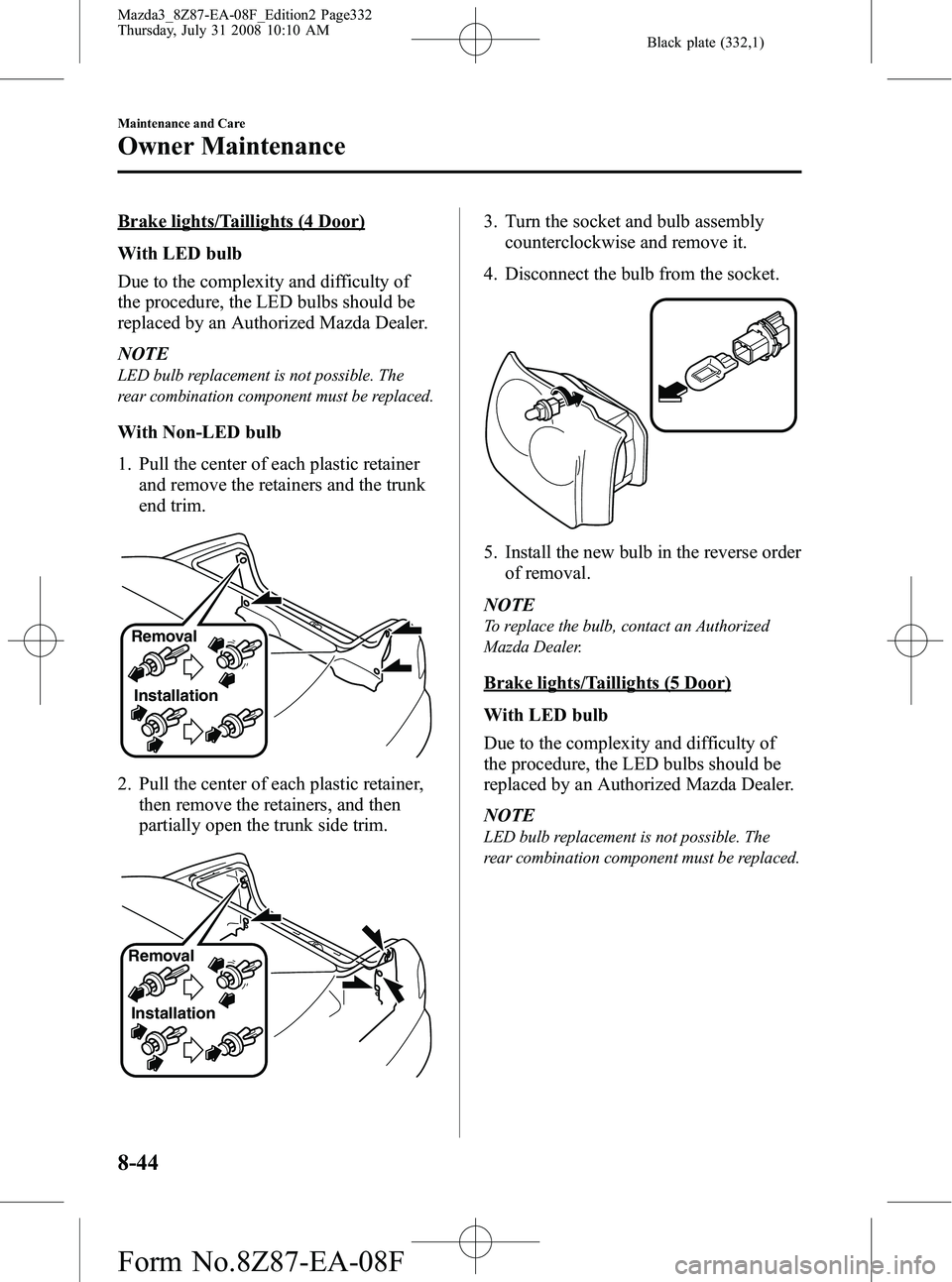

Black plate (332,1)
Brake lights/Taillights (4 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
With Non-LED bulb
1. Pull the center of each plastic retainerand remove the retainers and the trunk
end trim.
Removal
Installation
2. Pull the center of each plastic retainer, then remove the retainers, and then
partially open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Brake lights/Taillights (5 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
8-44
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page332
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

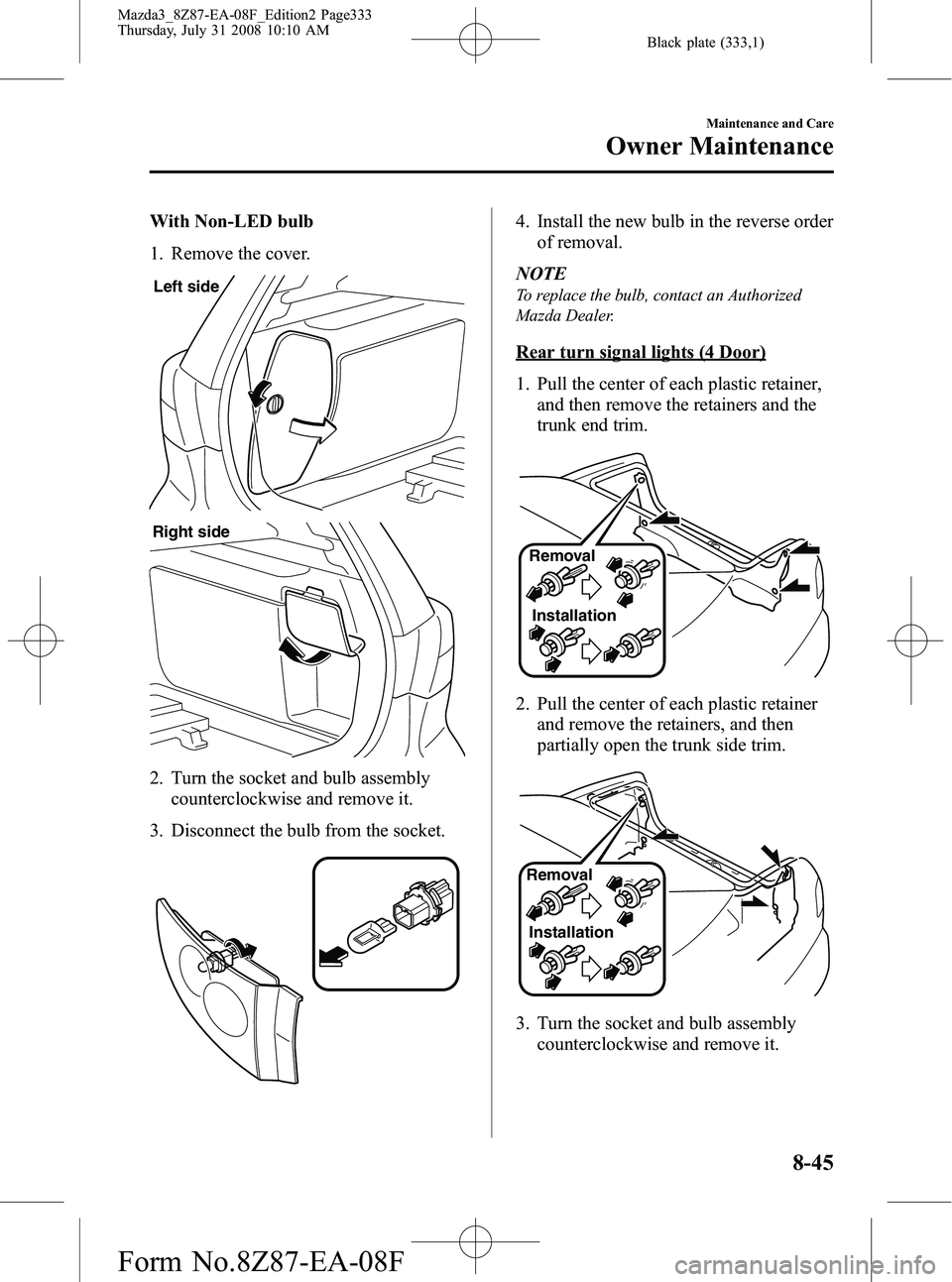

Black plate (333,1)
With Non-LED bulb
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Rear turn signal lights (4 Door)
1. Pull the center of each plastic retainer, and then remove the retainers and the
trunk end trim.
Removal
Installation
2. Pull the center of each plastic retainer and remove the retainers, and then
partially open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-45
Mazda3_8Z87-EA-08F_Edition2 Page333
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

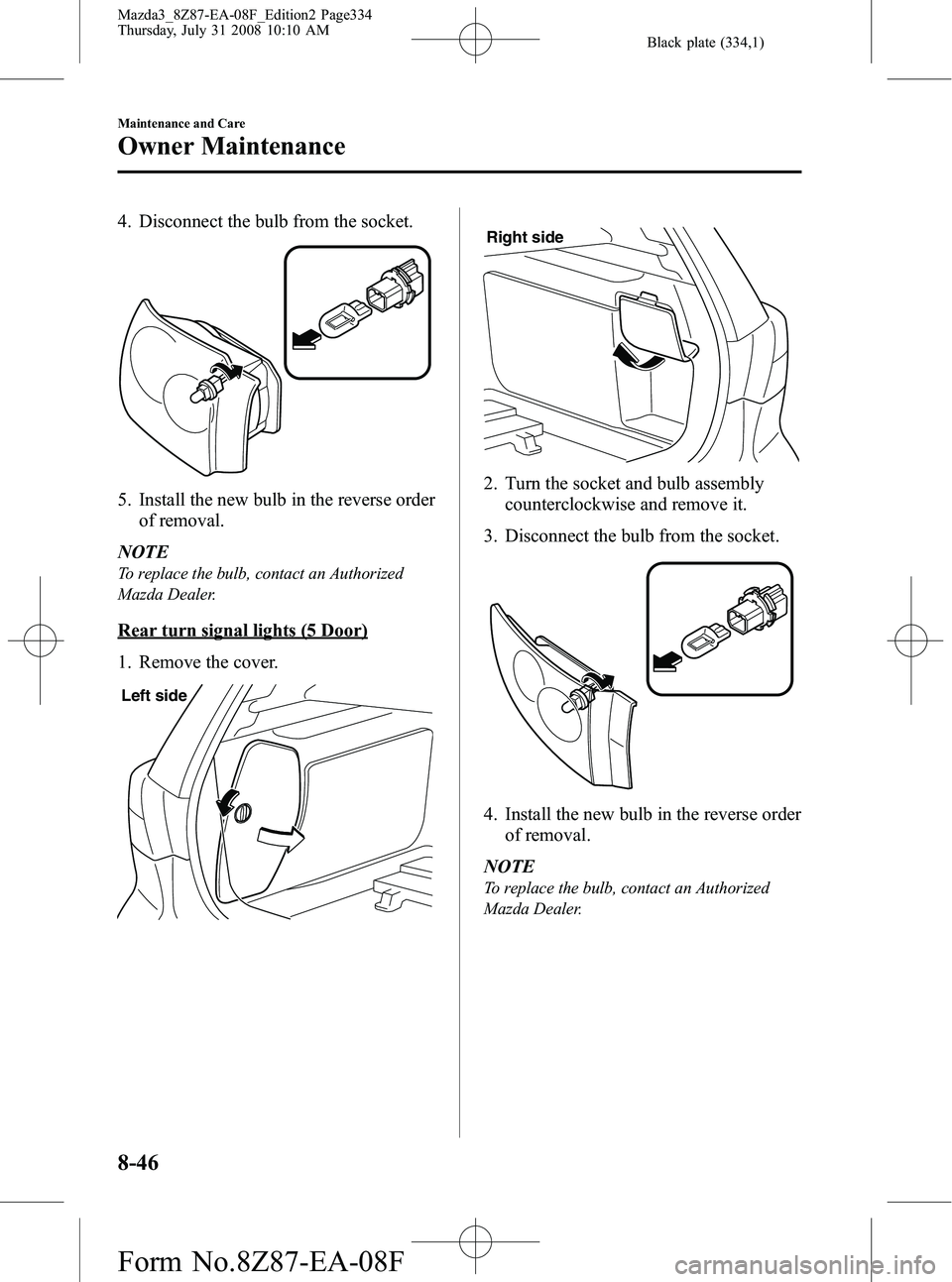

Black plate (334,1)
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Rear turn signal lights (5 Door)
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
8-46
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page334
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

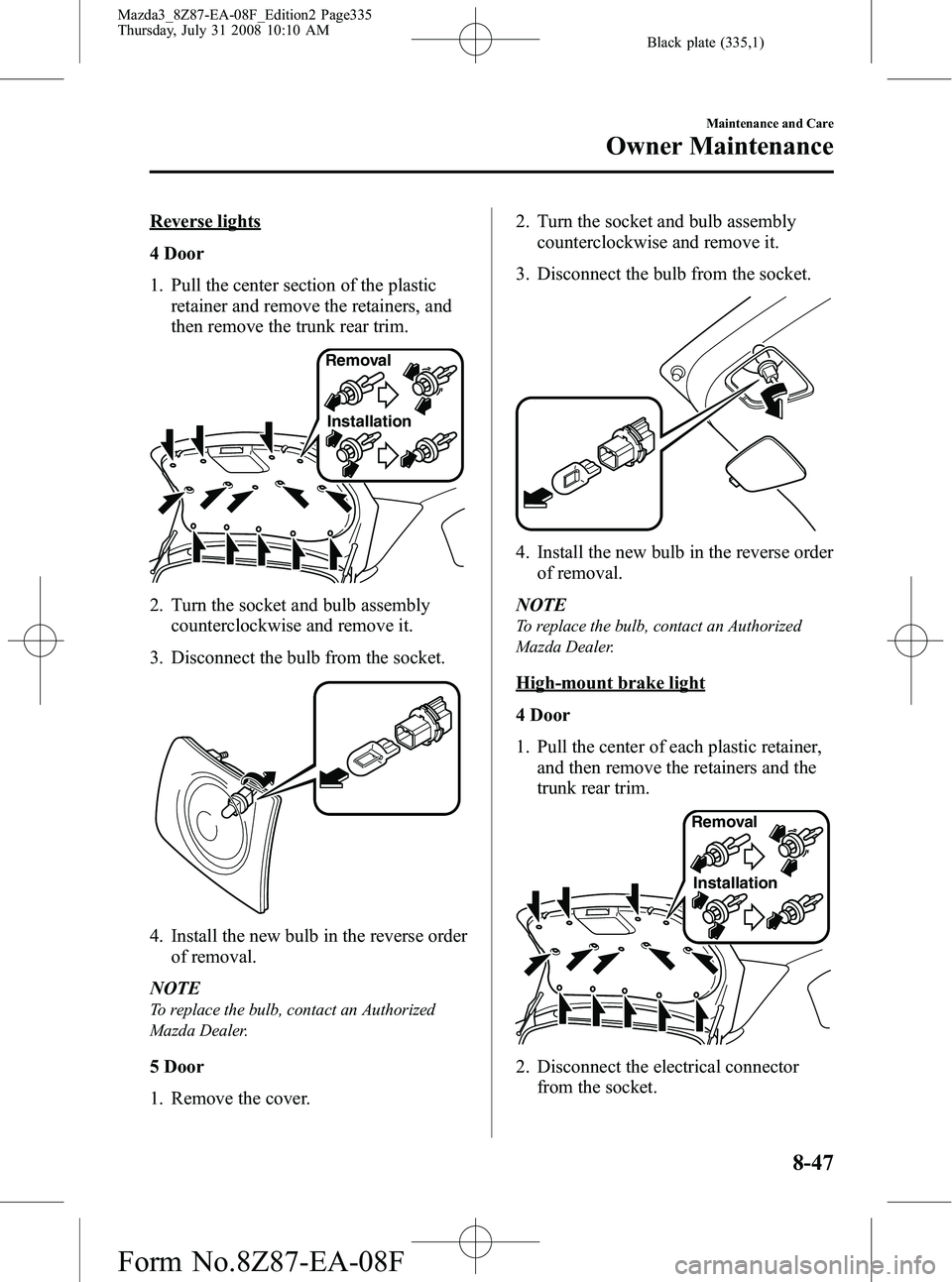

Black plate (335,1)
Reverse lights
4 Door
1. Pull the center section of the plasticretainer and remove the retainers, and
then remove the trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
5 Door
1. Remove the cover. 2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
High-mount brake light
4 Door
1. Pull the center of each plastic retainer, and then remove the retainers and the
trunk rear trim.
Removal
Installation
2. Disconnect the electrical connector from the socket.
Maintenance and Care
Owner Maintenance
8-47
Mazda3_8Z87-EA-08F_Edition2 Page335
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

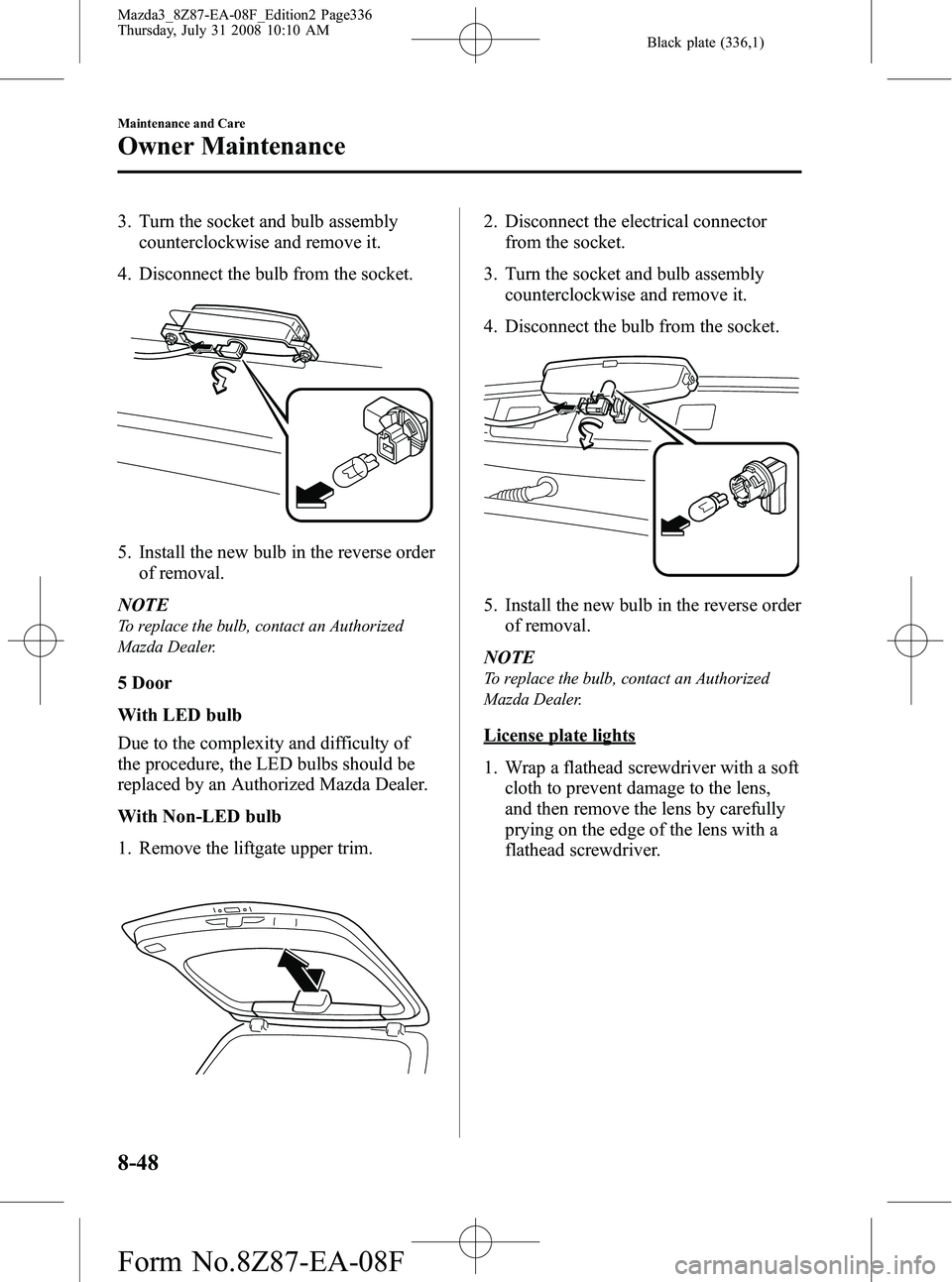

Black plate (336,1)
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
5 Door
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
With Non-LED bulb
1. Remove the liftgate upper trim.
2. Disconnect the electrical connector from the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
8-48
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page336
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (339,1)
3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it'sblown.
Normal Blown
7. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8Z87-EA-08F_Edition2 Page339
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (412,1)
A
Accessory Socket .............................. 6-77
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Air Bag Systems ............................... 2-42
Ambient Temperature Display .......... 6-66
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-8
Appearance Care ............................... 8-58
Ashtray .............................................. 6-70
Audio System ................................... 6-16 Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-58
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-61
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Tire inflation pressure warning
beep ............................................ 5-50
Beeps
Seat belt warning beep Sounds ... 5-50
B
Before Starting the Engine .................. 4-6After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-72
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-73
Cargo Sub-Compartment .................. 6-73
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console .................................. 6-73
Child Restraint Child restraint precautions ......... 2-27
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Child Safety Locks for Rear Doors ... 3-11
Cigarette Lighter ............................... 6-70
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-66
Cruise Control ................................... 5-20
Cup Holder ........................................ 6-71
11-2
Index
Mazda3_8Z87-EA-08F_Edition2 Page412
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (414,1)
F
Fuses ................................................. 8-50Panel description ........................ 8-53
Replacement ............................... 8-50
G
Glove Box ......................................... 6-72
H
Hazard Warning Flasher .................... 5-61
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-53
High-low beam .......................... 5-53
Leveling ..................................... 5-53
On reminder ............................... 5-53
Hood Release .................................... 3-22
Horn .................................................. 5-61
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-62
Immobilizer System .......................... 3-27
Indicator Lights ................................. 5-38 Cruise ......................................... 5-48
DSC OFF .................................... 5-48
Headlight high-beam .................. 5-47
Power steering malfunction ........ 5-49
Security ...................................... 5-47
Shift position .............................. 5-47
TCS/DSC ................................... 5-48
Turn-signal/hazard warning ....... 5-49
I
Information Display .......................... 6-65Ambient temperature display ..... 6-66
Audio display ............................. 6-67
Climate control display .............. 6-67
Clock .......................................... 6-66
Information display functions .... 6-65
Trip computer ............................. 6-67
Inside Trunk Release Lever ............... 3-17
Instrument Cluster ............................. 5-33
Instrument Cluster Dimmer Select
Button ............................................... 5-36
Interior Care ...................................... 8-63
Interior Lights ................................... 6-62
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-54
Liftgate .............................................. 3-12 Luggage compartment ............... 3-13
Light Bulbs Replacement ............................... 8-39
Specifications ............................. 10-7
Lighter ............................................... 6-70
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-63
11-4
Index
Mazda3_8Z87-EA-08F_Edition2 Page414
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F
