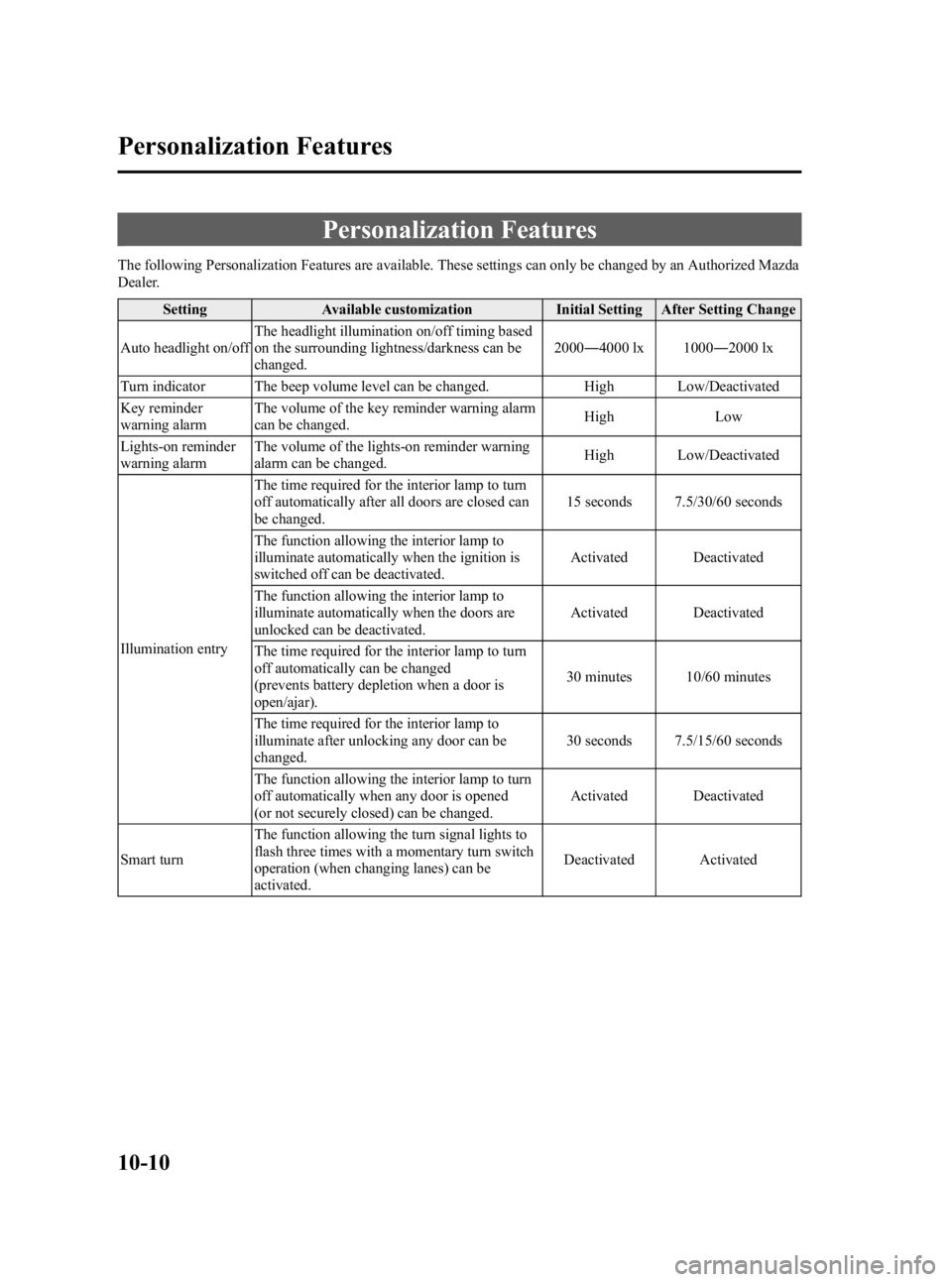

Page 494 of 504
Black plate (494,1)
Personalization Features
The following Personalization Features are available. These settings can only be changed by an Authorized Mazda
Dealer.Setting Available customization Initial Setting After Setting Change
Auto headlight on/off The headlight illumination on/off timing based
on the surrounding lightness/darkness can be
changed. 2000
―4000 lx 1000 ―2000 lx
Turn indicator The beep volume level can be changed. High Low/Deactivated
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed.
High Low
Lights-on reminder
warning alarm The volume of the lights-on reminder warning
alarm can be changed.
High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed.
15 seconds 7.5/30/60 seconds
The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated. Activated Deactivated
The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated. Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar). 30 minutes 10/60 minutes
The time required for the interior lamp to
illuminate after unlocking any door can be
changed. 30 seconds 7.5/15/60 seconds
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed. Activated Deactivated
Smart turn The function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
activated. Deactivated Activated
10-10
Personalization Features
Mazda3_8BG3-EA-09J_Edition2 Page494
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J

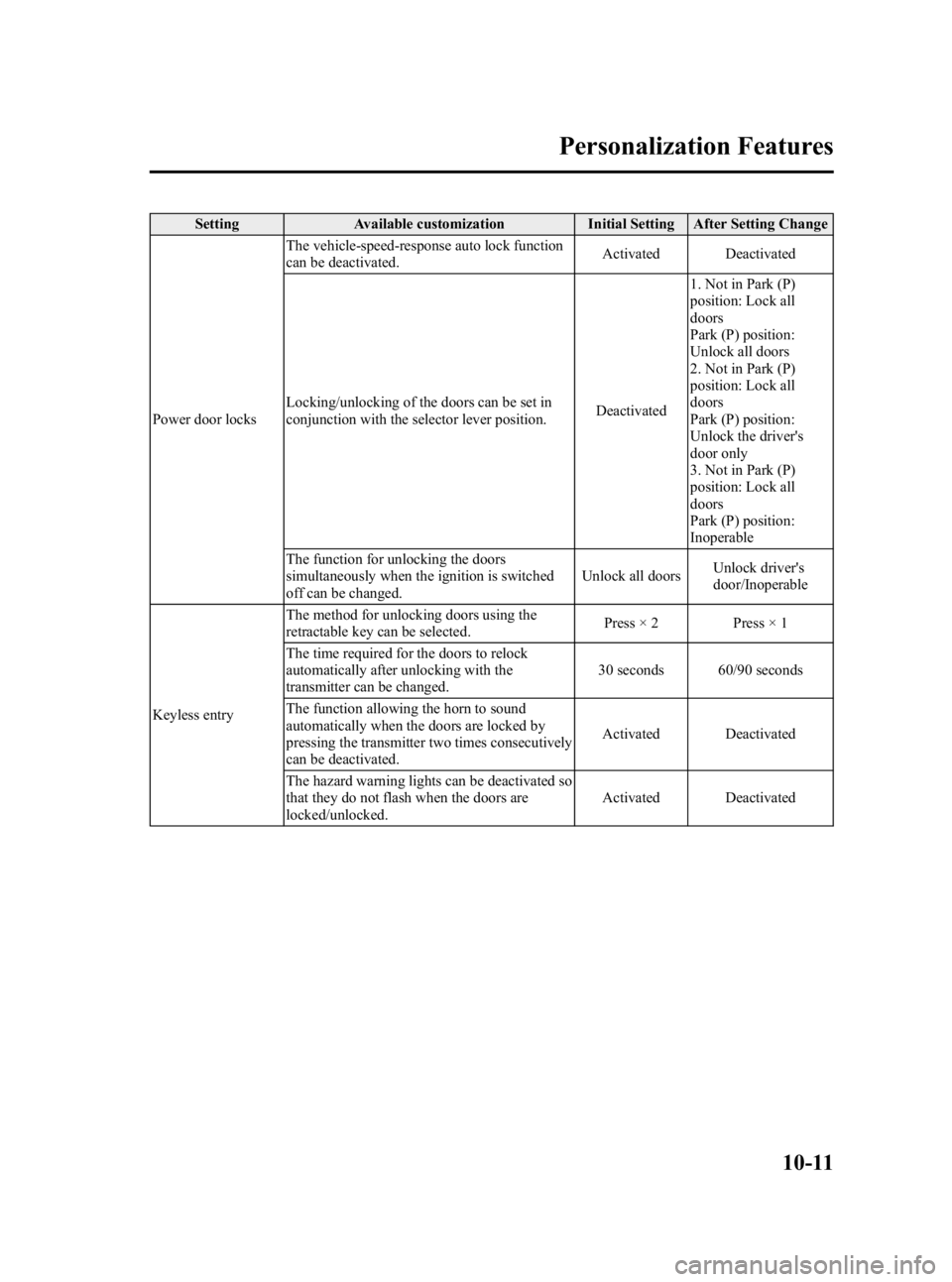

Page 495 of 504
Black plate (495,1)
SettingAvailable customization Initial Setting After Setting Change
Power door locks The vehicle-speed-response auto lock function
can be deactivated.
Activated Deactivated
Locking/unlocking of the doors can be set in
conjunction with the selector lever position. Deactivated1. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock all doors
2. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock the driver's
door only
3. Not in Park (P)
position: Lock all
doors
Park (P) position:
Inoperable
The function for unlocking the doors
simultaneously when the ignition is switched
off can be changed. Unlock all doors
Unlock driver's
door/Inoperable
Keyless entry The method for unlocking doors using the
retractable key can be selected.
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed. 30 seconds 60/90 seconds
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated. Activated Deactivated
The hazard warning lights can be deactivated so
that they do not flash when the doors are
locked/unlocked. Activated Deactivated
Personalization Features
10-11
Mazda3_8BG3-EA-09J_Edition2 Page495
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 496 of 504
Black plate (496,1)
SettingAvailable customization Initial Setting After Setting Change
Advanced keyless
entry The function to automatically lock doors when
leaving the vehicle while carrying the key can
be activated.
Deactivated Activated
The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated. Activated Deactivated
The volume of the answer-back beep during
keyless entry system operation can be adjusted. High Low/Deactivated
The volume of the warning beep for the
advanced keyless entry system can be adjusted. High
Low
The function allowing the power supply to turn
off automatically after the ignition has been left
in the ACC position for a long period of time
can be deactivated. Activated Deactivated
A transition pattern in which the ignition
position can be switched when pressing the
push button start can be selected. ON
→Off ON →ACC →Off
The advanced key function can be deactivated. Activated Deactivated
The method for unlocking the doors using the
request switch can be selected. Press × 2 Press × 1
Theft-deterrent
system The method for setting the theft-deterrent
system can be changed. Both the remote
controller and the door key cylinder can be set or cleared Remote controller
(set and cleared)/Door key cylinder
(cleared only)
Multi information
display The display language can be selected.
English, French,
or Spanish
English/German/French/Italian/ Spanish
The distance unit can be changed. mile or km km or mile
The temperature unit can be changed. °F or °C°C or °F
10-12
Personalization Features
Mazda3_8BG3-EA-09J_Edition2 Page496
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 498 of 504
Black plate (498,1)
A
Accessory Socket ............................ 6-112
Adaptive Front Lighting System
(AFS) ................................................ 5-61
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-21
Auxiliary key .............................. 3-21
Locking, unlocking with request
switch ........................................... 3-9
Opening the liftgate/trunk lid ..... 3-11
Operational range ......................... 3-7
Remote control function ............. 3-17
Service ......................................... 3-7
Warning and beep sounds .......... 3-22
When warning indicator/beep is
activated ..................................... 3-25
Air Bag Systems ............................... 2-43
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-8
Appearance Care ............................... 8-59
Audio System ................................... 6-16 Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-59
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-61
Automatic Transaxle Driving tips ................................ 5-19
Fluid ........................................... 8-24
Manual shift mode ..................... 5-16
Shift-lock override ..................... 5-15
Shift-lock system ....................... 5-15
Transaxle ranges ........................ 5-14
B
BatteryEmergency starting .................... 7-17
Maintenance ............................... 8-31
Specifications ............................. 10-4
Beep Sounds Electronic steering lock
warning ...................................... 5-57
Ignition key reminder ................. 5-57
Lights-on reminder ..................... 5-57
Seat belt warning ........................ 5-57
Tire inflation pressure warning ... 5-57
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Bluetooth Audio ............................... 6-62
Bluetooth Hands-Free ....................... 6-71 Basic Bluetooth Hands-Free
operation .................................... 6-75
Convenient use of the hands-free
system ........................................ 6-79
Hands-free setting ...................... 6-85
Mazda Bluetooth Hands-Free
customer service ......................... 6-92
Safety certification ..................... 6-91
When Bluetooth Hands-Free cannot
be used ....................................... 6-91
Body Lubrication .............................. 8-27
Boost Gauge ..................................... 5-39
Bottle Holder ................................... 6-108
Brake/Clutch
Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
11-2
Index
Mazda3_8BG3-EA-09J_Edition2 Page498
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 500 of 504
Black plate (500,1)
F
FlasherHazard warning .......................... 5-70
Headlights .................................. 5-58
Flat Tire ............................................... 7-3 Changing ...................................... 7-9
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-63
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-48
Gauge ......................................... 5-38
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52 Panel description ........................ 8-55
Replacement ............................... 8-52
G
Gauges .............................................. 5-36
Glove Box ....................................... 6-109
H
Hazard Warning Flasher .................... 5-70
Hazardous Driving .............................. 4-8
H
HeadlightsControl ....................................... 5-58
Flashing ...................................... 5-60
High-low beam .......................... 5-60
Leveling ..................................... 5-60
On reminder ............................... 5-60
Hood Release .................................... 3-50
Horn .................................................. 5-69
I
Ignition
Keys ........................................... 3-26
Switch .......................................... 5-2
Illuminated Entry System ................. 6-93
Immobilizer System
(with Advanced Key) ........................ 3-54
Immobilizer System
(without Advanced Key) ................... 3-58
Indicator Lights ................................. 5-41 AFS OFF .................................... 5-54
Cruise ......................................... 5-55
DSC OFF .................................... 5-54
Headlight high-beam .................. 5-53
KEY ............................................ 5-51
Power steering malfunction ........ 5-55
Security ...................................... 5-53
Shift position .............................. 5-54
TCS/DSC ................................... 5-54
Turn signal/hazard warning ........ 5-56
Information Display .......................... 6-95 Audio display ............................. 6-96
Climate control display .............. 6-96
Clock .......................................... 6-96
Information display functions .... 6-95
Outside temperature display ....... 6-96
Inside Trunk Release Lever ............... 3-44
Instrument Cluster ............................. 5-36
11-4
Index
Mazda3_8BG3-EA-09J_Edition2 Page500
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 501 of 504
Black plate (501,1)
I
Interior Care ...................................... 8-64
Interior Lights ................................... 6-93
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ....................... 3-27
Keys .................................................. 3-26
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-62
Liftgate .............................................. 3-39Luggage compartment ............... 3-41
Light Bulbs Replacement ............................... 8-40
Specifications ............................. 10-8
Lighting Control ............................... 5-58
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-94
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-10 Recommendations for shifting .... 5-11
Map Lights ........................................ 6-94
Meters and Gauges ........................... 5-36
Mirror Defroster ................................ 5-69
M
Mirrors Outside mirrors .......................... 3-65
Rearview mirror ......................... 3-66
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-51
Multi Information Display ................ 6-97 Audio Display .......................... 6-100
Clock .......................................... 6-99
Maintenance Monitor ............... 6-102
Multi Information Display
Functions .................................... 6-98
Outside Temperature Display ..... 6-99
Settings ..................................... 6-106
Trip Computer .......................... 6-100
Warning Indicator ..................... 6-106
O
Odometer and Trip Meter .................. 5-37
Outside Mirrors ................................. 3-65
Outside Temperature Display ............ 6-96
Overhead Console ........................... 6-109
Overhead Lights ................................ 6-94
Overheating ....................................... 7-15
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-59
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Personalization Features ................. 10-10
Power Door Locks ............................ 3-35
Power Steering .................................. 5-20
Fluid ........................................... 8-24
Power steering malfunction indicator
light ............................................ 5-20
Power Windows ................................ 3-45
Index
11-5
Mazda3_8BG3-EA-09J_Edition2 Page501
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 502 of 504
Black plate (502,1)
P
Push-Starting ..................................... 7-22
R
Rear Coat Hooks ............................. 6-111
Rear Door Child Safety Locks .......... 3-38
Rear Seat ............................................. 2-9
Rear Window Defroster .................... 5-68
Rear Window Washer ....................... 5-68
Rear Window Wiper .......................... 5-68
Rearview Mirror ................................ 3-66
Recreational Towing ......................... 7-27
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-9
S
Safety Defects, Reporting ................. 9-42
Seat Belt System3-point type ................................ 2-20
Automatic locking ...................... 2-19
Belt minder ................................. 2-26
Emergency locking .................... 2-18
Extender ..................................... 2-25
Pregnant women ........................ 2-18
Pretensioner and load limiting .... 2-22
Seat belt precautions .................. 2-16
Warning light/beep ..................... 2-26
Seats Front seat
(Electrically operated seats) ......... 2-4
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-9
Seat warmer ................................ 2-14
S
Security SystemImmobilizer system
(with advanced key) ................... 3-54
Immobilizer system
(without advanced key) .............. 3-58
Theft-deterrent system ............... 3-62
Service Publications .......................... 9-44
Shopping Bag Hook ........................ 6-111
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-37
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-65
Horn ........................................... 5-69
Storage Compartments .................... 6-109
Cargo securing loops ................ 6-110
Center console .......................... 6-109
Glove box ................................. 6-109
Overhead console ..................... 6-109
Rear coat hooks ........................ 6-111
Shopping bag hook .................. 6-111
Sunshade ........................................... 3-53
Sunvisors .......................................... 6-93
T
Tachometer ........................................ 5-38
Temporary Spare Tire ....................... 8-38
Theft-Deterrent System ..................... 3-62
Tiedown Hook .......................................... 7-24
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-30 System error activation .............. 5-34
Tire pressure monitoring system
warning light .............................. 5-32
Tires and wheels ......................... 5-34
11-6
Index
Mazda3_8BG3-EA-09J_Edition2 Page502
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 503 of 504
Black plate (503,1)
T
TiresFlat Tire ........................................ 7-3
Inflation pressure ........................ 8-35
Replacement ............................... 8-37
Rotation ...................................... 8-36
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-9
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing Description ................................. 7-23
Emergency towing ..................... 7-23
Recreational towing ................... 7-27
Trailer towing ............................. 4-15
Traction Control System (TCS) ........ 5-26 TCS/DSC indicator light ............ 5-27
Trailer Towing .................................. 4-15
Trip Meter ......................................... 5-37
Trunk Lid .......................................... 3-42 Inside trunk release lever ............ 3-44
Trunk Light ....................................... 3-43
Turn and Lane-Change Signals ......... 5-62
V
Vanity Mirrors ................................... 6-93
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-41 ABS ............................................ 5-44
Air bag system ........................... 5-46
Automatic transaxle ................... 5-49
Brake system .............................. 5-43
Charging system ......................... 5-45
Check engine .............................. 5-45
Check fuel cap ........................... 5-47
Door-ajar .................................... 5-49
Electronic steering lock .............. 5-53
Engine oil pressure ..................... 5-45
Front seat belt pretensioner
system ........................................ 5-46
High engine coolant
temperature ................................ 5-46
KEY ............................................ 5-51
Low fuel ..................................... 5-47
Low washer fluid level ............... 5-49
Seat belt ...................................... 5-47
Tire pressure monitoring
system ........................................ 5-49
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-26
Weights ............................................. 10-6
Wheel Replacement .......................... 8-38
Windows Power windows .......................... 3-45
Windshield Washer ........................... 5-67
Windshield Wipers ............................ 5-64 Blades replacement .................... 8-27
Winter Driving .................................... 4-9
Index
11-7
Mazda3_8BG3-EA-09J_Edition2 Page503
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
