MAZDA MODEL 3 4-DOOR 2011 Owners Manual

Black plate (111,1)
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Locking, unlocking with key
All doors and the liftgate lock
automatically when any front door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
LockUnlock
NOTElHolding the key in the unlocked position in
the driver's door lock for about a second
unlocks all doors and the liftgate. To unlock
only the driver's door, insert the key into the
driver's door lock and turn the key briefly
to the unlock position and then immediately
return it to the center position.
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-12.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Lock
Unlock
Locking, unlocking with request switch
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the request switch
on the front doors and the liftgate while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-17).
Locking, unlocking with transmitter
(with retractable type key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-27).
Knowing Your Mazda
Doors and Locks
3-35
Mazda3_8BM5-EA-10F_Edition3 Page111
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (112,1)
Auto lock/unlock function
WARNING
Do not pull the inner handle on a front
door:Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
NOTE
Additional auto lock/unlock function
(Automatic transaxle)
A function setting is also available which
enable automatic locking and unlocking of
doors and the liftgate when shifting gears.
Refer to Personalization Features on page
10-12.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior to perform the
setting change as indicated in the
procedure which follows. Settings can be changed using the
following operation.
Function
number Function
1 The auto door-lock function is
disabled.
2 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to ACC or Off.
4 (Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
5 (Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.
1. Stop the vehicle and close all the doors.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 10
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
3-36
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page112
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

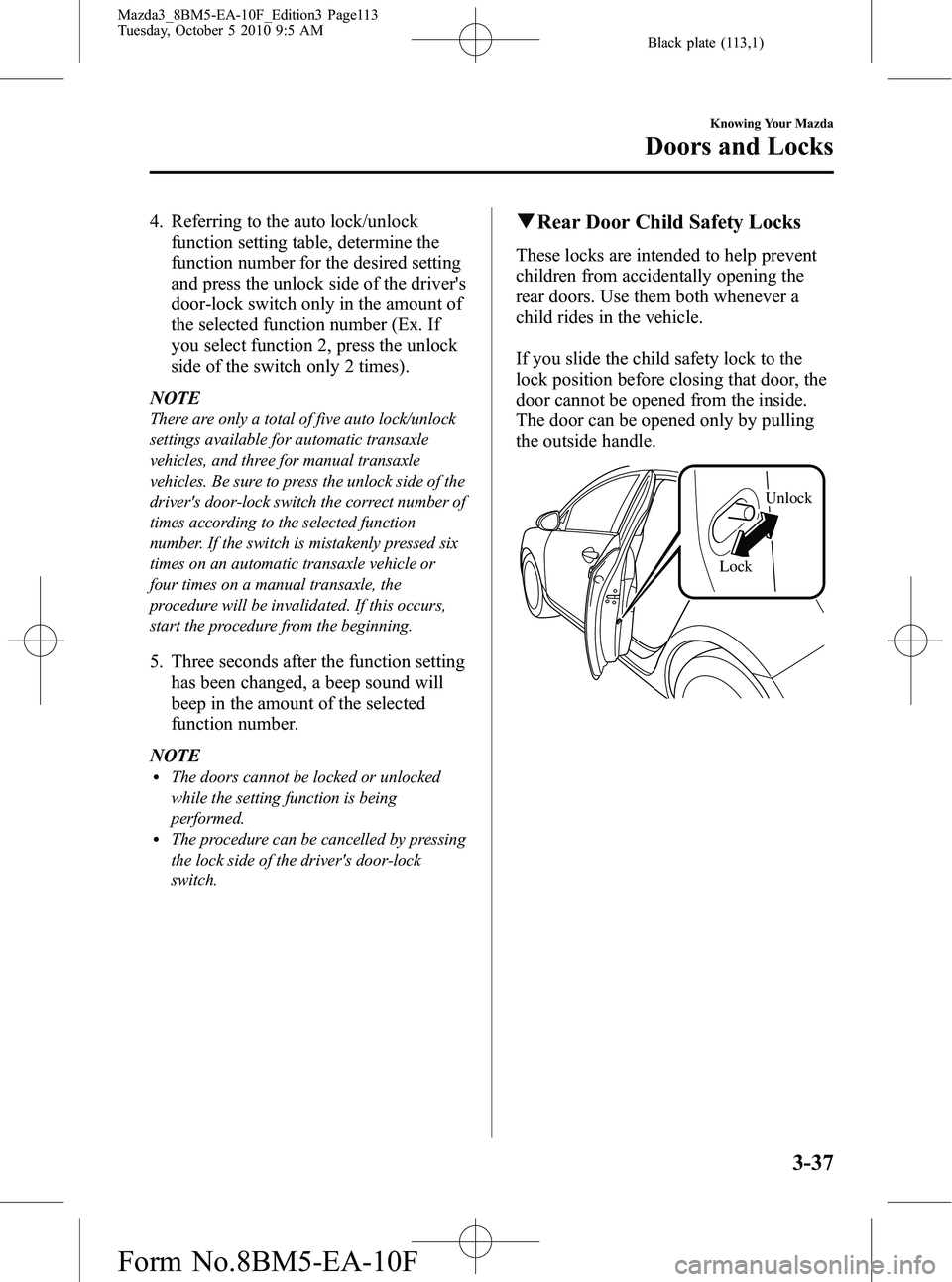

Black plate (113,1)
4. Referring to the auto lock/unlockfunction setting table, determine the
function number for the desired setting
and press the unlock side of the driver's
door-lock switch only in the amount of
the selected function number (Ex. If
you select function 2, press the unlock
side of the switch only 2 times).
NOTE
There are only a total of five auto lock/unlock
settings available for automatic transaxle
vehicles, and three for manual transaxle
vehicles. Be sure to press the unlock side of the
driver's door-lock switch the correct number of
times according to the selected function
number. If the switch is mistakenly pressed six
times on an automatic transaxle vehicle or
four times on a manual transaxle, the
procedure will be invalidated. If this occurs,
start the procedure from the beginning.
5. Three seconds after the function setting has been changed, a beep sound will
beep in the amount of the selected
function number.
NOTE
lThe doors cannot be locked or unlocked
while the setting function is being
performed.
lThe procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.
q Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Lock Unlock
Knowing Your Mazda
Doors and Locks
3-37
Mazda3_8BM5-EA-10F_Edition3 Page113
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (114,1)
Liftgate (5 Door)
WARNING
Never allow a person to ride in the
luggage compartment:Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
qLocking, Unlocking with Key
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
cylinder, refer to Power Door Locks (page
3-34).
qLocking, Unlocking with Request
Switch (with Advanced Key)
The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-17).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-27).
qLocking, Unlocking with Door-
Lock Knob
The liftgate can be locked/unlocked by
operating the driver's door-lock knob,
refer to Power Door Locks (page 3-34).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-34).
qOpening and Closing the Liftgate
NOTE
(With advanced key)
When using the advanced keyless function to
open the liftgate, refer to Opening the liftgate
(page 3-11).
3-38
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page114
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (115,1)
Opening the liftgate
Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.
Electric liftgate
opener
While the ignition is switched ON, the
liftgate can be opened only when the
vehicle is stopped with the parking brake
applied (manual transaxle), or with the
selector lever in the P position (automatic
transaxle).
NOTE
lWhen the liftgate is unlocked by pressing
the electric liftgate opener button, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener button has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener button again to fully open
the liftgate. To close the liftgate from its
slightly raised position, open it first by
pressing the electric liftgate opener button
and waiting for 1 second or longer, then
close it.
lThe sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.
When the liftgate cannot be opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be unlocked, perform
the following procedure as an emergency
measure to unlock it:
1. Fold down the rear seatbacks.Refer to Split-Folding Rear Seatback
on page 2-8.
2. Remove the cap on the interior surface of the liftgate with a flathead
screwdriver.
Cap
3. Turn the lever to the right to unlock theliftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Doors and Locks
3-39
Mazda3_8BM5-EA-10F_Edition3 Page115
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (116,1)
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qLuggage Compartment
WARNING
Do not place anything on top of the
cover:
Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone. The vehicle
has a light weight luggage
compartment cover to keep the
contents of your luggage area out of
sight; it will not retain heavy objects
that are not tied down in an accident
such as a rollover. Tie down all heavy
objects, whether luggage or cargo,
using the tie down hooks.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
Luggage compartment cover strap
The luggage compartment can be
accessed by opening the liftgate when the
straps are attached to the sides of the
liftgate.
Strap
Luggage compartment cover
This cover can be removed for more
room. To do this, just unfasten the straps;
then lift and pull it out.
3-40
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page116
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (117,1)
Trunk Lid (4 Door)
WARNING
Never allow a person to ride in the
trunk:Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving: Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not raise or lower the
trunk lid using the spoiler. Otherwise,
the rear spoiler and the trunk lid
could be damaged.
Knowing Your Mazda
Doors and Locks
3-41
Mazda3_8BM5-EA-10F_Edition3 Page117
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (118,1)
Opening the trunk lid with the keyí
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the electric
trunk lid opener (with advanced key)
The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Opening the trunk lid with the
transmitter (with advanced key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-17).
Opening the trunk lid with the
transmitter (with retractable type key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-27).
Opening the trunk lid with the remote
release lever
Pull up the release lever next to the
driver's seat.
Release lever
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.
3-42
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page118
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (119,1)
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
Knowing Your Mazda
Doors and Locks
3-43
Mazda3_8BM5-EA-10F_Edition3 Page119
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (120,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
3-44
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page120
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F
