Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
qTire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.
qTire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) or sooner if irregular
wear develops. During rotation, inspect them for correct balance.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
lIncorrect tire pressurelImproper wheel alignmentlOut-of-balance wheellSevere braking
After rotation, inflate all tire pressures to specification (page 10-11) and inspect the lug
nuts for tightness.
9-32
Customer Information
Tire Information (U.S.A.)
Mazda3_8BM5-EA-10F_Edition3 Page478
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (481,1)

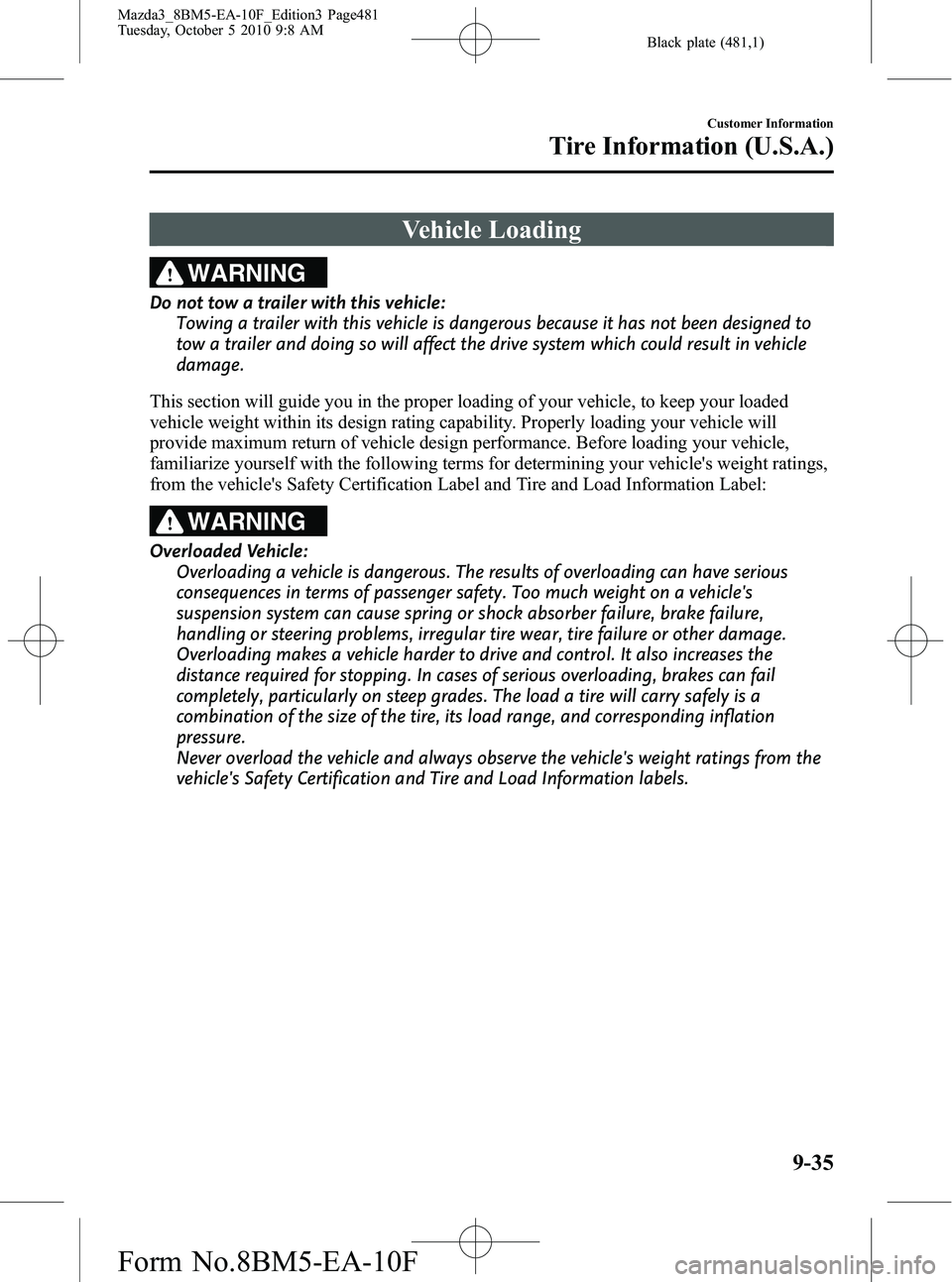

Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading your vehicle,
familiarize yourself with the following terms for determining your vehicle's weight ratings,
from the vehicle's Safety Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle: Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Customer Information
Tire Information (U.S.A.)
9-35
Mazda3_8BM5-EA-10F_Edition3 Page481
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (503,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-36.
Standard tire
(Except 2.3-liter turbocharged engine)
Tire size Inflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
(2.3-liter turbocharged engine)
Tire size Inflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi) 230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-54.
Specifications
10-11
Mazda3_8BM5-EA-10F_Edition3 Page503
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (508,1)
A
Accessory Socket ............................ 6-116
Adaptive Front Lighting System
(AFS) ................................................ 5-63
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-21
Auxiliary key .............................. 3-21
Locking, unlocking with request
switch ........................................... 3-9
Opening the liftgate/trunk lid ..... 3-11
Operational range ......................... 3-7
Remote control function ............. 3-17
Service ......................................... 3-7
Warning and beep sounds .......... 3-22
When warning indicator/beep is
activated ..................................... 3-25
Air Bag Systems ............................... 2-43
Antenna ............................................. 6-18
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-9
Appearance Care ............................... 8-60
Audio System ................................... 6-18 Audio control switch .................. 6-58
Audio set .................................... 6-29
AUX mode ................................. 6-61
Operating tips for audio
system ........................................ 6-19
Safety certification ..................... 6-63
Automatic Transaxle Driving tips ................................ 5-19
Fluid ........................................... 8-24
Manual shift mode ..................... 5-16
Shift-lock override ..................... 5-15
Shift-lock system ....................... 5-15
Transaxle ranges ........................ 5-14
B
BatteryEmergency starting .................... 7-18
Maintenance ............................... 8-31
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-57
Lights-on reminder ..................... 5-57
Seat belt warning ........................ 5-57
Tire inflation pressure warning ... 5-58
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Bluetooth Audio ............................... 6-64
Bluetooth Hands-Free ....................... 6-74 Basic Bluetooth Hands-Free
operation .................................... 6-78
Convenient use of the hands-free
system ........................................ 6-83
Hands-free setting ...................... 6-89
Mazda Bluetooth Hands-Free
customer service ......................... 6-96
Safety certification ..................... 6-96
When Bluetooth Hands-Free cannot
be used ....................................... 6-95
Body Lubrication .............................. 8-27
Boost Gauge ..................................... 5-39
Bottle Holder ................................... 6-112
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-42
11-2
Index
Mazda3_8BM5-EA-10F_Edition3 Page508
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (513,1)
T
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-30System error activation .............. 5-34
Tire pressure monitoring system
warning light .............................. 5-32
Tires and wheels ......................... 5-34
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-36
Replacement ............................... 8-38
Rotation ...................................... 8-37
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ........................... 10-11
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing Description ................................. 7-24
Emergency towing ..................... 7-24
Recreational towing ................... 7-27
Trailer towing ............................. 4-15
Traction Control System (TCS) ........ 5-26 TCS/DSC indicator light ............ 5-27
Trailer Towing .................................. 4-15
Trip Meter ......................................... 5-37
Trunk Lid .......................................... 3-41 Inside trunk release lever ............ 3-43
Trunk Light ....................................... 3-42
Turn and Lane-Change Signals ......... 5-64
V
Vanity Mirrors ................................... 6-97
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-41 ABS ............................................ 5-44
Air bag system ........................... 5-47
Automatic transaxle ................... 5-49
Brake system .............................. 5-43
Charging system ......................... 5-45
Check engine .............................. 5-46
Check fuel cap ........................... 5-47
Door-ajar .................................... 5-49
Engine oil pressure ..................... 5-45
Front seat belt pretensioner
system ........................................ 5-47
High engine coolant
temperature ................................ 5-46
KEY ............................................ 5-52
Low fuel ..................................... 5-47
Low washer fluid level ............... 5-49
Seat belt ...................................... 5-47
Tire pressure monitoring
system ........................................ 5-50
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-26
Weights ............................................. 10-7
Wheel Replacement .......................... 8-39
Windows Power windows .......................... 3-44
Windshield Washer ........................... 5-69
Windshield Wipers ............................ 5-66
Blades replacement .................... 8-27
Winter Driving .................................... 4-9
Index
11-7
