MAZDA MODEL 3 4-DOOR 2012 Owners Manual

Black plate (351,1)
2. Select PREFERENCES by pressing theEnter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
3. Select the setting item you want to change by pressing the Enter (up/
down) switch up or down, and then
press the Enter (up/down) switch.
4. Select the desired setting by pressing the Enter (up/down) switch up or
down, and then press the Enter (up/
down) switch.
NOTE
The buzzer volume for both the ignition key
reminder and the lights-on reminder is
changed simultaneously. If you prefer separate
buzzer volume settings, consult an Authorized
Mazda Dealer. If separate buzzer volume
settings have been done at an Authorized
Mazda Dealer, you will be unable to change
the settings.
Resetting the data for the trip computer
average fuel economy and the average
vehicle speed
1. Press the INFO switch until the SETTINGS screen is displayed.
2. Select RESET AVERAGES and press the Enter (up/down) switch.
3. Select FUEL ECONOMY or SPEED, and press the Enter (up/down) switch.
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
the cup holders closed when they are
not in use, or when using them for
storage.
qFront
To use, open the cover.
Interior Comfort
Interior Equipment
6-109
Mazda3_8BY6-EA-11F_Edition3 Page351
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (352,1)
qRearí
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
6-110
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8BY6-EA-11F_Edition3 Page352
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (353,1)

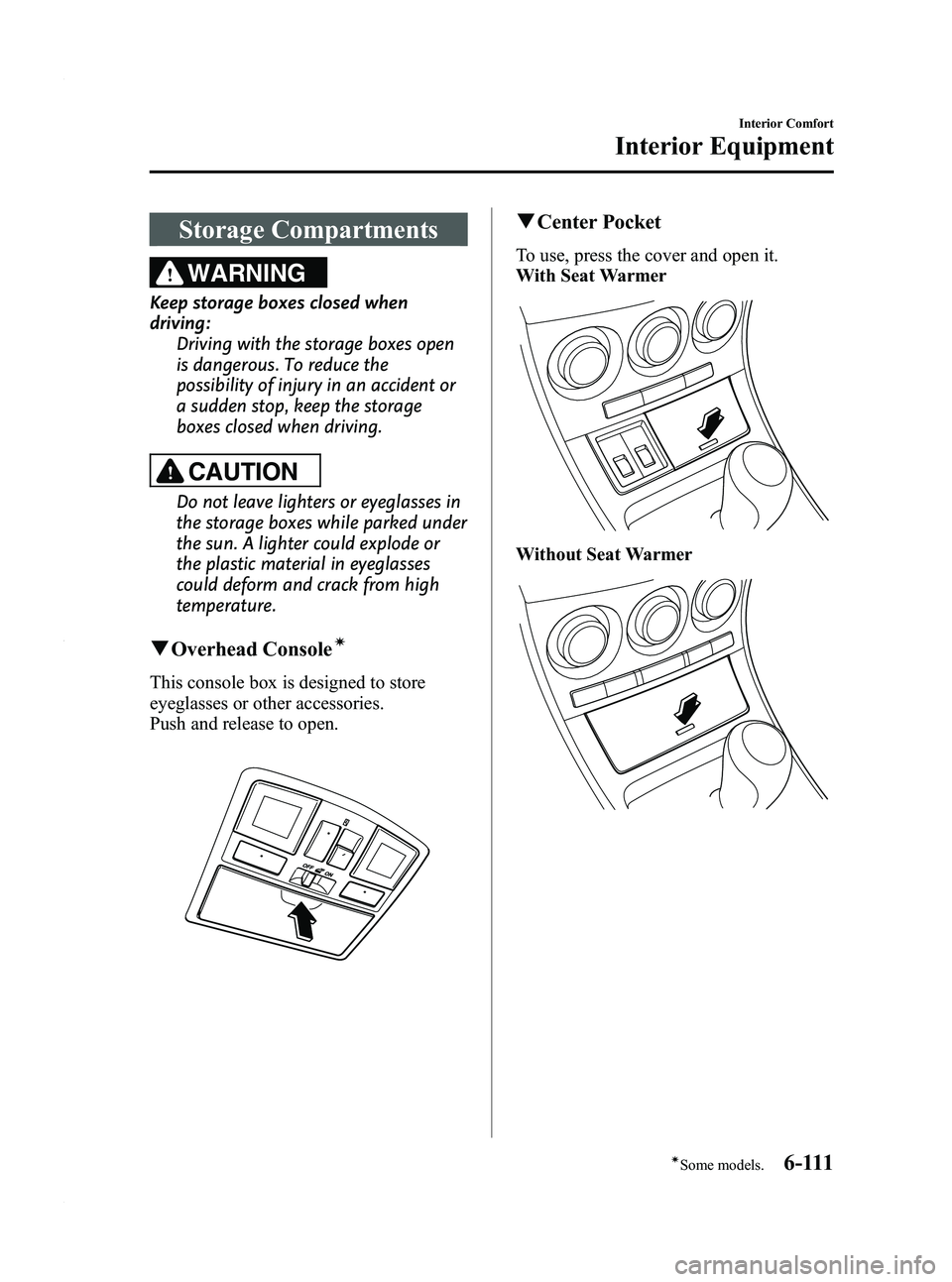

Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Consoleí
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
qCenter Pocket
To use, press the cover and open it.
With Seat Warmer
Without Seat Warmer
Interior Comfort
Interior Equipment
6-111íSome models.
Mazda3_8BY6-EA-11F_Edition3 Page353
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (354,1)

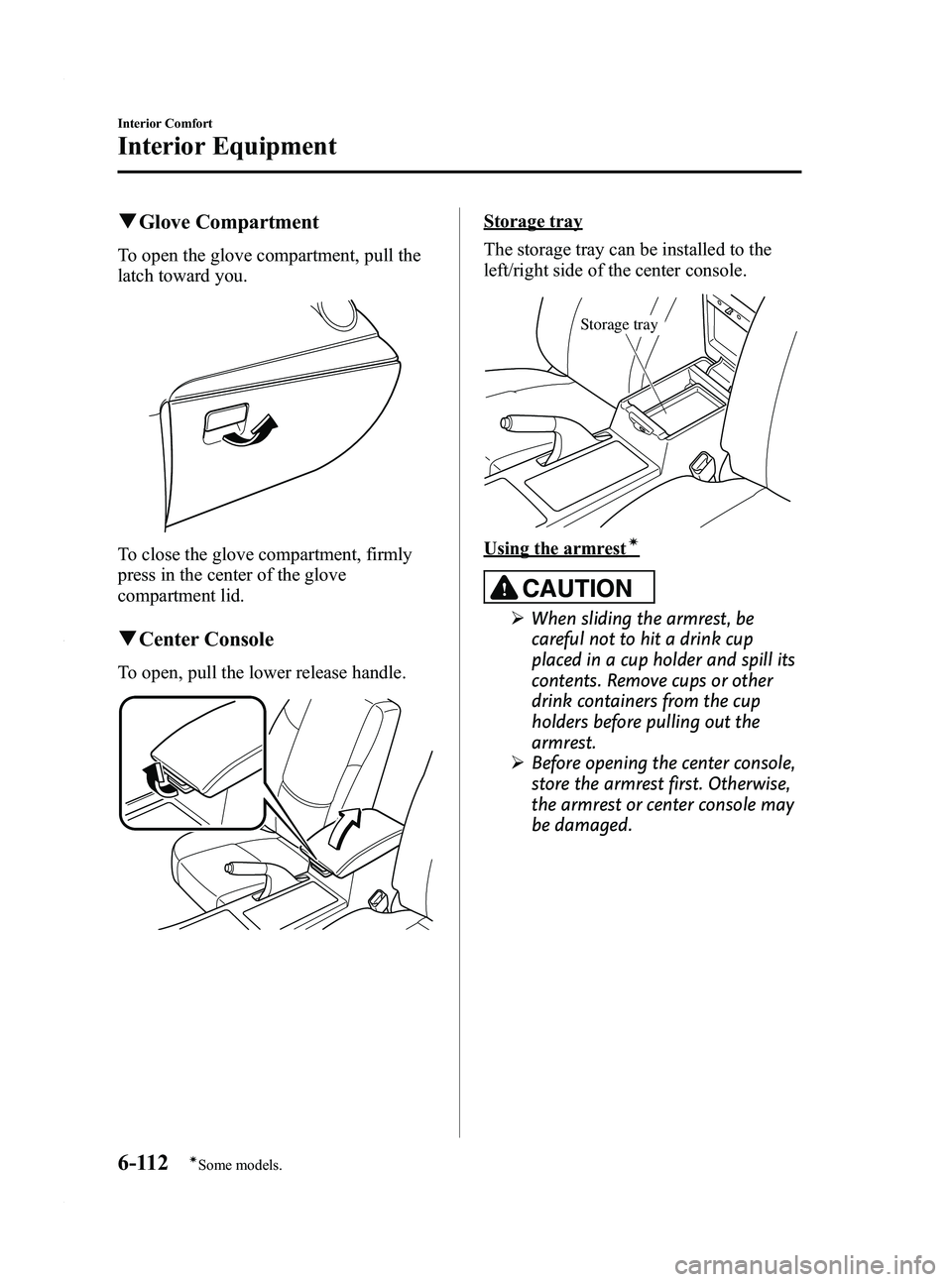

qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
To open, pull the lower release handle.
Storage tray
The storage tray can be installed to the
left/right side of the center console.
Storage tray
Using the armrestí
CAUTION
Ø When sliding the armrest, be
careful not to hit a drink cup
placed in a cup holder and spill its
contents. Remove cups or other
drink containers from the cup
holders before pulling out the
armrest.
Ø Before opening the center console,
store the armrest first. Otherwise,
the armrest or center console may
be damaged.
6-112
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8BY6-EA-11F_Edition3 Page354
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (355,1)

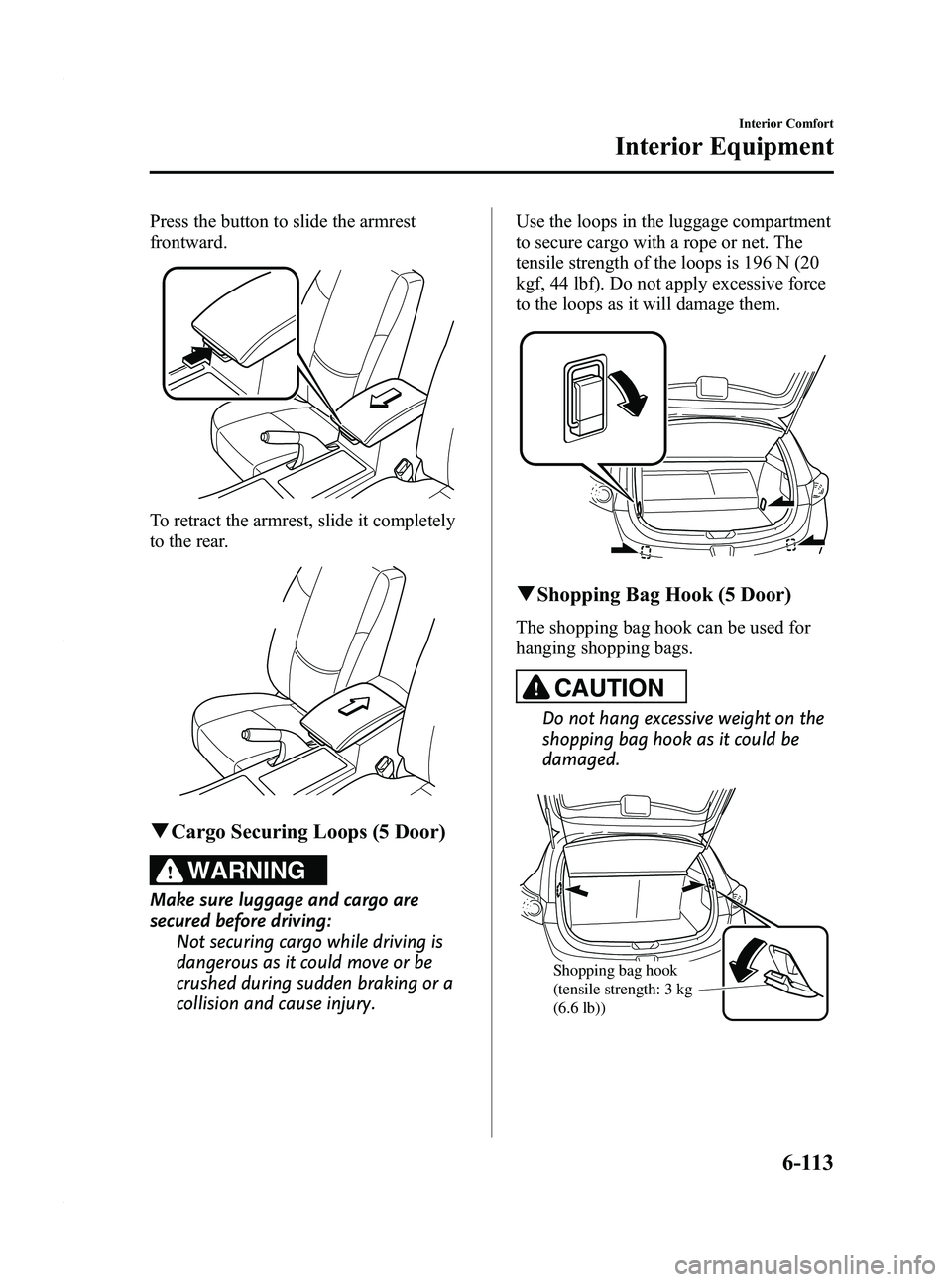

Press the button to slide the armrest
frontward.
To retract the armrest, slide it completely
to the rear.
qCargo Securing Loops (5 Door)
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
q
Shopping Bag Hook (5 Door)
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Shopping bag hook
(tensile strength: 3 kg
(6.6 lb))
Interior Comfort
Interior Equipment
6-113
Mazda3_8BY6-EA-11F_Edition3 Page355
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (356,1)

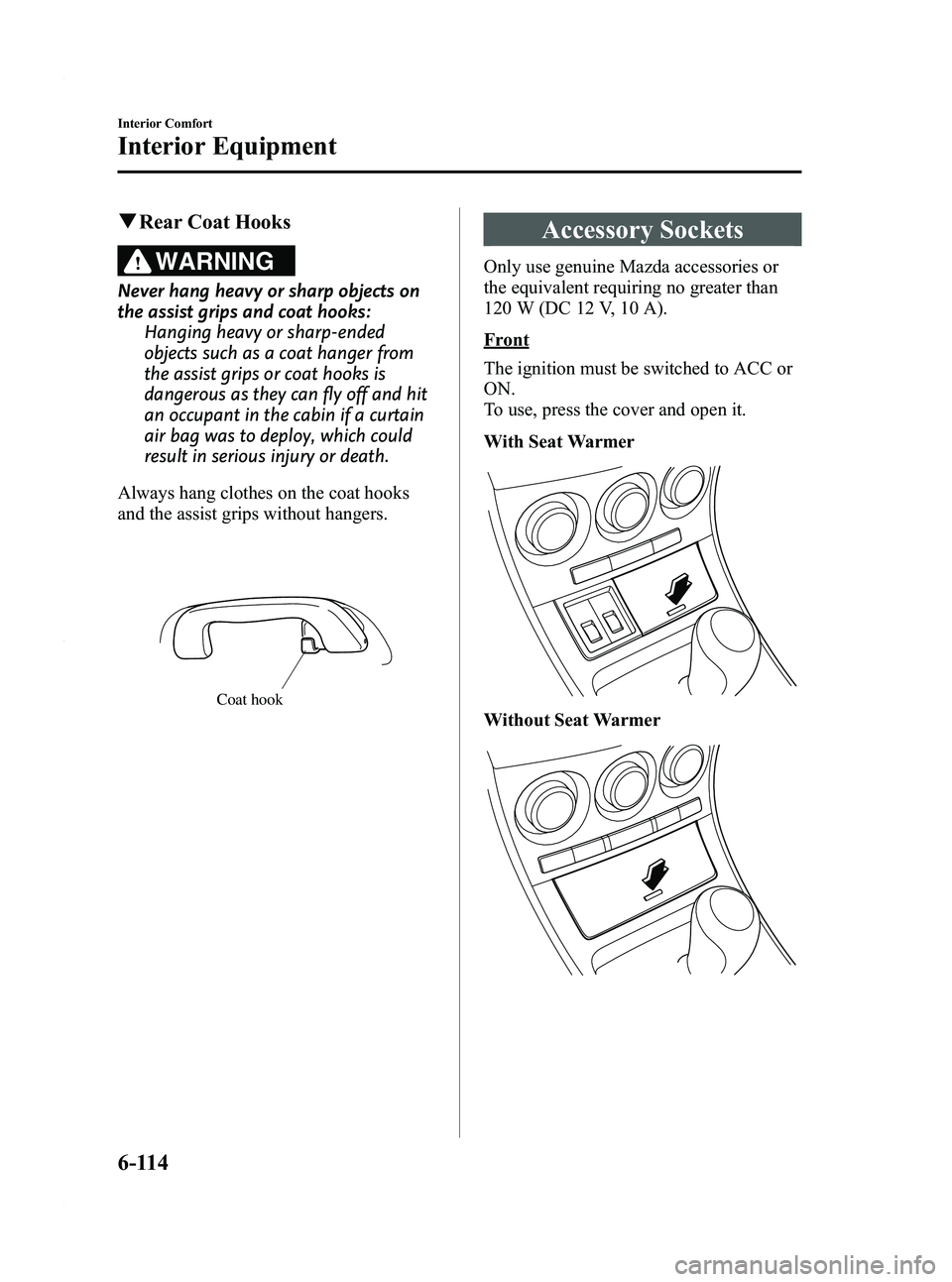

qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
To use, press the cover and open it.
With Seat Warmer
Without Seat Warmer
6-114
Interior Comfort
Interior Equipment
Mazda3_8BY6-EA-11F_Edition3 Page356
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (357,1)
Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
Ø Noise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-115
Mazda3_8BY6-EA-11F_Edition3 Page357
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (358,1)

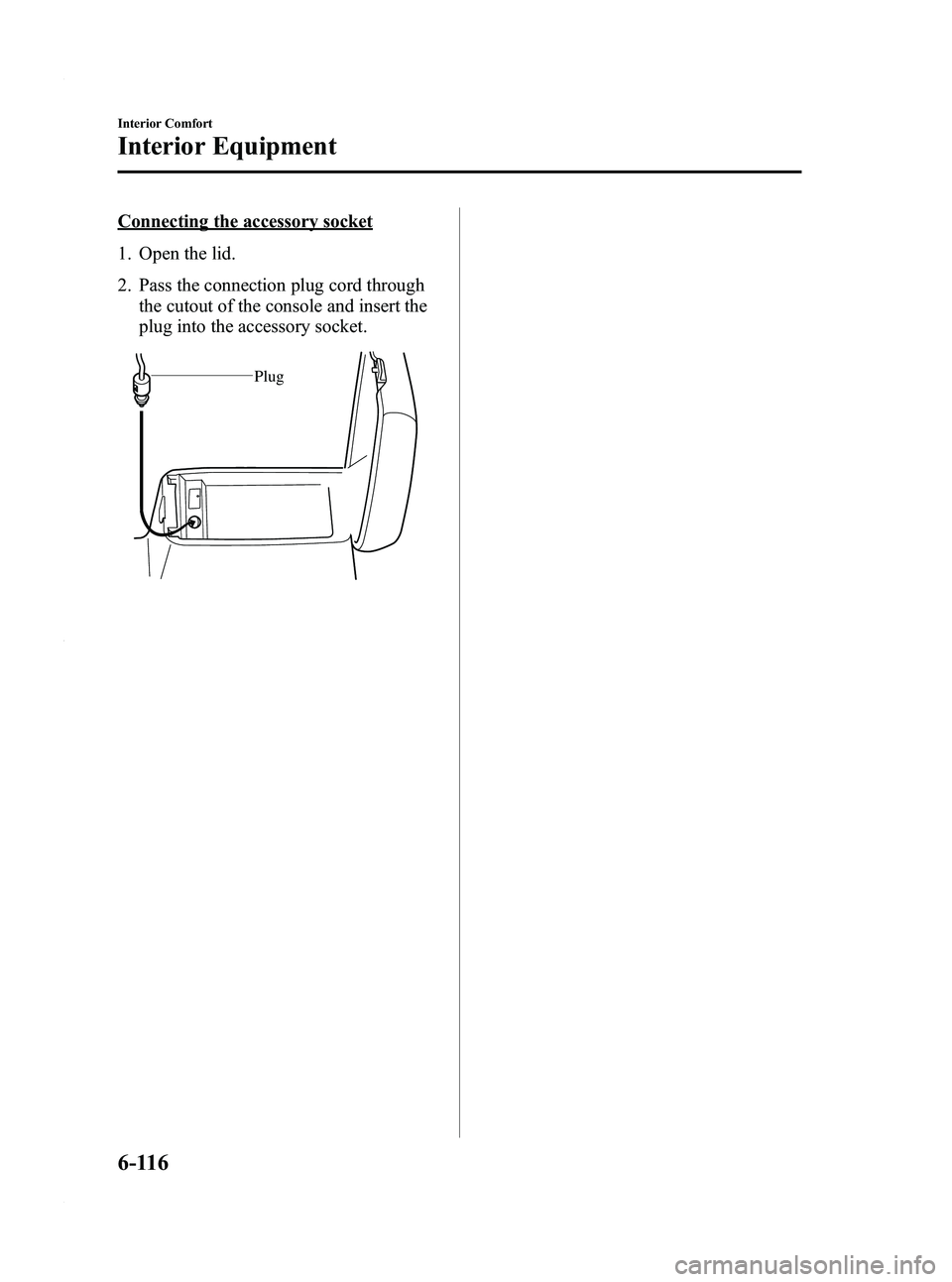

Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord throughthe cutout of the console and insert the
plug into the accessory socket.
Plug
6-116
Interior Comfort
Interior Equipment
Mazda3_8BY6-EA-11F_Edition3 Page358
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (359,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-16 Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18 Starting a Flooded Engine ....................................................... 7-18
Jump-Starting .......................................................................... 7-19
Push-Starting ........................................................................... 7-24
Emergency Towing ..................................................................... 7-25 Towing Description ................................................................. 7-25
Tiedown Hook ........................................................................ 7-26
Recreational Towing ............................................................... 7-28
7-1
Mazda3_8BY6-EA-11F_Edition3 Page359
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (360,1)

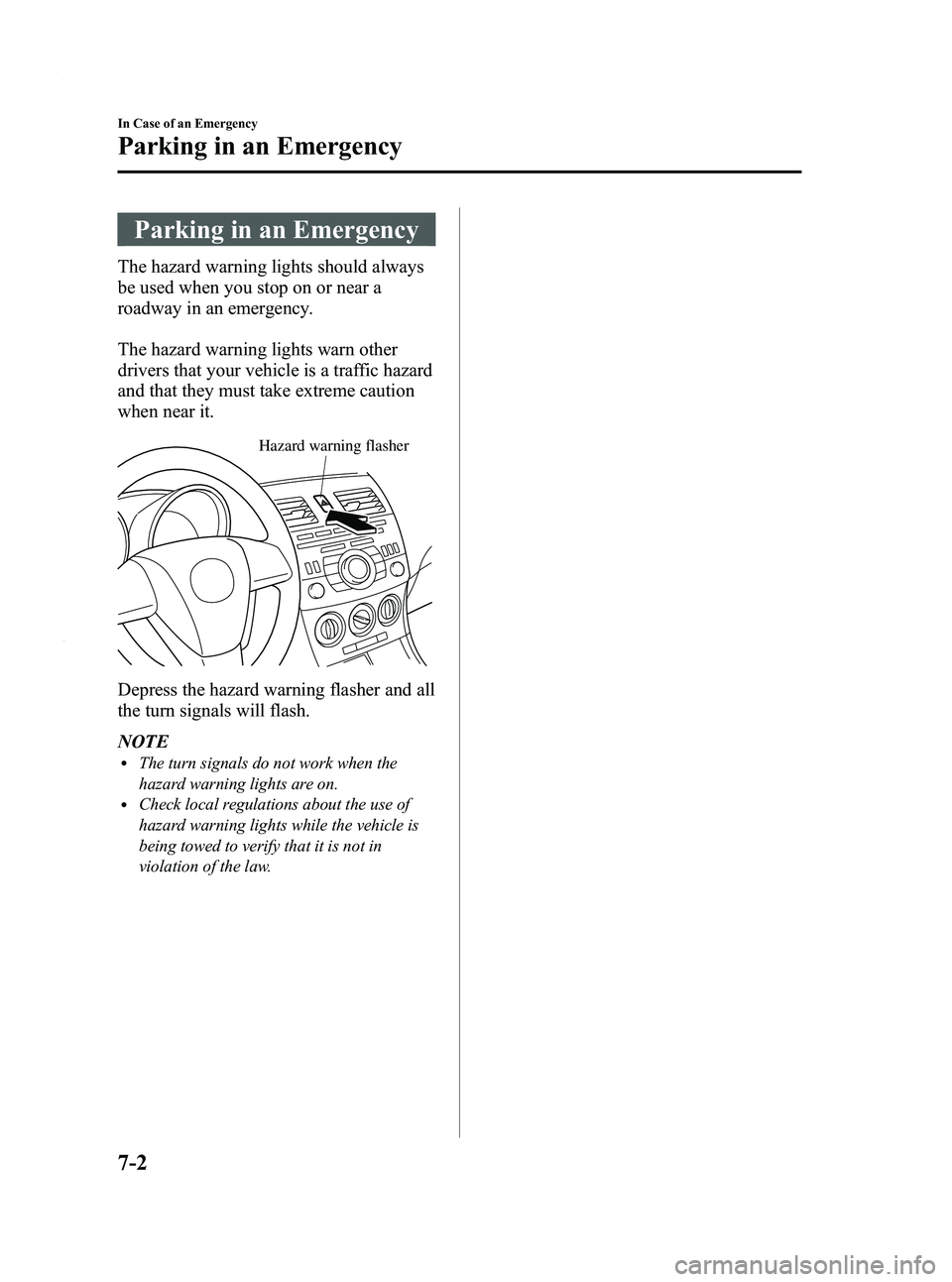

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
