dimensions MAZDA MODEL 3 4-DOOR 2012 Owners Manual

Black plate (510,1)

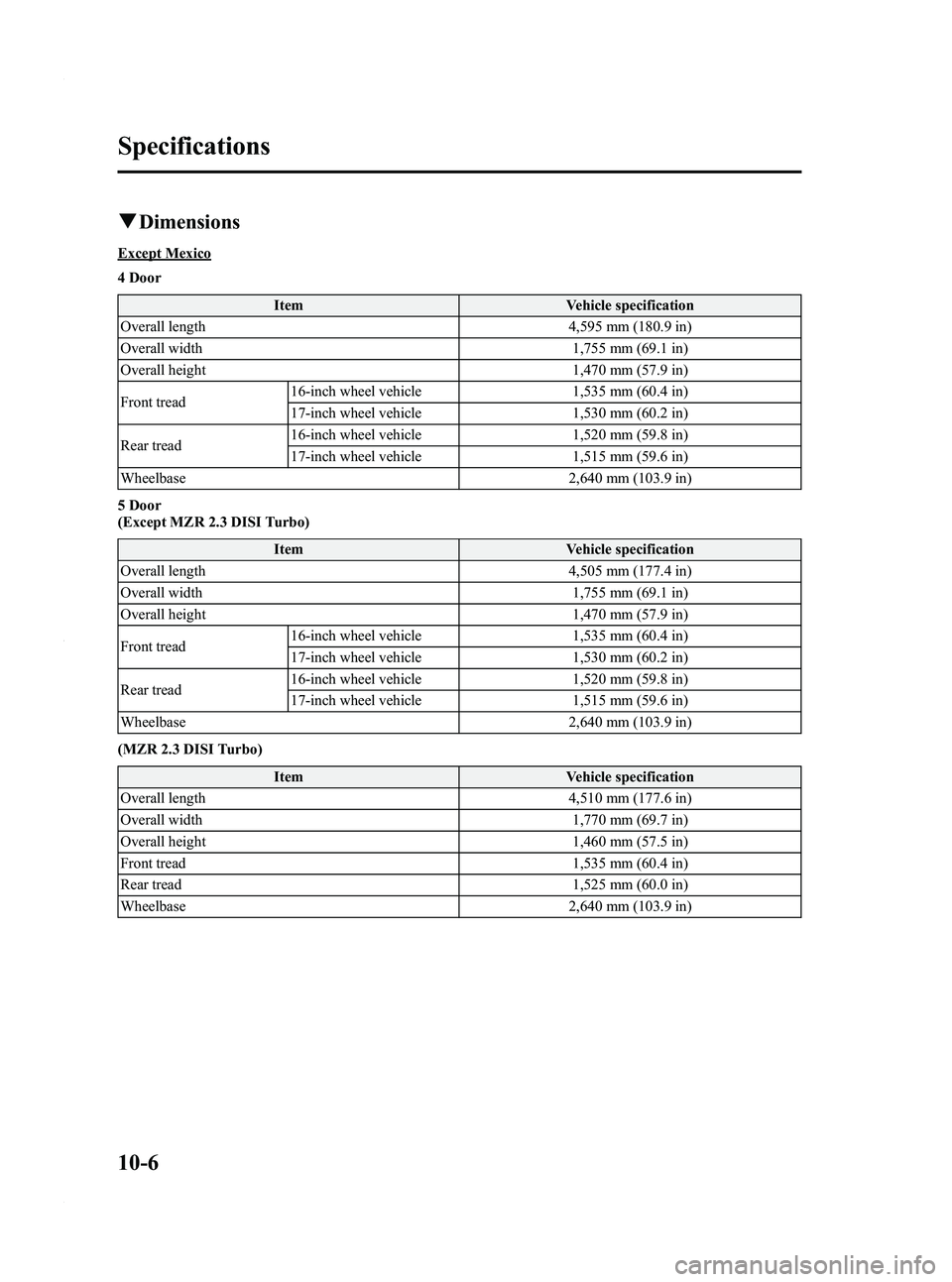

qDimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
5 Door
(Except MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BY6-EA-11F_Edition3 Page510
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (523,1)
B
BrakesAnti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-44
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-113
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-112
Center Pocket .................................. 6-111
Child Restraint
Child restraint precautions ......... 2-26
Child-restraint system installation
position ...................................... 2-31
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-39
Child Safety Locks for Rear Doors ... 3-37
Climate Control System ...................... 6-2 Gas specifications .................... 10-10
Clock ................................................. 6-98
Cruise Control ................................... 5-22
Cup Holder ...................................... 6-109
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-45
Daytime Running Lights ................... 5-69
D
Defroster Mirror ......................................... 5-76
Rear window .............................. 5-75
Dimensions ....................................... 10-6
Door Locks ....................................... 3-32
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-20
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-28 DSC OFF indicator light ............ 5-29
DSC OFF switch ........................ 5-29
TCS/DSC indicator light ............ 5-29
E
Emergency Starting ........................... 7-18Flooded engine ........................... 7-18
Jump-starting .............................. 7-19
Push-starting .............................. 7-24
Emergency Towing ........................... 7-25
Emission Control System .................... 4-4
Engine Coolant ....................................... 8-22
Exhaust gas .................................. 4-5
Hood release .............................. 3-50
Oil .............................................. 8-19
Overheating ................................ 7-16
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Index
11-3
Mazda3_8BY6-EA-11F_Edition3 Page523
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F
