Page 11 of 586
![MAZDA MODEL 3 4-DOOR 2014 User Guide 1–5
Pictorial Index
Exterior Overview
(4-Door)
Hood ........................................................................\
.............................................. page 6-24](/img/28/41000/w960_41000-10.png "MAZDA MODEL 3 4-DOOR 2014 User Guide 1–5
Pictorial Index
Exterior Overview
(4-Door)
Hood ........................................................................\
.............................................. page 6-24")

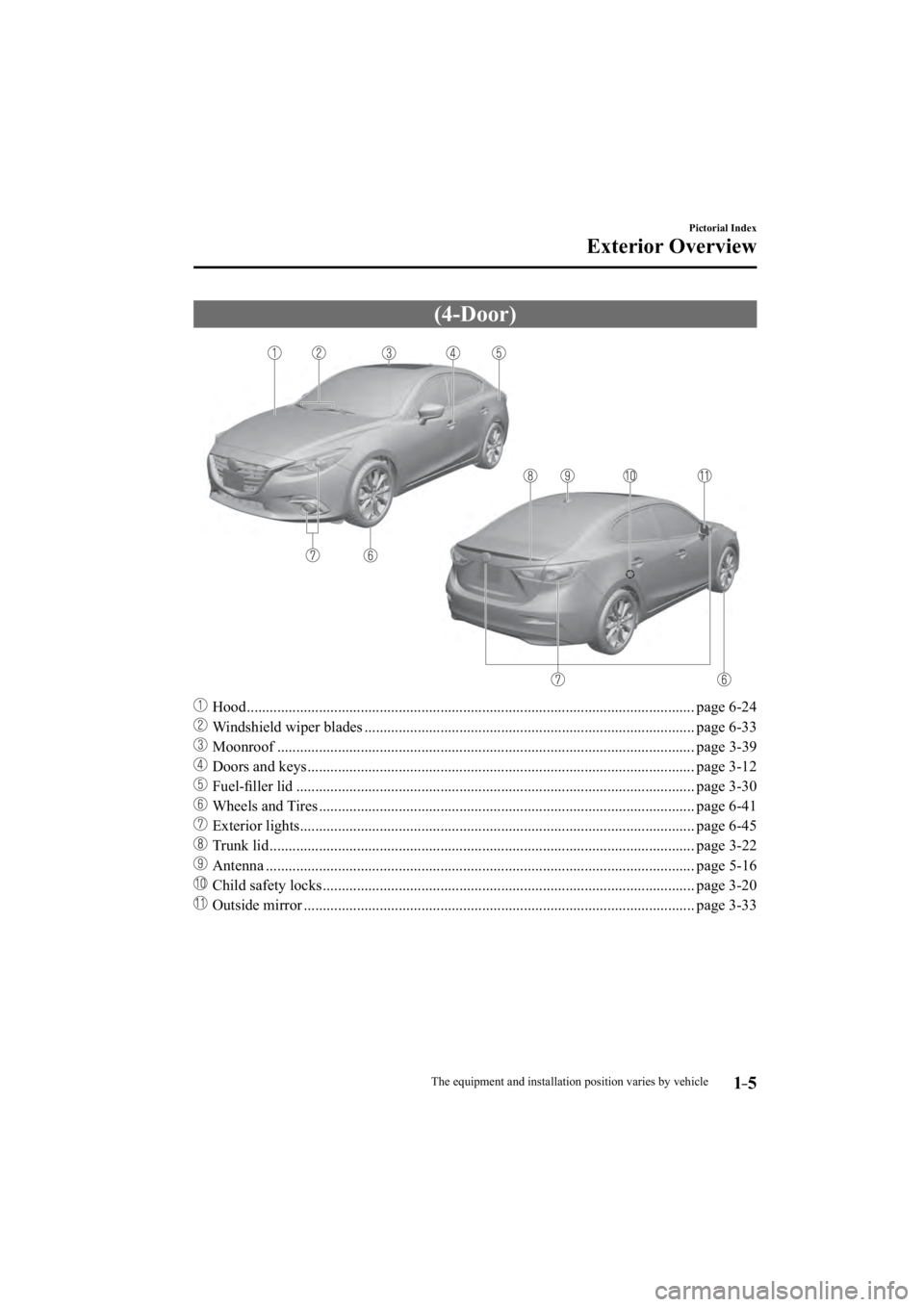

1–5
Pictorial Index
Exterior Overview
(4-Door)
Hood ........................................................................\
.............................................. page 6-24
Windshield wiper blades ........................................................................\
............... page 6-33
Moonroof ........................................................................\
...................................... page 3-39
Doors and keys ........................................................................\
.............................. page 3-12
Fuel-fi ller lid ........................................................................\
................................. page 3-30
Wheels and Tires ........................................................................\
........................... page 6-41
Exterior lights ........................................................................\
................................ page 6-45
Trunk lid ........................................................................\
........................................ page 3-22
Antenna ........................................................................\
......................................... page 5-16
Child safety locks ........................................................................\
.......................... page 3-20
Outside mirror ........................................................................\
............................... page 3-33
The equipment and installation position varies by vehicle
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 12 of 586
![MAZDA MODEL 3 4-DOOR 2014 User Guide 1–6
Pictorial Index
Exterior Overview
(5-Door)
Hood ........................................................................\
.............................................. page 6-24](/img/28/41000/w960_41000-11.png "MAZDA MODEL 3 4-DOOR 2014 User Guide 1–6
Pictorial Index
Exterior Overview
(5-Door)
Hood ........................................................................\
.............................................. page 6-24")

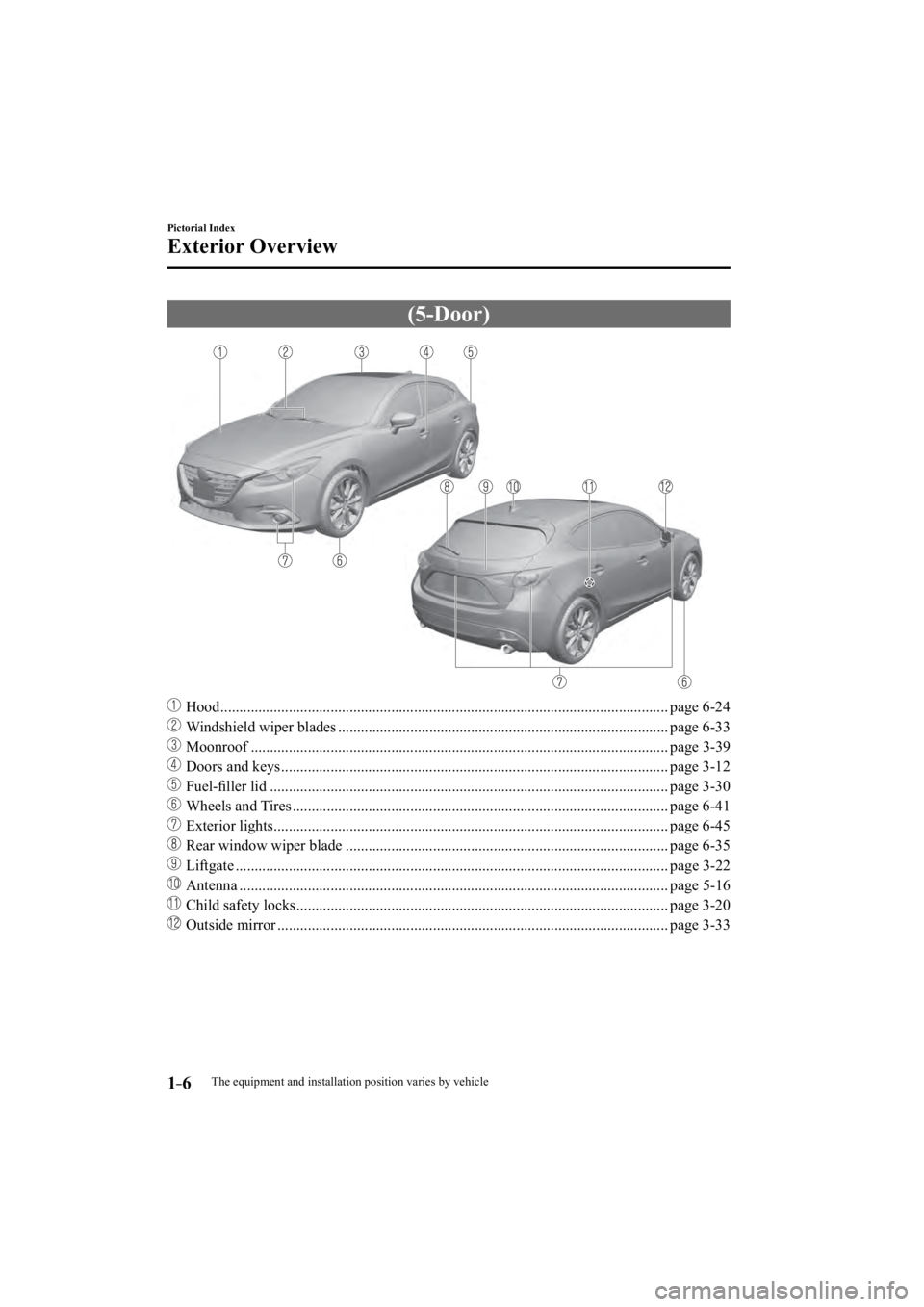

1–6
Pictorial Index
Exterior Overview
(5-Door)
Hood ........................................................................\
.............................................. page 6-24
Windshield wiper blades ........................................................................\
............... page 6-33
Moonroof ........................................................................\
...................................... page 3-39
Doors and keys ........................................................................\
.............................. page 3-12
Fuel-fi ller lid ........................................................................\
................................. page 3-30
Wheels and Tires ........................................................................\
........................... page 6-41
Exterior lights ........................................................................\
................................ page 6-45
Rear window wiper blade ........................................................................\
............. page 6-35
Liftgate ........................................................................\
.......................................... pag e 3-22
Antenna ........................................................................\
......................................... page 5-16
Child safety locks ........................................................................\
.......................... page 3-20
Outside mirror ........................................................................\
............................... page 3-33
The equipment and installation position varies by vehicle
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 13 of 586
*Some models.2–1
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-
restraint systems and SRS air bags.
Seats ........................................................................\
............................. 2-2 Seat Precautions ........................................................................\
.... 2-2
Front Seat ........................................................................\
.............. 2-5
Rear Seat ........................................................................\
............... 2-8
Head Restraints ........................................................................\
... 2-10
Seat Belt Systems ................................................................\
.............. 2-12 Seat Belt Precautions .................................................................. 2-12
3-Point Type Seat Belt ................................................................ 2-15
Seat Belt Warning Systems ......................................................... 2-16
Front Seat Belt Pretensioner and Load Limiting Systems .......... 2-16
Center-Rear Position 2-Point Type Seat Belt
* ............................. 2-18
Seat Belt Extender ....................................................................... 2-20
Child-Restraint ........................................................................\
......... 2-22 Child-Restraint Precautions ........................................................ 2-22
Child-Restraint System Installation ............................................ 2-27
Installing Child-Restraint Systems ............................................. 2-28
SRS Air Bags ........................................................................\
............ 2-40 Supplemental Restraint System (SRS) Precautions .................... 2-40
Supplemental Restraint System Components ............................. 2-47
How the SRS Air Bags Work ...................................................... 2-49
SRS Air Bag Deployment Criteria .............................................. 2-53
Limitations to SRS Air Bag ........................................................ 2-54
Front Passenger Occupant Classifi cation System
* ...................... 2-56
Constant Monitoring ................................................................... 2-61
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 14 of 586
2–2
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place: Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure the
adjustable components of the seat are locked in place by attempting to slide the seat
forward and backward and rocking the seatback.
Never allow children to adjust a seat: Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked: All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown
around and baggage to strike occupants in a sudden stop or collision, resulting in severe
injury. After adjusting the seatback at any time, even when there are no other passengers,
rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped: Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats: Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifi cations could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there
is any need to remove or reinstall the front seats.
Do not drive with damaged front seats: Driving with damaged front seats is dangerous. A collision, even one not strong enough
to infl ate the air bags, could damage the front seats which contain essential air bag
components. If there was a subsequent collision, an air bag may not deploy which could
lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front
seat belt pretensioners and air bags after a collision.
Do not drive with either front seats reclined: Sitting in a reclined position while the vehicle is moving is dangerous because you do not
get the full protection from seat belts. During sudden braking or a collision, you can slide
under the lap belt and suff er serious internal injuries. For maximum protection, sit well
back and upright.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 15 of 586
2–3
Essential Safety Equipment
Seats
Do not place an object such as a cushion between the seatback and your back: Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident, injury or
death.
Do not place objects under the seat: The object could get stuck and cause the seat to not be fi xed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks: Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fl y around and become projectiles that may hit and
injure passengers.
Make sure luggage and cargo is secured before driving: Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving: Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up
on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden
stop or even a minor collision, a child not in a proper seat or child-restraint system and
seat belt could be thrown forward, back or even out of the vehicle resulting in serious
injuries or death. The child in the baggage area could be thrown into other occupants
and cause serious injury.
Never give the car keys to children and do not allow them to play in the vehicle (4–
Door): Playing with the folding rear seats is dangerous. Once the seatbacks are back up, a child
in the trunk would not be able to get out the way they had entered. If you have small
children, keep the seatbacks locked.
Always leave your car locked and keep the car keys safely away from children (4–
Door): Leaving your car unlocked or the keys in reach of children is dangerous. Children who fi nd
their way into the trunk through an unlocked rear seatback or an open trunk can become
accidentally locked in the trunk. This could result in death or brain damage from heat
prostration, particularly in the summer. Always lock the doors and the trunk, and as an
added measure, keep the rear seatbacks locked, whether you have children in your home
or not.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 16 of 586
2–4
Essential Safety Equipment
Seats
CAUTION
Page 17 of 586
2–5
Essential Safety Equipment
Seats
Front Seat
Seat Operation
*1: With power operation seat only
Power operation*1
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to\
the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is loc\
ked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the sea\
t to the front or back
and hold it. Release the switch at the desired position.
Height Adjustment (Driver's Seat)
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the switch up or down.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 18 of 586
![MAZDA MODEL 3 4-DOOR 2014 User Guide *Some models.2–6
Essential Safety Equipment
Seats
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lev\
er. Then lean back
to the desired posi](/img/28/41000/w960_41000-17.png "MAZDA MODEL 3 4-DOOR 2014 User Guide *Some models.2–6
Essential Safety Equipment
Seats
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lev\
er. Then lean back
to the desired posi")
*Some models.2–6
Essential Safety Equipment
Seats
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lev\
er. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is\
locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclini\
ng switch. Release the
switch at the desired position.
Lumbar Support Adjustment (Driver's Seat) *
To increase the seat fi rmness, move the lever forward. Move the lever backward to decrease
fi rmness.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 19 of 586
*Some models.2–7
Essential Safety Equipment
Seats
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch to illuminate
the indicator light while the ignition
is switched ON. The mode changes as
follow each time the seat warmer switch is
pressed.
OFF
High Mid
Low
WARNING
Be careful when using the seat warmer: The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
Page 20 of 586
2–8
Essential Safety Equipment
Seats
Rear Seat
Split/One-piece Folding the Seatback
By lowering the rear seatback(s) the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with occupants
on folded down seatback(s) or in the
luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.
Do not allow children to play inside the
vehicle with the seatback(s) lowered. Allowing children to play in the
vehicle with the seatback(s) folded
down is dangerous, If a child enters
the luggage compartment and the
seatback(s) were raised back up, the
child may become trapped in the
luggage compartment which could
lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatback(s) folded down. Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or
a collision resulting in an unexpected
accident.
When transporting cargo, do not allow
the cargo to exceed the height of the
seatback(s). Transporting cargo stacked higher
than the seatback(s) is dangerous as
visibility to the rear and sides of the
vehicle is reduced which could interfere
with driving operations and lead to an
accident.
Lowering the seatback(s)
CAUTION
Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold
a rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Remove the head restraint on the rear
outboard seat if necessary.
(4–Door)
1. Open the trunk lid and pull the lever for the seatback you want to fold down.
*1: With split-folding
type seat only *1
2. Open a rear door and fold the rear seat
forward.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D / C \ F C A & ( ' # * A ' F K V K Q P K P F D
