Xenon fusion headlight bulbs*
The low-beam bulbs of the headlights have xenon fusion bulbs that produc\
e a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourself:
Replacing the xenon fusion bulbs yourself is dangerous, because the xenon fusion
bulbs require high voltage. You could receive an electric shock if the bulbs are handled
incorrectly. Consult an Authorized Mazda Dealer when replacement is necessary.
NOTE
If the headlights flicker or the brightness weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an Authorized Mazda Dealer.
Mazda3_8FA4-EA-15G_Edition1.indb 432015/05/11 14:00:49

4–44
When Driving
Switches and Controls
*Some models.
Headlight High-Low Beam
The headlights switch between high and
low beams by moving the lever forward or
backward.

High beam
Low beam

When the headlight high-beams are on,
the headlight high-beam indicator light is
turned on.



Flashing the Headlights
T o À ash the headlights, pull the lever fully
towards you (the headlight switch does not
need to be on).


OFF
Headlight
flashing

The headlight high-beam indicator light
in the instrument cluster illuminates
simultaneously. The lever will return to the
normal position when released.



Headlight Leveling *
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.

Auto type
The angle of the headlights will be
automatically adjusted when turning on
the headlights.

The warning/indicator light turns on when
the system has a malfunction.
Refer to Warning/Indicator Lights on page
4-20 .
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–45
When Driving
Switches and Controls
Manual type
The headlight leveling switch is used
to adjust the angle of the headlights
manually.
Select the proper headlight angle from the
following chart.
Front seatRear
seat Load Switch
Position
Driver Passenger
× — —— 0
× ×—— 0
× ××— 2
× ××× 2.5
(Between 2 and 3)
× — —×3.5
(Between 3 and 4)
×: Yes
—: No
Daytime Running Lights
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.
Daytime running lights turn on
automatically when the ignition is
switched ON.
They turn off when the parking brake is
operated or the shift lever is shifted to the
P position (automatic transaxle vehicle).
NOTE
(Except Canada)
The daytime running lights can be
deactivated.
Refer to Personalization Features on page
9-12.
Mazda3_8FA4-EA-15G_Edition3.indb 452015/12/04 19:22:57

4–46
When Driving
Switches and Controls
*Some models.
Fog Lights*
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
Fog light switch
The headlight switch must be in the
position before turning on the fog lights.
To turn the fog lights off, do any of the
following:
 Rotate the fog light switch to the
position. Turn the headlight switch to the or
position.
NOTE
 The fog lights will turn off when the
headlights are set at high beams. (With auto-light control)
If the fog light switch is in the
position and the headlight switch is in
the
position, the fog lights will
turn on when the headlights, the
exterior lights and dashboard
illumination turn on.
Turn and Lane-Change
Signals
The ignition must be switched ON to use
the turn and lane-change signals.
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to its
original position.
Right turn
Left turn
Right lane change
Left lane changeOFF
The turn signal indicators (green) in the
instrument cluster flash according to the
operation of the turn signal lever to show
which signal is working.
Mazda3_8FA4-EA-15G_Edition1.indb 462015/05/11 14:00:51

4–47
When Driving
Switches and Controls
NOTE
 If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
 A personalized function is available to
change the turn indicator sound volume.
(page 9-12)
Lane-Change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicator flashes— and hold it there. It will
return to the off position when released.
Three-Flash Turn Signal
After releasing the turn signal lever, the
turn signal indicator flashes three times.
The operation can be cancelled by moving
the lever in the direction opposite to which
it was operated.
NOTE
The three-flash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-12.
Windshield Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result in
an accident.
Only use windshield washer fluid mixed
with anti-freeze protection in freezing
weather conditions: Using windshield washer fluid without
anti-freeze protection in freezing
weather conditions is dangerous as
it could freeze on the windshield and
block your vision which could cause
an accident. In addition, make sure
the windshield is sufficiently warmed
using the defroster before spraying the
washer fluid.
Mazda3_8FA4-EA-15G_Edition1.indb 472015/05/11 14:00:51

4–48
When Driving
Switches and Controls
NOTE
Because heavy ice and snow can jam the
wiper blades, the wiper motor is protected
from motor breakdown, overheating
and possible fire by a circuit breaker.
This mechanism will automatically stop
operation of the blades, but only for about
5 minutes.
If this happens, turn off the wiper switch
and park off the right-of-way, and remove
the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they do not resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road and
park off the right-of-way. Wait until the
weather clears before trying to drive with
the wipers inoperative.

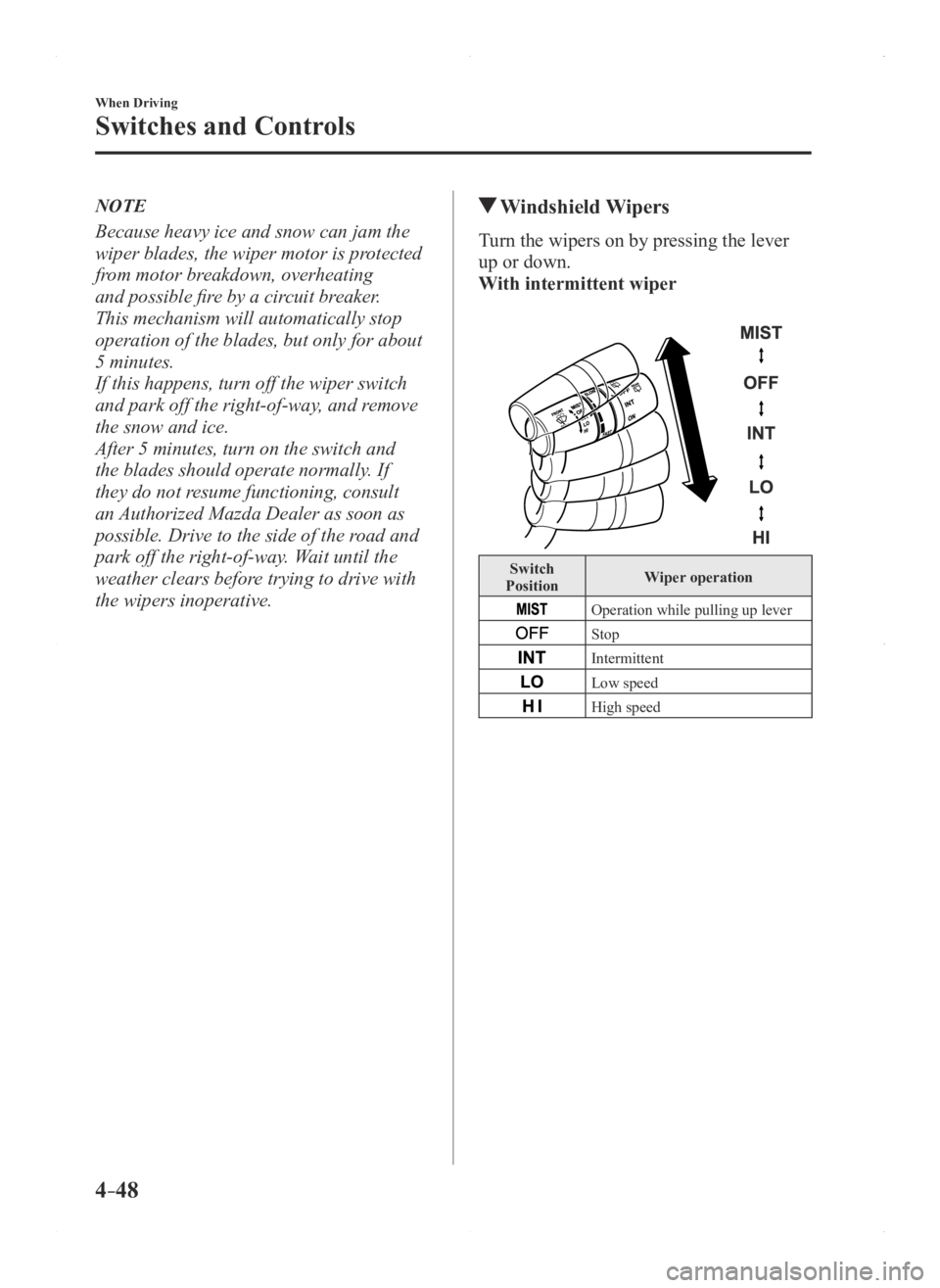

Windshield Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch
Position Wiper operation
Operation while pulling up lever
Stop
Intermittent
Low speed
High speed
Mazda3_8FA4-EA-15G_Edition1.indb 482015/05/11 14:00:51

4–49
When Driving
Switches and Controls
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ringFast
Slow
With auto-wiper control
Switch
Position Wiper operation
Operation while pulling up lever
Stop
Auto control
Low speed
High speed
Auto-wiper control
When the wiper lever is in the

position, the rain sensor senses the amount
of rainfall on the windshield and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Center
position
Mazda3_8FA4-EA-15G_Edition3.indb 492015/12/04 19:23:00

4–50
When Driving
Switches and Controls
CAUTION
 Do not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain sensor
will not operate correctly.

 When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched or wiped with a
cloth.
 If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
NOTE
 Switching the auto-wiper lever from the
to the position while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.
 The auto-wiper control may not operate
when the rain sensor temperature is
about -10 °C (14 °F) or lower, or about
85 °C (185 °F) or higher.
 If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and the auto-wiper control
may not operate properly.
 If dirt or foreign matter (such as ice or
matter containing salt water) adheres
to the windshield above the rain sensor,
or if the windshield is iced, it could
cause the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the auto-
wiper control will stop operation. In
this case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the ice,
dirt or foreign matter by hand to restore
the auto-wiper operation.
 If the auto-wiper lever is left in the
position, the wipers could operate
automatically from the effect of strong
light sources, electromagnetic waves, or
infrared light because the rain sensor
uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the
position other
than when driving the vehicle under
rainy conditions.
 The auto-wiper contr ol functions can
be turned off. Refer to Personalization
Features on page 9-12.
Mazda3_8FA4-EA-15G_Edition1.indb 502015/05/11 14:00:52

4–51
When Driving
Switches and Controls
*Some models.
Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer
OFF
NOTE
If the windshield washer is turned on when
the windshield wipers are not operating,
the windshield wipers operate a few times.
If the washer does not work, inspect the
fluid level (page 6-32). If the fluid level
is normal, consult an Authorized Mazda
Dealer.
Rear Window Wiper and
Washer*
The ignition must be switched ON to use
the wiper.
Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch
Position Wiper operation
Stop
Intermittent
Normal
Rear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to either of the
position.
After the switch is released, the washer
will stop.
If the washer does not work, inspect the
fluid level (page
6-32). If the fluid
level is normal and the washer still does
not work, consult an Authorized Mazda
Dealer.
Mazda3_8FA4-EA-15G_Edition3.indb 512015/12/04 19:23:02

4–52
When Driving
Switches and Controls
Rear Window Defogger
The rear window defogger clears fog from
the rear window.
The ignition must be switched ON to use
the defogger.
Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and then turns off automatically.
The indicator light illuminates when the
defogger is operating.
To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.
Manual Climate Control
Indicator light
Automatic Climate Control
Indicator light
Dual-Zone Automatic Climate Control
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
NOTE
This defogger is not designed for melting
snow. If there is an accumulation of snow
on the rear window, remove it before using
the defogger.
Mazda3_8FA4-EA-15G_Edition1.indb 522015/05/11 14:00:53
