MAZDA MODEL 3 4-DOOR 2016 Owner's Manual

2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
OFF
High Mid
Low

WARNING
Be careful when using the seat warmer: The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
 ¾ Infants, small children, elderly people, and physically challenged
people
 ¾  People with delicate skin ¾ People who are excessively fatigued ¾ People who are intoxicated ¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.

Do not use the seat warmer even when
taking a short nap in the vehicle: The seat may be heated excessively
and cause a low-temperature burn.

Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it: This could cause the seat to become
excessively heated and result in injury
from a minor burn.

CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.

N O T E
 y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
 y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
 y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










2–8
Essential Safety Equipment
Seats
Rear Seat
Split/One-piece Folding the
Seatback
By lowering the rear seatback(s) the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with occupants
on folded down seatback(s) or in the
luggage compartment.Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.
Do not allow children to play inside the
vehicle with the seatback(s) lowered. Allowing children to play in the
vehicle with the seatback(s) folded
down is dangerous. If a child enters
the luggage compartment and the
seatback(s) were raised back up, the
child may become trapped in the
luggage compartment which could
lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatback(s) folded down. Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or
a collision resulting in an unexpected
accident.
When transporting cargo, do not allow
the cargo to exceed the height of the
seatback(s).Transporting cargo stacked higher
than the seatback(s) is dangerous as
visibility to the rear and sides of the
vehicle is reduced which could interfere
with driving operations and lead to an
accident.
Lowering the seatback(s)
CAUTION
Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold
a rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Lower or remove the head restraint on
the rear outboard seat if necessary.
Mazda3_8FA4-EA-15G_Edition1.indb 82015/05/11 14:00:01

2–9
Essential Safety Equipment
Seats
(4–Door)
1. (Split-folding type seat)
Open the trunk lid and pull the lever of
the seatback you want to fold down.
(One-piece folding type seat)
Open the trunk lid and pull the lever of
the seatback.

*1: With split-folding type seat only *1
2. Open a rear door and fold the rear seat
forward.
(5–Door)
Press the push knob to fold down the
seatback.
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback
and the 3-point seat belt is not twisted. If the seat belt is used while it is twisted
and caught in the seatback, the seat
belt cannot function at its full capacity,
which could cause serious injury or
death.
When returning a seatback to its
upright position, make sure that it is
firmly locked and the red indication is
not visible (5–Door). If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.
Locked position
Unlocked position Red indication
Mazda3_8FA4-EA-15G_Edition1.indb 92015/05/11 14:00:02

2–10
Essential Safety Equipment
Seats
*Some models.
1. Make sure that the seat belt passes
through the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.
(4–Door)

Seat belt guides
(5–Door)

Red indication
Seat belt guide
2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.
Armrest*
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
WARNING
Never put your hands and fingers
around the moving parts of the seat and
armrest: Putting your hands and fingers around
the moving parts of the seat and
armrest is dangerous as they could get
injured.
Mazda3_8FA4-EA-15G_Edition1.indb 102015/05/11 14:00:02

2–11
Essential Safety Equipment
Seats
*Some models.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat
*. The head restraints
are intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted: Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be seriously
injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the center
is even with the top of the passenger's ears.
Front outboard seat
Rear outboard seat
Rear center seat*
Mazda3_8FA4-EA-15G_Edition1.indb 112015/05/11 14:00:03

2–12
Essential Safety Equipment
Seats

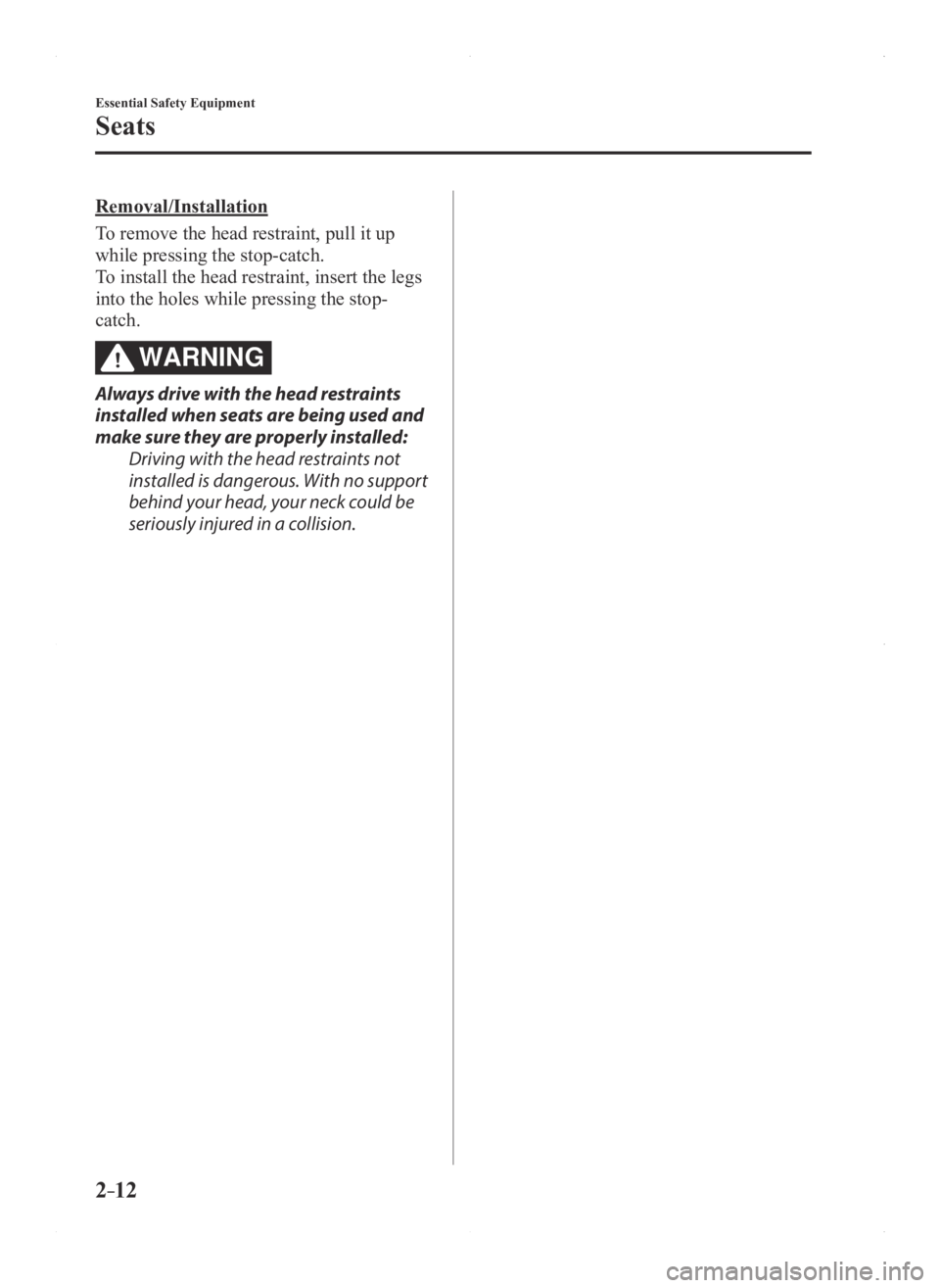

Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly installed:Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Mazda3_8FA4-EA-15G_Edition1.indb 122015/05/11 14:00:03

2–13
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during acci\
dents and sudden
stops. Mazda recommends that the driver and all passengers always wear s\
eat belts.
(U.S.A. and Canada)
All of the seat belt retractors are designed to keep the lap/shoulder be\
lts out of the way when
not in use.
The driver's seat belt has no provisions for child-restraint systems and\
has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors o\
perate in
two modes: emergency locking mode, and for child-restraint systems, automatic locking
mode. While we recommend you put all children in the rear seats, if you must u\
se the front
passenger seat for a child, slide the front passenger seat as far back a\
s possible and make
sure any child-restraint system is secured properly.
(Mexico)
The front seats and rear outboard seats have lap/shoulder belts. These belts have retractors
with inertia locks that keep them out of the way when not in use. The locks allow the belts
to remain comfortable on users, but they will lock in position during a \
collision.
The rear center seat has a lap belt with manual adjustment.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out of
the vehicle. They could be seriously injured or even killed. In the same collision, occupants
wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to
absorb the impact. This puts more force on the bones beneath the belt, which could cause
serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to
remove any twists and to allow the full width of the belt to be used.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could
be crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
Mazda3_8FA4-EA-15G_Edition1.indb 132015/05/11 14:00:03

2–14
Essential Safety Equipment
Seat Belt Systems
Do not operate a vehicle with a damaged seat belt:Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an
accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended: Always have an Authorized Mazda Dealer immediately inspect the seat belt pretensioners
and air bags after any collision. Like the air bags, the seat belt pretensioners and load
limiters will only function once and must be replaced after any collision that caused them
to deploy. A seat belt with an expended pretensioner or load limiter is still better than
wearing no seat belt at all; however, if the seat belt pretensioners and load limiters are
not replaced, the risk of injury in a collision will increase.
Positioning the Shoulder Portion of the Seat Belt: Improper positioning of the shoulder portion of the seat belt is dangerous. Always make
sure the shoulder portion of the seat belt is positioned across your shoulder and near your
neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt: The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury. Wear
the lap portion of the belt snugly and as low as possible.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean. For more details about cleaning the seat belts, refer to "Seat Belt Maintenance"
(page 6-75).
Ring
Mazda3_8FA4-EA-15G_Edition3.indb 142015/12/04 19:21:46

2–15
Essential Safety Equipment
Seat Belt Systems
*Some models.
Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Che\
ck with your doctor
for any special instructions regarding specific medical conditions.
Emergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the\

retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, a\
nd then try pulling it out
slowly. If this fails, pull the belt strongly one time and loosen, then pull i\
t out again slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its \
full length. If the belt
feels tight and hinders comfortable movement while the vehicle is stoppe\
d or in motion, it
may be in the automatic locking mode because the belt has been pulled to\
o far out. To return
the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped
in a safe, level area, retract the belt fully to convert it back to emer\
gency locking mode and
then extend it around you again.
Automatic Locking Mode*
Always use the automatic locking mode to keep the child-restraint system\
from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restra\
int system. It will retract
down to the child-restraint system and stay locked on it. See the sectio\
n on child restraint
(page 2-22).
Mazda3_8FA4-EA-15G_Edition1.indb 152015/05/11 14:00:03

2–16
Essential Safety Equipment
Seat Belt Systems
3-Point Type Seat Belt
Fastening the Seat Belt
Seat belt
buckle
Seat belt tongue
Position the lap belt as low as possible,
not on the abdominal area, then adjust the
shoulder belt so that it fits snugly against
your body.
Keep low on
hip bone
Too high
Take up slack
Unfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect
it for kinks and twists. If it is still not
retracting properly, have it inspected at an
Authorized Mazda Dealer.
Front Shoulder Belt Adjuster
To raise To lower
Make sure the adjuster is locked.
Mazda3_8FA4-EA-15G_Edition1.indb 162015/05/11 14:00:04
