4–19
When Driving
Instrument Cluster and Display
*Some models.
Outside Temperature Display*
When the ignition is switched ON, the
outside temperature is displayed.
NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and vehicle
conditions:
 Significantly cold or hot temperatures. Sudden changes in outside temperatur e. The vehicle is parked. The vehicle is driven at low speeds.
Cruise Control Set Vehicle Speed
Display*
The vehicle speed preset using the cruise
control is displayed.
Trip Computer and INFO Switch*
The following information can be selected
by pressing the INFO switch with the
ignition switched ON.
 Distance-to-empty mode Average fuel economy mode Current fuel economy mode Average vehicle speed
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
Mazda3_8FL6-EA-16F_Edition2.indb 192016/08/10 17:35:50

4–20
When Driving
Instrument Cluster and Display
NOTE
 Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
 The display may not change unless you
add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.
 The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.
 If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.
To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - L/100
km (- - - mpg) will be displayed for about
1 minute before the fuel economy is
recalculated and displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance traveled.
Current fuel economy will be calculated
and displayed every 2 seconds.
When you've slowed to about 5 km/h
(3 mph), - - - L/100 km (- - - mpg) will be
displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.
Mazda3_8FL6-EA-16F_Edition2.indb 202016/08/10 17:35:51

4–21
When Driving
Instrument Cluster and Display
*Some models.
Active Driving Display*
Optical receiver
Mirror
Combiner
WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.
CAUTION
 Do not try to adjust the angle or open/close the active driving display manually.
Fingerprints on the display will make it difficult to view and using excessive force when
operating it could cause damage.
 Do not place objects in the vicinity of the active driving display. The active driving display
may not operate or any interference with its operation could cause damage. Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving display, it could cause damage. Do not place objects above the active driving display or apply stickers to the dust-proof
sheet/optical receiver as they will cause interference. A sensor is int
egrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display difficult to view. Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
NOTE
 It may be difficult to view the display when wearing polarized s unglasses. Take off your
polarized sunglasses or adjust the luminosity. If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate. The display may be difficult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature. If the audio system is removed, the active driving display cannot be operated.
Mazda3_8FL6-EA-16F_Edition2.indb 212016/08/10 17:35:51

4–22
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:
 Blind Spot Monitoring (BSM) Operation Conditions and Warnings
Refer to Blind Spot Monitoring (BSM) on page 4-88.
 Distance Recognition Support System (DRSS) Warnings
Refer to Distance Recognition Support System (DRSS) on page 4-101.
 Traffic Sign Recognition System (TSR) traffic signs and Warnings
Refer to Traffic Sign Recognition System (TSR) on page 4-94.
 Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
Refer to Mazda Radar Cruise Control (MRCC) on page 4-107.
 Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation
Conditions and Warnings
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) on
page 4-117.
 Smart City Brake Support (SCBS) Warnings
Refer to Smart City Brake Support (SCBS) on page 4-128.
 Smart Brake Support (SBS) Warnings
Refer to Smart Brake Support (SBS) on page 4-133.
 Cruise Control Operation Conditions
Refer to Cruise Control on page 4-146.
 Navigation Guidance (vehicles with navigation system)
 Speed limit indicator (vehicles with navigation system)
 Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the center display.
1. Select the icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.
 Method for adjusting screen brightness (automatically/manually) Screen brightness initial settings (automatic adjustment is selected) Screen brightness adjustment (manual adjustment is selected) Display position of active driving display (display height) Active driving display angle adjustment (display angle correction) The combination of street name display , lane guidance, and turn by turn (TBT) can be
changed. (navigation guidance) Active driving display ON/OFF (indication) Reset settings (reset)
Mazda3_8FL6-EA-16F_Edition2.indb 222016/08/10 17:35:52

4–23
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Warning/Indicator lights will appear in any of the highlighted areas
Type A
Type B
Type C
Center of Dashboard
(Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer))
Instrument Cluster
Mazda3_8FL6-EA-16F_Edition2.indb 232016/08/10 17:35:52

4–24
When Driving
Instrument Cluster and Display
*Some models.
Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
SignalWarning Page
Brake System Warning Light*1*27-26
ABS Warning Light*1
Electronic
Brake Force Distribution
System Warning
7-26,
ABS warning
7-29
Charging System Warning Light*17-26
Engine Oil Warning Light*17-26
(Red)High Engine Coolant Temperature Warning Light*17-26
Power Steering Malfunction Warning Light*17-26
Master Warning Light*17-29
*Electric Parking Brake Warning Light*17-29
Check Engine Light*17-29
Automatic Transaxle Warning Light*17-29
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-29
*Tire Pressure Monitoring System Warning Light*1
Flashing 7-29,
Illuminate
7-33
Mazda3_8FL6-EA-16F_Edition2.indb 242016/08/10 17:35:55

4–25
When Driving
Instrument Cluster and Display
*Some models.
SignalWarning Page
(Red)
KEY Warning Light*1
Malfunction 7-29,
Except
malfunction
7-33
(Amber)
*High Beam Control System (HBC) Warning Light*17-29
(Amber)
*Mazda Radar Cruise Control (MRCC) Warning Light7-29
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Warning Light*17-29
*LED Headlight Warning Light*17-29
(Amber)
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning
Light*17-33
Low Fuel Warning Light7-33
*Check Fuel Cap Warning Light*17-33
Seat Belt Warning Light7-33
*Low Washer Fluid Level Warning Light7-33
*Door-Ajar Warning Light7-33
*1 The light turns on when the ignition is switched on for an operation che\
ck, and turns of f a few seconds later or when the engine is started. If the light does not turn on or remains tur\
ned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
Mazda3_8FL6-EA-16F_Edition2.indb 252016/08/10 17:35:58

4–26
When Driving
Instrument Cluster and Display
*Some models.
Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
SignalIndicator Lights Page
*Blind Spot Monitoring (BSM) OFF Indicator Light*14-93
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) OFF Indicator Light*14-120
(Green)
KEY Indicator Light4-5
Security Indicator Light*13-43
Wrench Indicator Light*14-28
(Blue)Low Engine Coolant Temperature Indicator Light4-28
(Green)*i-ELOOP Indicator Light4-74
Shift Position Indication4-35
Lights-On Indicator Light4-43
Headlight High-Beam Indicator Light
Headlight High- Low Beam
4-46
Flashing the Headlights
4-46
Turn Signal/Hazard Warning Indicator Lights
Turn and Lane-
Change Signals
4-49
Hazard Warning Flasher 4-56
Mazda3_8FL6-EA-16F_Edition2.indb 262016/08/10 17:36:01

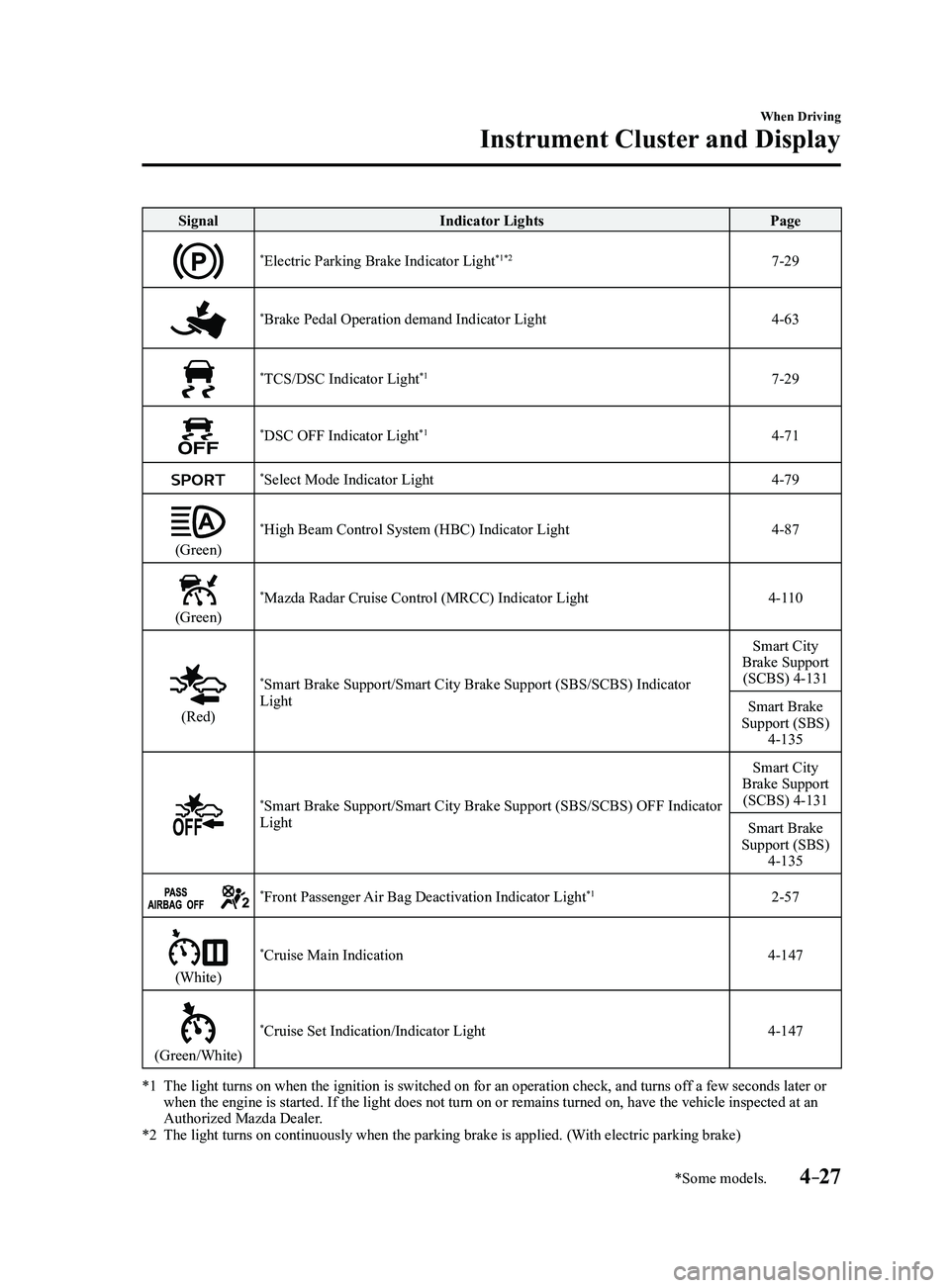

4–27
When Driving
Instrument Cluster and Display
*Some models.
SignalIndicator Lights Page
*Electric Parking Brake Indicator Light*1*27-29
*Brake Pedal Operation demand Indicator Light4-63
*TCS/DSC Indicator Light*17-29
*DSC OFF Indicator Light*14-71
*Select Mode Indicator Light4-79
(Green)
*High Beam Control System (HBC) Indicator Light4-87
(Green)
*Mazda Radar Cruise Control (MRCC) Indicator Light4-110
(Red)
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) Indicator
Light Smart City
Brake Support (SCBS) 4-131
Smart Brake
Support (SBS)
4-135
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator
Light Smart City
Brake Support (SCBS) 4-131
Smart Brake
Support (SBS)
4-135
*Front Passenger Air Bag Deactivation Indicator Light*12-57
(White)
*Cruise Main Indication4-147
(Green/White)
*Cruise Set Indication/Indicator Light4-147
*1 The light turns on when the ignition is switched on for an operation che\
ck, and turns of f a few seconds later or when the engine is started. If the light does not turn on or remains tur\
ned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied. (With electric parking brake)
Mazda3_8FL6-EA-16F_Edition2.indb 272016/08/10 17:36:04

4–28
When Driving
Instrument Cluster and Display
Wrench Indicator Light
When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.
The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page
6-18.
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have
a malfunction. Consult an Authorized
Mazda Dealer.
Mazda3_8FL6-EA-16F_Edition2.indb 282016/08/10 17:36:05
