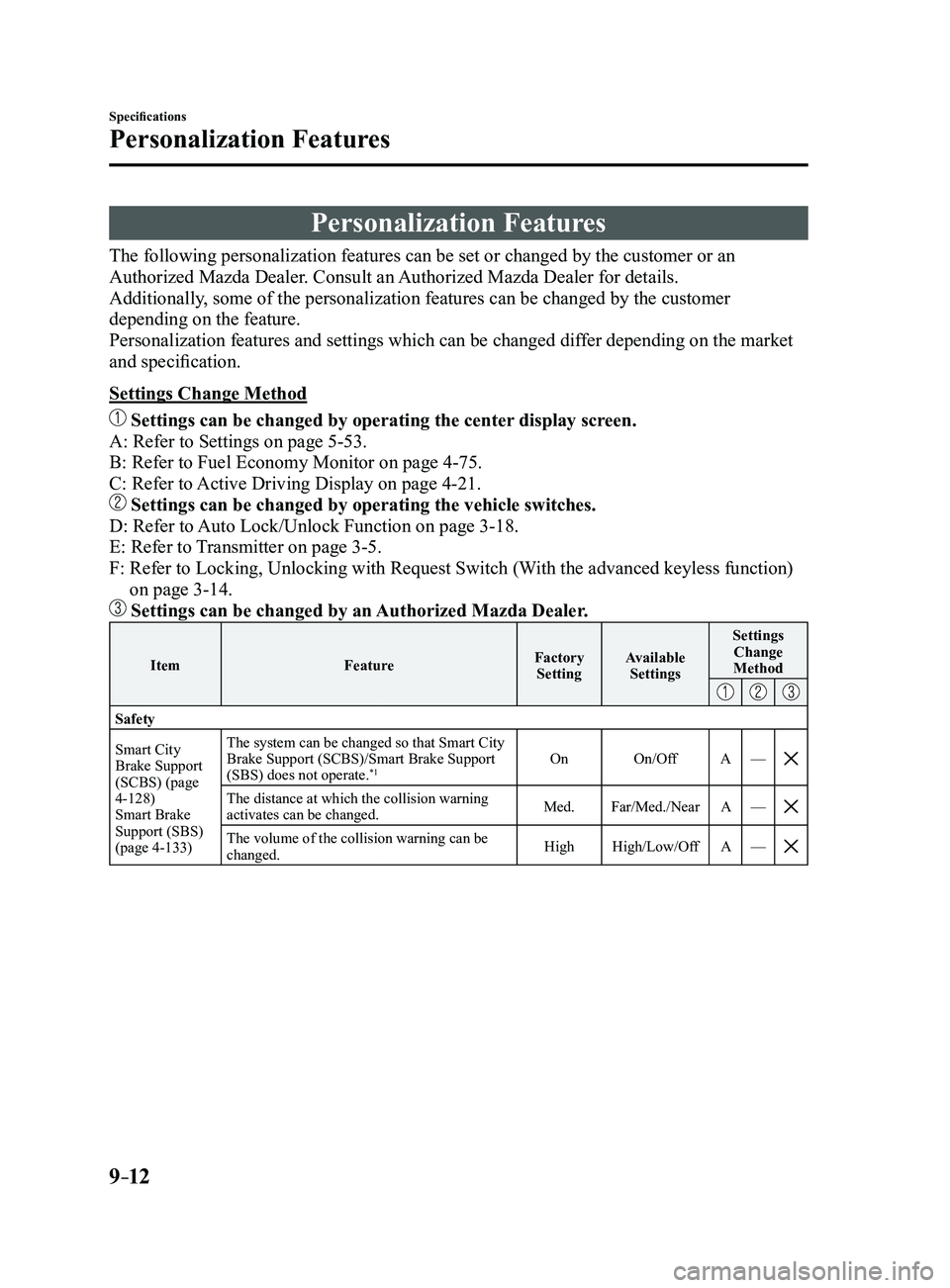

keyless MAZDA MODEL 3 4-DOOR 2017 Owner's Manual

9–12
Specifications
Personalization Features
Personalization Features
The following personalization features can be set or changed by the cust\
omer or an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features and settings which can be changed differ depending on the market
and specification.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-53.
B: Refer to Fuel Economy Monitor on page
4-75.
C: Refer to Active Driving Display on page
4-21.
Settings can be changed by operating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-18.
E: Refer to Transmitter on page
3-5.
F: Refer to Locking, Unlocking with Request Switch (W ith the advanced keyless function)
on page 3-14.
Settings can be changed by an Authorized Mazda Dealer.
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Safety
Smart City
Brake Support
(SCBS) (page
4-128)
Smart Brake
Support (SBS)
(page
4-133) The system can be changed so that Smart City
Brake Support (SCBS)/Smart Brake Support
(SBS) does not operate.
*1On
On/Off A—
The distance at which the collision warning activates can be changed. Med.
Far/Med./Near A—
The volume of the collision warning can be changed. High
High/Low/Off A—
Mazda3_8FL6-EA-16F_Edition2.indb 122016/08/10 17:39:55

9–15
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Vehicle
Door locks
(page 3-18) Operation condition of auto lock/unlock
function Lock:
When
Driving, Unlock:
IGN OFF OFF/
Lock: When Driving/
Lock: When Driving,
Unlock: IGN OFF/
Lock: When Driving,
Unlock: In Park/
Lock: Shifting out of Park
Lock: Out of
Park, Unlock: In Park A
D
Keyless entry system (page 3-3) Method for unlocking door using transmitter
Once:
Driver's,
Twice: All Doors Touch Once:
All Doors/
Once: Driver's, Twice: All Doors A
E
Time for locking door automatically60 seconds 90 seconds/
60 seconds/
30 seconds A
—
Advanced keyless entry
system (page
3-10) Method for unlocking door using request
switch/transmitter
Driver's:
Once, All Doors: Twice All Doors:
Once/
Driver's: Once, All Doors: Twice A
E,
F
Time for locking door automatically60 seconds 90 seconds/
60 seconds/
30 seconds A
—
Auto-lock function operation/non-operationalOff On/Off A—
Beep volume when locking/unlockingMedium High/
Medium/ Low/Off A
E,
F
Illuminated entry system
(page 5-112) Time until interior lights turn off after closing
door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A
—Time until interior lights turn off automatically when any door is not closed completely 30 minutes60 minutes/
30 minutes/
10 minutes A
—
Mazda3_8FL6-EA-16F_Edition2.indb 152016/08/10 17:39:56

10–2
Index
A
Accessory Socket ..............................5-113
Active Driving Display
.......................4-21
Adaptive Front Lighting System
(AFS)................................................... 4-84
Add-On Non-Genuine Parts and
Accessories
.........................................8-19
Advanced Key Advanced keyless entry system
....3-10
Operational range
..........................3-11
Advanced Key removed from vehicle
warning beep
.......................................7-40
Air Bag/Front Seat Belt Pretensioner
System Warning Beep
.........................7-39
Air Bag Systems
.................................2-41
Ambient Temperature Display
............4-19
Antilock Brake System (ABS)
............4-68
Audio Control Switch Adjusting the Volume
....................5-55
Seek Switch
...................................5-56
Audio System
......................................5-16
AUX/USB mode
...........................5-57
Antenna
.........................................5-16
Audio Control Switch
...................5-55
Audio set
[Type A (non-touchscreen)]
...........5-26
Audio set
[Type B (touchscreen)]
..................5-34
Operating Tips for Audio System ...5-17
Satellite Radio
...............................5-45
Automatic Transaxle
...........................4-32
Active Adaptive Shift (AAS)
........4-35
Automatic transaxle controls .........4-32
Direct mode
...................................4-41
Driving tips .................................... 4-42
Manual shift mode .........................4-35
Shift-lock system
...........................4-33
Transaxle ranges
............................4-34
B
Battery .................................................6-36
Maintenance
..................................6-38
Replacement
..................................6-38
Specifications
..................................9-4
Battery runs out
...................................7-16
Jump-Starting
................................7-16
Blind Spot Monitoring (BSM)
............4-88
Canceling operation of Blind Spot
Monitoring (BSM)
........................4-93
Blind Spot Monitoring (BSM) Warning
Beep
....................................................7-42
Bluetooth® ...........................................5-74
Bluetooth® Audio (Type B) ...........5-92
Bluetooth® Hands-Free (Type B) ...5-83
Troubleshooting
..........................5-106
Body Lubrication
................................6-31
Bottle Holder
.....................................5-116
Brakes Brakes assist
..................................4-66
Electric parking brake
...................4-63
Foot brake ...................................... 4-61
Pad wear indicator
.........................4-66
Parking brake
.......................4-62, 4-63
Warning light
.................................4-65
Break-In Period
...................................3-46
C
Capacities ..............................................9-5
Carbon Monoxide
...............................3-30
Cell Phones
.........................................8-20
Center Console
..................................5-118
Child Restraint Child-restraint precautions
............2-22
Installing child-restraint systems ...2-28
LATCH child-restraint systems
.....2-37
Child Safety Locks for Rear Doors
.....3-21
Mazda3_8FL6-EA-16F_Edition2.indb 22016/08/10 17:39:57

10–6
K
Key Suspend Function ..........................3-9
Key left-in-luggage compartment warning
beep (With the advanced keyless
function)
..............................................7-41
Key left-in-vehicle warning beep (With the
advanced keyless function)
.................7-41
Keyless Entry System
...........................3-3
Key removed from vehicle warning
beep
.....................................................7-40
Keys
......................................................3-2
Key suspend function
......................3-9
Transmitter
......................................3-5
L
Label Information .................................9-2
Lane-Change Signals
..........................4-49
Lane Departure Warning sound
..........7-41
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)
.............................................4-117
Leaving Home Light
...........................4-47
Liftgate
................................................3-21
When liftgate/trunk lid cannot be
opened
...........................................7-44
Light Bulbs Replacement
..................................6-45
Specifications
..................................9-9
Lighting Control .................................. 4-43
Lights-on reminder
..............................7-39
Lubricant Quality
..................................9-5
Luggage Compartment Light
............5-111
M
Maintenance Information
......................................6-2
Scheduled
........................................6-4
Maintenance Monitor
..........................6-18
Map Lights
........................................5-111 Mazda Radar Cruise Control

(MRCC)
............................................4-107
Close proximity warning
.............4-109
Cruise control function
................4-115
Display indication
.......................4-109
Setting the system
.......................4-110
Shift-up/shift-down request
display
.........................................4-114
Mazda Radar Cruise Control (MRCC)
System warnings
.................................7-42
Meters and Gauges
..............................4-12
Mirror Defogger
..................................4-55
Mirrors Outside mirrors .............................. 3-34
Rearview mirror
............................3-35
Moonroof
............................................3-40
O
Odometer and Trip Meter ....................4-14
Outside Mirrors
...................................3-34
Outside Temperature Display
..............4-19
Over Rev. buzzer
.................................7-43
Overhead Console
.............................5-117
Overhead Lights
................................5-111
Overheating
.........................................7-20
Overloading
.........................................3-51
Owner Maintenance Closing the Hood ...........................6-23
Engine Compartment Overview
....6-24
Key battery replacement
...............6-38
Opening the Hood
.........................6-22
Owner Maintenance Precautions ...6-20
P
Parking Brake .............................4-62, 4-63
Personalization Features
.....................9-12
Power Steering
....................................4-80
Power Windows
..................................3-37
Power steering warning buzzer
...........7-43
Index
Mazda3_8FL6-EA-16F_Edition2.indb 62016/08/10 17:39:58

10–9
W
Warning Lights ....................................4-24
Warning Message Indicated on
Display
................................................7-37
Warning Sound is Activated
................7-39
Advanced Key removed from vehicle
warning beep
.................................7-40
Air Bag/Front Seat Belt Pretensioner
System Warning Beep
...................7-39
Blind Spot Monitoring (BSM) warning
beep
...............................................7-42
Collision warning
..........................7-42
Electric Parking Brake Warning
Beep ............................................... 7-43
Excessive speed warning ...............7-42
i-ELOOP warning beep
.................7-41
Ignition not switched off (STOP)
warning beep
.................................7-40
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)
...........................7-41
Key left-in-vehicle warning beep (With
the advanced keyless function)
.....7-41
Key removed from vehicle warning
beep
...............................................7-40
Lane Departure Warning sound
.....7-41
Lights-on reminder
........................7-39
Mazda Radar Cruise Control (MRCC)
System warnings
...........................7-42
Over Rev. buzzer
...........................7-43
Power steering warning buzzer
.....7-43
Seat belt warning beep
..................7-40
Tire inflation pressure warning
beep
...............................................7-41
Warranty
..............................................8-16
Weights .................................................. 9-7
Windows Power windows
.............................3-37
Windshield Washer
.............................4-53
Windshield Wipers
..............................4-50
Winter Driving
....................................3-49 Wiper
Replacing Rear Window Wiper Blade
(5-Door) ......................................... 6-33
Replacing Windshield Wiper
Blades
............................................6-32
Index
Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:39:58
