qSchedule 2
Maintenance Interval Number of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust
Drive belts (tension) I
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system I
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years;
after that, every 60,000 km or 3 years
Others Replace every 40,000 km or 2 years
Engine coolant level I I IIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2
Hoses and tubes for emission I*2
Fuel filter R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights I IIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections III
Brake fluid level I I II I
Brake fluid R
Disc brakes I I I I I I
Tire (rotation) Rotate every 10,000 km or 6 months
Tire inflation pressure and tire wear I I I I I I
Steering operation and linkages I I I I I I
Power steering fluid level I I I I I I
Front and rear suspension and ball joints I I I I I I
Driveshaft dust boots III
Exhaust system and heat shields III
All locks and hinges L L L L L L
Washer fluid level I I I I I I
Maintenance and Care
Scheduled Maintenance
8-11
Mazda3_8U55-EA-05G_Edition3 Page259
Tuesday, September 13 2005 10:44 AM
Form No.8U55-EA-05G

Black plate (261,1)
(Cont.)Maintenance Interval Number of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
ENGINE
Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust
Drive belts (tension) II
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system II
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others Replace every 40,000 km or 2 years
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2I
Hoses and tubes for emission I*2I
Fuel filter R R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake fluid level I I I I
Brake fluid R R
Disc brakes IIIIII
Tire (rotation) Rotate every 10,000 km or 6 months
Tire inflation pressure and tire wear IIIIII
Steering operation and linkages IIIIII
Power steering fluid level IIIIII
Front and rear suspension and ball joints IIIIII
Driveshaft dust boots I I I
Exhaust system and heat shields I I I
All locks and hinges LLLLLL
Washer fluid level IIIIII
Maintenance and Care
Scheduled Maintenance
8-13
Mazda3_8U55-EA-05G_Edition3 Page261
Tuesday, September 13 2005 10:44 AM
Form No.8U55-EA-05G

Black plate (263,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-23)
lEngine coolant level (page 8-21)
lEngine oil level (page 8-19)
lWasher fluid level (page 8-27)
qAt Least Monthly
Tire inflation pressures (page 8-37)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lAutomatic transaxle fluid level (page 8-25)
lPower steering fluid level (page 8-24)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lAir filter (page 8-29)
lEngine coolant (page 8-21)
lEngine oil (page 8-19)
Maintenance and Care
Owner Maintenance
8-15
Mazda3_8U55-EA-05G_Edition3 Page263
Tuesday, September 13 2005 10:44 AM
Form No.8U55-EA-05G

Black plate (265,1)
Engine Compartment Overview
Fuse block
Air filterBattery
Engine oil-filler cap Main fuse
Automatic transaxle fluid-level dipstick
(Only for automatic transaxle) Brake/Clutch fluid
reservoir
Engine coolant
reservoir
Engine oil
dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Maintenance and Care
Owner Maintenance
8-17
Mazda3_8U55-EA-05G_Edition3 Page265
Tuesday, September 13 2005 10:44 AM
Form No.8U55-EA-05G

Black plate (269,1)
Engine Coolant
qInspecting Coolant Level
WARNING
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS
HOT.
Cooling Fan and Engine
Inspection:
Inspecting the engine with the ignition
switch in the ON position is
dangerous. The cooling fan could turn
on unexpectedly even when the engine
isn't running. You could be seriously
injured by the fan. Turn the ignition
switch off and remove the key from the
ignition switch when you inspect the
engine.
Cooling System Cap:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot. Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year
―at the beginning of the
winter season ―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the MAX and MIN
marks on the coolant reservoir when the
engine is cool.
If it's at or near MIN, add enough coolant
to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to MAX.
CAUTION
Radiator coolant will damage paint.
Rinse it off quickly if spilled.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-21
Mazda3_8U55-EA-05G_Edition3 Page269
Tuesday, September 13 2005 10:44 AM
Form No.8U55-EA-05G

Black plate (270,1)
qChanging Coolant
Change coolant according to Scheduled
Maintenance (page 8-3).
CAUTION
lUse only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.
lDon't add only water. Always add a
proper coolant mixture.
lThe engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
lDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
lDO NOT MIX alcohol or methanol
with the coolant. This could damage
the cooling system.
lDon't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.
NOTE
If the “FL22 ”mark is shown on or near
the cooling system cap, use FL22 type
engine coolant. If engine coolant other
than FL22 type is used, the engine
coolant must be replaced earlier than
the specified replacement interval
indicated in the scheduled maintenance
(page 8-3).
Except FL22 type
For mixture percentage:
Protection Volume
Antifreeze solution Deminera-
lized water
Above _
16°C (3°F) 35% 65%
Above _
26°C ( _
15°F) 45% 55%
Above _
40°C ( _
40°F) 55% 45%
FL22 type
FL22 type engine coolant concentration is
factory adjusted. Use the product as it is
without diluting it.
8-22
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page270
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (271,1)

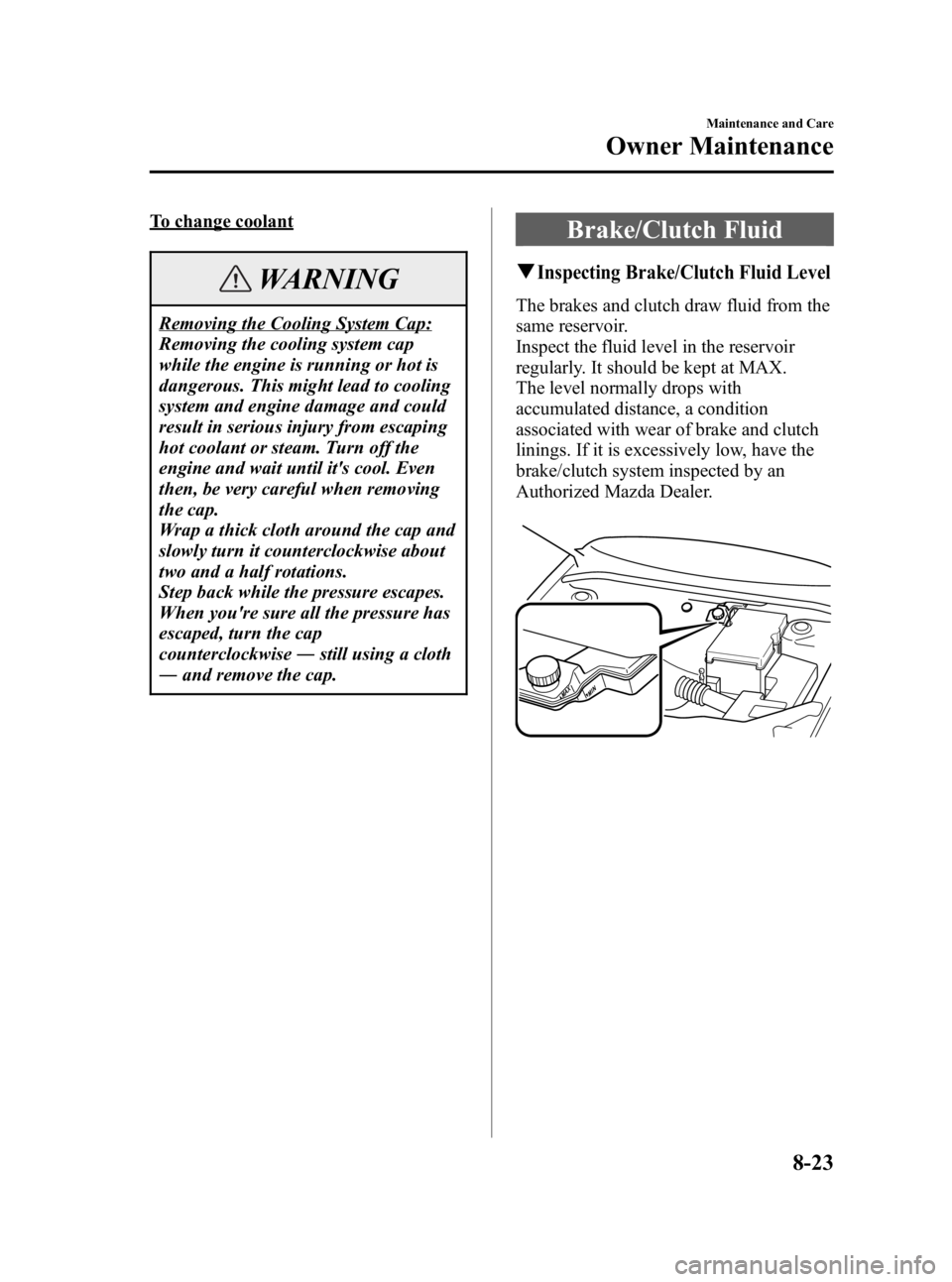

To change coolant
WARNING
Removing the Cooling System Cap:
Removing the cooling system cap
while the engine is running or hot is
dangerous. This might lead to cooling
system and engine damage and could
result in serious injury from escaping
hot coolant or steam. Turn off the
engine and wait until it's cool. Even
then, be very careful when removing
the cap.
Wrap a thick cloth around the cap and
slowly turn it counterclockwise about
two and a half rotations.
Step back while the pressure escapes.
When you're sure all the pressure has
escaped, turn the cap
counterclockwise―still using a cloth
― and remove the cap.
Brake/Clutch Fluid
qInspecting Brake/Clutch Fluid Level
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-23
Mazda3_8U55-EA-05G_Edition3 Page271
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (363,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Coolant With heater 7.5 L (7.9 US qt, 6.6 Imp qt)
Without heater 6.9 L (7.3 US qt, 6.1 Imp qt)
Manual transaxle oil 2.87 L (3.03 US qt, 2.53 Imp qt)
Automatic transaxle fluid 4-speed transaxle 7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 55 L (15 US gal, 12 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Model
4 Door 5 Door
Overall length (STD) 4,530 mm (178.3 in)
―
(SAP) 4,540 mm (178.7 in) 4,485 mm (176.6 in)
Overall width
*1,755 mm (69.1 in) 1,755 mm (69.1 in)
Overall height 1,465 mm (57.7 in)1,465 mm (57.7 in)
Front tread 1,530 mm (60.2 in)1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)2,640 mm (103.9 in)
* With side protector
q Weights
4 Door
2.0-liter engine
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,702 kg (3,752 lb),
1,708 kg (3,765 lb)
*11,721 kg (3,794 lb),
1,727 kg (3,807 lb)*1
GAWR (Gross Axle Weight Rating) Front 904 kg (1,993 lb) 924 kg (2,037 lb)
Rear
798 kg (1,759 lb),
804 kg (1,772 lb)*1797 kg (1,757 lb),
803 kg (1,770 lb)*1
*1 P-ZEV
Specifications
10-5
Mazda3_8U55-EA-05G_Edition3 Page363
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (369,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-32
Daytime Running Lights ................... 5-48
DefrosterRear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-14Flooded engine ........................... 7-14
Jump-starting .............................. 7-15
Push-starting .............................. 7-18
Emergency Towing ........................... 7-19
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-12
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-12
E
Engine Coolant Temperature
Gauge ................................................ 5-31
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-61
F
FlasherHazard warning .......................... 5-55
Headlights .................................. 5-46
Flat Tire ............................................... 7-3 Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-54
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-18
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52 Panel description ........................ 8-55
Replacement ............................... 8-52
G
Glove Box ......................................... 6-52
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-8
Index
11-3
Mazda3_8U55-EA-05G_Edition3 Page369
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G
