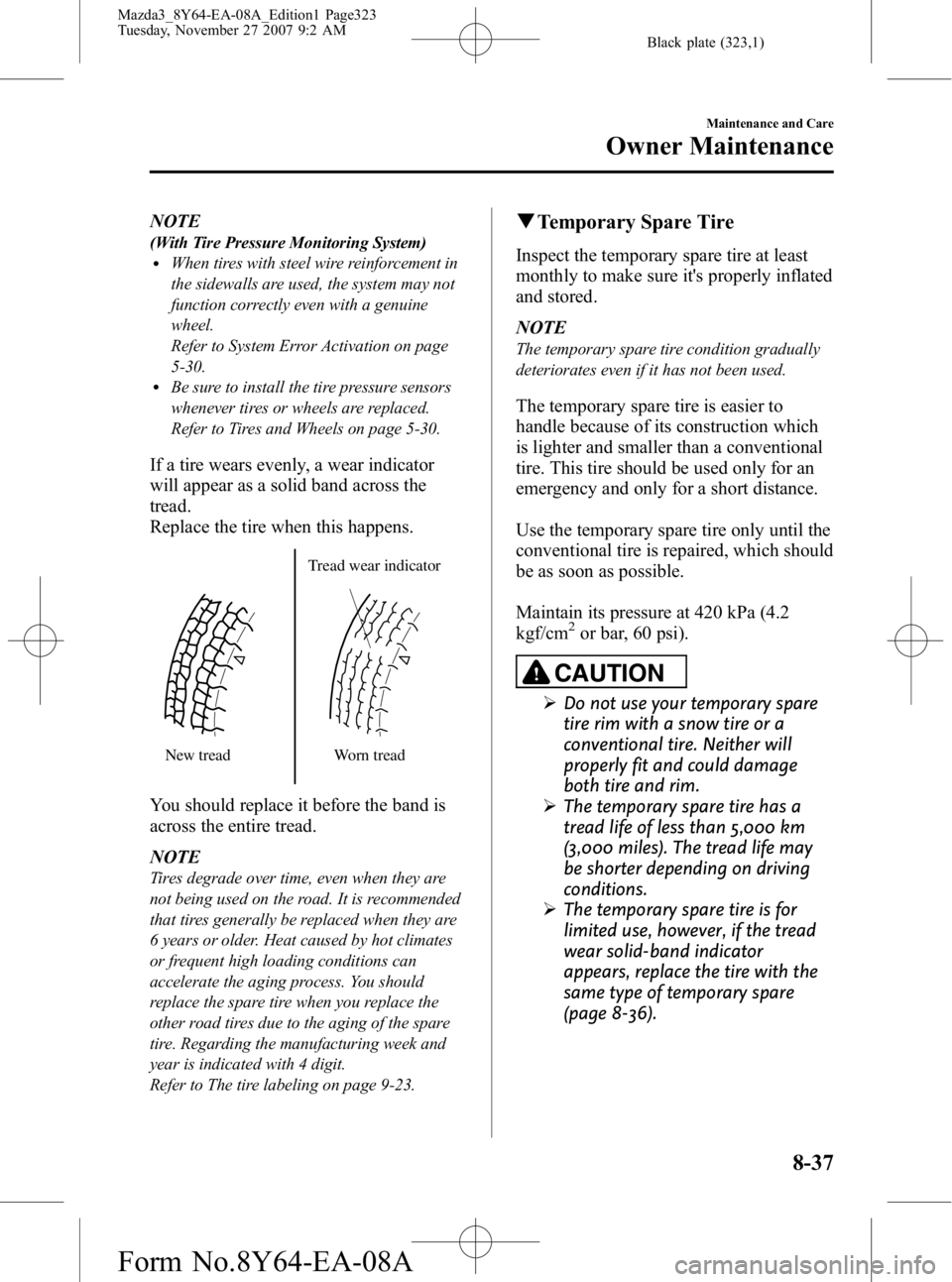

Black plate (323,1)
NOTE
(With Tire Pressure Monitoring System)lWhen tires with steel wire reinforcement in
the sidewalls are used, the system may not
function correctly even with a genuine
wheel.
Refer to System Error Activation on page
5-30.
lBe sure to install the tire pressure sensors
whenever tires or wheels are replaced.
Refer to Tires and Wheels on page 5-30.
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace it before the band is
across the entire tread.
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-23.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2
kgf/cm
2or bar, 60 psi).
CAUTION
Ø Do not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
Ø The temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
Ø The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 8-36).
Maintenance and Care
Owner Maintenance
8-37
Mazda3_8Y64-EA-08A_Edition1 Page323
Tuesday, November 27 2007 9:2 AM
Form No.8Y64-EA-08A

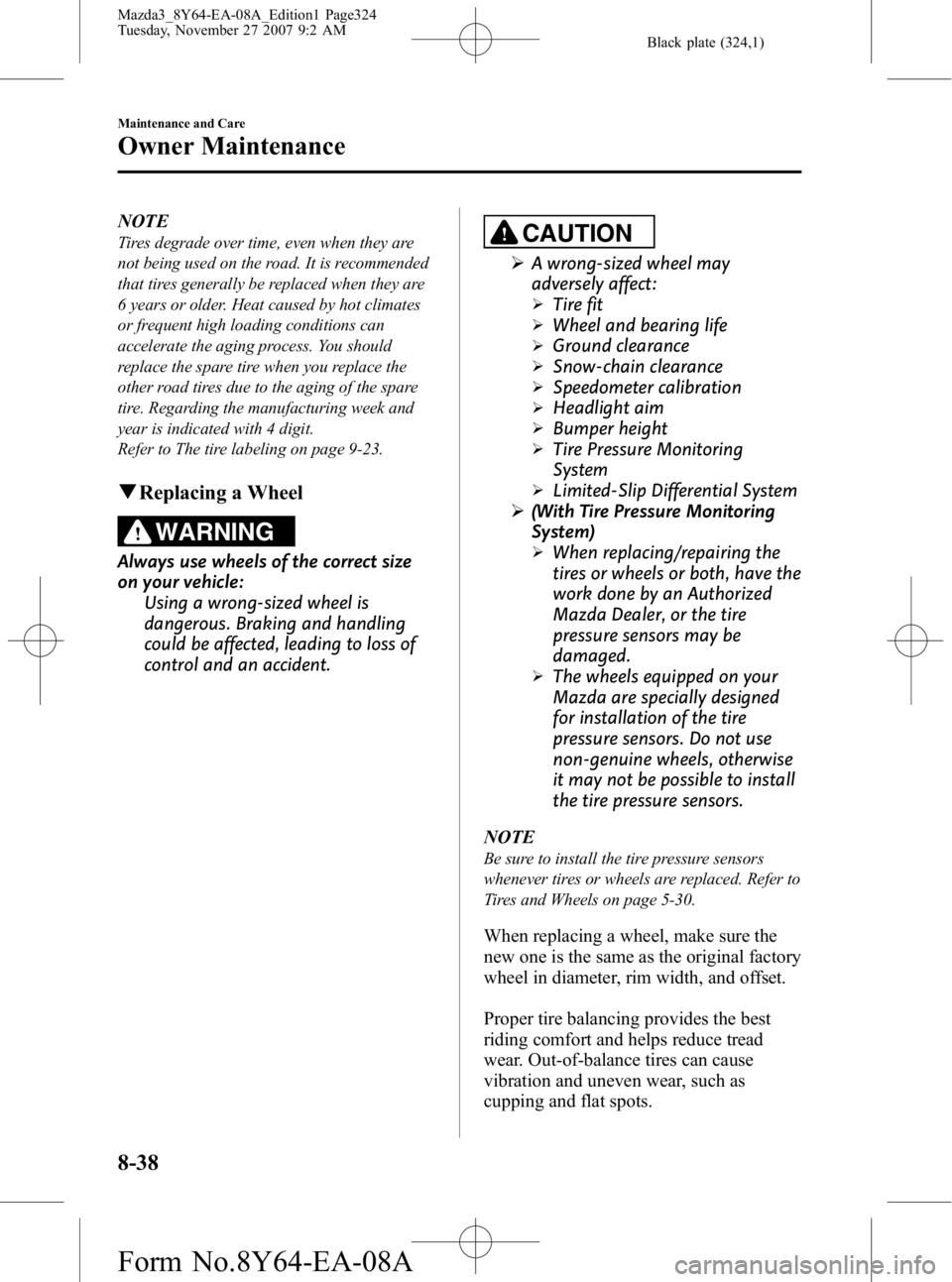

Black plate (324,1)
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-23.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
ØLimited-Slip Differential System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-30.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-38
Maintenance and Care
Owner Maintenance
Mazda3_8Y64-EA-08A_Edition1 Page324
Tuesday, November 27 2007 9:2 AM
Form No.8Y64-EA-08A

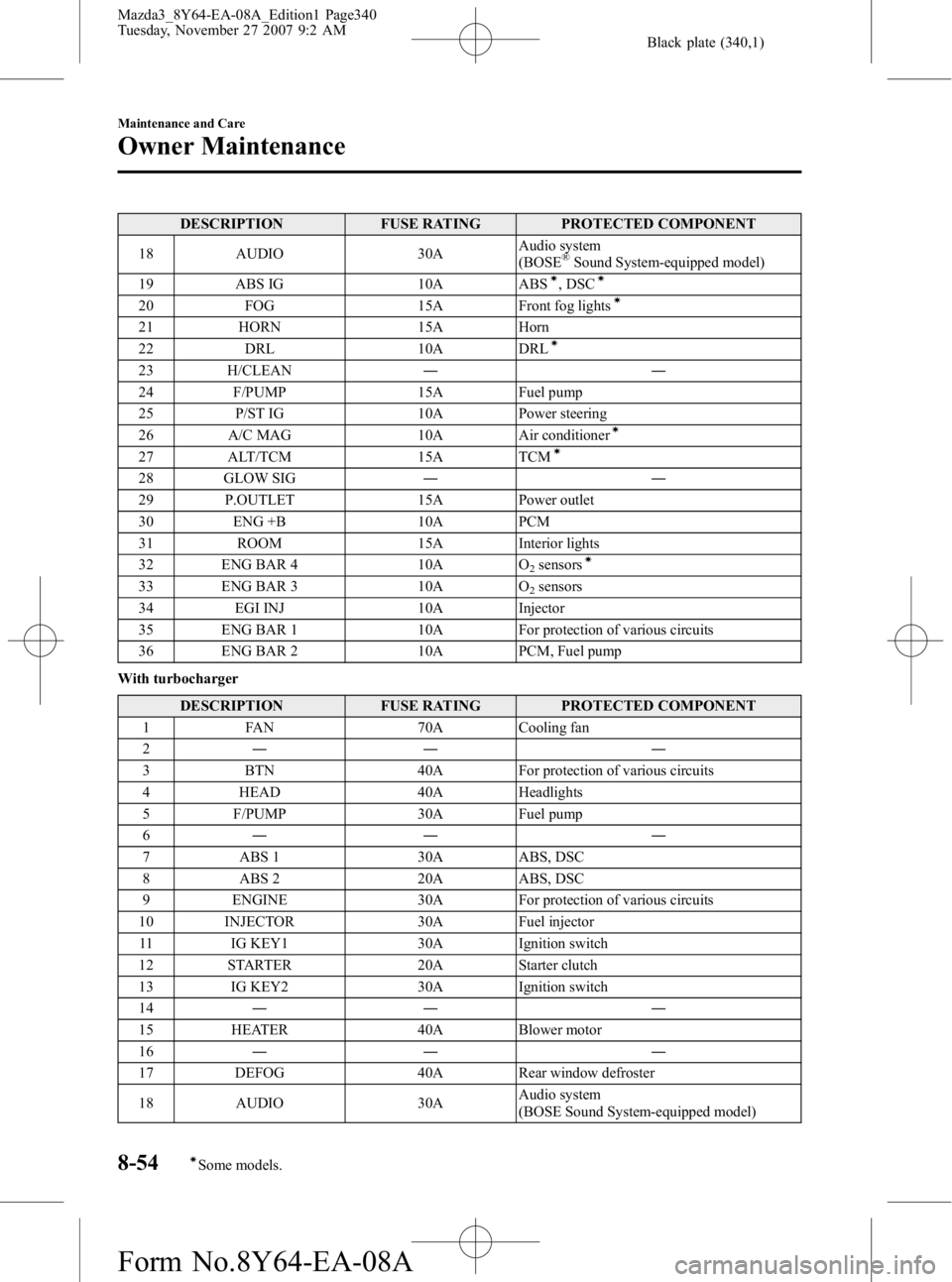

Black plate (340,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
18 AUDIO 30AAudio system
(BOSE
®Sound System-equipped model)
19 ABS IG 10A ABSí, DSCí
20 FOG 15A Front fog lightsí
21HORN 15A Horn
22 DRL 10A DRLí
23 H/CLEAN ――
24 F/PUMP 15A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
í
27 ALT/TCM 15A TCMí
28 GLOW SIG ――
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ENG BAR 4 10A O
2sensorsí
33 ENG BAR 3 10A O2sensors
34 EGI INJ 10A Injector
35 ENG BAR 1 10A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
With turbocharger DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 70A Cooling fan
2 ―― ―
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 F/PUMP 30A Fuel pump
6 ―― ―
7 ABS 1 30A ABS, DSC
8 ABS 2 20A ABS, DSC
9 ENGINE 30A For protection of various circuits
10 INJECTOR 30A Fuel injector 11 IG KEY1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY2 30A Ignition switch
14 ―― ―
15 HEATER 40A Blower motor
16 ―― ―
17 DEFOG 40A Rear window defroster
18 AUDIO 30A Audio system
(BOSE Sound System-equipped model)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8Y64-EA-08A_Edition1 Page340
Tuesday, November 27 2007 9:2 AM
Form No.8Y64-EA-08A

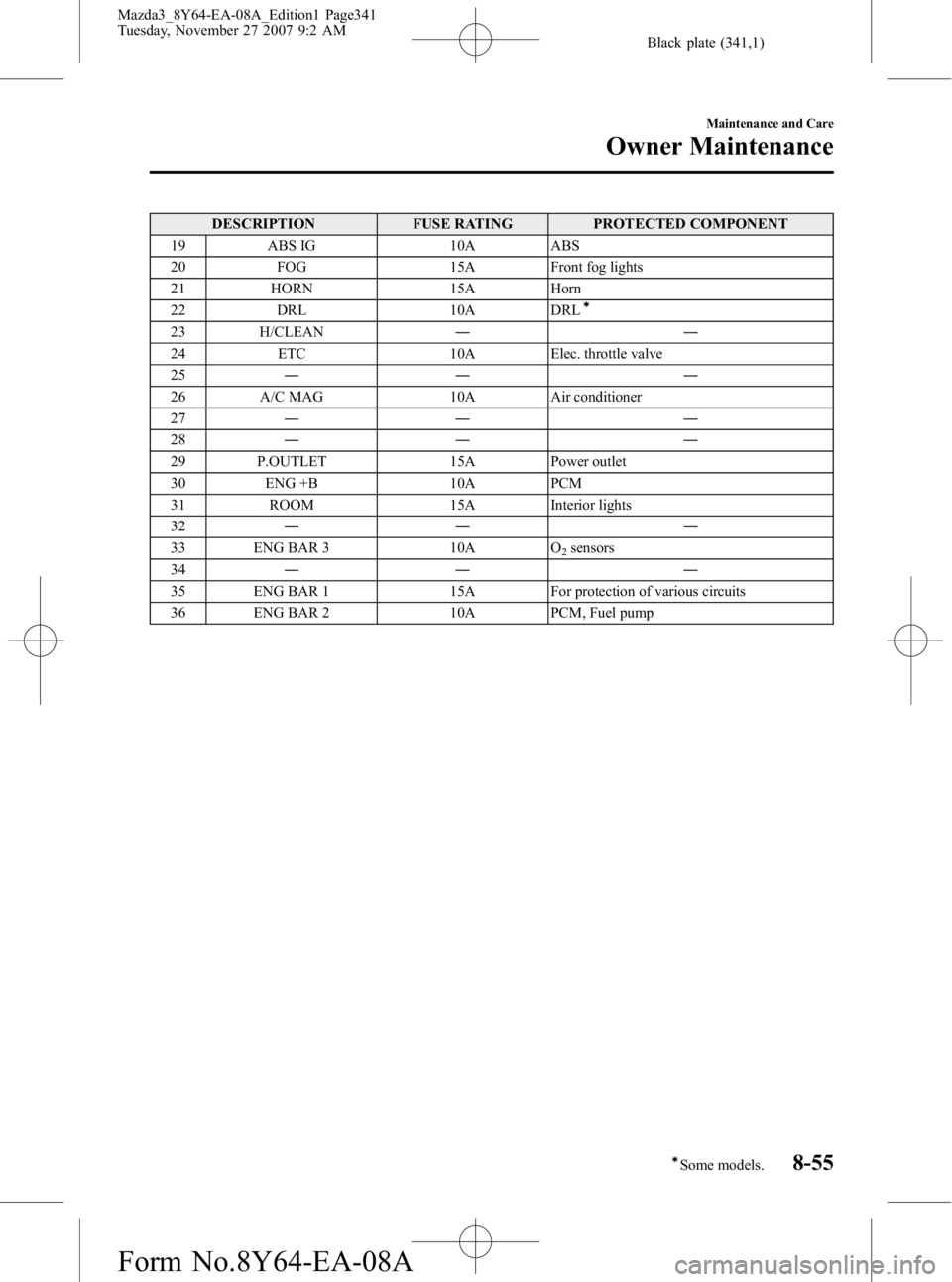

Black plate (341,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
19 ABS IG 10A ABS
20 FOG 15A Front fog lights
21 HORN 15A Horn
22 DRL 10A DRL
í
23 H/CLEAN ――
24 ETC 10A Elec. throttle valve
25 ―― ―
26 A/C MAG 10A Air conditioner
27 ―― ―
28 ―― ―
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ―― ―
33 ENG BAR 3 10A O
2sensors
34 ―― ―
35 ENG BAR 1 15A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
Maintenance and Care
Owner Maintenance
8-55íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page341
Tuesday, November 27 2007 9:2 AM
Form No.8Y64-EA-08A

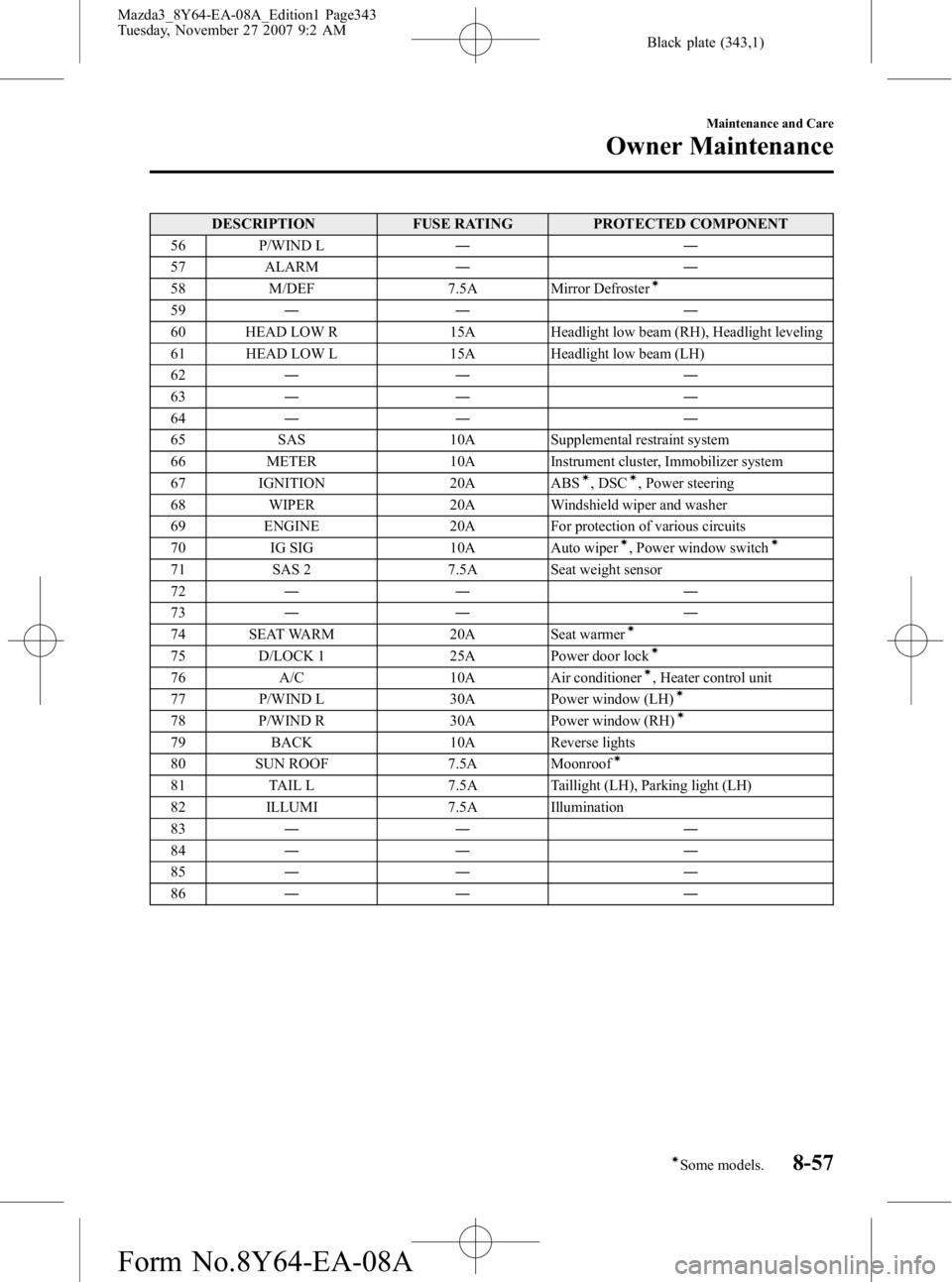

Black plate (343,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
56 P/WIND L ――
57 ALARM ――
58 M/DEF 7.5A Mirror Defroster
í
59―― ―
60 HEAD LOW R 15A Headlight low beam (RH), Headlight leveling
61 HEAD LOW L 15A Headlight low beam (LH)
62 ―― ―
63 ―― ―
64 ―― ―
65 SAS 10A Supplemental restraint system
66 METER 10A Instrument cluster, Immobilizer system
67 IGNITION 20A ABS
í, DSCí, Power steering
68 WIPER 20A Windshield wiper and washer
69 ENGINE 20A For protection of various circuits
70 IG SIG 10A Auto wiper
í, Power window switchí
71 SAS 2 7.5A Seat weight sensor
72 ―― ―
73 ―― ―
74 SEAT WARM 20A Seat warmer
í
75 D/LOCK 125A Power door lockí
76A/C 10A Air conditionerí, Heater control unit
77 P/WIND L 30A Power window (LH)í
78 P/WIND R 30A Power window (RH)í
79BACK 10A Reverse lights
80 SUN ROOF 7.5A Moonroofí
81TAIL L 7.5A Taillight (LH), Parking light (LH)
82 ILLUMI 7.5A Illumination
83 ―― ―
84 ―― ―
85 ―― ―
86 ―― ―
Maintenance and Care
Owner Maintenance
8-57íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page343
Tuesday, November 27 2007 9:2 AM
Form No.8Y64-EA-08A

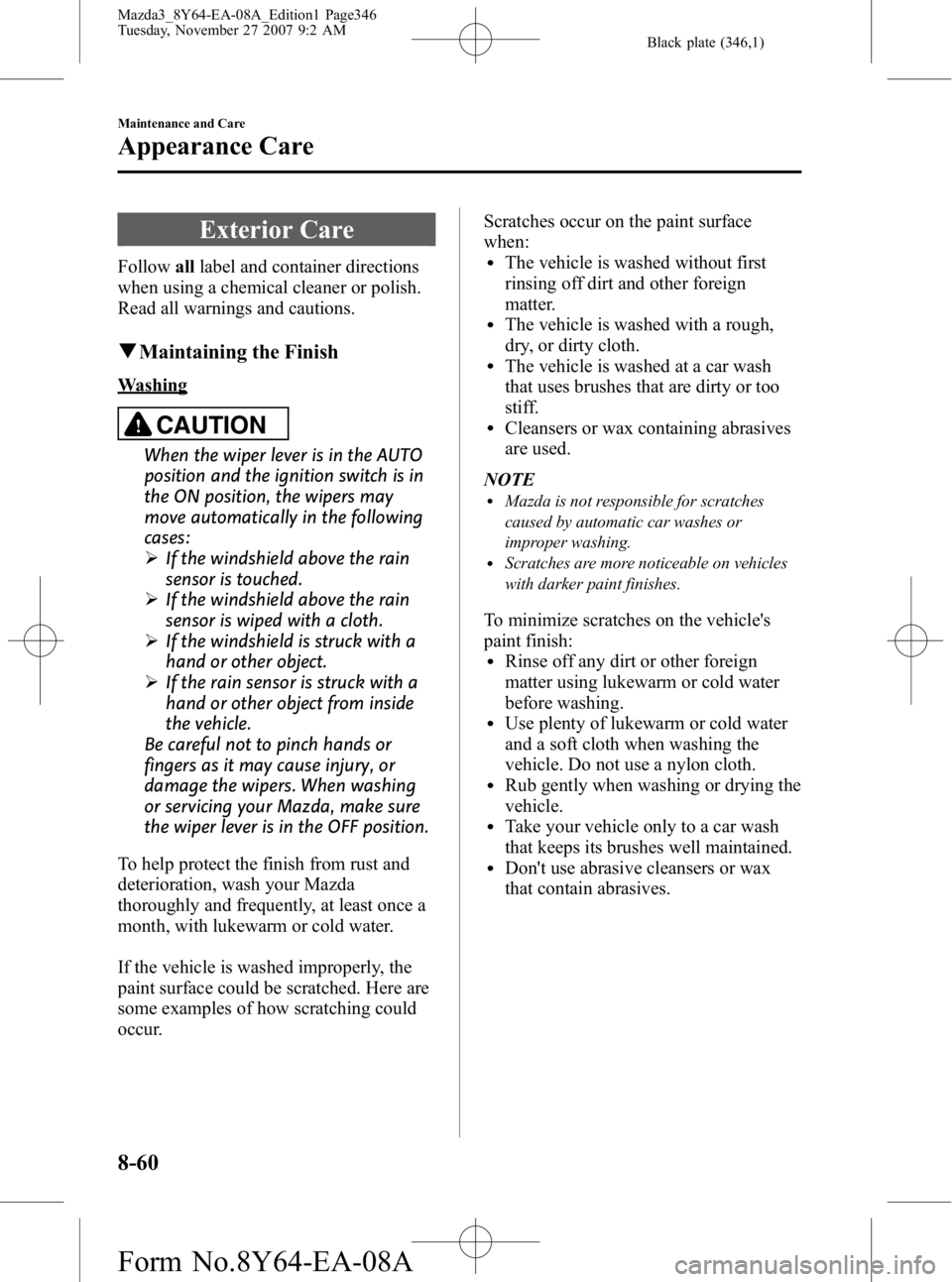

Black plate (346,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in
the ON position, the wipers may
move automatically in the following
cases:
Ø If the windshield above the rain
sensor is touched.
Ø If the windshield above the rain
sensor is wiped with a cloth.
Ø If the windshield is struck with a
hand or other object.
Ø If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur. Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
8-60
Maintenance and Care
Appearance Care
Mazda3_8Y64-EA-08A_Edition1 Page346
Tuesday, November 27 2007 9:2 AM
Form No.8Y64-EA-08A
