steering wheel adjustment MAZDA MODEL 3 5-DOOR 2008 Owners Manual

Black plate (77,1)

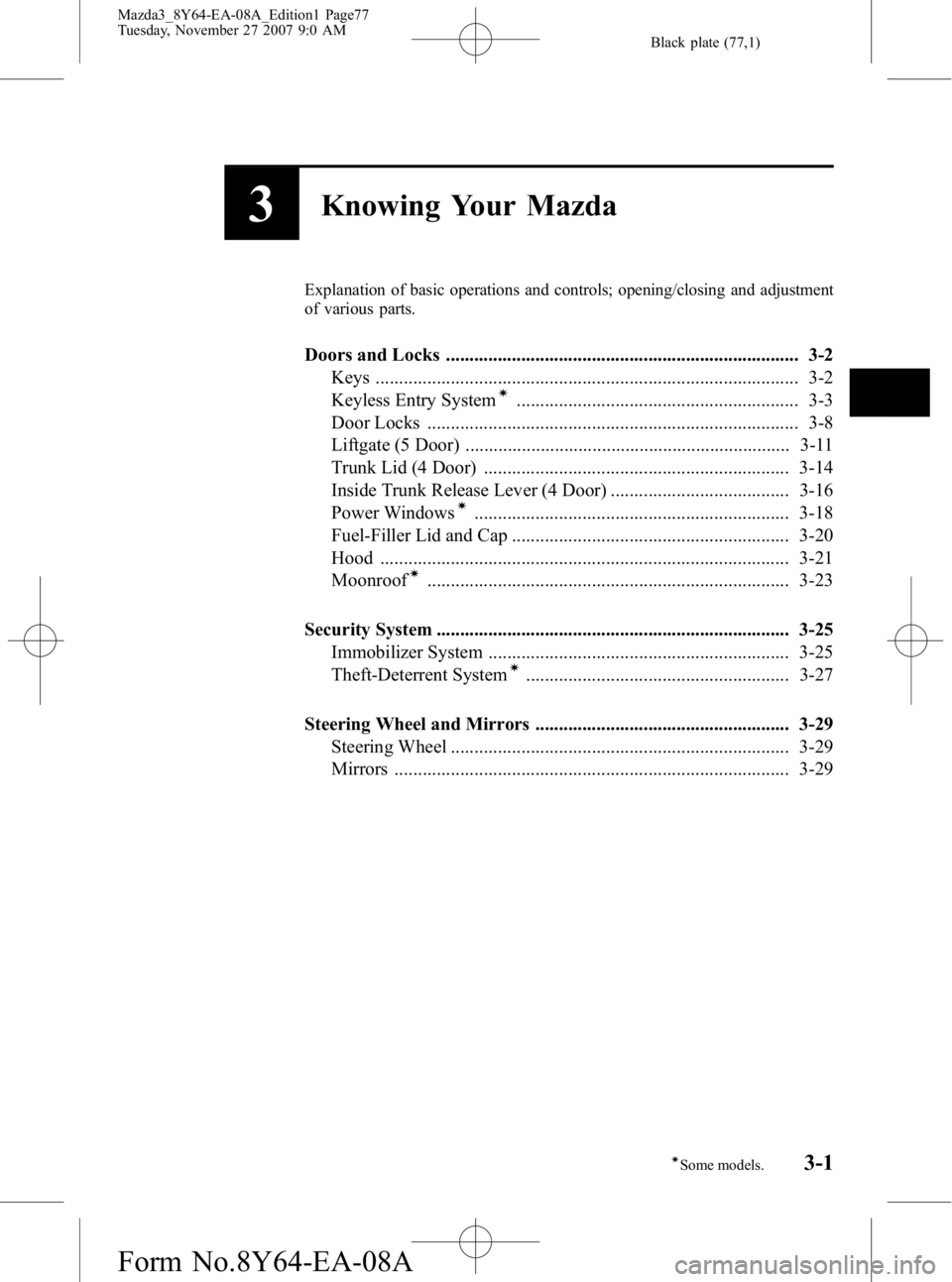

3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-8
Liftgate (5 Door) ..................................................................... 3-11
Trunk Lid (4 Door) ................................................................. 3-14
Inside Trunk Release Lever (4 Door) ...................................... 3-16
Power Windows
í................................................................... 3-18
Fuel-Filler Lid and Cap ........................................................... 3-20
Hood ....................................................................................... 3-21
Moonroof
í............................................................................. 3-23
Security System ........................................................................... 3-25 Immobilizer System ................................................................ 3-25
Theft-Deterrent System
í........................................................ 3-27
Steering Wheel and Mirrors ...................................................... 3-29 Steering Wheel ........................................................................ 3-29
Mirrors .................................................................................... 3-29
3-1íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page77
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (105,1)

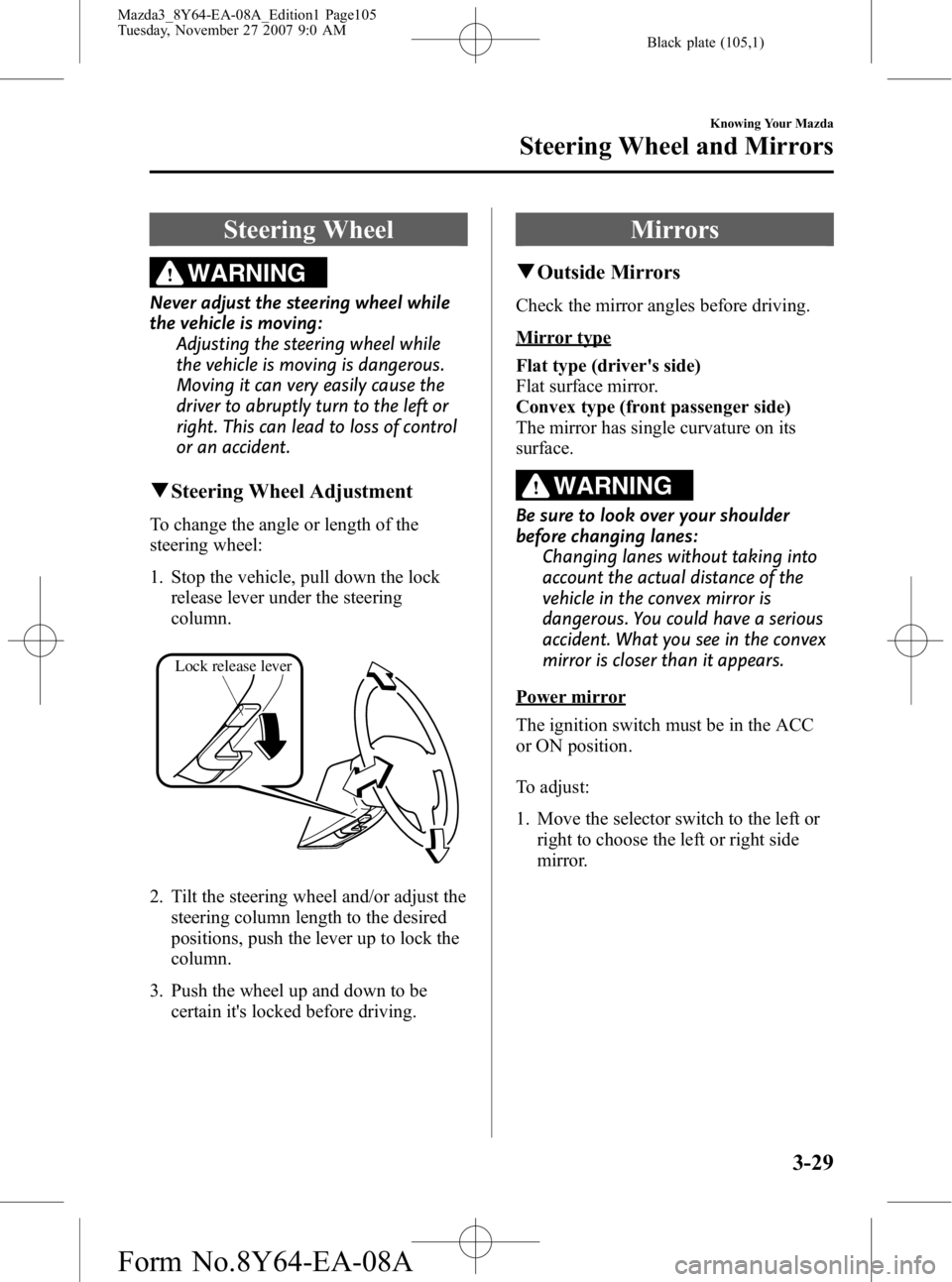

Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust thesteering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Move the selector switch to the left or
right to choose the left or right side
mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-29
Mazda3_8Y64-EA-08A_Edition1 Page105
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (106,1)
2. Depress the mirror switch in theappropriate direction.
Mirror switch
Outside mirror
Selector switch
After adjusting the mirror, lock the control
by moving the selector switch to the
middle position.
Manual control mirror
To adjust, move the mirror's control lever,
just inside the door.
Control lever
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving: Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
3-30
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda3_8Y64-EA-08A_Edition1 Page106
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A
