Replacing a fog light bulbsí
1. Turn the screw counterclockwise andremove it and then partially peel back
the mudguard.
2. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
3. Turn the socket and bulb assembly to remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
4. Install the new bulb in the reverse order
of removal. NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Front turn signal lights/Side-marker
lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Side turn signal lights
1. Slide the unit as shown in the figure to
remove it.
2. Detach the electrical connector from the unit by pulling it to the rear.
3. Install the new side turn signal unit inthe reverse order of removal.
NOTE
Bulb replacement is not possible because it is
built into the unit. Replace the unit.
Maintenance and Care
Owner Maintenance
8-43íSome models.
Mazda3_8Z87-EA-08F_Edition2 Page331
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (332,1)
Brake lights/Taillights (4 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
With Non-LED bulb
1. Pull the center of each plastic retainerand remove the retainers and the trunk
end trim.
Removal
Installation
2. Pull the center of each plastic retainer, then remove the retainers, and then
partially open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Brake lights/Taillights (5 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
8-44
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page332
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (333,1)
With Non-LED bulb
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Rear turn signal lights (4 Door)
1. Pull the center of each plastic retainer, and then remove the retainers and the
trunk end trim.
Removal
Installation
2. Pull the center of each plastic retainer and remove the retainers, and then
partially open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-45
Mazda3_8Z87-EA-08F_Edition2 Page333
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (334,1)
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
Rear turn signal lights (5 Door)
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
8-46
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page334
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (335,1)
Reverse lights
4 Door
1. Pull the center section of the plasticretainer and remove the retainers, and
then remove the trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
5 Door
1. Remove the cover. 2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
High-mount brake light
4 Door
1. Pull the center of each plastic retainer, and then remove the retainers and the
trunk rear trim.
Removal
Installation
2. Disconnect the electrical connector from the socket.
Maintenance and Care
Owner Maintenance
8-47
Mazda3_8Z87-EA-08F_Edition2 Page335
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (336,1)
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
5 Door
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
With Non-LED bulb
1. Remove the liftgate upper trim.
2. Disconnect the electrical connector from the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
8-48
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page336
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (337,1)

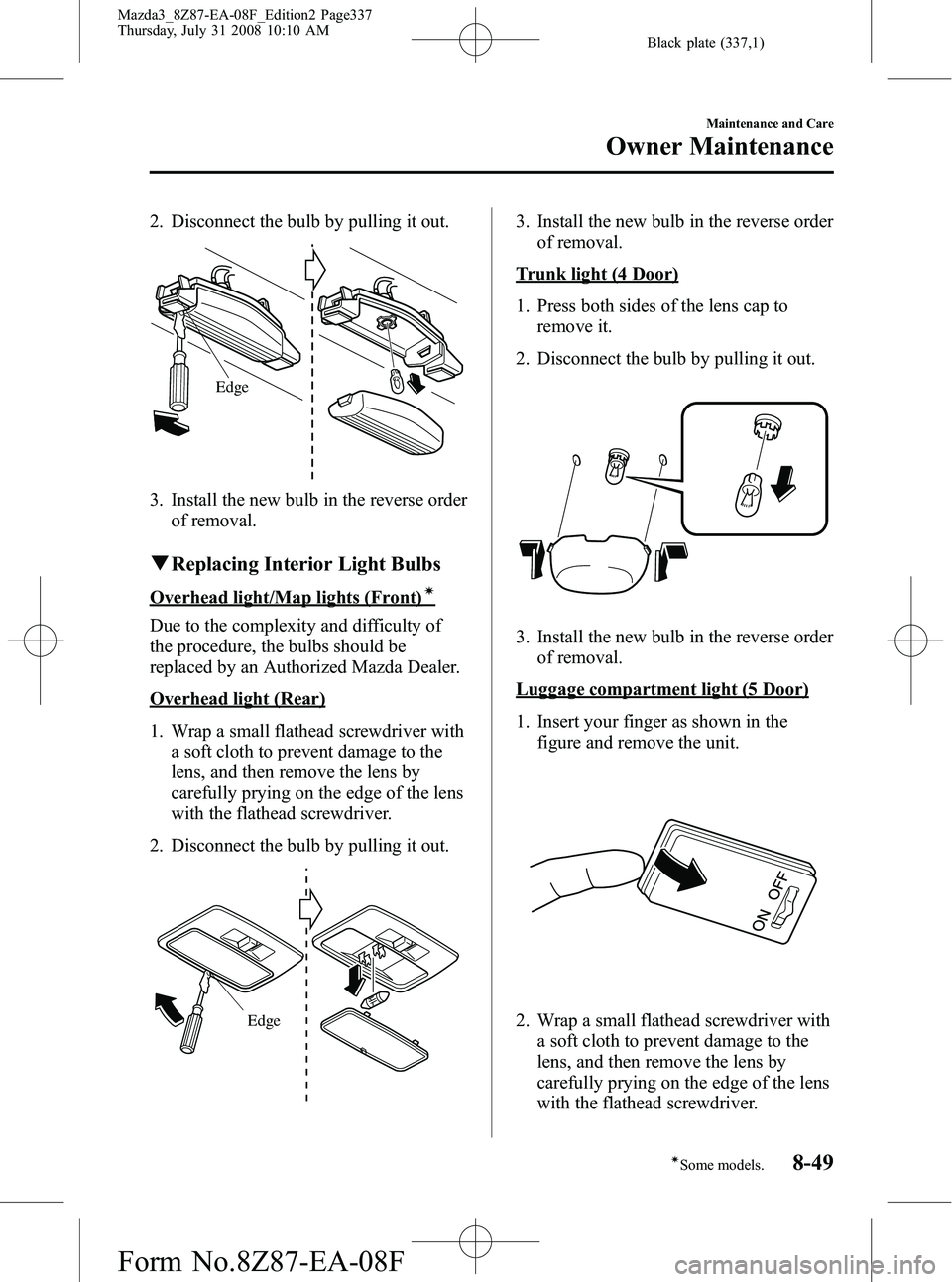

2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse orderof removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)í
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Overhead light (Rear)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of removal.
Trunk light (4 Door)
1. Press both sides of the lens cap toremove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Luggage compartment light (5 Door)
1. Insert your finger as shown in thefigure and remove the unit.
2. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
Maintenance and Care
Owner Maintenance
8-49íSome models.
Mazda3_8Z87-EA-08F_Edition2 Page337
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (338,1)
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system does not work,
first inspect the fuses on the front
passenger's side below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page338
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (339,1)
3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it'sblown.
Normal Blown
7. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8Z87-EA-08F_Edition2 Page339
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (340,1)

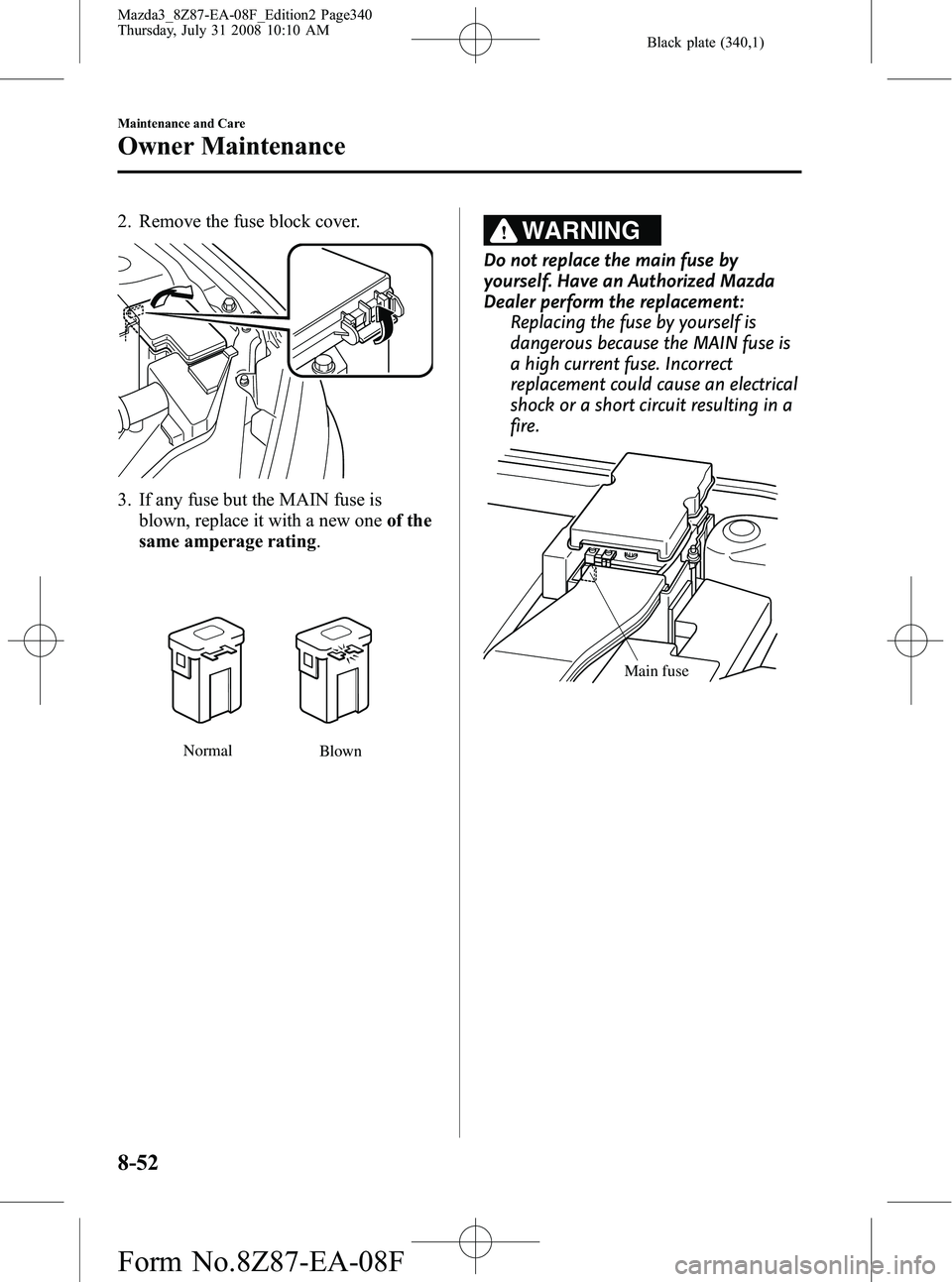

2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
