Select the proper setting from the
following chart.
(2.0-liter and 2.5-liter engine models)Front seat Rear
seat LoadSwitch
Position
Driver Passenger
× ――― 0
×× ――0
××× ―1
××××2
× ―― ×3
×: Yes
― :No
(2.3-liter turbocharged engine model) Front seat Rear
seat LoadSwitch
Position
Driver Passenger
× ――― 0
×× ――0
××× ―1
××××2
× ―― ×2
×: Yes
― :No
q Adaptive Front Lighting System
(AFS)í
The adaptive front lighting system (AFS)
automatically adjusts the headlight beams
to the left or right in conjunction with the
operation of the steering wheel after the
headlights have been turned on and the
vehicle speed is about 2 km/h (2 mph) or
higher.
AFS OFF indicator light
The AFS OFF indicator light illuminates
briefly when the ignition is switched ON,
and then turns off.
Pressing the AFS OFF switch cancels the
AFS function and illuminates the
indicator light.
The following conditions could indicate
that the system is malfunctioning. If one
of the following conditions occurs,
consult an Authorized Mazda Dealer.
lThe AFS OFF indicator light does not
illuminate even though the ignition is
switched ON.
lThe AFS OFF indicator light flashes
continuously.
NOTE
Even if the AFS is not operating due to some
malfunction, the normal headlight function is
still operable.
AFS OFF switch
Pressing the AFS OFF switch turns off the
AFS.
Driving Your Mazda
Switches and Controls
5-61íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page221
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (222,1)
Pressing the AFS OFF switch again turns
off the AFS OFF indicator light and turns
on the AFS.
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
5-62
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page222
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (223,1)
NOTElIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the number of flashes.Refer to
Personalization Features on page 10-10.
lA personalized function is available to
change the turn indicator sound
volume.Refer to Personalization Features
on page 10-10.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position to turn on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
Driving Your Mazda
Switches and Controls
5-63íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page223
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (224,1)
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions: Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid. NOTE
Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
q
Windshield Wipers
Type A (With INT position)
Turn the wipers on by pulling the lever
down.
INT ―Intermittent
LO ―Low speed
HI ―High speed
For a single wiping cycle, press the lever
up to MIST.
MIST ―Mist
5-64
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page224
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (225,1)
Variable-speed intermittent wipersí
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
Type B (With AUTO position)
Turn the wipers on by pulling the lever
down.
AUTO―Auto control
LO ―Low speed
HI ―High speed
For a single wiping cycle, press the lever
up to MIST.
MIST ―Mist AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off
―intermittent ―low speed ―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards ( _
) for less sensitivity
(slower response).
Higher sensitivity
Less sensitivity
Switch
Center
position
Driving Your Mazda
Switches and Controls
5-65íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page225
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (226,1)
CAUTION
ØDo not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely - this is
particularly important when
clearing ice and snow - when it is
particularly tempting to leave the
engine running.
5-66
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page226
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (227,1)
NOTElSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (e.g. ice or matter
containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, pull the wiper
lever to the low speed or high speed
position for manual operation, or remove
the ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
q Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer
OFF
NOTE
With the wiper lever in the OFF or INT (Type
A)/AUTO (Type B) position, the wipers will
operate continuously until the lever is
released.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal,
consult an Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-67
Mazda3_8BG3-EA-09J_Edition2 Page227
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (228,1)
Rear Window Wiper and
Washer (5 Door)
The ignition must be switched ON.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON ―Normal
INT ―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Fully Automatic Type Air-Conditioning
Indicator light
5-68
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page228
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (229,1)

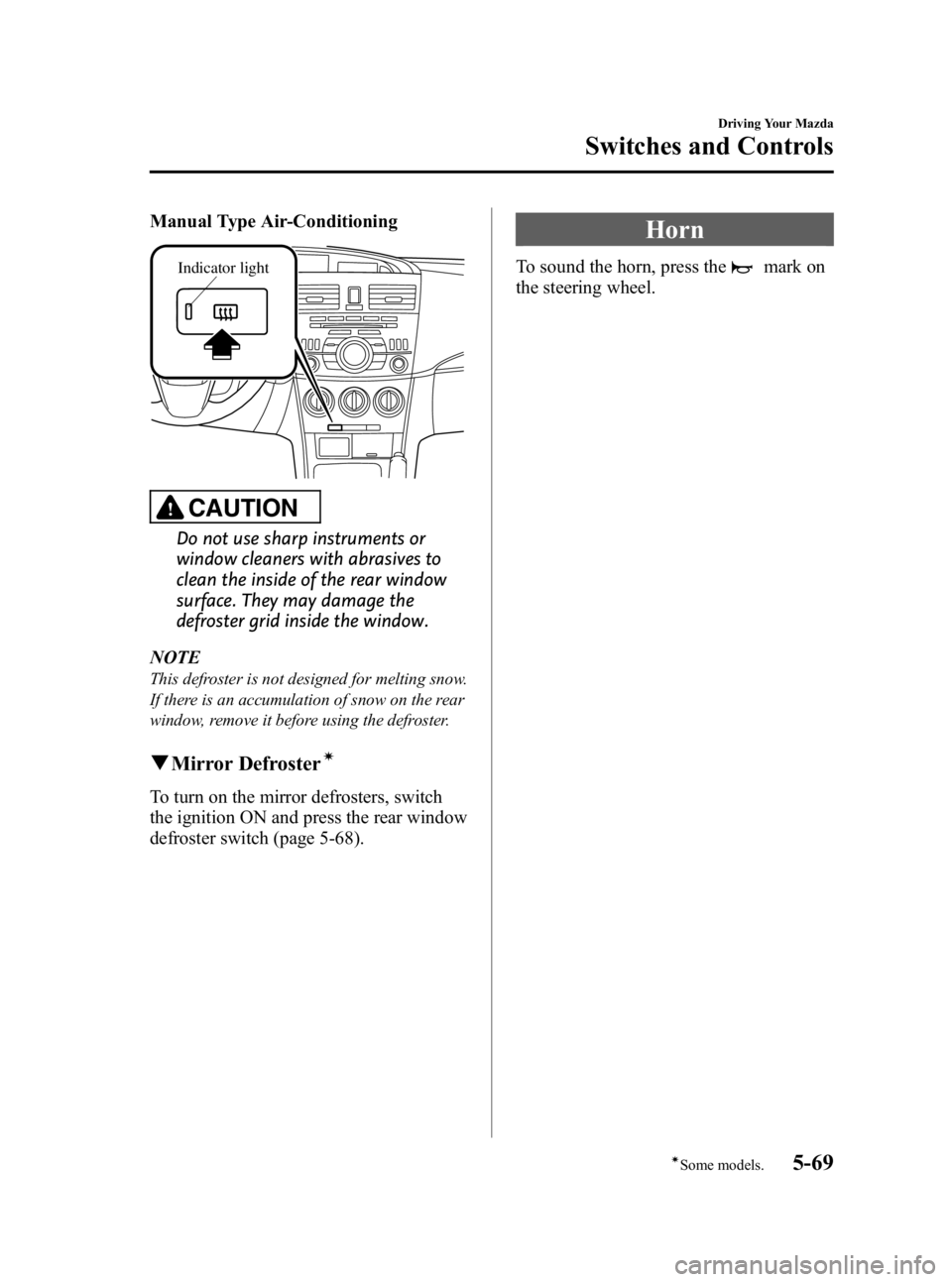

Manual Type Air-Conditioning
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
q Mirror Defrosterí
To turn on the mirror defrosters, switch
the ignition ON and press the rear window
defroster switch (page 5-68).
Horn
To sound the horn, press themark on
the steering wheel.
Driving Your Mazda
Switches and Controls
5-69íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page229
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (230,1)
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
5-70
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page230
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J
