dashboard MAZDA MODEL 3 5-DOOR 2010 Owner's Manual

Black plate (329,1)
qClock
The time is displayed when the ignition is
switched to ACC or ON.
Time setting
Refer to Clock on page 6-96.
Time resetting
Refer to Clock on page 6-96.
With navigation system
Time zone switching
1. Press the INFO switch until the
SETTINGS screen is displayed.
2. Select PREFERENCES by pressing the Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
3. Select TIME ZONE by pressing the Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
4. Select the desired time zone by pressing the Enter (up/down) switch up
or down, and then press the Enter (up/
down) switch. NOTE
lDaylight saving time is not reflected in the
time zone displayed.
lThe clock does not display if there is no
GPS signal reception.
lIf the battery cables are disconnected and
then reconnected, the clock does not
operate until a GPS signal is received. Do
not place objects on the dashboard,
otherwise the clock may be unable to
receive the GPS signal normally.
q
Outside Temperature Display
When the ignition switch is switched ON,
the ambient temperature is displayed.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lWhen the ignition is switched to ACC,
“--- ”is displayed.
Interior Comfort
Interior Equipment
6-99
Mazda3_8BG3-EA-09J_Edition2 Page329
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (428,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 INJ 30 A Injector
í
19R.DEF 30 A Rear window defroster
20 IGKEY 2 40 A For protection of various circuits
21 IGKEY 1 40 A For protection of various circuits
22 HORN 15 A Horn
23 STOP 15 A Brake lights
24
10A Engine control system
25 FUEL PUMP 25 A Fuel system
26 ABS 40 A ABS
27 SEAT WARM 20 A Seat warmer
í
28 EHPAS 80 A Electro-Hydraulic Power Assist Steering
29 ―― ―
30 ABS IG 7.5 A ABS
31 ―― ―
32 H/L LO RH 15 A Headlight low beam (RH)
33 H/L LO LH 15 A Headlight low beam (LH)
34 ILLUM 7.5 A Dashboard illumination
35 TAIL 15 A Taillights
36 ENG INJ 15 A Engine control system
37 ENG BAR 15 A PCM
38 ENG BAR 2 20 A PCM
39 ETV 15 A Electric throttle valve
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8BG3-EA-09J_Edition2 Page428
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J

Black plate (436,1)
qAluminum Wheel Maintenanceí
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-34.
q Plastic Part Maintenance
When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss in
functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather is not uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
8-64
Maintenance and Care
íSome models.
Appearance Care
Mazda3_8BG3-EA-09J_Edition2 Page436
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J

Black plate (486,1)

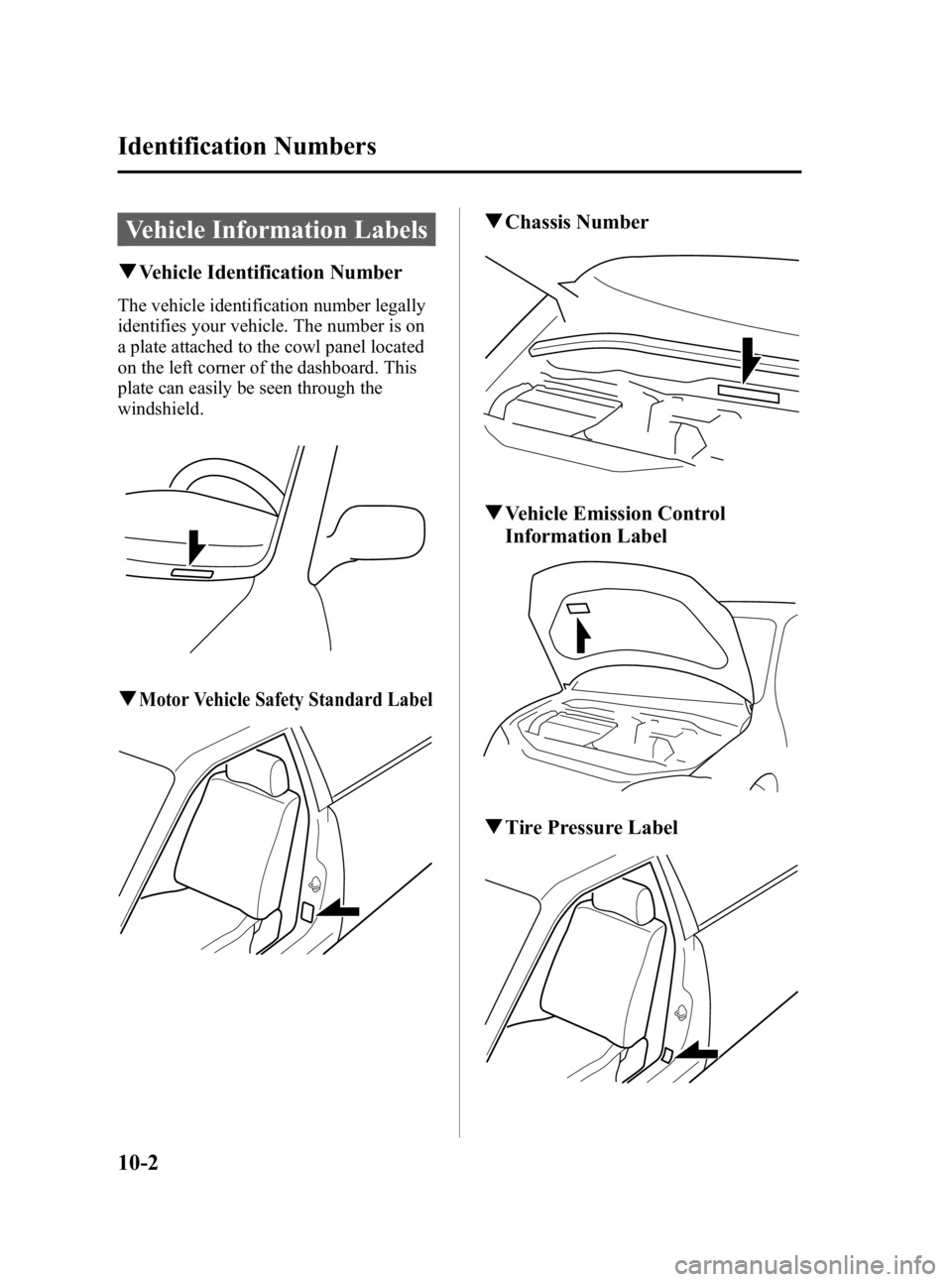

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda3_8BG3-EA-09J_Edition2 Page486
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J

Black plate (499,1)
B
Bulb Replacement ............................. 8-40
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-110
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-109
Child RestraintChild restraint precautions ......... 2-28
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-38
Child Safety Locks for Rear Doors ... 3-38
Climate Control System ...................... 6-2
Gas specifications ...................... 10-7
Clock ................................................. 6-96
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-107
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-40
Daytime Running Lights ................... 5-62
Defroster Mirror ......................................... 5-69
Rear window .............................. 5-68
Dimensions ....................................... 10-5
Door Locks ....................................... 3-34
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
D
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-19
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27 DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-28
TCS/DSC indicator light ............ 5-28
E
Emergency Starting ........................... 7-17Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-22
Emergency Towing ........................... 7-23
Emission Control System .................... 4-4
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-50
Oil .............................................. 8-18
Overheating ................................ 7-15
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-15
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-61
Index
11-3
Mazda3_8BG3-EA-09J_Edition2 Page499
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
