qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Driver's window
Owner master control switches
Open
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it. NOTE
If the battery was disconnected during vehicle
maintenance, or for other reasons such as a
switch continues to be operated after the
window is fully open/close, the window will not
fully open and close automatically. Carry out
the following procedure to resume operation:
1. Switch the ignition ON.
2. Press the switch and fully open the window.
3. Pull up the switch to fully close the window
and continue holding the switch for about 2
seconds after the window fully closes.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while holding up the power
window switch: Blocking the power window just
before it reaches the fully closed
position or while holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
Knowing Your Mazda
Doors and Locks
3-45
Mazda3_8BM5-EA-10F_Edition3 Page121
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (122,1)

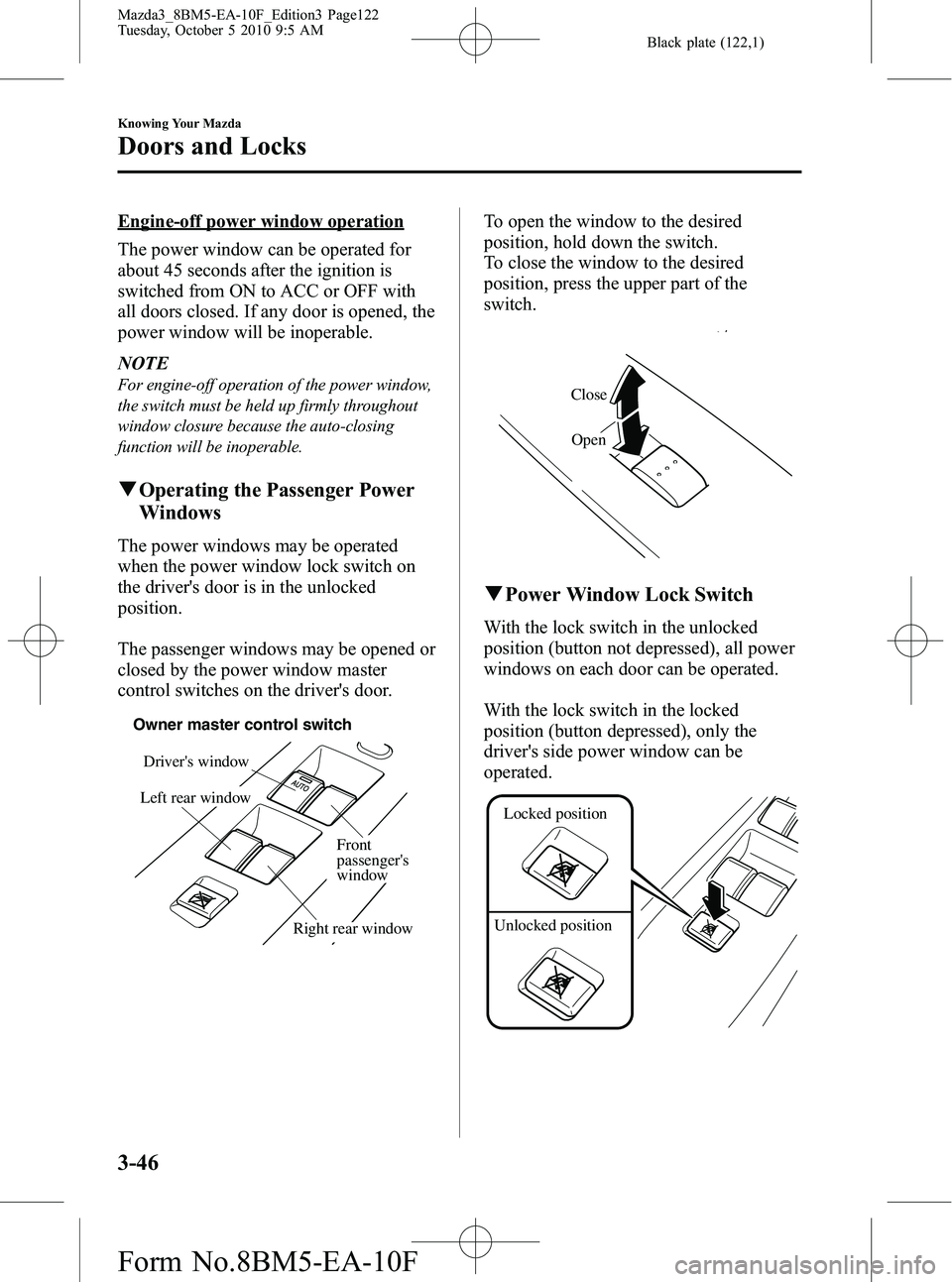

Engine-off power window operation
The power window can be operated for
about 45 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.
qOperating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger windows may be opened or
closed by the power window master
control switches on the driver's door.
Driver's window
Owner master control switch
Right rear window Front
passenger's
window
Left rear window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, press the upper part of the
switch.
Open
Close
q
Power Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
3-46
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page122
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (123,1)
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-47
Mazda3_8BM5-EA-10F_Edition3 Page123
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (124,1)
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
5 door
Remote fuel-filler
lid release
4 door
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
3-48
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page124
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (125,1)
NOTE
The removed cap can be attached to the inner
side of the lid during refueling to prevent fuel
on the cap from dripping onto the vehicle.Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening
and slide the hood latch lever to the
right and lift the hood.
Knowing Your Mazda
Doors and Locks
3-49
Mazda3_8BM5-EA-10F_Edition3 Page125
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (126,1)
3. Grasp the support rod in the paddedarea and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Support rod
Clip Pad
q
Closing the Hood
WARNING
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
1. Check under the hood area to make certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Slide switch
Tilt switch
WARNING
Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving: Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof: A closing moonroof is dangerous. The
hands, head, or even neck of a
person ―especially a child ―could
be caught in it as it closes, causing
serious injury or even death.
3-50
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page126
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (127,1)
NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.

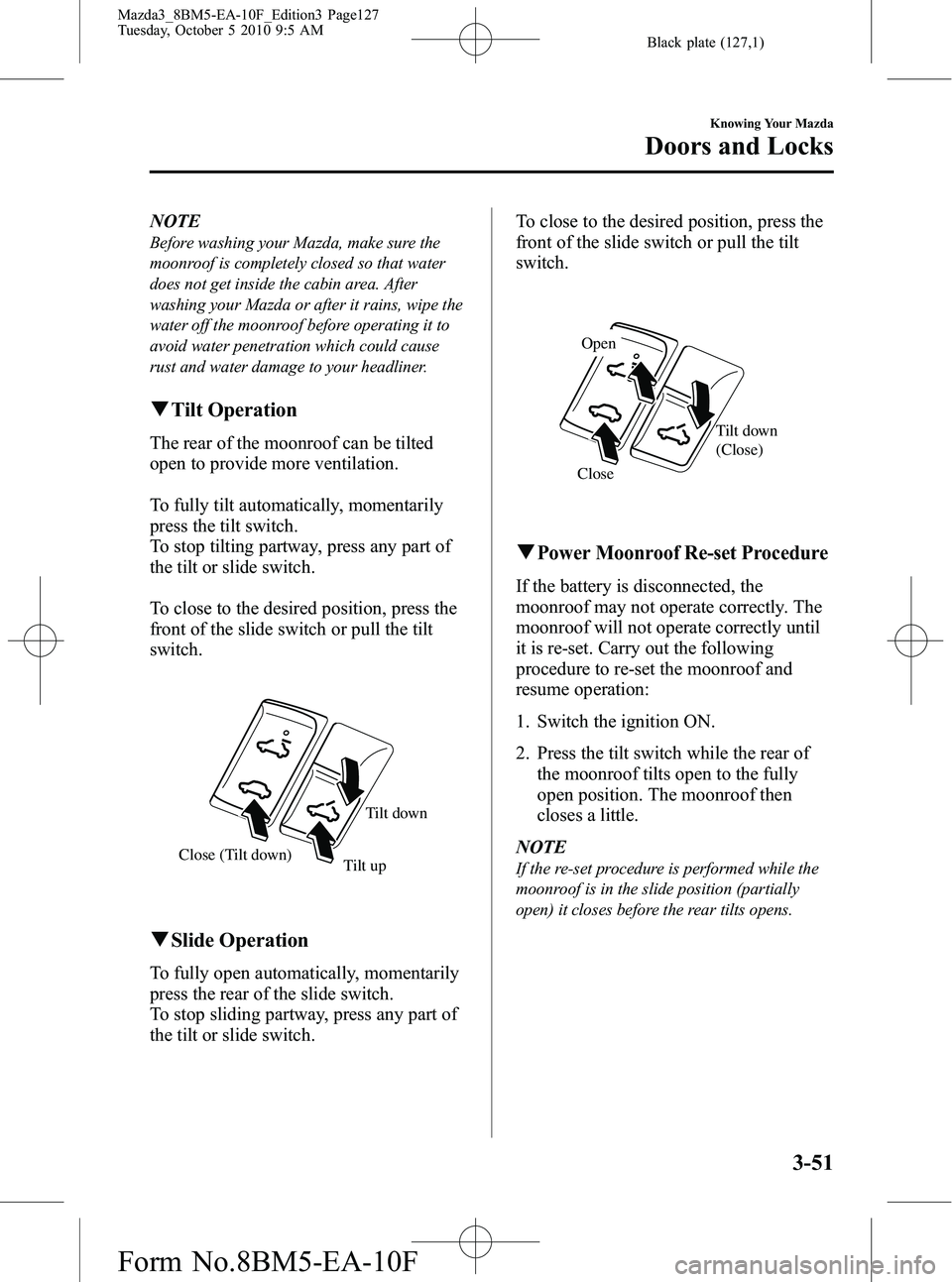

qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt switch.
To stop tilting partway, press any part of
the tilt or slide switch.
To close to the desired position, press the
front of the slide switch or pull the tilt
switch.
Close (Tilt down) Tilt down
Tilt up
q Slide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To stop sliding partway, press any part of
the tilt or slide switch. To close to the desired position, press the
front of the slide switch or pull the tilt
switch.
Close
Tilt down
(Close)
Open
qPower Moonroof Re-set Procedure
If the battery is disconnected, the
moonroof may not operate correctly. The
moonroof will not operate correctly until
it is re-set. Carry out the following
procedure to re-set the moonroof and
resume operation:
1. Switch the ignition ON.
2. Press the tilt switch while the rear of
the moonroof tilts open to the fully
open position. The moonroof then
closes a little.
NOTE
If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.
Knowing Your Mazda
Doors and Locks
3-51
Mazda3_8BM5-EA-10F_Edition3 Page127
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (128,1)

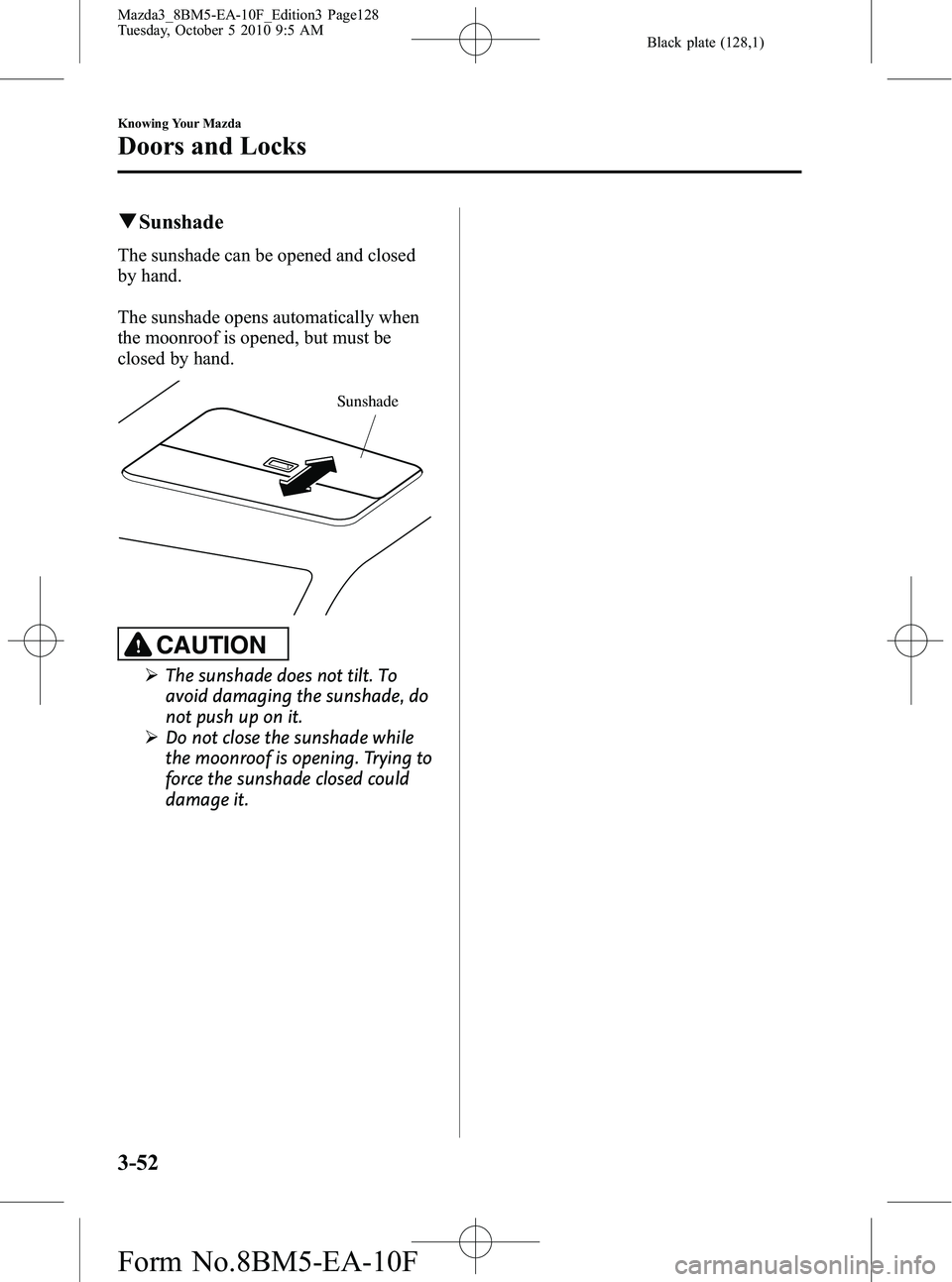

qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
Ø The sunshade does not tilt. To
avoid damaging the sunshade, do
not push up on it.
Ø Do not close the sunshade while
the moonroof is opening. Trying to
force the sunshade closed could
damage it.
3-52
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page128
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (129,1)

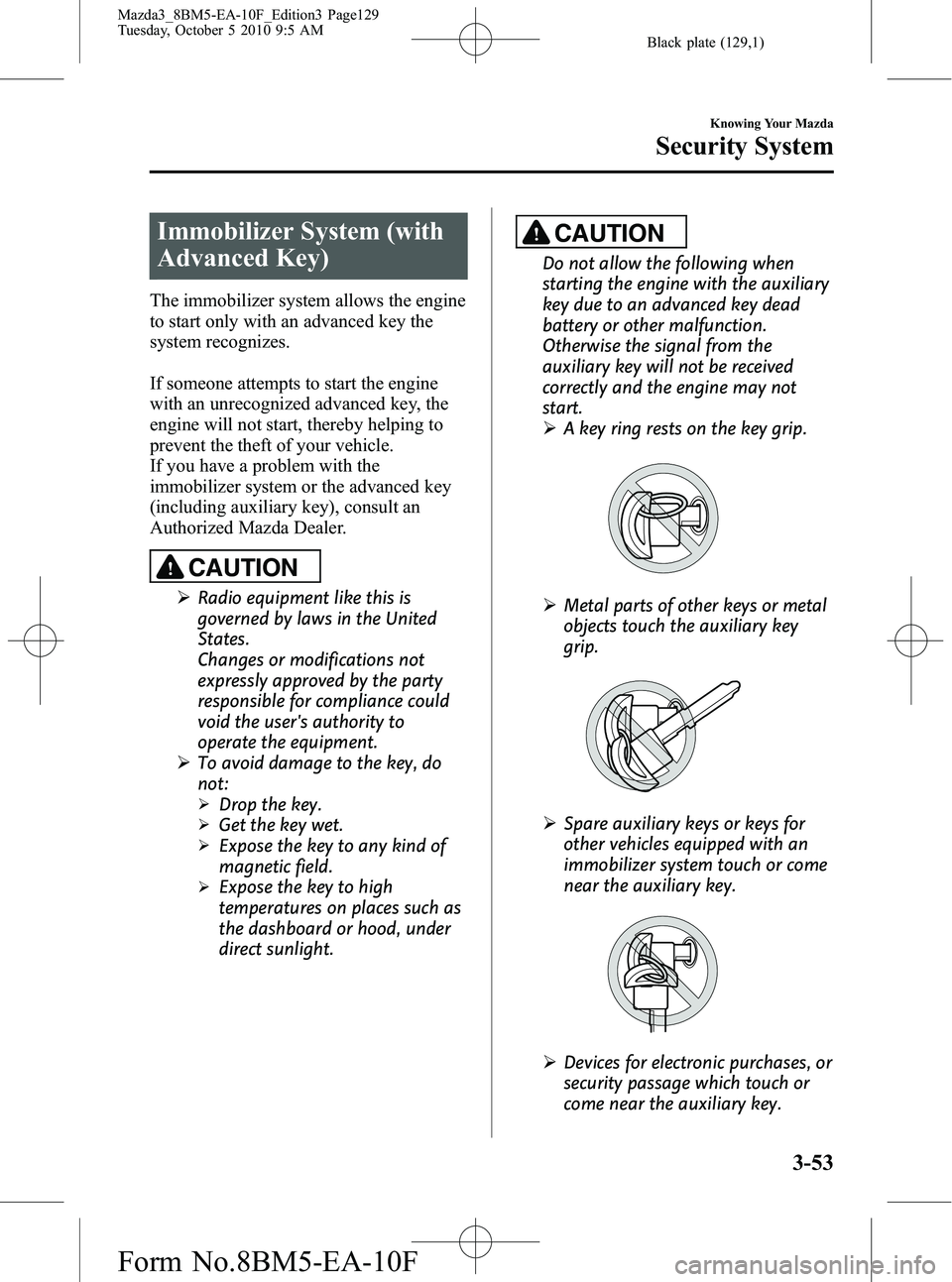

Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
ØDevices for electronic purchases, or
security passage which touch or
come near the auxiliary key.
Knowing Your Mazda
Security System
3-53
Mazda3_8BM5-EA-10F_Edition3 Page129
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (130,1)

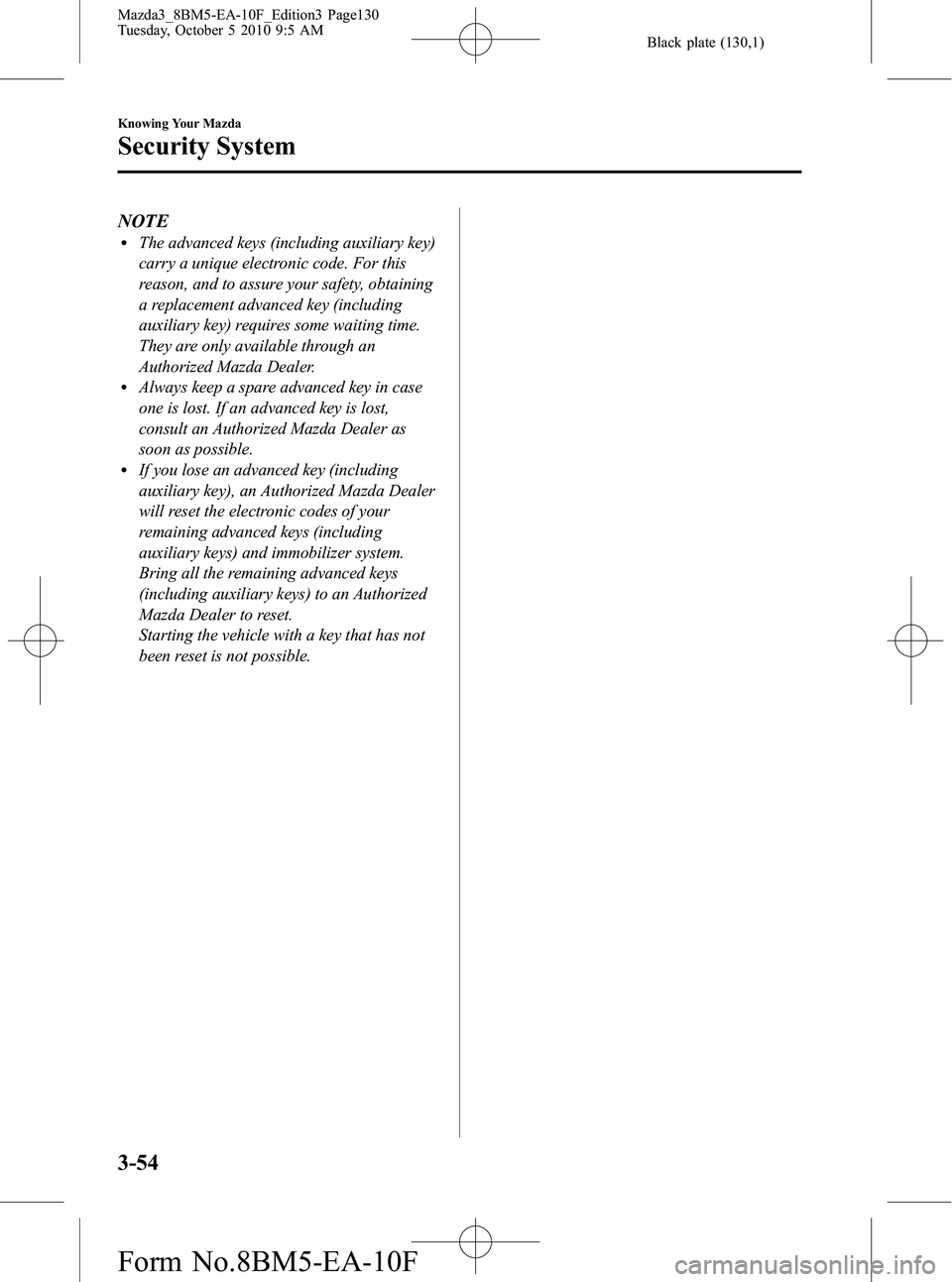

NOTElThe advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.
lIf you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
3-54
Knowing Your Mazda
Security System
Mazda3_8BM5-EA-10F_Edition3 Page130
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F
