The liftgate/trunk lid can be closed when
the doors are locked with the advanced
key left in the vehicle. However, to
prevent leaving the advanced key in the
vehicle, the liftgate/trunk lid can be
opened by pressing the electric liftgate/
trunk lid opener.
qStarting the Engine
Locked steering wheel
If the electronic steering lock warning
light is flashing and the beep sound is
heard, this indicates that the steering
wheel is not unlocked. To unlock the
steering wheel, move the steering wheel
left and right while pressing the push
button start.
Ignition positions
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
Indicator
light (ACC)
Indicator
light (ON)
NOTElThe order in which the ignition position
transitions when pressing the push button
start can be changed.
Refer to Personalization Features on page
10-12.
lThe engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch the
ignition position, press the push button start
without depressing the pedal.
lDo not leave the ignition switched ON
while the engine is not running. Doing so
could result in the battery going dead. If the
ignition is left in ACC (For automatic
transaxle, the shift lever is in the P position,
and the ignition is in ACC), the ignition
switches off automatically after one hour.
The setting can be changed to not switch
the ignition off automatically.
Refer to Personalization Features on page
10-12.
Off
The power supply to electrical devices
turns off and the push button start
indicator lights (ACC and ON) also turn
off.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BY6-EA-11F_Edition3 Page90
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (91,1)
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the shift lever is
in P (automatic transaxle) or in 1st gear
or R (manual transaxle):Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the shift
lever to P (automatic transaxle) or to
1st gear or R (manual transaxle) is
dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to
leave the vehicle for even a short
period, it is important to switch the
ignition off, as leaving it in another
position will disable some of the
vehicle's security systems and run the
battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (ACC) illuminates.
In addition, for vehicles equipped with the
steering column lock function, the
steering wheel unlocks.
NOTE
The advanced keyless entry system does not
function while the push button start has been
pressed to ACC, and the doors will not lock/
unlock even if they have been locked manually.
ON
This is the normal running position after
the engine is started. The indicator light
(ON) turns off. (The indicator light (ON)
illuminates when the ignition is switched
ON and the engine is not running.)
The warning lights (except brakes) should
be inspected before the engine is started
(page 5-47).
Starting the engine
NOTE
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lThe engine can be started when the push
button start is pressed from off, ACC, or
ON.
1. Make sure you are carrying the advanced key.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal firmly until the engine has completely
started.
5. (Manual transaxle)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
Mazda3_8BY6-EA-11F_Edition3 Page91
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (92,1)
NOTE
(Manual transaxle)
The starter will not operate if the clutch pedal
is not depressed sufficiently.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N and the brake pedal is not
depressed sufficiently.
6. Verify that the KEY indicator light(green) in the instrument cluster and
the push button start indicator light
(green) illuminate. If the KEY indicator
light (green) does not illuminate, make
sure that the advanced key is being
carried. If the KEY indicator light
(green) does not illuminate while the
advanced key is being carried, you may
have to use the auxiliary key to start
the engine instead (page 3-24).
CAUTION
If the KEY warning light (red)
illuminates, and the push button
start indicator light (red) illuminates,
this could indicate a problem with
the engine starting system and the
inability to start the engine or switch
the ignition to ACC or ON. Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible. NOTE
lUnder the following conditions, the KEY
warning light (red) flashes to inform the
driver that the push button start will not
switch to ACC even if it is pressed from off.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer similar
to the advanced key is in the operational
range.
l(Forced engine starting method)
If the KEY warning light (red) and the push
button start indicator light (red) illuminate
when the clutch pedal (manual transaxle)
or the brake pedal (automatic transaxle) is
depressed to start the engine, the engine
may not start using these methods. Have
your vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If this
occurs, the engine can be force-started.
Press and hold the push button start until
the engine starts. Other procedures
necessary for starting the engine such as
having the advanced key in the cabin, and
depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
lWhen the engine is force-started, the key
warning light (red) remains illuminated and
the key indicator light (green) does not
illuminate.
7. Press the push button start after both
the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BY6-EA-11F_Edition3 Page92
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (93,1)
NOTElAfter starting the engine, the push button
start indicator lights (ACC and ON) turn
off and the ignition is in the ON position.
lAfter pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near the
fuel tank can be heard, however, this does
not indicate a malfunction.
8. After starting the engine, let it idle forabout ten seconds.
NOTE
lWhether the engine is cold or warm, it
should be started without the use of the
accelerator.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-18).
Starting the engine using the auxiliary
key
If the engine cannot be started for reasons
such as the advanced key battery is dead,
the engine can be started using the
auxiliary key.
1. Slide the auxiliary key out from the bottom of the advanced key.
2. Use the auxiliary key to remove the key slot cover.
3. Depress the clutch pedal (manual transaxle) or the brake pedal (automatic
transaxle) until the ring around the key
slot starts flashing. 4. Insert the auxiliary key into the slot
while it is flashing, but DO NOT
TURN THE AUXILIARY KEY IN
THE SLOT.
CAUTION
After inserting the auxiliary key, do
not attempt to turn it in the key slot.
It could damage the vehicle or the
auxiliary key.
5. Press the push button start to start the engine.
NOTE
lLeave the auxiliary key in the key slot while
the engine is running.
lWhen leaving the vehicle, remove the
auxiliary key from the key slot and the
vehicle.
lTo switch the ignition position, insert the
auxiliary key into the key slot and press the
push button start without the clutch pedal
(manual transaxle) or the brake pedal
(automatic transaxle) depressed.
Turning the engine off
1. Stop the vehicle completely.
2. (Manual transaxle)
Shift into neutral.
(Automatic transaxle)
Shift the shift lever to the P position.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
Mazda3_8BY6-EA-11F_Edition3 Page93
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (98,1)
qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-32).
Starting the engine
The engine can be started with the
auxiliary key, refer to Starting the engine
(page 3-12).
Advanced Key Suspend
Function
If an advanced key is left in the vehicle,
the functions of the advanced key left in
the vehicle are temporarily suspended to
prevent theft of the vehicle.
The following are inoperable:
lStarting the engine using the push
button start.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions temporarily suspended.
lWhile carrying an advanced key which
has had its functions temporarily
suspended, lock the doors using the
advanced keyless system.
l(Manual transaxle)
When carrying another advanced key,
depress the clutch pedal until the KEY
indicator light (green) illuminates.
(Automatic transaxle)
When carrying another advanced key,
depress the brake pedal until the KEY
indicator light (green) illuminates.
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BY6-EA-11F_Edition3 Page98
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (154,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch fluid,
washer fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs the steering wheel adjusted properly?lIs everyone's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition is switched ON.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
4-6
Before Driving Your Mazda
Before Starting the Engine
Mazda3_8BY6-EA-11F_Edition3 Page154
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (167,1)

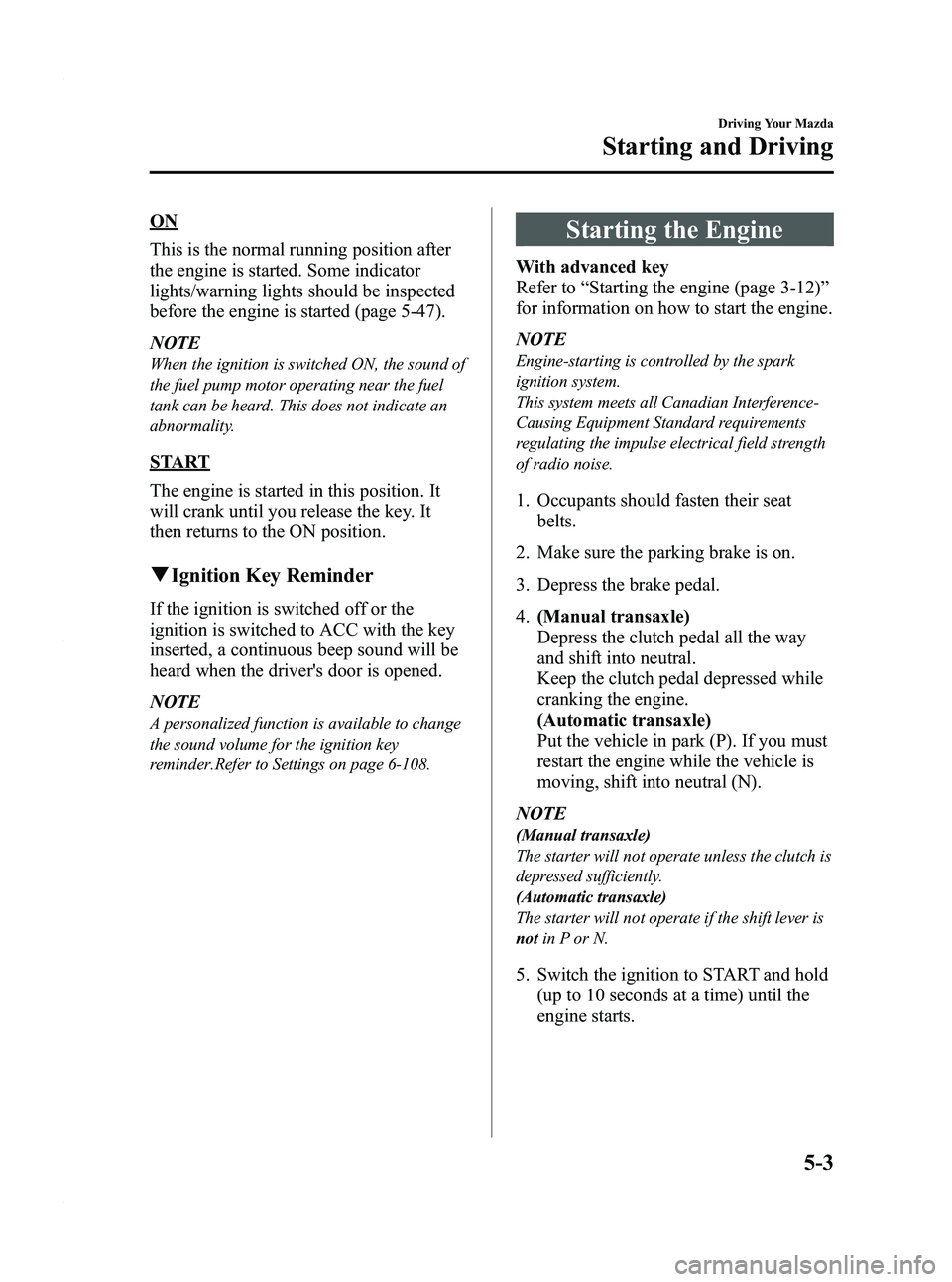

ON
This is the normal running position after
the engine is started. Some indicator
lights/warning lights should be inspected
before the engine is started (page 5-47).
NOTE
When the ignition is switched ON, the sound of
the fuel pump motor operating near the fuel
tank can be heard. This does not indicate an
abnormality.
START
The engine is started in this position. It
will crank until you release the key. It
then returns to the ON position.
qIgnition Key Reminder
If the ignition is switched off or the
ignition is switched to ACC with the key
inserted, a continuous beep sound will be
heard when the driver's door is opened.
NOTE
A personalized function is available to change
the sound volume for the ignition key
reminder.Refer to Settings on page 6-108.
Starting the Engine
With advanced key
Refer to “Starting the engine (page 3-12) ”
for information on how to start the engine.
NOTE
Engine-starting is controlled by the spark
ignition system.
This system meets all Canadian Interference-
Causing Equipment Standard requirements
regulating the impulse electrical field strength
of radio noise.
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4. (Manual transaxle)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transaxle)
The starter will not operate unless the clutch is
depressed sufficiently.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N.
5. Switch the ignition to START and hold
(up to 10 seconds at a time) until the
engine starts.
Driving Your Mazda
Starting and Driving
5-3
Mazda3_8BY6-EA-11F_Edition3 Page167
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (170,1)
CAUTION
ØDo not drive with your foot held
on the clutch pedal or brake pedal,
or hold the clutch pedal depressed
halfway unnecessarily. Doing so
could result in the following:
ØThe clutch and brake parts will
wear out more quickly.
ØThe brakes can overheat and
adversely affect brake
performance.
Ø Always depress the brake pedal
with the right foot. Applying the
brakes with the unaccustomed left
foot could slow your reaction time
to an emergency situation
resulting in insufficient braking
operation.
ØWear shoes appropriate for driving
in order to avoid your shoe
contacting the brake pedal when
depressing the accelerator pedal.
qParking Brake
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the shift lever is
in P (automatic transaxle) or in 1st gear
or R (manual transaxle):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the shift
lever to P (automatic transaxle) or to
1st gear or R (manual transaxle) is
dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to
leave the vehicle for even a short
period, it is important to switch the
ignition off, as leaving it in another
position will disable some of the
vehicle's security systems and run the
battery down.
CAUTION
Driving with the parking brake on
will cause excessive wear of the brake
linings or pads.
NOTE
For parking in snow, refer to Winter Driving
(page 4-9) regarding parking brake use.
5-6
Driving Your Mazda
Starting and Driving
Mazda3_8BY6-EA-11F_Edition3 Page170
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (174,1)
NOTElWhen the brake pedal is depressed hard or
depressed more quickly, the pedal will feel
softer but the brakes will apply more firmly.
This is a normal effect of the brake assist
operation and does not indicate a
malfunction.
l(Without DSC vehicles)
When the brake pedal is depressed hard or
depressed more quickly, a clicking noise
from the brake booster may be heard. This
is a normal effect of the brake assist and
does not indicate a malfunction.
l(With DSC vehicles)
When the brake pedal is depressed hard or
depressed more quickly, a motor/pump
operation noise may be heard. This is a
normal effect of the brake assist and does
not indicate a malfunction.
lThe brake assist equipment does not
supersede the functionality of the vehicle's
main braking system.

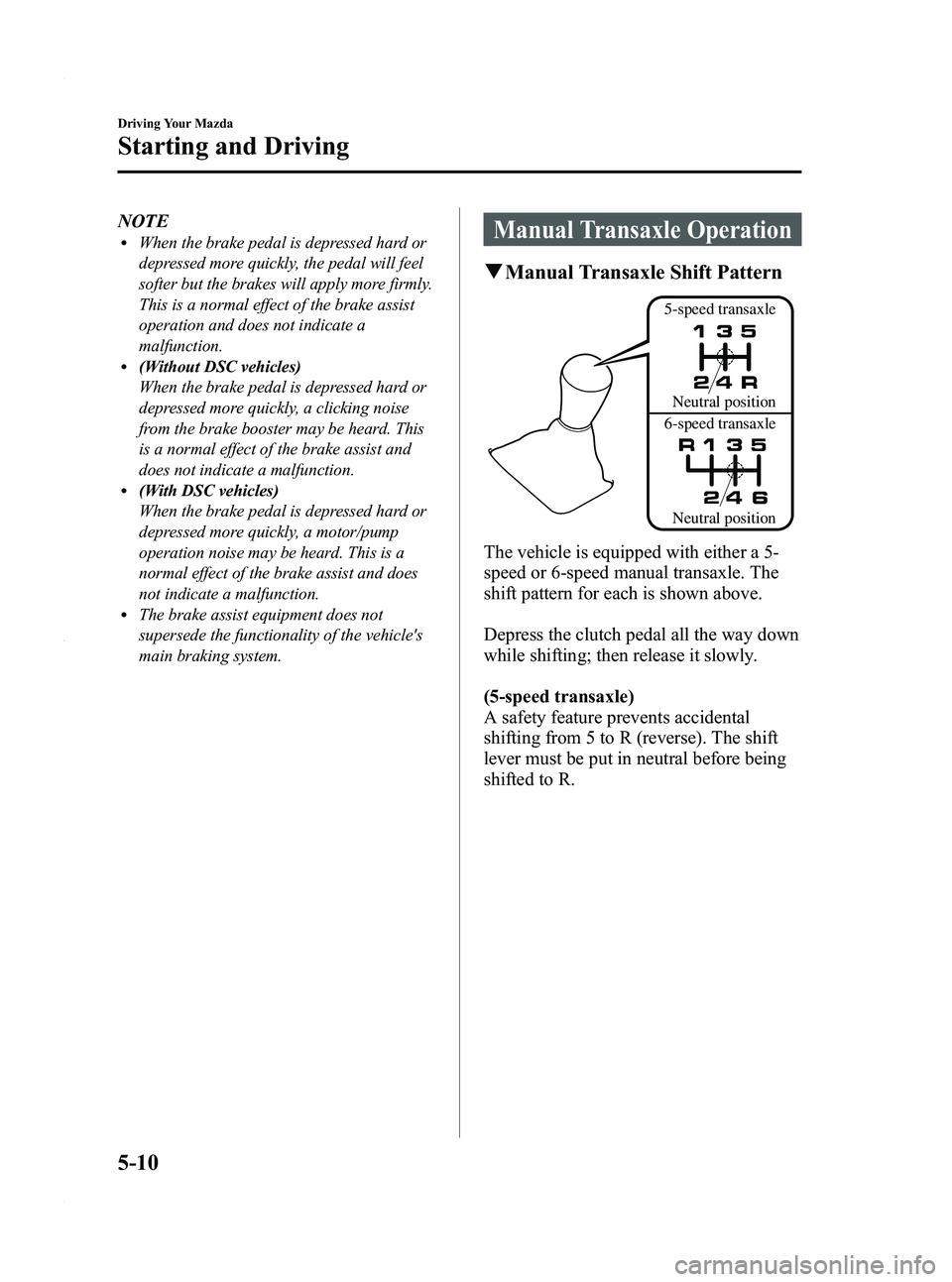

Manual Transaxle Operation
qManual Transaxle Shift Pattern
5-speed transaxle
6-speed transaxleNeutral position
Neutral position
The vehicle is equipped with either a 5-
speed or 6-speed manual transaxle. The
shift pattern for each is shown above.
Depress the clutch pedal all the way down
while shifting; then release it slowly.
(5-speed transaxle)
A safety feature prevents accidental
shifting from 5 to R (reverse). The shift
lever must be put in neutral before being
shifted to R.
5-10
Driving Your Mazda
Starting and Driving
Mazda3_8BY6-EA-11F_Edition3 Page174
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (175,1)

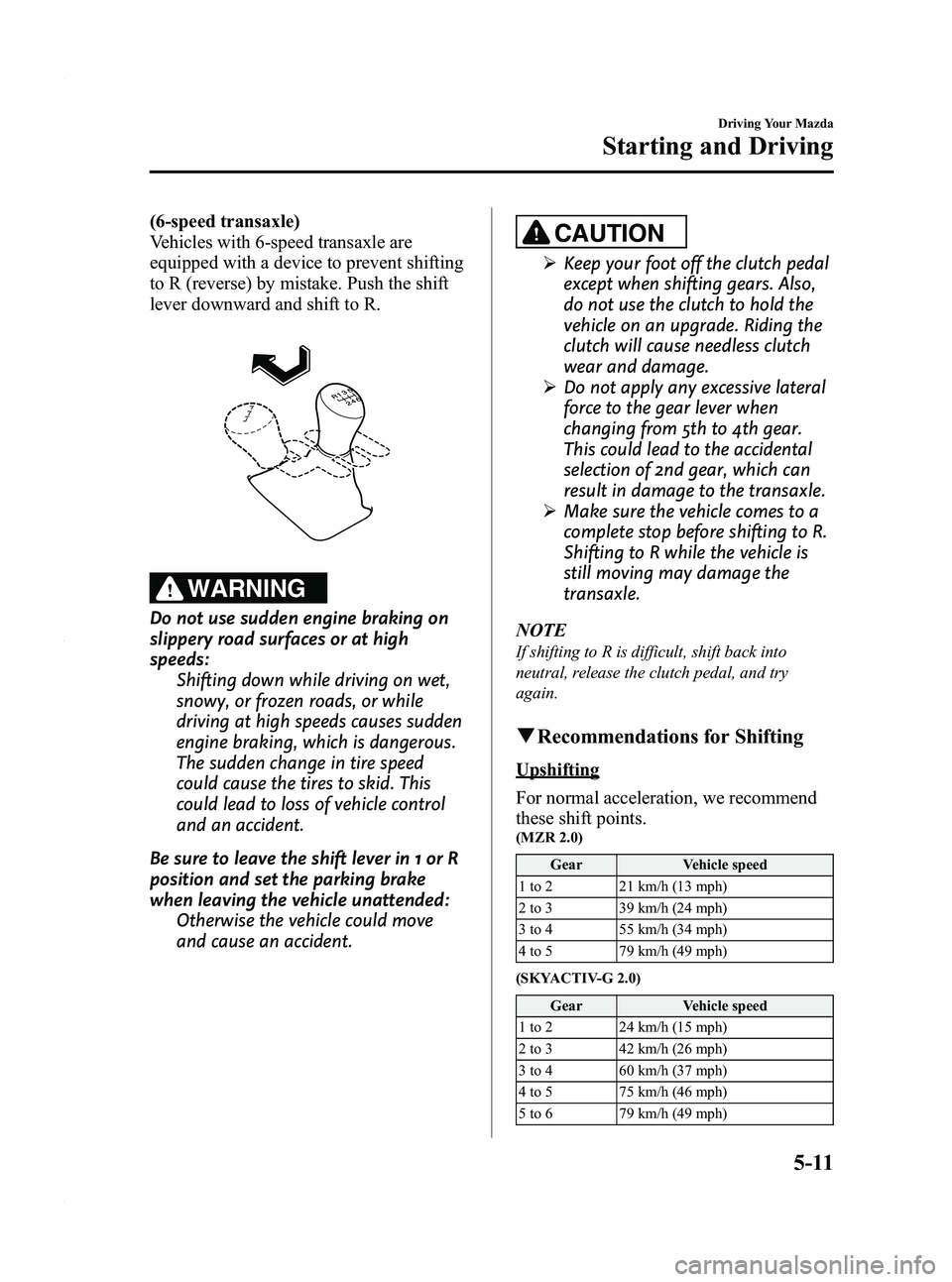

(6-speed transaxle)
Vehicles with 6-speed transaxle are
equipped with a device to prevent shifting
to R (reverse) by mistake. Push the shift
lever downward and shift to R.
WARNING
Do not use sudden engine braking on
slippery road surfaces or at high
speeds:Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
Be sure to leave the shift lever in 1 or R
position and set the parking brake
when leaving the vehicle unattended: Otherwise the vehicle could move
and cause an accident.
CAUTION
ØKeep your foot off the clutch pedal
except when shifting gears. Also,
do not use the clutch to hold the
vehicle on an upgrade. Riding the
clutch will cause needless clutch
wear and damage.
Ø Do not apply any excessive lateral
force to the gear lever when
changing from 5th to 4th gear.
This could lead to the accidental
selection of 2nd gear, which can
result in damage to the transaxle.
Ø Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is
still moving may damage the
transaxle.
NOTE
If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.
q Recommendations for Shifting
Upshifting
For normal acceleration, we recommend
these shift points.
(MZR 2.0)
Gear Vehicle speed
1 to 2 21 km/h (13 mph)
2 to 3 39 km/h (24 mph)
3 to 4 55 km/h (34 mph)
4 to 5 79 km/h (49 mph)
(SKYACTIV-G 2.0) Gear Vehicle speed
1 to 2 24 km/h (15 mph)
2 to 3 42 km/h (26 mph)
3 to 4 60 km/h (37 mph)
4 to 5 75 km/h (46 mph)
5 to 6 79 km/h (49 mph)
Driving Your Mazda
Starting and Driving
5-11
Mazda3_8BY6-EA-11F_Edition3 Page175
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F
