Interior Equipment (View B)
Audio control switches ...................................................................................... page 6-56
SRS air bags ...................................................................................................... page 2-44
Multi information display .................................................................................. page 6-99
Navigation system (if equipped) .......................................... Refer to the separate manual
Audio system ..................................................................................................... page 6-17
Information display ............................................................................................ page 6-97
Hazard warning flasher switch .......................................................................... page 5-77
Climate control system ........................................................................................ page 6-2
Parking brake ....................................................................................................... page 5-6
Accessory socket ............................................................................................. page 6-114
MT shift lever .................................................................................................... page 5-10
AT shift lever ...................................................................................................... page 5-13
Push button start ................................................................................................ page 3-12
Cruise control switches ...................................................................................... page 5-22
Hood release handle .......................................................................................... page 3-50
Your Vehicle at a Glance
Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda3_8BY6-EA-11F_Edition3 Page9
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (342,1)
SwitchFunction
Enter (up/down) switch Used to select a menu and change numbers. Select up or down and press enter.
Right switch/Left
switch Used to select digits when setting numbers.
Navi switch
(With navigation sys-
tem) Press to switch the system to the navigation system screen.
BACK switch Press during SETTINGS to return to the previous screen.
INFO switch Press to switch to the multi information display. Switches the setting display in the order of Trip computer
(average fuel economy/average vehicle speed) →Trip computer
(current fuel economy/distance-to-empty) →Audio display →Settings
(reset averages/maintenance/preferences). Each time the switch is pressed, the multi
information display cycles through.
q Multi Information Display Functions
Function name DetailsSee page
Clock Constant display of time. 6-101
Outside temperature
display Constant display of ambient temperature.
6-101
Audio display Displays the audio operation status. Displayed when the INFO switch is pressed. 6-102
Trip computer Displays the average fuel economy, average vehicle speed, current fuel economy, and distance-to-empty. Displayed when the INFO switch is
pressed. 6-102
Maintenance monitor Notification of periodic inspection and tire rotation period 6-104
Warning indicator Notification of the need to take caution 6-108
Settings Used to change the multi information display settings. Displayed when the
INFO switch is pressed. 6-108
Navigation system Refer to the separate manual
6-100
Interior Comfort
Interior Equipment
Mazda3_8BY6-EA-11F_Edition3 Page342
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (343,1)
qClock
The time is displayed when the ignition is
switched to ACC or ON.
Time setting
Refer to Clock on page 6-98.
Time resetting
Refer to Clock on page 6-98.
With navigation system
Time zone switching
1. Press the INFO switch until the
SETTINGS screen is displayed.
2. Select PREFERENCES by pressing the Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
3. Select TIME ZONE by pressing the Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
4. Select the desired time zone by pressing the Enter (up/down) switch up
or down, and then press the Enter (up/
down) switch. NOTE
lDaylight saving time is not reflected in the
time zone displayed.
lThe clock does not display if there is no
GPS signal reception.
lIf the battery cables are disconnected and
then reconnected, the clock does not
operate until a GPS signal is received. Do
not place objects on the dashboard,
otherwise the clock may be unable to
receive the GPS signal normally.
q
Outside Temperature Display
When the ignition is switched ON, the
ambient temperature is displayed.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lWhen the ignition is switched to ACC,
“--- ”is displayed.
Interior Comfort
Interior Equipment
6-101
Mazda3_8BY6-EA-11F_Edition3 Page343
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (346,1)
qMaintenance Monitor
The maintenance monitor notifies the
driver when the periodic inspection and
tire rotation periods are due. The
maintenance monitor displays the
information when the ignition is switched
to ACC or ON.
NOTE
lThis function is inoperable while the
vehicle is being driven.
l(With navigation system)
If the battery cables are disconnected and
then reconnected, the SERVICE DUE item
in the MAINTENANCE setting cannot be
done until the clock resets after receiving a
GPS signal. Perform this setting after the
clock resumes operation.
Initial setting method
1. Press the INFO switch until the
SETTINGS screen is displayed.
2. Select MAINTENANCE by pressing the Enter (up/down) switch up or
down, and then press the Enter (up/
down) switch.
3. Select the item you want to turn on (TIRE ROTATION or SERVICE DUE)
by pressing the Enter (up/down) switch
up or down, and then press the Enter
(up/down) switch.
4. Press the Enter (up/down) switch.
5. Select SET and press the Enter (up/down) switch.
NOTElFor the service due notification, either the
number of days or distance can be set.
When selecting one of the two settings, the
setting not selected is set to the initial value
automatically.
lBecause tire rotation can only be set
according to distance, the screen for setting
distance is displayed when SET is selected.
6. Select DISTANCE or DAYS and pressthe Enter (up/down) switch. The screen
for setting the distance or days to the
next maintenance period is displayed.
6-104
Interior Comfort
Interior Equipment
Mazda3_8BY6-EA-11F_Edition3 Page346
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F

Black plate (478,1)

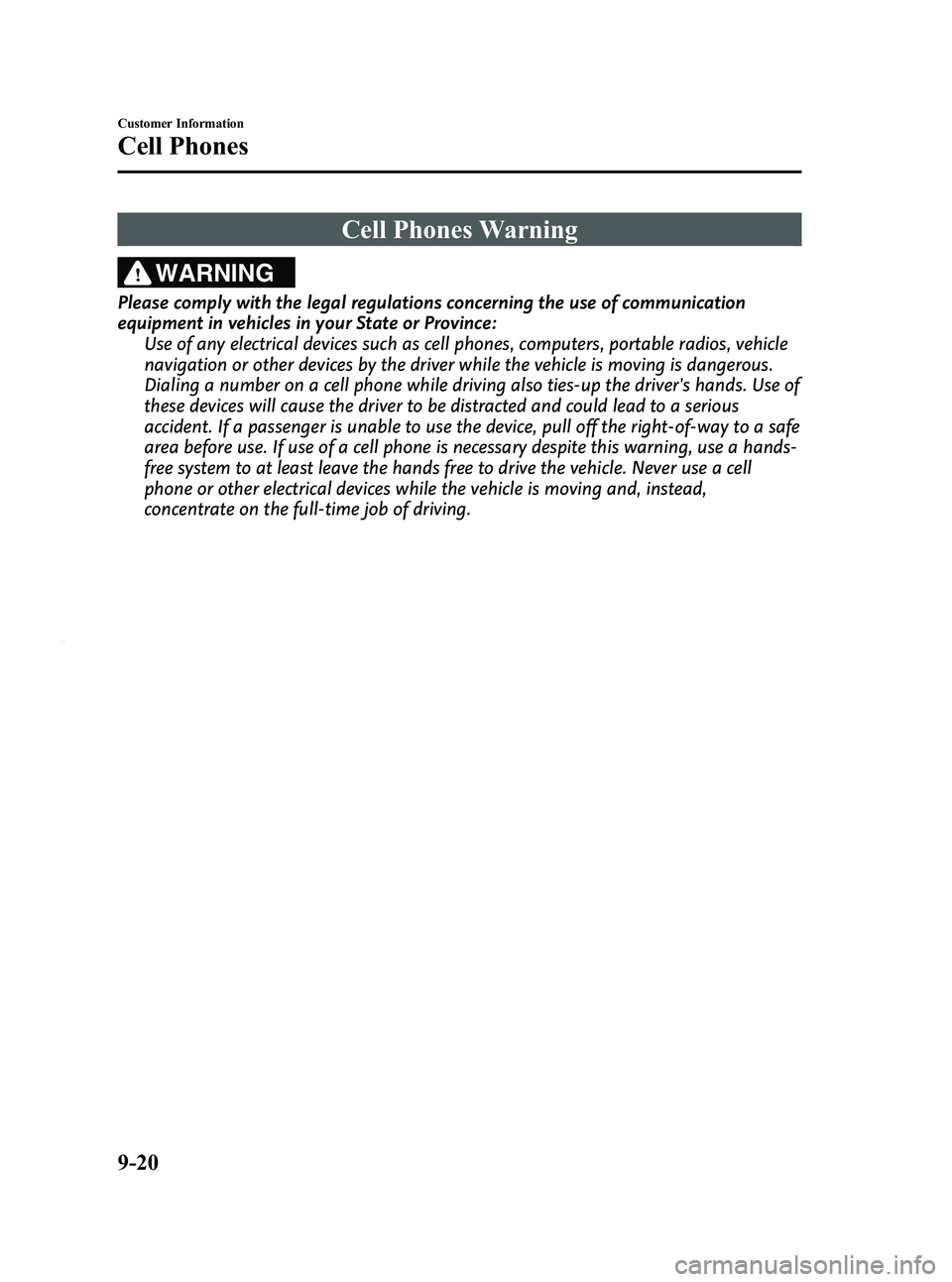

Cell Phones Warning
WARNING
Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your State or Province:Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous.
Dialing a number on a cell phone while driving also ties-up the driver's hands. Use of
these devices will cause the driver to be distracted and could lead to a serious
accident. If a passenger is unable to use the device, pull off the right-of-way to a safe
area before use. If use of a cell phone is necessary despite this warning, use a hands-
free system to at least leave the hands free to drive the vehicle. Never use a cell
phone or other electrical devices while the vehicle is moving and, instead,
concentrate on the full-time job of driving.
9-20
Customer Information
Cell Phones
Mazda3_8BY6-EA-11F_Edition3 Page478
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (503,1)

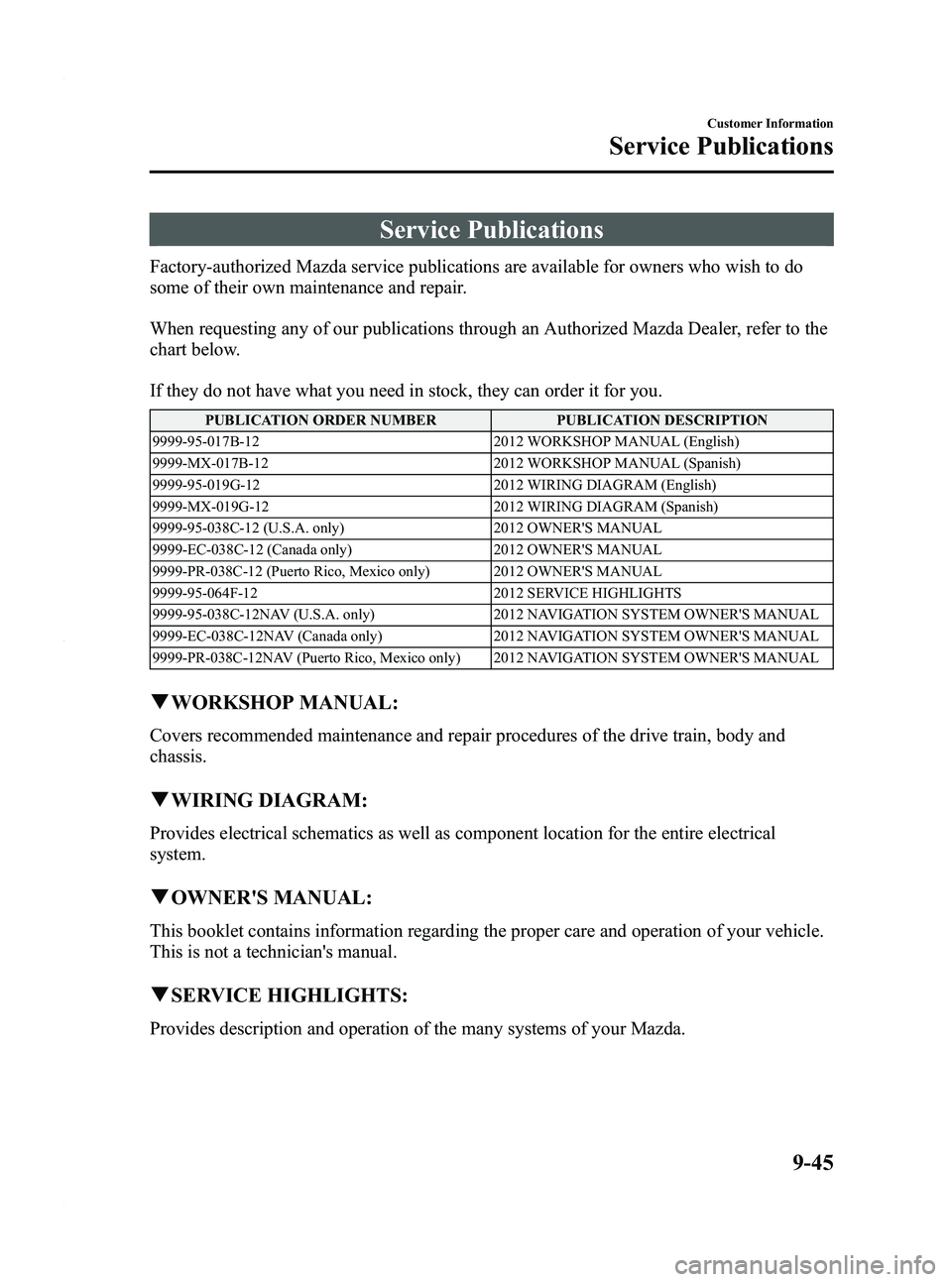

Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-017B-12 2012 WORKSHOP MANUAL (English)
9999-MX-017B-12 2012 WORKSHOP MANUAL (Spanish)
9999-95-019G-12 2012 WIRING DIAGRAM (English)
9999-MX-019G-12 2012 WIRING DIAGRAM (Spanish)
9999-95-038C-12 (U.S.A. only) 2012 OWNER'S MANUAL
9999-EC-038C-12 (Canada only) 2012 OWNER'S MANUAL
9999-PR-038C-12 (Puerto Rico, Mexico only) 2012 OWNER'S MANUAL
9999-95-064F-12 2012 SERVICE HIGHLIGHTS
9999-95-038C-12NAV (U.S.A. only) 2012 NAVIGATION SYSTEM OWNER'S MANUAL
9999-EC-038C-12NAV (Canada only) 2012 NAVIGATION SYSTEM OWNER'S MANUAL
9999-PR-038C-12NAV (Puerto Rico, Mexico only) 2012 NAVIGATION SYSTEM OWNER'S MANUAL
q WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
Customer Information
Service Publications
9-45
Mazda3_8BY6-EA-11F_Edition3 Page503
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (504,1)

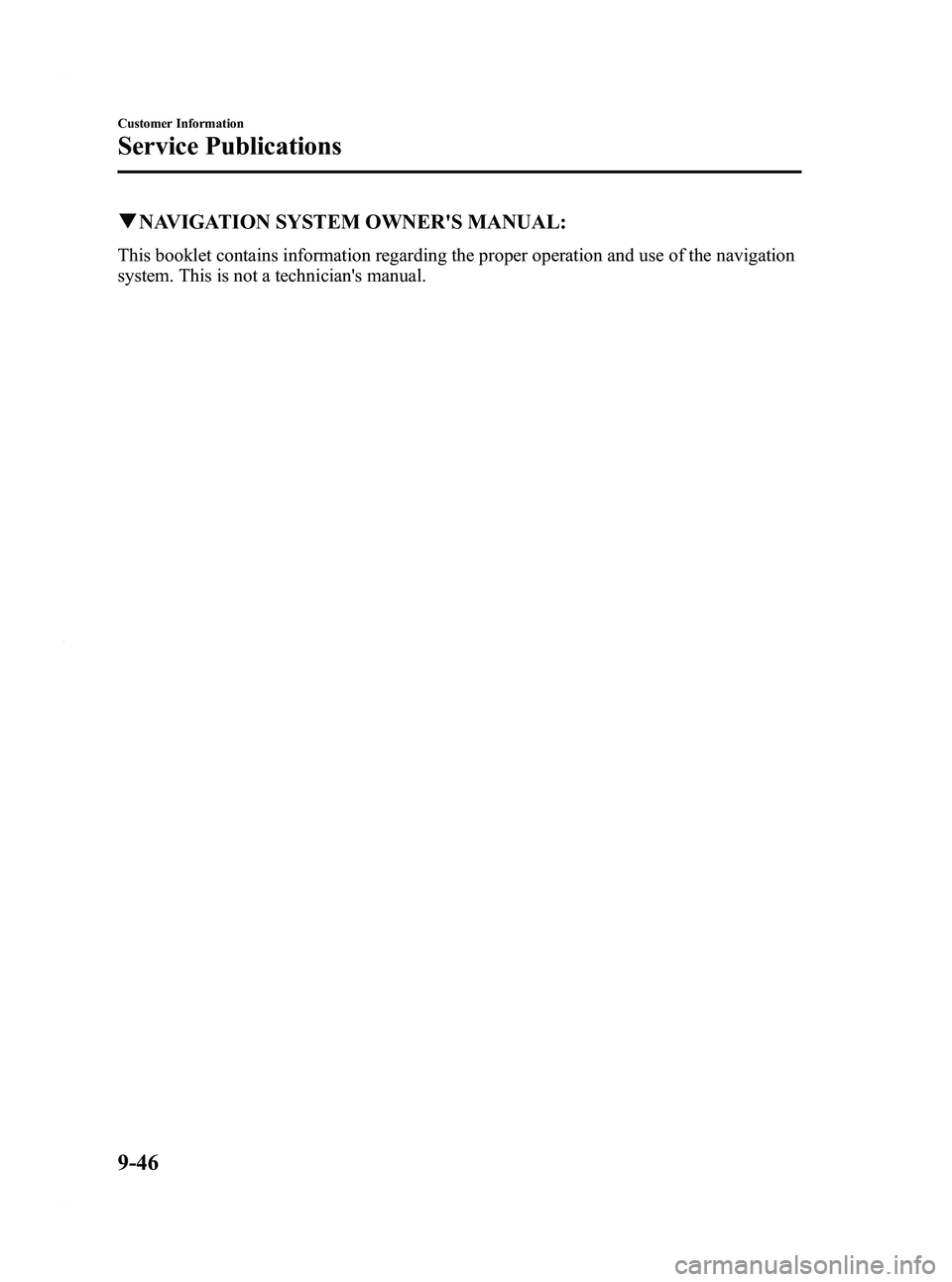

qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
9-46
Customer Information
Service Publications
Mazda3_8BY6-EA-11F_Edition3 Page504
Thursday, March 1 2012 10:19 AM
