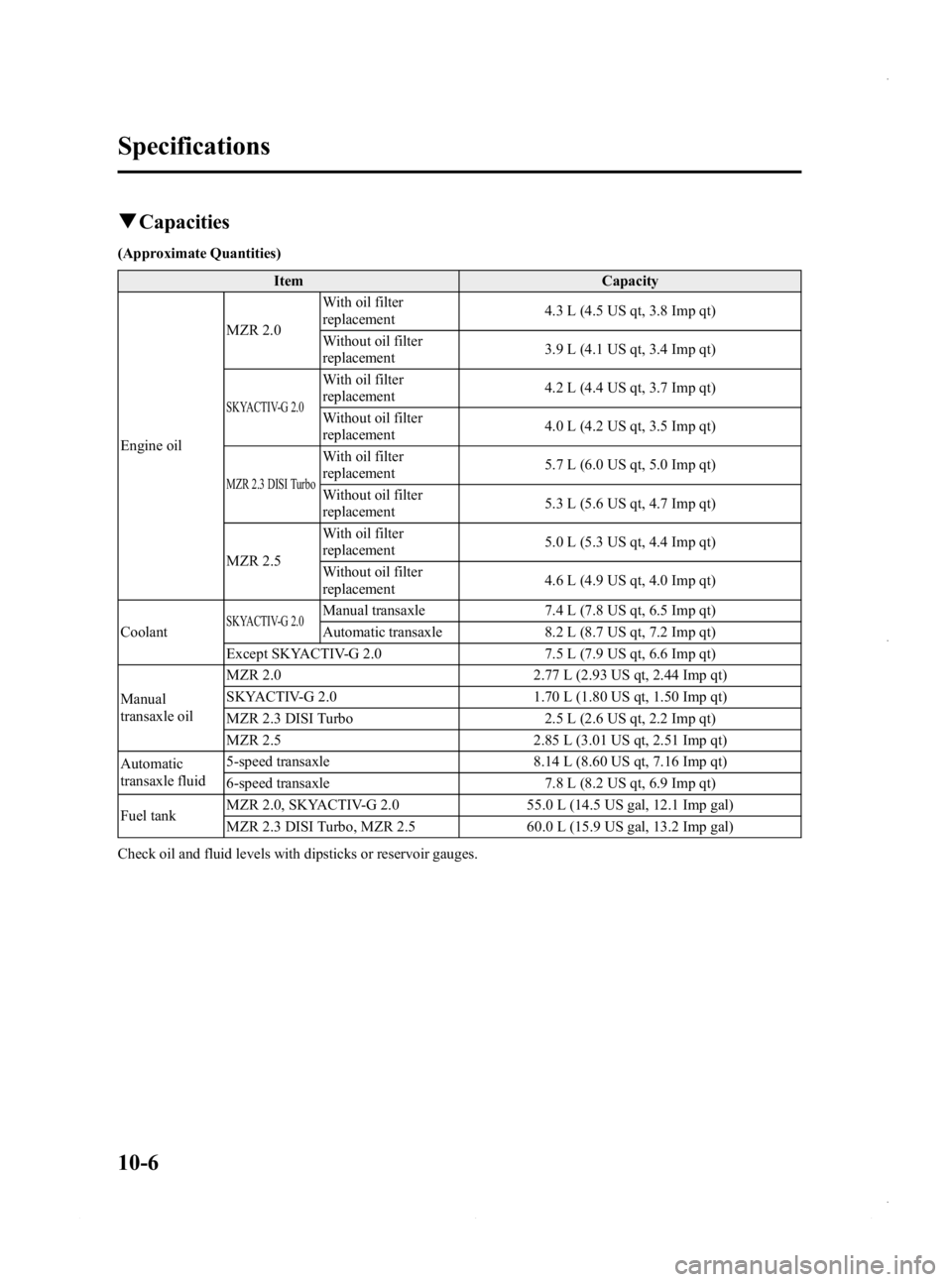

qCapacities
(Approximate Quantities)
Item Capacity
Engine oil MZR 2.0
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
SKYACTIV-G 2.0
With oil filter
replacement4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter
replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
MZR 2.3 DISI Turbo
With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
MZR 2.5 With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant
SKYACTIV-G 2.0Manual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic transaxle 8.2 L (8.7 US qt, 7.2 Imp qt)
Except SKYACTIV-G 2.0 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual
transaxle oil MZR 2.0
2.77 L (2.93 US qt, 2.44 Imp qt)
SKYACTIV-G 2.0 1.70 L (1.80 US qt, 1.50 Imp qt)
MZR 2.3 DISI Turbo 2.5 L (2.6 US qt, 2.2 Imp qt)
MZR 2.5 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic
transaxle fluid 5-speed transaxle
8.14 L (8.60 US qt, 7.16 Imp qt)
6-speed transaxle 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank MZR 2.0, SKYACTIV-G 2.0
55.0 L (14.5 US gal, 12.1 Imp gal)
MZR 2.3 DISI Turbo, MZR 2.5 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
10-6
Specifications
Mazda3_8CV6-EA-12H_Edition3 Page590
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

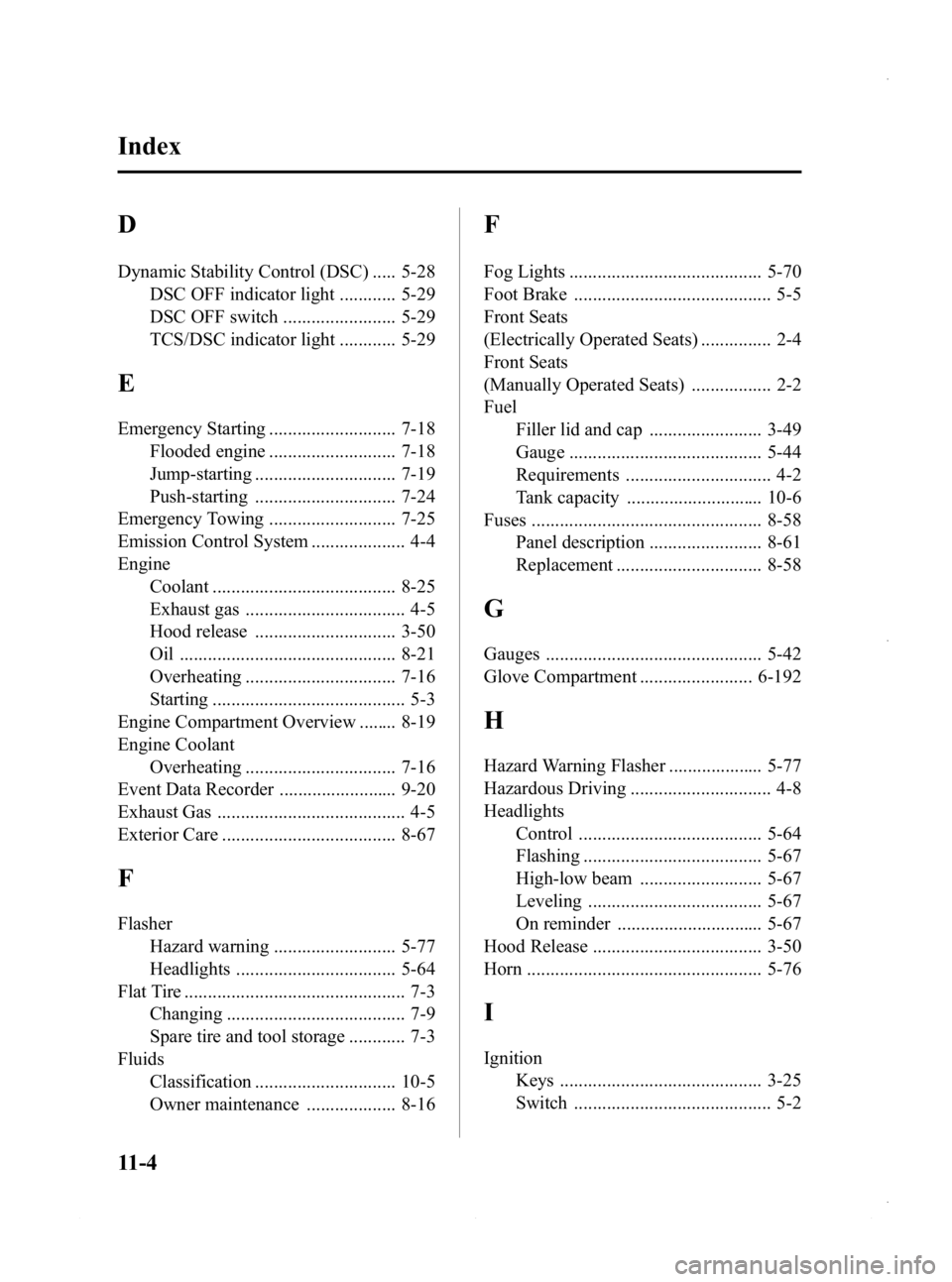

Black plate (606,1)
D
Dynamic Stability Control (DSC) ..... 5-28DSC OFF indicator light ............ 5-29
DSC OFF switch ........................ 5-29
TCS/DSC indicator light ............ 5-29
E
Emergency Starting ........................... 7-18Flooded engine ........................... 7-18
Jump-starting .............................. 7-19
Push-starting .............................. 7-24
Emergency Towing ........................... 7-25
Emission Control System .................... 4-4
Engine Coolant ....................................... 8-25
Exhaust gas .................................. 4-5
Hood release .............................. 3-50
Oil .............................................. 8-21
Overheating ................................ 7-16
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-19
Engine Coolant Overheating ................................ 7-16
Event Data Recorder ......................... 9-20
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-67
F
Flasher Hazard warning .......................... 5-77
Headlights .................................. 5-64
Flat Tire ............................................... 7-3 Changing ...................................... 7-9
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-5
Owner maintenance ................... 8-16
F
Fog Lights ......................................... 5-70
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
FuelFiller lid and cap ........................ 3-49
Gauge ......................................... 5-44
Requirements ............................... 4-2
Tank capacity ............................. 10-6
Fuses ................................................. 8-58 Panel description ........................ 8-61
Replacement ............................... 8-58
G
Gauges .............................................. 5-42
Glove Compartment ........................ 6-192
H
Hazard Warning Flasher .................... 5-77
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-64
Flashing ...................................... 5-67
High-low beam .......................... 5-67
Leveling ..................................... 5-67
On reminder ............................... 5-67
Hood Release .................................... 3-50
Horn .................................................. 5-76
I
Ignition Keys ........................................... 3-25
Switch .......................................... 5-2
11-4
Index
