Page 261 of 524
*Some models.5–55
Interior Features
Audio System
Applications
NOTE
Depending on the grade and specifi cation,
the screen display may differ.
Select the
icon on the home screen to
display the Applications screen. The
following information can be verifi ed.
Top screen Item Function
Fuel
Economy
Monitor Fuel Consumption
Settings Refer to Fuel
Economy Monitor
on page 4-54 .
Maintenance
Scheduled
Maintenance
Tire Rotation
Oil Change Refer to
Maintenance
Monitor (Type B
audio) on page
6-20 .
HD Traffi c
* — —
Warning
Guidance Warnings
currently active
can be verifi
ed. Refer to If a
Warning Light
Turns On or
Flashes on page
7-24 .
Audio Control Switch
Operation
*
Without Bluetooth ® Hands-Free
With Bluetooth ® Hands-Free
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 262 of 524
*Some models.5–56
Interior Features
Audio System
Adjusting the Volume
To increase the volume, press up the
volume switch (
).
To decrease the volume, press down the
volume switch (
).
Seek Switch
AM/FM radio
Press the seek switch (
,). The radio
switches to the next/previous stored station
in the order that it was stored.
Press and hold the seek switch (
,) to
seek all usable stations at a higher or lower
frequency whether programmed or not.
Radio stations which have been previously
stored in the auto memory tuning (Type
A)/favorite radio (Type B) can be called
up by pressing the seek switch (
,)
while any radio station stored in the auto
memory tuning (Type A)/favorite radio
(Type B) is being received. Radio stations
can be called up in the order they were
stored with each press of the switch
(
,).
USB Audio/Bluetooth ® Audio/CD
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press the seek switch (
) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch (
) after a few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch (
,) to
continuously switch the tracks up or down.
Pandora
®* /Stitcher™ Radio (Type B)
Press the seek switch (
) to skip forward
to the beginning of the next track.
(Pandora
® only)
Long-press the seek switch (
,) to
evaluate the playback of the current song
as “Like or Dislike”.
Mute Switch *
Press the mute switch () once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition is switched off with the
audio muted, the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the audio
again, press the mute switch (
).
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 263 of 524
5–57
Interior Features
Audio System
AUX/USB/iPod mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug cable is required.
Contact an Authorized Mazda Dealer for
details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device or an iPod to the USB port.
NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine) with
stored map data is inserted into the SD
card slot and used.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 264 of 524
5–58
Interior Features
Audio System
Type A (Without CD player)
A uxi liar y jack/USB por t
Type A (With CD player)
A uxi liar y jack/USB por t
Type B
A uxi liar y jack
USB por t
How to use AUX mode (Type A) ........................................................................\
.. page 5-60
How to use USB mode (Type A) ........................................................................\
.. page 5-62
How to use iPod mode (Type A) ........................................................................\
... page 5-66
How to use AUX mode (Type B) ........................................................................\
.. page 5-69
How to use USB mode (Type B) ........................................................................\
.. page 5-69
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 265 of 524
5–59
Interior Features
Audio System
WARNING
Do not adjust the portable audio unit
or a similar product while driving the
vehicle: Adjusting the portable audio unit
or a similar product while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident. Always adjust the portable
audio unit or a similar product while
the vehicle is stopped.
CAUTION
Page 266 of 524
5–60
Interior Features
Audio System
Type B
USB por t A uxi liar y jack

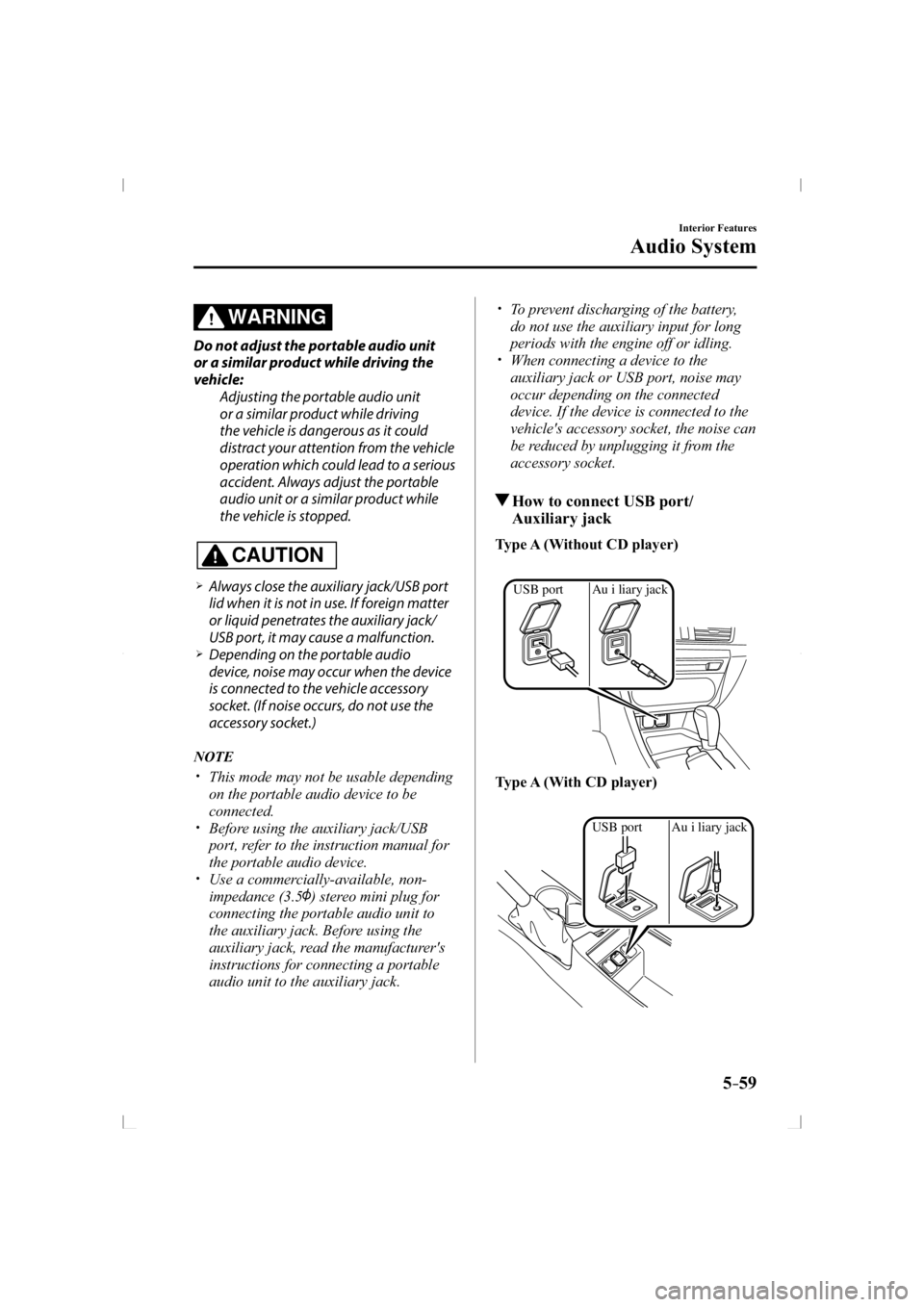

Connecting a device
1. Open the console lid (with CD player).
2. If there is a cover on the AUX jack or USB port, remove the cover.
3. Connect the connector on the device to the USB port.
Connecting with a connector cable
1. Open the console lid (with CD player).
2. If there is a cover on the AUX jack or USB port, remove the cover.
3. Connect the device plug/connector cable to the auxiliary jack/USB port.
For vehicles with a CD player, pass the device plug/connector cable through
the notch in the console and connect.
WARNING
Do not allow the connection plug cord
to get tangled with the parking brake or
the shift lever: Allowing the plug cord to become
tangled with the parking brake or
the shift lever is dangerous as it could
interfere with driving, resulting in an
accident.
CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.
NOTE
y Insert the plug into the auxiliary jack/
USB port securely.
y Insert or pull out the plug with the plug
perpendicular to the auxiliary jack/USB
port hole.
y Insert or remove the plug by holding its
base.
How to use AUX mode (Type A)
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the audio system on.
3. Press the media button (
) of the
audio unit to change to the AUX mode.
NOTE
y When the device is not connected to the
auxiliary jack, the mode does not switch
to the AUX mode.
y Set the volume of the portable audio
unit to the maximum within the range
that the sound does not become
distorted, then adjust the volume using
the power/volume dial of the audio
unit or the up/down switch of the audio
control switch.
y Audio adjustments other than audio
volume can only be done using the
portable audio device.
y If the connection plug is pulled out from
the auxiliary jack while in AUX mode,
noise may occur.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 267 of 524
5–61
MEMO
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 268 of 524
5–62
Interior Features
Audio System
How to use USB mode (Type A)
Media/Scan buttonFolder down button Folder up button
P lay/P ause button
Random button
Repeat button A udio display
Text button
Tra ck down/Reve r se button
Tra ck up/Fast-for war d button
Type Playable data
USB mode MP3/WMA/AAC fi le
This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the USB mode and start
playback.
NOTE
y Some devices such as smart phones may
require a setting change to allow USB
operation.
y When the USB device is not connected,
the mode does not switch to USB mode.
y When there is no playable data in the
USB device, “ NO CONTENTS ”is
fl ashed.
y Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC fi les are
skipped.
y Do not remove the USB device while
in the USB mode. The data may be
damaged.
Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
Press the track down button (
) after a
few seconds have elapsed to start playback
from the beginning of the current track.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 269 of 524
5–63
Interior Features
Audio System
Folder search
To change to the previous folder, press the
folder down button (
), or press the folder
up button (
) to advance to the next
folder.
Music Scan
This function scans the titles in a folder
currently being played and plays ten
seconds of each song to aid you in fi nding
a song you want to listen to.
Press and hold the scan button (
)
during playback to start the scan play
operation (the track number will fl ash).
Press and hold the scan button (
)
again to cancel scan playback.
NOTE
If the unit is left in scan, normal playback
will resume where scan was selected.
Repeat playback
Track repeat
1. Press the repeat button ( 1 ) during playback to play the current track
repeatedly. “ TRACK RPT ” is
displayed.
2. To cancel the repeat playback, press the button again after 3 seconds.
Folder repeat
1. Press the repeat button ( 1 ) during playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed.
2. Press the button again to cancel the repeat playback.
Random playback
Tracks are randomly selected and played.
Folder random
1. Press the random button ( 2 ) during playback to play the tracks in the
folder randomly. “ FOLDER RDM ” is
displayed.
2. To cancel the random playback, press the button again after 3 seconds.
All random
1. Press the random button ( 2 ) during playback, and then press the button
again within 3 seconds to play the
tracks in the USB device randomly.
“ ALL RDM ” is displayed.
2. Press the button again to cancel the random playback.
Switching the display
For fi les with a fi le name and other
information that have been input, the
display switches between display of the
fi le name and other information each
time the text button ( 3 ) is pressed during
playback.
Folder nam e File nam e
A lbum nam e Song nam e
A r tist nam e
Folder num ber /File num ber
File num ber /E lapsed tim e display
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 270 of 524
5–64
Interior Features
Audio System
NOTE
y The information (artist name, music
name) is displayed only when the USB
device information in the USB device
has information which can be displayed
on the screen.
y This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(
).
Display scroll
Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.
NOTE
The number of characters which can be
displayed is restricted.
Error Messages
When the message “ CHECK USB ” is
displayed, it indicates that there is some
error in the USB device. Verify that the
content recorded in the USB device has
MP3/WMA/AAC fi les and re-connect
correctly. If the message reappears, have
the unit checked by an Authorized Mazda
Dealer.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
