6–21
Maintenance and Care
Scheduled Maintenance
Tab Item Explanation
Tire Rotation Setting
Notifi cation can be switched on/off.
Distance (mile or km) Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
“Tire Rotation Due!” is displayed in red and the wrench
indicator light in the instrument cluster will be illuminated
when the remaining distance is less than 500 km or 250 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tires.
Oil Change Setting
Oil replacement period can be selected from the fl
exible setting
or fi xed setting, or it can be set to non-display.
The fl exible setting is available only in the United States and
Puerto Rico. Once engine oil fl exible maintenance is selected,
the vehicle calculates the remaining oil life based on the engine
operating conditions. The vehicle lets you know when an oil
change is due by illuminating the wrench indicator light in the
instrument cluster. Mazda Genuine 0W-20 oil and Castrol
® 0W-
20 oil are required to achieve optimum performance.
Distance (mile or km)
(Displays only in fi xed
setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
“Oil Change Due!” is displayed in red and the wrench indicator
light in the instrument cluster will be illuminated when the
remaining distance is less than 500 km or 250 mile.
Oil life (%)
(Displays only in fl exible
setting) Displays the engine oil life until the oil replacement is due.
“Oil Change Due!” is displayed in red and the wrench indicator
light in the instrument cluster will be illuminated when the
remaining oil life distance is less than 500 km (300 mile), or
remaining days are less than 15 (whichever comes fi
rst).
Reset In fl exible setting: Resets the remaining oil life to 100 %.
In fi
xed setting: Resets the remaining distance to the initial
value.
Once the Flexible Oil Maintenance Setting is selected, the
system must be reset whenever replacing the engine oil.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 422 of 592
6–22
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
The owner or a qualifi ed service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualifi ed service
technician as soon as possible.
When Refueling
y Brake and clutch fl uid level (page 6-31 ) y Engine coolant level (page 6-29 ) y Engine oil level (page 6-28 ) y Washer fl uid level (page 6-31 )
At Least Monthly
y Tire infl ation pressures (page 6-42 )
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mec\
hanical ability
and a few basic tools and if you closely follow the directions in this m\
anual.
y Engine coolant (page 6-29 ) y Engine oil (page 6-27 )
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2 ), several procedures can be done only by a
qualifi ed service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2 ) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by\
an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil \
and fl uids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fl uid changes of your vehicle to an Authorized
Mazda Dealer.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 423 of 592
6–23
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suffi cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
qualifi ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly: Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Switch the ignition to off and make sure the fan is not running before attempting
to work near the cooling fan: Working near the cooling fan when it is running is dangerous. The fan could continue
running indefi nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment: After you have fi nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fi re
leading to an unexpected accident.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 424 of 592
6–24
Maintenance and Care
Owner Maintenance
Hood
WARNING
Always check that the hood is closed
and securely locked: A hood that is not closed and securely
locked is dangerous as it could fl y open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
Opening the Hood
1. With the vehicle parked, pull the release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening, slide the latch lever to the right, and lift
up the hood.
Lever
NOTE
The lever is located a little to the left of
center when facing the vehicle.
3. Grasp the support rod in the padded area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Pad
Clip
Clip
Support rod
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 425 of 592
6–25
Maintenance and Care
Owner Maintenance
Closing the Hood
1. Check under the hood area to make certain all fi ller caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed.
2. Lift the hood, grasp the padded area on the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
ClipClip
Clip
3. Lower the hood slowly to a height of about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 426 of 592
6–26
Maintenance and Care
Owner Maintenance

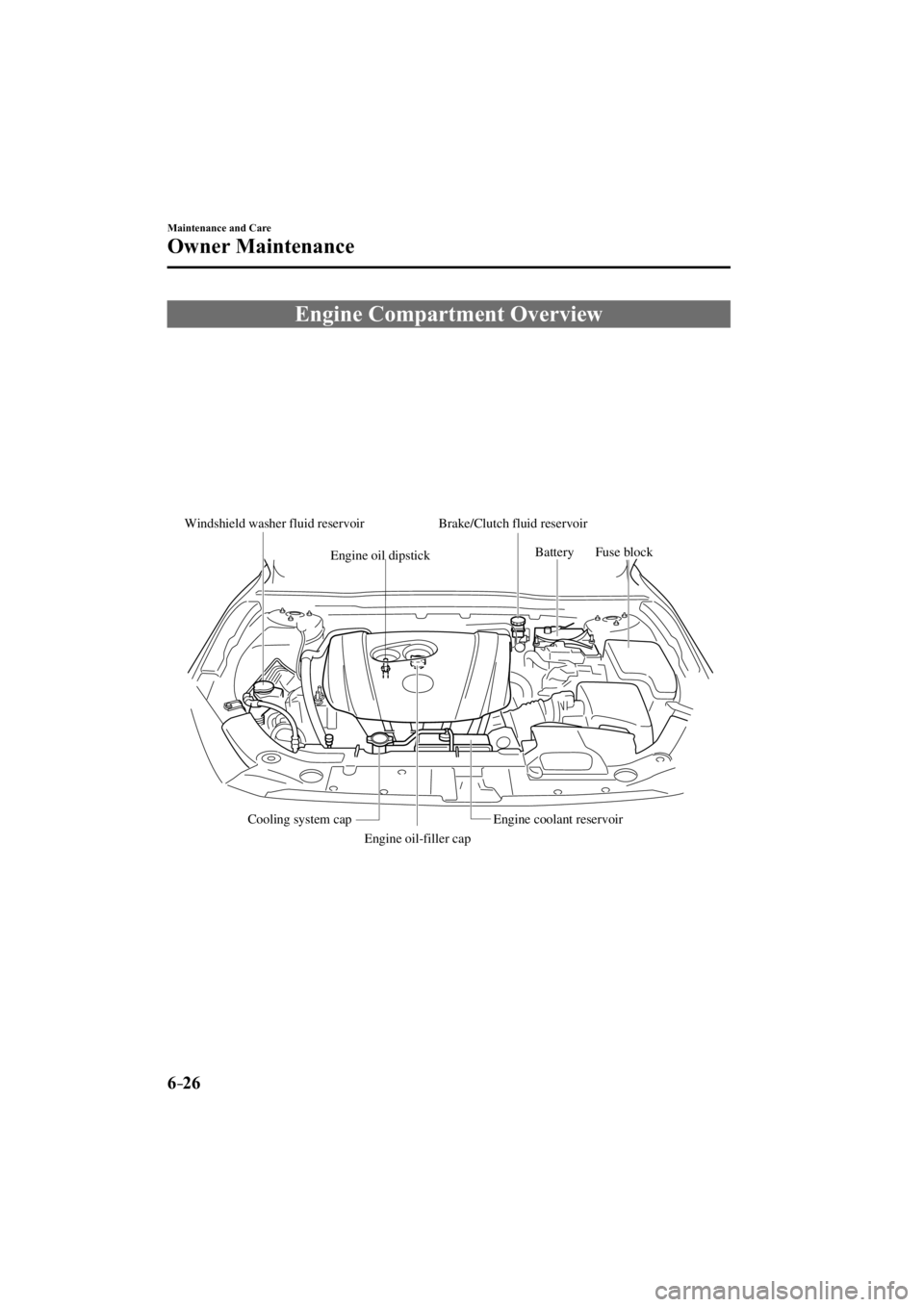

Engine Compartment Overview
Windshield washer fluid reservoirBrake/Clutch fluid reservoir
Engine oil dipstick Battery
Fuse block
Cooling system cap Engine coolant reservoir Engine oil-filler cap
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 427 of 592
6–27
Maintenance and Care
Owner Maintenance
Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2 ) for
owner's responsibility in protecting your
investment.
Recommended Oil
U.S.A., Canada, and Puerto Rico
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine 0W-20
Oil is required to achieve optimum fuel
economy.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (U.S.A. only).
(ILSAC)
Only use SAE 0W-20 oil “Certifi ed For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricant
Standardization and Approval Committee
(ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 428 of 592
6–28
Maintenance and Care
Owner Maintenance
Except U.S.A., Canada, and Puerto Rico
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (Mexico only).
(ILSAC)
(Mexico)
Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 5W-20
engine oil.
The quality designation SM, or ILSAC
must be on the label.
80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40

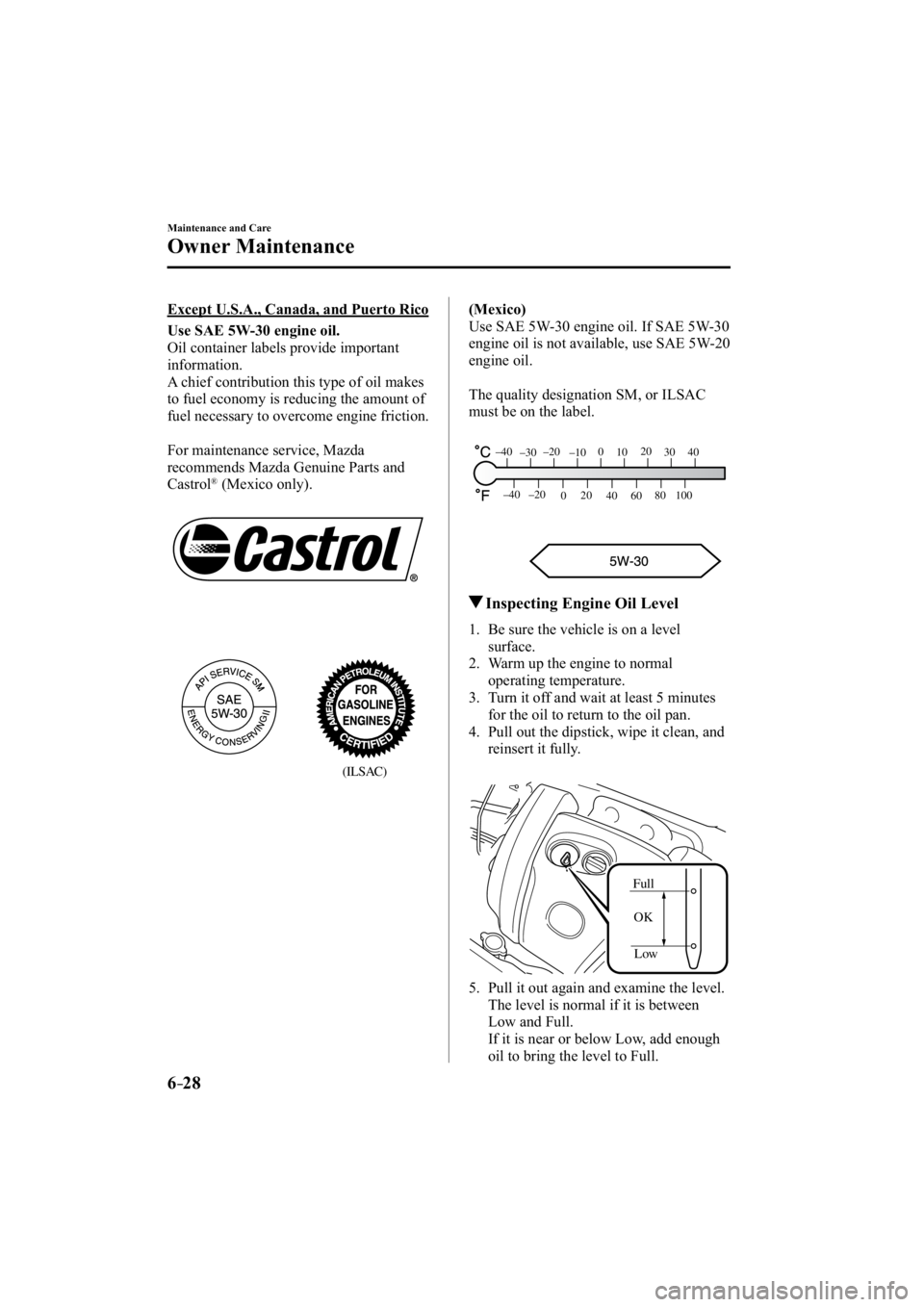

Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and reinsert it fully.
Full
OK
Low
5. Pull it out again and examine the level.
The level is normal if it is between Low and Full.
If it is near or below Low, add enough oil to bring the level to Full.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 429 of 592
6–29
Maintenance and Care
Owner Maintenance
CAUTION
Do not add engine oil over Full. This
may cause engine damage.

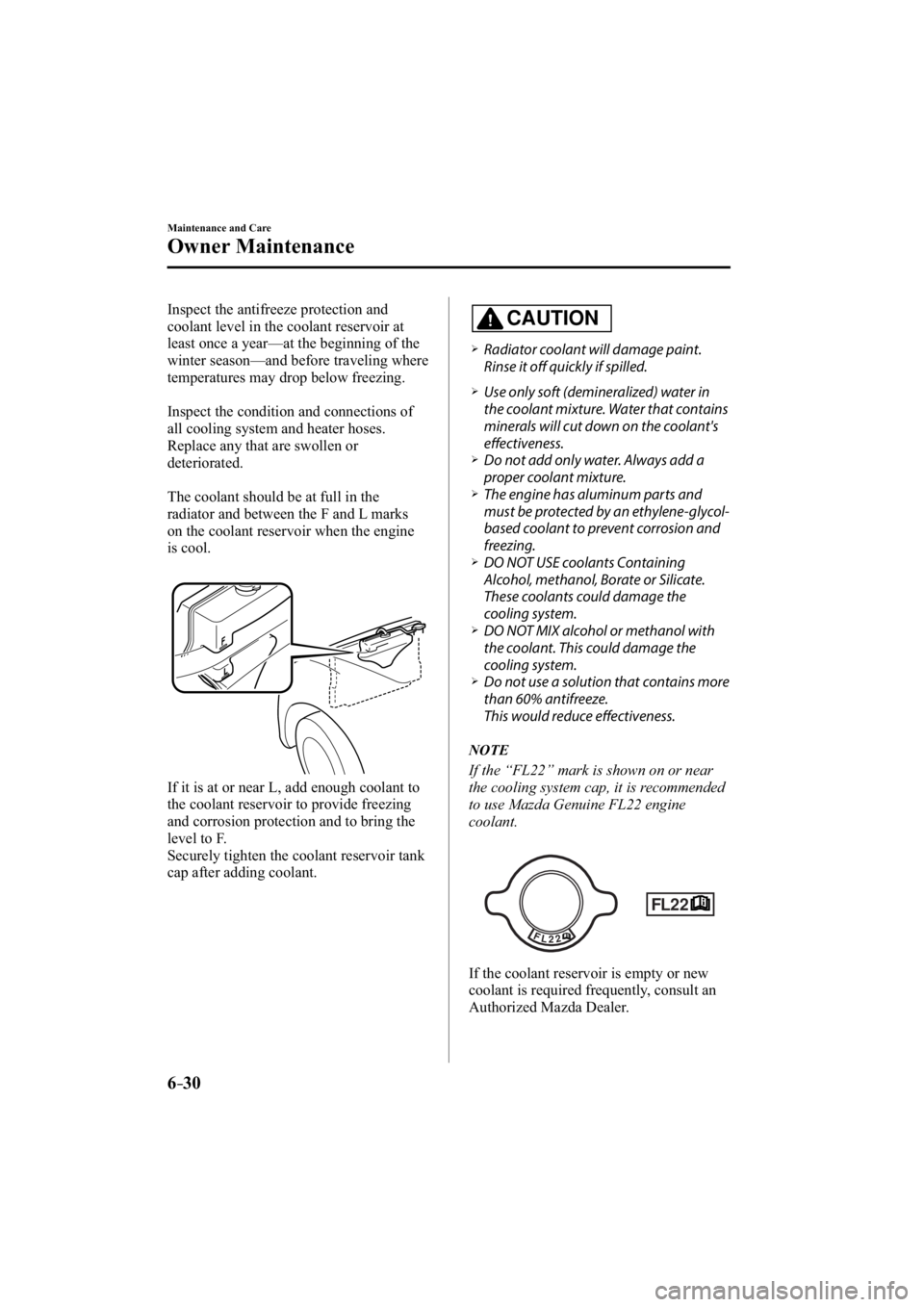

6. Make sure the O-ring on the dipstick is positioned properly before reinserting
the dipstick.
7. Reinsert the dipstick fully.
Engine Coolant
Inspecting Coolant Level
WARNING
Do not use a match or live fl ame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT: A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Switch the ignition to off and make
sure the fan is not running before
attempting to work near the cooling
fan: Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and
radiator are hot: When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 430 of 592
6–30
Maintenance and Care
Owner Maintenance
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year—at the beginning of the
winter season—and before traveling where
temperatures may drop below freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
CAUTION
