ESP MAZDA MODEL 3 5-DOOR 2017 Owners Manual

2–23
Essential Safety Equipment
Child-Restraint
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down: An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could
move causing serious injury or death to the child or other occupants. Make sure any
child-restraint system is properly secured in place according to the child-restraint system
manufacturer's instructions. When not in use, remove it from the vehicle or fasten it
with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH child-restraint
systems and the corresponding tether anchor.
Always secure a child in a proper child-restraint system: Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces that
could result in serious injury or death to the child, or the child may be slammed into an
adult, causing injury to both child and adult.
Mazda3_8FL6-EA-16F_Edition2.indb 232016/08/10 17:34:58

2–53
Essential Safety Equipment
SRS Air Bags
(With Front Passenger Occupant Classification System)
In a roll-over:
In response to a vehicle roll-over, both curtain air bags inflate.
Both curtain air bags will deploy after the roll-over accident is detected.
(With Front Passenger Occupant Classification System)
In an angled collision:
During a collision, the driver and front passenger's air bags will deplo\
y. Depending on the
nature of the impact, the side air bag and the curtain air bag may deplo\
y.
Warning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-23.
Refer to Warning Sound is Activated on page
7-39.
Mazda3_8FL6-EA-16F_Edition2.indb 532016/08/10 17:35:10

3–4
Before Driving
Keys
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
NOTE
 The keyless entry system operation may
vary due to local conditions. The keyless entry system is fully
operational (door/liftgate/trunk lid lock/
unlock) when the ignition is switched
off. The system does not operate if the
ignition is switched to any position
other than off.
 If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-38). Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster. Replacing the battery
about once a year is recommended
because the KEY warning light/
indicator light may not illuminate or
flash depending on the rate of battery
depletion.
 Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer when
additional keys are required.
Mazda3_8FL6-EA-16F_Edition2.indb 42016/08/10 17:35:16

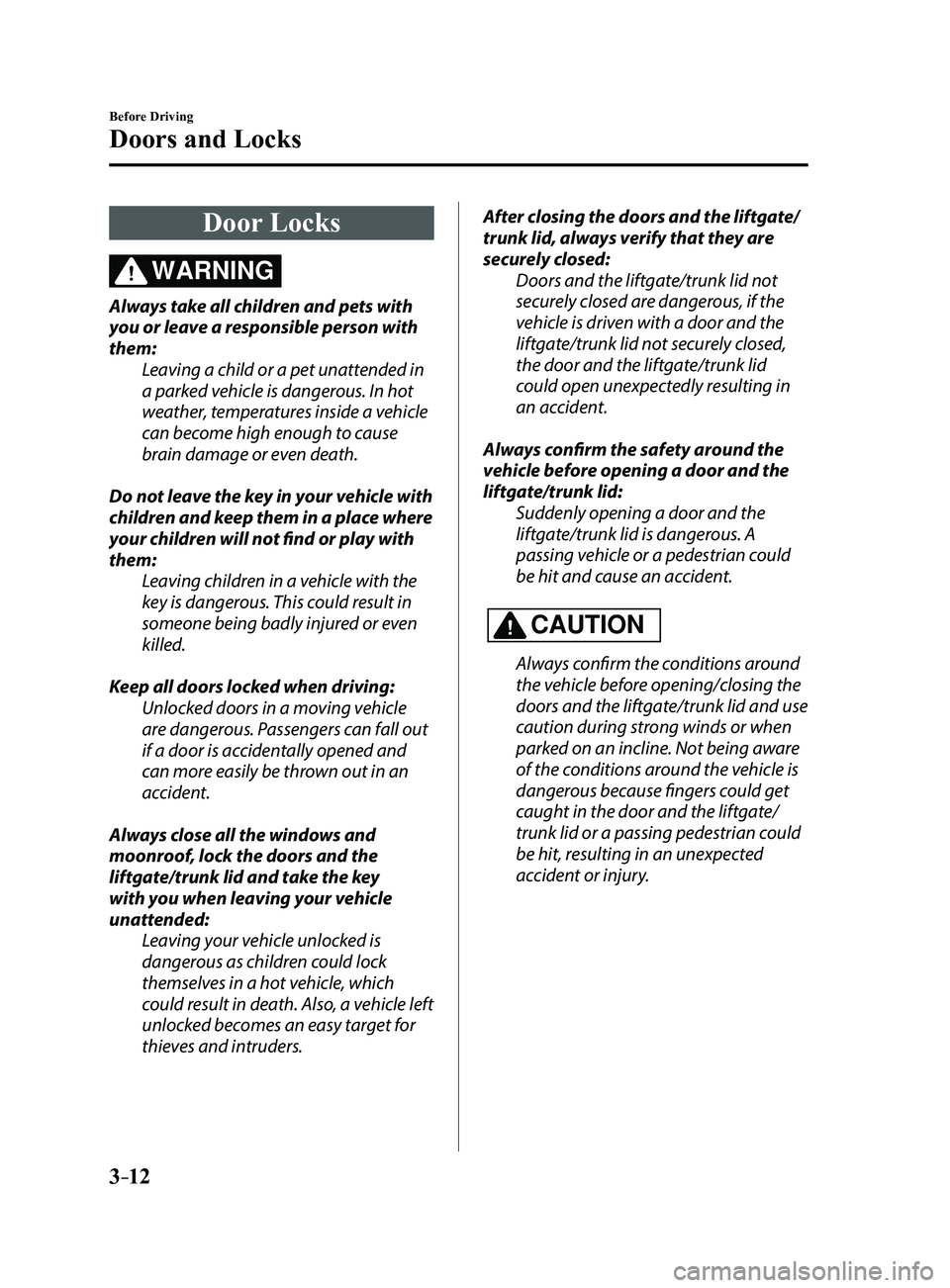

3–12
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows and
moonroof, lock the doors and the
liftgate/trunk lid and take the key
with you when leaving your vehicle
unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle left
unlocked becomes an easy target for
thieves and intruders. After closing the doors and the liftgate/
trunk lid, always verify that they are
securely closed:
Doors and the liftgate/trunk lid not
securely closed are dangerous, if the
vehicle is driven with a door and the
liftgate/trunk lid not securely closed,
the door and the liftgate/trunk lid
could open unexpectedly resulting in
an accident.
Always confirm the safety around the
vehicle before opening a door and the
liftgate/trunk lid: Suddenly opening a door and the
liftgate/trunk lid is dangerous. A
passing vehicle or a pedestrian could
be hit and cause an accident.
CAUTION
Always confirm the conditions around
the vehicle before opening/closing the
doors and the liftgate/trunk lid and use
caution during strong winds or when
parked on an incline. Not being aware
of the conditions around the vehicle is
dangerous because fingers could get
caught in the door and the liftgate/
trunk lid or a passing pedestrian could
be hit, resulting in an unexpected
accident or injury.
Mazda3_8FL6-EA-16F_Edition2.indb 122016/08/10 17:35:19

3–23
Before Driving
Doors and Locks
NOTE
(With the advanced keyless function)
 A locked liftgate can also be opened
while the key is being carried. When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric liftgate
opener is pressed.
 The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate/trunk lid completely closed,
then press the electric liftgate opener to
fully open the liftgate.
 When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the liftgate
is not operated for a certain period of
time, the liftgate cannot be raised.
To open
Press the electric liftgate/trunk lid
opener again.
To close
To close the liftgate/trunk lid from its
slightly raised position, open it first by
pressing the electric liftgate/trunk lid
opener, then close it after waiting at
least 1 second.
 If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
 If the vehicle battery is dead or ther e is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing
the emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-44.
Opening the trunk lid (4–door)
Using the remote release button
Push the release button.
Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while the
key is being carried.
Press the electric trunk lid opener on the
trunk lid, then raise the trunk lid when the
latch releases.
Electric trunk lid
opener
Mazda3_8FL6-EA-16F_Edition2.indb 232016/08/10 17:35:25

3–24
Before Driving
Doors and Locks
NOTE
 When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to release
after the electric trunk lid opener is
pressed.
 The trunk lid can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the trunk lid can be
opened by pressing the electric trunk lid
opener. If the trunk lid cannot be opened
despite doing this procedure, press the
electric trunk lid opener to fully open
the trunk lid after pushing the trunk lid
completely closed.
 If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be opened by
performing the emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-44.
Closing the liftgate/trunk lid
Lower the liftgate/trunk lid slowly using
the liftgate/trunk lid grip recess, then push
the liftgate/trunk lid closed using both
hands.
Do not slam it. Pull up on the liftgate/trunk
lid to make sure it is secure.
(5–door)
Liftgate grip
recess
(4–door)
Trunk lid grip recess
Mazda3_8FL6-EA-16F_Edition2.indb 242016/08/10 17:35:25

3–37
Before Driving
Windows
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with power
window switches: Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
NOTE
A power window may no longer open/close
if you continue to press the switch after
fully opening/closing the power window.
If the power window does not open/close,
wait a moment and then operate the switch
again.
Operating the Driver's Power
Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close
Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed),
the window will not fully open and close
automatically.
Mazda3_8FL6-EA-16F_Edition2.indb 372016/08/10 17:35:34

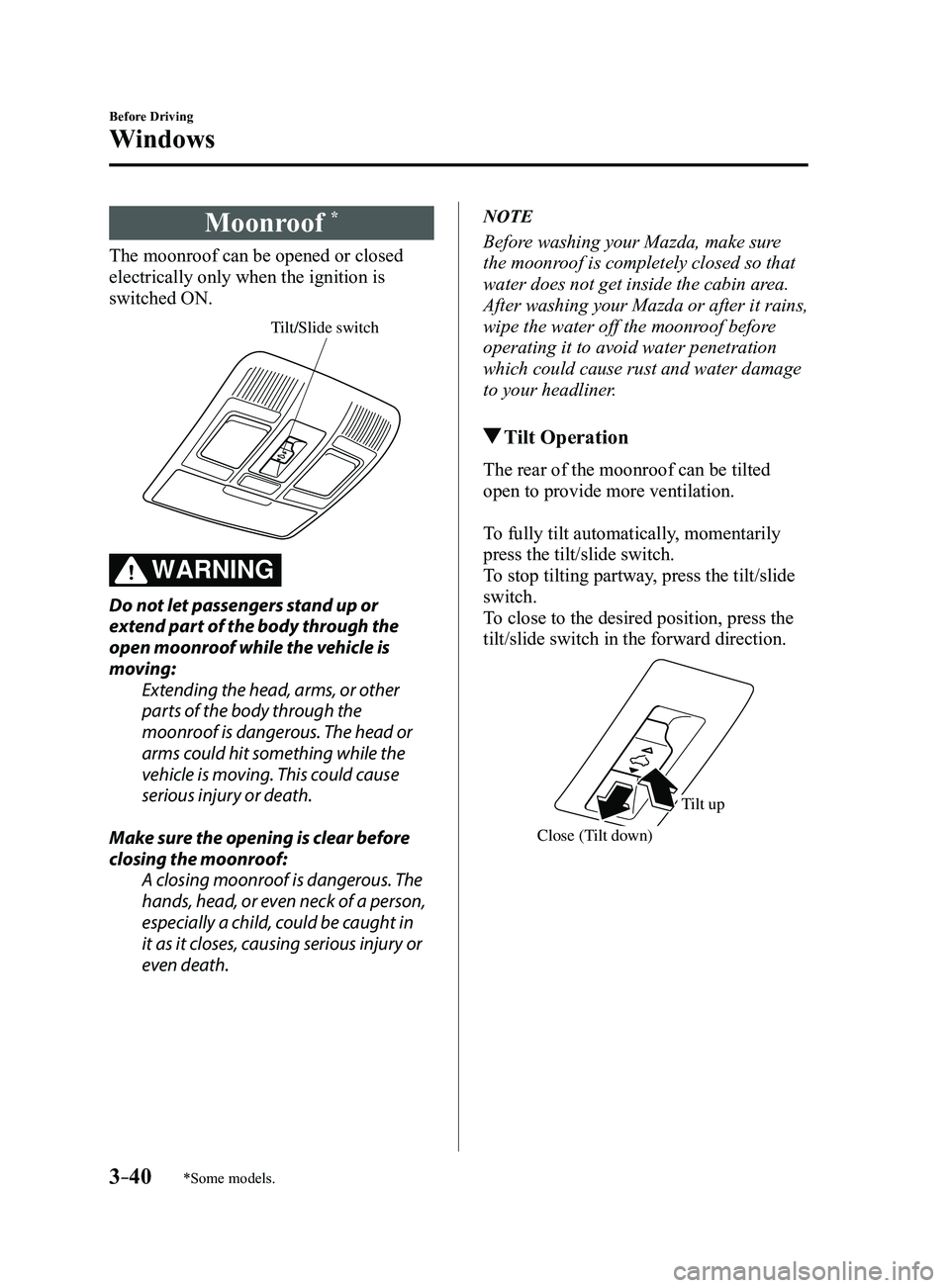

3–40
Before Driving
Windows
*Some models.
Moonroof *
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt/Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof: A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in
it as it closes, causing serious injury or
even death.
NOTE
Before washing your Mazda, make sure
the moonroof is completely closed so that
water does not get inside the cabin area.
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration
which could cause rust and water damage
to your headliner.
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt/slide switch.
To stop tilting partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
Close (Tilt down)
Tilt up
Mazda3_8FL6-EA-16F_Edition2.indb 402016/08/10 17:35:35

3–42
Before Driving
Security System
Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
 Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key. Get the key wet. Expose the key to any kind of
magnetic field. Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Mazda3_8FL6-EA-16F_Edition2.indb 422016/08/10 17:35:36

4–30
When Driving
Manual Transaxle Operation
*Some models.
NOTE
 (For vehicles with type C instrument
cluster*1)
If the engine speed is about to exceed
the permissible engine speed, the buzzer
sounds.
Refer to Over Rev. Buzzer on page
7-43.
*1 To determine which instrument
cluster is equipped on your Mazda,
Refer to Meters and Gauges on page
4-12.
 If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.
Gear Shift Indicator (GSI)*
The Gear Shift Indicator (GSI) supports
you to obtain optimum fuel economy and
smooth driving. It displays the selected
gear position in the instrument cluster as
well as notifies the driver to change to the
most suitable gear position corresponding
to the actual driving condition.
Selected gear positionSuitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving
situation might require shift operations
different from indication. To avoid the
risk of accidents, the road and traffic
conditions have to be judged correctly
by the driver before shifting.
NOTE
The Gear Shift Indicator (GSI) turns
off when the following operations are
performed.
 The vehicle is stopped. The vehicle is put in neutral. The vehicle is driven in r
everse. The clutch is not fully engaged when
accelerating from a stop. The clutch pedal remains depressed for
2 seconds or longer while driving.
Mazda3_8FL6-EA-16F_Edition2.indb 302016/08/10 17:36:07
