Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle
Interior Equipment (View C)
Seat belts ........................................................................\
.......................................page 2-14
SRS air bag........................................................................\
....................................page 2-41
Bottle holder ........................................................................\
................................page 5-116
Overhead lights ........................................................................\
...........................page 5-111
Moonroof switch ........................................................................\
...........................page 3-40
Sunvisor ........................................................................\
......................................page 5-110
Vanity mirror ........................................................................\
...............................page 5-110
Rearview mirror ........................................................................\
............................page 3-35
Cup holders ........................................................................\
.................................page 5-115
Front seat ........................................................................\
.........................................page 2-5
Center console ........................................................................\
.............................page 5-118
Accessory sockets ........................................................................\
.......................page 5-113
External input terminal........................................................................\
..................page 5-57
Rear seat ........................................................................\
..........................................page 2-8
Mazda3_8FL6-EA-16F_Edition2.indb 52016/08/10 17:34:49

1–6
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle
(4-Door)
Hood ........................................................................\
..............................................page 6-22
Windshield wiper blades ........................................................................\
...............page 6-32
Moonroof ........................................................................\
......................................page 3-40
Doors and keys ........................................................................\
..............................page 3-14
Fuel-filler lid ........................................................................\
.................................page 3-31
Wheels and Tires ........................................................................\
...........................page 6-41
Exterior lights ........................................................................\
................................page 6-45
Trunk lid ........................................................................\
........................................page 3-22
Child safety locks ........................................................................\
..........................page 3-21
Outside mirror ........................................................................\
...............................page 3-34
Mazda3_8FL6-EA-16F_Edition2.indb 62016/08/10 17:34:49

1–7
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle
(5-Door)
Hood ........................................................................\
..............................................page 6-22
Windshield wiper blades ........................................................................\
...............page 6-32
Moonroof ........................................................................\
......................................page 3-40
Doors and keys ........................................................................\
..............................page 3-14
Fuel-filler lid ........................................................................\
.................................page 3-31
Wheels and Tires ........................................................................\
...........................page 6-41
Exterior lights ........................................................................\
................................page 6-45
Rear window wiper blade ........................................................................\
.............page 6-33
Liftgate ........................................................................\
..........................................page 3-22
Child safety locks ........................................................................\
..........................page 3-21
Outside mirror ........................................................................\
...............................page 3-34
Mazda3_8FL6-EA-16F_Edition2.indb 72016/08/10 17:34:50

2–26
Essential Safety Equipment
Child-Restraint
Do not allow a child or anyone to lean over or against the side window of a vehicle with
side and curtain air bags:It is dangerous to allow anyone to lean over or against the side window, the area of the
front passenger seat, the front and rear window pillars and the roof edge along both
sides from which the side and curtain air bags deploy, even if a child-restraint system
is used. The impact of inflation from a side or curtain air bag could cause serious injury
or death to an out of position child. Furthermore, leaning over or against the front door
could block the side and curtain air bags and eliminate the advantages of supplemental
protection. With the front air bag and the additional side air bag that comes out of the
front seat, the rear seat is always a better location for children. Take special care not to
allow a child to lean over or against the side window, even if the child is seated in a child-
restraint system.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could
be crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
CAUTION
A seat belt or child-restraint system can become very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
NOTE
Your Mazda is equipped with LATCH lower anchors for attachment of specially designed
LATCH child-restraint systems in the rear seats. When using these anchors to secure a
child-restraint system, refer to "Using LATCH Lower Anchor" (page
2-37).
Mazda3_8FL6-EA-16F_Edition2.indb 262016/08/10 17:34:59

2–33
Essential Safety Equipment
Child-Restraint
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a serious
accident, injury or death.
Refer to Head Restraints on page
2-12.
If You Must Use the Front Seat for
Children
If you cannot put all children in the rear
seat, at least put the smallest children
in the rear and be sure the largest child
up front uses the shoulder belt over the
shoulder.
NEVER put a rear-facing child-restraint
system on the front passenger seat whether
your vehicle is equipped with a occupant
classification sensor or not.
This seat is also not set up for tethered
child-restraint systems, put them in one of
the rear seat positions set up with tether
anchors.
Likewise the LATCH child-restraint
system cannot be secured in the front
passenger's seat and should be used in the
rear seat.
Do not allow anyone to sleep against the
side window since your vehicle has side
and curtain air bags, it could cause serious
injuries to an out of position occupant.
As children more often sleep in cars,
it is better to put them in the rear seat.
If installing the child-restraint system
on the front seat is unavoidable, follow
these instructions when using a front-
facing child-restraint system in the front
passenger's seat.
NOTE
 To check if your front seats have side air
bags:
Mazda vehicles equipped with side air
bag will have a "SRS AIRBAG" tag on
the outboard shoulder of the front seats.
 To check if your vehicle has curtain air
bags:
Mazda vehicles equipped with curtain
air bag will have an "SRS AIRBAG"
marking on the window pillars along
the roof edge.
WARNING
Always move the front passenger seat
as far back as possible if installing a
front-facing child-restraint system on it
is unavoidable:As your vehicle has front air bags and
doubly so because your vehicle has
side air bags, a front-facing child-
restraint system should be put on the
front passenger seat only when it is
unavoidable.
Even if the front passenger air
bag deactivation indicator light
illuminates, always move the seat as
far back as possible, because the force
of a deploying air bag could cause
serious injury or death to the child.
Mazda3_8FL6-EA-16F_Edition2.indb 332016/08/10 17:35:03

2–34
Essential Safety Equipment
Child-Restraint
Never use a rear-facing child-restraint
system in the front seat with an air bag
that could deploy:Rear-facing child-restraint systems
on the front seat are particularly
dangerous.
Even in a moderate collision, the
child-restraint system can be hit
by a deploying air bag and moved
violently backward resulting in
serious injury or death to the child.
Even though you may feel assured
that the front passenger air bag will
not deploy based on the fact that the
front passenger air bag deactivation
indicator light illuminates, you should
not use a rear-facing child-restraint
system in the front seat.
Do not allow a child or anyone to lean
over or against the side window of a
vehicle with side and curtain air bags: It is dangerous to allow anyone to lean
over or against the side window, the
area of the front passenger seat, the
front and rear window pillars and the
roof edge along both sides from which
the side and curtain air bags deploy,
even if a child-restraint system is used.
The impact of inflation from a side or
curtain air bag could cause serious
injury or death to an out of position
child. Furthermore, leaning over or
against the front door could block the
side and curtain air bags and eliminate
the advantages of supplemental
protection. With the front air bag and
the additional side air bag that comes
out of the front seat, the rear seat is
always a better location for children.
Take special care not to allow a child to
lean over or against the side window,
even if the child is seated in a child-
restraint system.Front Passenger's Seat Child-Restraint
System Installation (With Front
Passenger Occupant Classification
System)
1. Make sure the ignition is switched of f.
2. Slide the seat as far back as possible.

3. Place the child-restraint system on the
seat without putting your weight on
the seat and fasten the seat belt. See
the manufacturer's instructions on the
child-restraint system for belt routing
instructions.
4. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
Mazda3_8FL6-EA-16F_Edition2.indb 342016/08/10 17:35:04

2–41
Essential Safety Equipment
SRS Air Bags
*Some models.
Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include different types of air bags.
Please verify the different types of air bags which are equipped on your vehicle by
locating the “SRS AIRBAG” location indicators. These indicators are visible in the area
where the air bags are installed.
The air bags are installed in the following locations:
 The steering wheel hub (driver air bag) The front passenger dashboard (front passenger air bag) The outboard sides of the front seatbacks (side air bags)*
 The front and rear window pillars, and the roof edge along both sides (\
curtain air bags)*
Vehicles with the Front Passenger Occupant Classification System have a sensor which
detects an impending roll-over accident.
The air bag supplemental restraint systems are designed to provide suppl\
emental protection
in certain situations so seat belts are always important in the followin\
g ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
 Keep the occupant from being thrown into an inflating air bag. Reduce the possibility of injuries during an accident that is n ot designed for air bag
inflation, such as rear impact. Reduce the possibility of injuries in frontal, near frontal or side collisions or roll-over
accidents that are not severe enough to activate the air bags. Reduce the possibility of being thrown from your vehicle. Reduce the possibility of injuries to lower body and legs durin g an accident because the
air bags provide no protection to these parts of the body. Hold the driver in a position which allows better control of the vehicle\
.
Mazda3_8FL6-EA-16F_Edition2.indb 412016/08/10 17:35:06

2–44
Essential Safety Equipment
SRS Air Bags
Do not attach objects on or around the area where a side air bag deploys:Attaching objects to the front seat in such a way as to cover the outboard side of the
seat in any way is dangerous. In an accident the object could interfere with the side
air bag, which inflates from the outboard side of the front seats, impeding the added
protection of the side air bag system or redirecting the air bag in a way that is dangerous.
Furthermore, the bag could be cut open releasing the gas.
Do not hang net bags, map pouches or backpacks with side straps on the front seats.
Never use seat covers on the front seats. Always keep the side air bag modules in your
front seats free to deploy in the event of a side collision.
Do not attach objects on or around the area where a curtain air bag deploys: Attaching objects to the areas where the curtain air bag activates such as on the
windshield glass, side door glass, front and rear window pillars and along the roof edge
and assist grips is dangerous. In an accident the object could interfere with the curtain
air bag, which inflates from the front and rear window pillars and along the roof edge,
impeding the added protection of the curtain air bag system or redirecting the air bag in
a way that is dangerous. Furthermore, the bag could be cut open releasing the gas.
Do not place hangers or any other objects on the assist grips. When hanging clothes,
hang them on the coat hook directly. Always keep the curtain air bag modules free to
deploy in the event of a side collision or roll-over accident.
Do not touch the components of the supplemental restraint system after the air bags
have inflated: Touching the components of the supplemental restraint system after the air bags have
inflated is dangerous. Immediately after inflation, they are very hot. You could get burned.
Never install any front-end equipment to your vehicle: Installation of front-end equipment, such as frontal protection bar (kangaroo bar, bull
bar, push bar, or other similar devices), snowplow, or winches, is dangerous. The air bag
crash sensor system could be affected. This could cause air bags to inflate unexpectedly,
or it could prevent the air bags from inflating during an accident. Front occupants could
be seriously injured.
Do not modify the suspension: Modifying the vehicle suspension is dangerous. If the vehicle's height or the suspension is
modified, the vehicle will be unable to accurately detect a collision or roll-over accident
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Mazda3_8FL6-EA-16F_Edition2.indb 442016/08/10 17:35:06

2–46
Essential Safety Equipment
SRS Air Bags
Do not place luggage or other objects under the front seats:Placing luggage or other objects under the front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of
a side collision, the appropriate air bags may not deploy, which could result in death
or serious injury. To prevent damage to the components essential to the supplemental
restraint system, do not place luggage or other objects under the front seats.
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components: Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a trained
Authorized Mazda Dealer can fully evaluate these systems to see that they will work in
any subsequent accident. Driving with an expended or damaged air bag or pretensioner
unit will not afford you the necessary protection in the event of any subsequent accident
which could result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as the front seats, front dashboard, the steering wheel
or parts on the front and rear window pillars and along the roof edge, containing air bag
parts or sensors is dangerous. These parts contain essential air bag components. The air
bag could accidentally activate and cause serious injuries. Always have an Authorized
Mazda Dealer remove these parts.
Properly dispose of the air bag system: Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury could result. Have an
Authorized Mazda Dealer safely dispose of the air bag system or scrap an air bag
equipped vehicle.
Mazda3_8FL6-EA-16F_Edition2.indb 462016/08/10 17:35:07

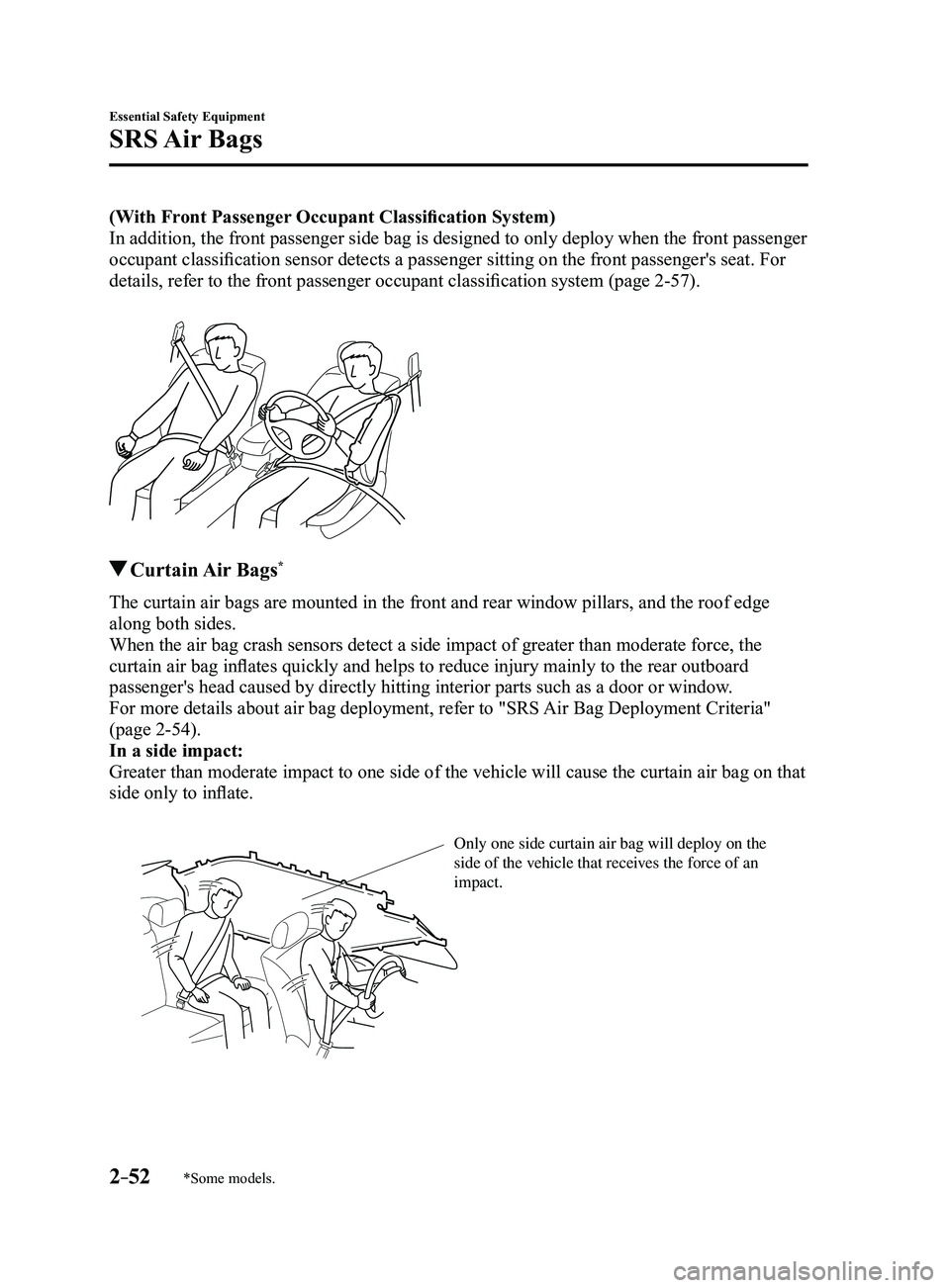

2–52
Essential Safety Equipment
SRS Air Bags
*Some models.
(With Front Passenger Occupant Classification System)
In addition, the front passenger side bag is designed to only deploy whe\
n the front passenger
occupant classification sensor detects a passenger sitting on the front passenger's seat. For
details, refer to the front passenger occupant classification system (page
2-57).
Curtain Air Bags*
The curtain air bags are mounted in the front and rear window pillars, a\
nd the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than mode\
rate force, the
curtain air bag inflates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a doo\
r or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page
2-54).
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that
side only to inflate.
Only one side curtain air bag will deploy on the
side of the vehicle that receives the force of an
impact.
Mazda3_8FL6-EA-16F_Edition2.indb 522016/08/10 17:35:10
