light MAZDA MODEL 3 HATCHBACK 2004 (in English) Owners Manual

6-35
Interior Comfort
Form No. 8S18-EA-03I
Interior Equipment
When you need a sunvisor, lower it for use
in front or swing it to the side.

Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor on the passenger’s side.

Illuminated Entry System*
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
•About 30 seconds after the driver’s
door is unlocked and the ignition key is
removed.
•About 15 seconds after all doors are
closed.
•About 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
•The ignition switch is turned to the ON
position and all doors are closed.
•The driver’s door is locked.
Sunvisors
Sunvisor
Interior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 35 Wednesday, August 6, 2003 8:51 AM

6-36
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I

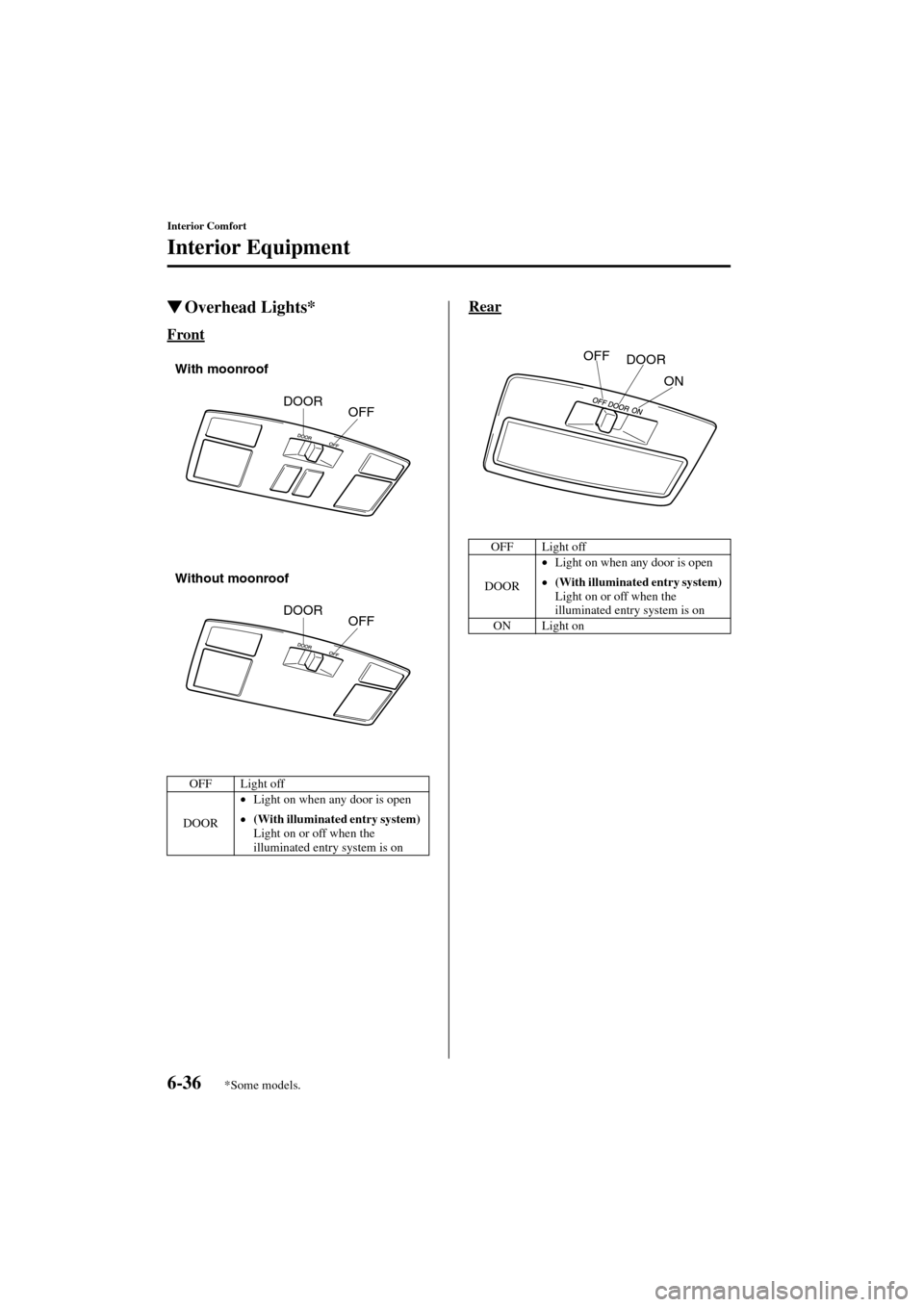

Overhead Lights*
Front
Rear
OFF Light off
DOOR•
Light on when any door is open
•(With illuminated entry system)

Light on or off when the
illuminated entry system is on
DOOR
OFF
With moonroof
DOOR
OFF
Without moonroof
OFF Light off
DOOR•
Light on when any door is open
•(With illuminated entry system)

Light on or off when the
illuminated entry system is on
ON Light on
DOOR OFF
ON
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 36 Wednesday, August 6, 2003 8:51 AM

6-37
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I

Map Lights*
The map lights are switched on or off by
pressing the switches.

Luggage Compartment Light
(5 Door)
Switches
With moonroof
Switches
Without moonroof
OFF Light off
ON Light on when the liftgate is open
ONOFF
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 37 Wednesday, August 6, 2003 8:51 AM

6-40
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
Lighter
•Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
Ashtray
Don’t use the ashtray for trash. You
might start a fire.
CAUTION
J48C_8S18-EA-03I_Edition1.book Page 40 Wednesday, August 6, 2003 8:51 AM

6-42
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
Bottle holders are on the inside of the
doors.

Glove Box
To open the glove box, pull the latch
toward you.
If the glove box has a lock, insert the key
and turn it clockwise to lock,
counterclockwise to unlock.
Bottle Holder
Don’t use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Bottle holder
CAUTION
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
Don’t leave eyeglasses or lighters in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
WARNING
CAUTION
Unlock
Lock
J48C_8S18-EA-03I_Edition1.book Page 42 Wednesday, August 6, 2003 8:51 AM

7-2
In Case of an Emergency
Form No. 8S18-EA-03I
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all four turn signals will flash.
Parking in an Emergency
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher
J48C_8S18-EA-03I_Edition1.book Page 2 Wednesday, August 6, 2003 8:51 AM

7-4
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I

Jack
To remove the jack
1. Turn the knob and remove the cover.
2. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.

Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 4 Wednesday, August 6, 2003 8:51 AM

7-5
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
To remove the spare tire
(4 Door)
1. Remove the trunk mat and trunk board.
2. Turn the tire hold-down bolt
counterclockwise with the lug wrench. To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•Don’t exceed 80 km/h (50 mph).
•Avoid driving over obstacles.
Also, don’t drive through an
automatic car wash. This tire’s
diameter is smaller than a
conventional tire’s, so the ground
clearance is reduced about 25 mm
(1 in).
•Don’t use a tire chain on this tire
because it won’t fit properly.
•Don’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
•Use only one temporary spare tire
on your vehicle at the same time.
NOTE
(With Tire Pressure Monitoring
System)

A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-23).
CAUTION
Trunk board
Lug wrench
Tire clamp
J48C_8S18-EA-03I_Edition1.book Page 5 Wednesday, August 6, 2003 8:51 AM

7-12
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
5. Store the damaged tire, using the tire
hold-down bolt to hold it in place.
Have the damaged tire repaired as soon
as possible.
NOTE
(With Tire Pressure Monitoring
System)

A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-23).
NOTE
To prevent the jack and tool from
rattling, store them properly.
Tire clampTire hold-down bolt
J48C_8S18-EA-03I_Edition1.book Page 12 Wednesday, August 6, 2003 8:51 AM

8-1
Form No. 8S18-EA-03I
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-7
Owner Maintenance
.................................................................... 8-10
Owner Maintenance Schedule ................................................. 8-10
Owner Maintenance Precautions ............................................. 8-11
Engine Compartment Overview .............................................. 8-12
Engine Oil ................................................................................ 8-13
Engine Coolant ........................................................................ 8-15
Brake/Clutch Fluid .................................................................. 8-18
Power Steering Fluid ............................................................... 8-19
Automatic Transaxle Fluid (ATF) ........................................... 8-20
Washer Fluid ............................................................................ 8-21
Body Lubrication ..................................................................... 8-22
Air Filter .................................................................................. 8-23
Wiper Blades ........................................................................... 8-24
Battery ..................................................................................... 8-28
Tires ......................................................................................... 8-31
Light Bulbs .............................................................................. 8-36
Fuses ........................................................................................ 8-46
Appearance Care
......................................................................... 8-51
How to Minimize Environmental Paint Damage ..................... 8-51
Exterior Care ........................................................................... 8-53
Interior Care ............................................................................ 8-57
