MAZDA MODEL 3 HATCHBACK 2004 Owner's Manual (in English)

6-33
Interior Comfort
Au di o S ys t em
Form No. 8S18-EA-03I

Seek Switch
When listening to the radio
Press the seek switch ( , ), the radio
switches to the next/previous stored
station in the order that it was stored
(1~6).
Press the seek switch ( , ) for about 2
seconds until a beep is heard to seek a
higher or lower frequency automatically.
When playing a cassette tape
Press the seek switch ( ), release, and it
will advance to the next selection.
Press the seek switch ( ), release, and it
will repeat the selection being played.
When playing a CD or MD
Press the seek switch ( ) to skip to the
next track.
Press the seek switch ( ) to repeat the
current track.

Mute Switch
Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.
J48C_8S18-EA-03I_Edition1.book Page 33 Wednesday, August 6, 2003 8:51 AM

6-34
Interior Comfort
Au di o S ys t em
Form No. 8S18-EA-03I
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
•Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
•Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
J48C_8S18-EA-03I_Edition1.book Page 34 Wednesday, August 6, 2003 8:51 AM

6-35
Interior Comfort
Form No. 8S18-EA-03I
Interior Equipment
When you need a sunvisor, lower it for use
in front or swing it to the side.

Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor on the passenger’s side.

Illuminated Entry System*
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
•About 30 seconds after the driver’s
door is unlocked and the ignition key is
removed.
•About 15 seconds after all doors are
closed.
•About 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
•The ignition switch is turned to the ON
position and all doors are closed.
•The driver’s door is locked.
Sunvisors
Sunvisor
Interior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 35 Wednesday, August 6, 2003 8:51 AM

6-36
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I

Overhead Lights*
Front
Rear
OFF Light off
DOOR•
Light on when any door is open
•(With illuminated entry system)

Light on or off when the
illuminated entry system is on
DOOR
OFF
With moonroof
DOOR
OFF
Without moonroof
OFF Light off
DOOR•
Light on when any door is open
•(With illuminated entry system)

Light on or off when the
illuminated entry system is on
ON Light on
DOOR OFF
ON
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 36 Wednesday, August 6, 2003 8:51 AM

6-37
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I

Map Lights*
The map lights are switched on or off by
pressing the switches.

Luggage Compartment Light
(5 Door)
Switches
With moonroof
Switches
Without moonroof
OFF Light off
ON Light on when the liftgate is open
ONOFF
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 37 Wednesday, August 6, 2003 8:51 AM

6-38
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I

Information Display Functions
The information display has the following functions:
•Clock
•Audio Display
Information Display
ClockAudio display
J48C_8S18-EA-03I_Edition1.book Page 38 Wednesday, August 6, 2003 8:51 AM

6-39
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I

Clock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK button until a beep
sounds, and "12Hr" and "24Hr" will be
displayed.
2. Press the SET button to switch between
"12Hr" and "24Hr" displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK button again while
the preferred setting is flashing.
3. "Hr. ADJUST" will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLOCK button.
4. "Min. ADJUST" will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the
CLOCK button.Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00

Audio Display
The audio system status is displayed. To
operate the audio system, refer to "Audio
System" (page 6-10).
NOTE
When the SET button is released, the
seconds are reset to "00".
J48C_8S18-EA-03I_Edition1.book Page 39 Wednesday, August 6, 2003 8:51 AM

6-40
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
Lighter
•Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
Ashtray
Don’t use the ashtray for trash. You
might start a fire.
CAUTION
J48C_8S18-EA-03I_Edition1.book Page 40 Wednesday, August 6, 2003 8:51 AM

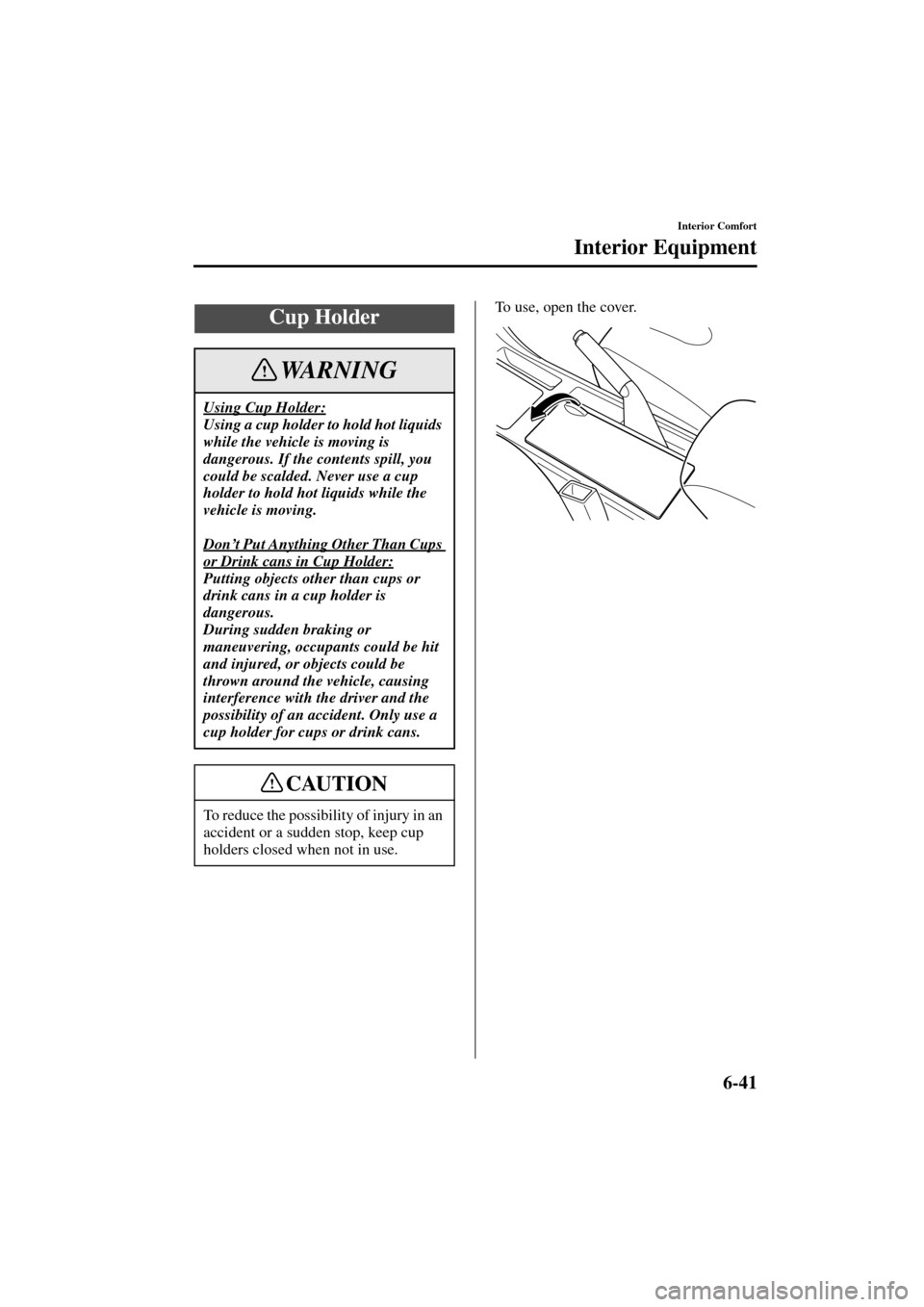

6-41
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
To use, open the cover.Cup Holder
Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don’t Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
WARNING
CAUTION
J48C_8S18-EA-03I_Edition1.book Page 41 Wednesday, August 6, 2003 8:51 AM

6-42
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
Bottle holders are on the inside of the
doors.

Glove Box
To open the glove box, pull the latch
toward you.
If the glove box has a lock, insert the key
and turn it clockwise to lock,
counterclockwise to unlock.
Bottle Holder
Don’t use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Bottle holder
CAUTION
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
Don’t leave eyeglasses or lighters in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
WARNING
CAUTION
Unlock
Lock
J48C_8S18-EA-03I_Edition1.book Page 42 Wednesday, August 6, 2003 8:51 AM
