MAZDA MODEL 3 HATCHBACK 2005 Owner's Manual (in English)

Black plate (151,1)
Beep Sounds
qAir Bag/Front Seat Belt
Pretensioner System Warning
Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Air Bag/Front Seat Belt Pretensioner
System Warning Beep:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system will
not deploy and this could result in
death or serious injury.
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding. Contact an
Authorized Mazda Dealer to have the
vehicle inspected as soon as possible.
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
The beep sound will be heard again for
about 6 seconds every 30 seconds, for a
period of about 5 minutes if the driver's
seat belt is not fastened afterwards.
Refer to Seat Belt Warning Light/Beep
(page 5-35).
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when the driver's door is opened.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver's door is
opened.
qTire Inflation Pressure Warning
Beepí
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 5-21).
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41íSome models. Mazda3_8T97-EC-04J_Edition1 Page151
Saturday, September 25 2004 2:12 PM
Form No.8T97-EC-04J

Black plate (152,1)
Lighting Control
qHeadlights
Type A (Without AUTO position)
Turn the headlight switch to turn the
headlights and other exterior lights on or
off.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off.
Type B (With AUTO position,
CANADA)í
Turn the headlight switch to turn the
headlights and other exterior lights on or
off.
Switch Position
Headlights Off Off On
Auto Taillights
Parking lights
License lights
Side-marker
lightsOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off.
AUTO (Auto-light control)
When the headlight switch is in the
AUTO position and the ignition switch is
in the ON position, the light sensor senses
the surrounding lightness or darkness and
automatically turns on or off the
headlights and other exterior lights (see
chart above).
5-42
Driving Your Mazda
íSome models.
Switches and Controls
Mazda3_8T97-EC-04J_Edition1 Page152
Saturday, September 25 2004 2:12 PM
Form No.8T97-EC-04J

Black plate (153,1)
CAUTION
lDo not shade the light sensor by
adhering a sticker or a label on the
windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
lThe light sensor also works as a rain
sensor for the auto-wiper control.
When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically. Be
careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers (page 5-47).
NOTE
lWhen the headlight switch is in the
AUTO position and the ignition
switch is turned to the ACC or
LOCK position, the headlights and
other exterior lights will turn off.
lThe timing for turning on the
headlights and other exterior lights
can be delayed by adjusting the
sensitivity of the light sensor.
Consult an Authorized Mazda Dealer
regarding sensor adjustment.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver's door is
opened.
Driving Your Mazda
Switches and Controls
5-43íSome models. Mazda3_8T97-EC-04J_Edition1 Page153
Saturday, September 25 2004 2:12 PM
Form No.8T97-EC-04J

Black plate (154,1)
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
qHeadlight Levelingí
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the following chart.
Front seat
Rear
seatLoadSwitch
Position
Driver Passenger
×―――0
××――0
×× ×―1
×× ×× 2
×――×3
×: Yes
―:No
qDaytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
5-44
Driving Your Mazda
íSome models.
Switches and Controls
Mazda3_8T97-EC-04J_Edition1 Page154
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (155,1)
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Driving Your Mazda
Switches and Controls
5-45
Mazda3_8T97-EC-04J_Edition1 Page155
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (156,1)
Fog Lightsí
The fog lights help you to see as well as
to be seen.
The headlights must be turned on to turn
on the front fog lights.
To turn the front fog lights on, rotate the
fog light switch to the
position.
OFF
Fog light switch
To turn the front fog lights off, rotate the
fog light switch to the OFF position or
turn the headlights off.
NOTE
l(With auto-light control)
If the headlight switch is in the
AUTO position, the front fog lights
can be turned on when the headlights
and the exterior lights are on.
lThe fog lights will turn off when the
headlights are set at high beam.
Windshield Wipers and
Washer
The ignition switch must be in the ON
position.
WARNING
Frozen Washer Fluid:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don't use the
washer without first warming the
windshield and never use plain tap
water.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible.
5-46
Driving Your Mazda
íSome models.
Switches and Controls
Mazda3_8T97-EC-04J_Edition1 Page156
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (157,1)

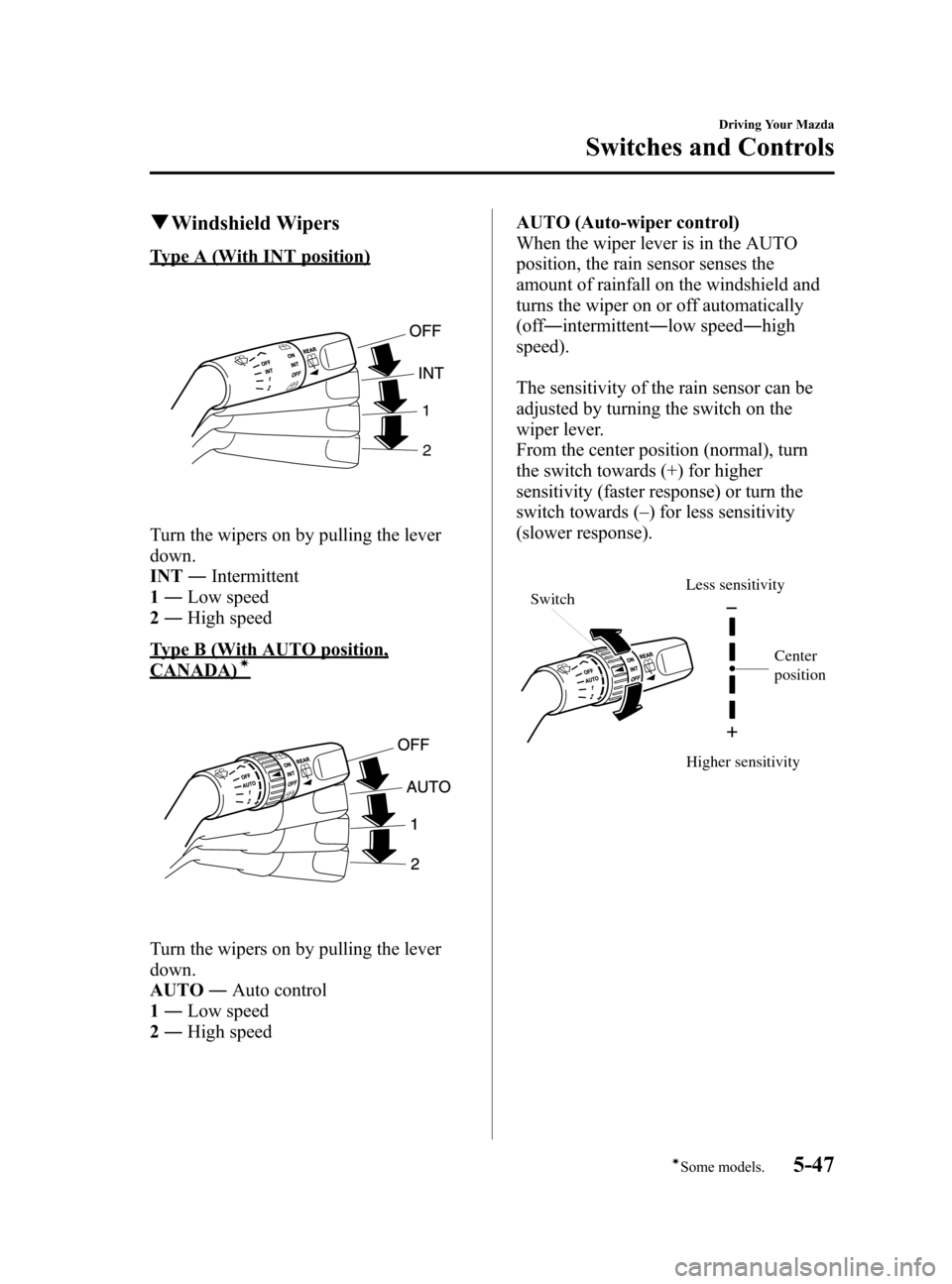

qWindshield Wipers
Type A (With INT position)
1
2
Turn the wipers on by pulling the lever
down.
INT―Intermittent
1―Low speed
2―High speed
Type B (With AUTO position,
CANADA)í
Turn the wipers on by pulling the lever
down.
AUTO―Auto control
1―Low speed
2―High speedAUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (_
) for less sensitivity
(slower response).
Switch
Higher sensitivity Less sensitivity
Center
position
Driving Your Mazda
Switches and Controls
5-47íSome models. Mazda3_8T97-EC-04J_Edition1 Page157
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (158,1)
CAUTION
lDo not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
lWhen the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:
lIf the windshield above the rain
sensor is touched.
lIf the windshield above the rain
sensor is wiped with a cloth.
lIf the windshield is given a shock.lIf the rain sensor is given a shock
from inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF
position.
NOTE
lThe auto-wiper control may not
operate when the rain sensor
temperature is about_
10°C (14°F) or
lower, or about 85°C (185°F) or
higher.
lIf the windshield is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and auto-wiper
control may not operate properly.
lIf dirt or foreign matter (e.g. ice or
matter containing salt water) adheres
to the windshield above the rain
sensor or if the windshield is iced, it
could cause the wipers to move
automatically. However, if the wipers
cannot remove this ice, dirt or
foreign matter, the auto-wiper
control will stop operation. In this
case, pull the wiper lever to the 1 or
2 position for manual operation, or
remove the ice, dirt or foreign matter
by hand to restore the auto-wiper
operation.
One-touch wipers
For a single wiping cycle, push the lever
up to MIST.
5-48
Driving Your Mazda
Switches and Controls
Mazda3_8T97-EC-04J_Edition1 Page158
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (159,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
(Type A)/AUTO (Type B) position, the
wipers will operate continuously until
the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-21). If it's OK, consult
an Authorized Mazda Dealer.
Rear Window Wiper and
Washer (5 Door)
The ignition switch must be in the ON
position.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON―Normal
INT―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
NOTE
There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.
If the washer doesn't work, inspect the
fluid level (page 8-21). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-49
Mazda3_8T97-EC-04J_Edition1 Page159
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (160,1)

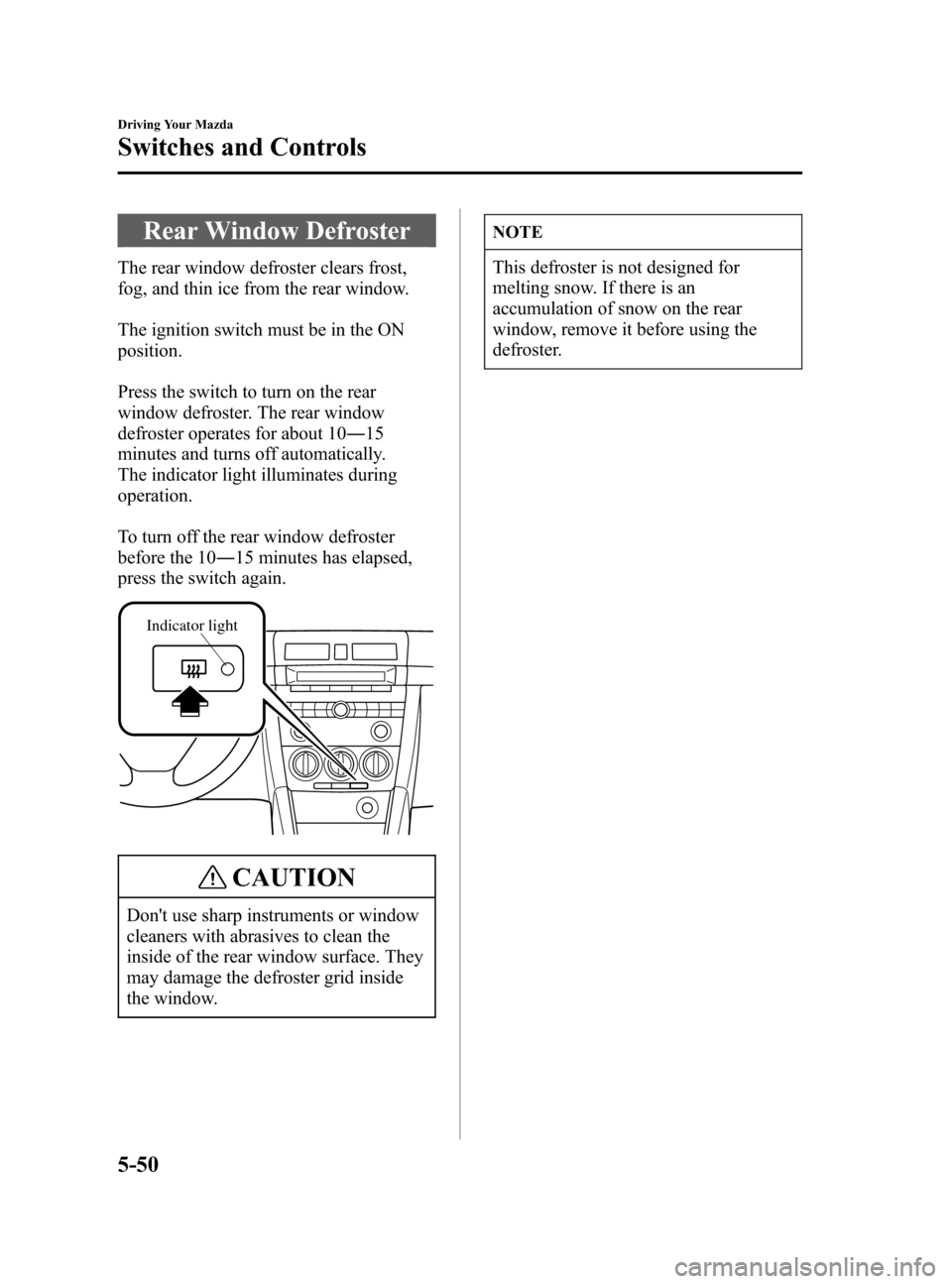

Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 10―15
minutes and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 10―15 minutes has elapsed,
press the switch again.
Indicator light
CAUTION
Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.
5-50
Driving Your Mazda
Switches and Controls
Mazda3_8T97-EC-04J_Edition1 Page160
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J
