Black plate (271,1)
Right side
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse light
4 Door
1. Pull the center section of the plastic
retainer and remove the retainers, then
remove the trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-41
Mazda3_8T97-EC-04J_Edition1 Page271
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (272,1)
5 Door
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
High-mount brake light
4 Door
1. Pull the center of each plastic retainer
and remove the retainers and the trunk
rear trim.
Removal
Installation
2. Disconnect the electrical connector
from the socket.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
8-42
Maintenance and Care
Owner Maintenance
Mazda3_8T97-EC-04J_Edition1 Page272
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (273,1)
5 Door
1. Remove the liftgate upper trim.
2. Disconnect the electrical connector
from the socket.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)í
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
Maintenance and Care
Owner Maintenance
8-43íSome models. Mazda3_8T97-EC-04J_Edition1 Page273
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (274,1)
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Overhead light (Rear)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order
of removal.
Trunk light (4 Door)
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Luggage compartment light (5 Door)
1. Insert your finger as shown in the
figure and remove the unit.
2. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
8-44
Maintenance and Care
Owner Maintenance
Mazda3_8T97-EC-04J_Edition1 Page274
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (275,1)
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system doesn't work, first
inspect fuses on the front passenger's side
below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
Maintenance and Care
Owner Maintenance
8-45
Mazda3_8T97-EC-04J_Edition1 Page275
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (276,1)
3. Turn the knobs counterclockwise and
lower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect it and replace if it's blown.
NormalBlown
7. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
8-46
Maintenance and Care
Owner Maintenance
Mazda3_8T97-EC-04J_Edition1 Page276
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (277,1)

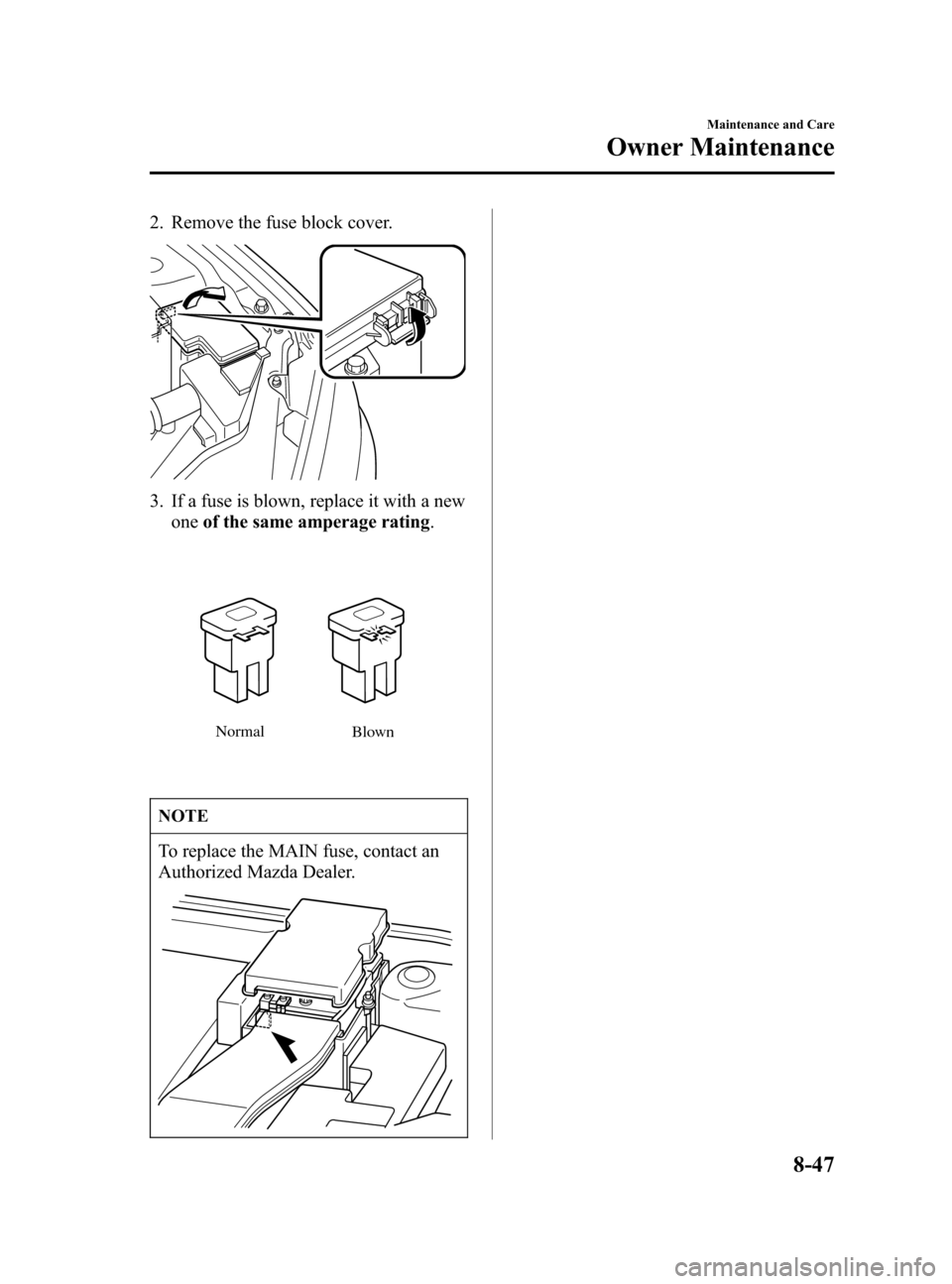

2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-47
Mazda3_8T97-EC-04J_Edition1 Page277
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (278,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3 45 6
789 10
11 12
13 14
15 16
17 18
1920 2122 23
24 25 26
27 2829
3031 3233 3435 36
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
1 FAN 40A Cooling fan
2 P/ST 80A EHPAS
3 BTN 40AFor protection of various
circuits
4 HEAD 40A Headlights
5 PTC 80A―
6 GLOW 60A―
7 ABS 1 30A ABS
í
8 ABS 2 20A ABSí
9ENGINE30AFor protection of various
circuits
10―― ―
11IG KEY
130A Ignition switch
12 STARTER20A Starter clutch
13IG KEY
230A Ignition switch
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
14―― ―
15 HEATER40A Blower motor
16―― ―
17DEFOG 40A Rear window defroster
18―― ―
19ABS IG 10A ABSí
20FOG 15A Fog lightsí
21HORN 15A Horn
22―― ―
23 H/CLEAN20A―
24 F/PUMP15A Fuel pump
25P/ST IG 10A Power steering
26A/C
MAG10A Air conditioner
27ALT 10A―
28―― ―
8-48
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8T97-EC-04J_Edition1 Page278
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (279,1)
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
29―― ―
30ENG
+B10A PCM
31ROOM 15A Interior lights
32ENG
BAR 410A O2heater
33ENG
BAR 310A O2heater
34EGI INJ 10A Injector
35ENG
BAR 110A Air flow sensor
36ENG
BAR 210A EGR control valve
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8T97-EC-04J_Edition1 Page279
Saturday, September 25 2004 2:17 PM
Form No.8T97-EC-04J

Black plate (280,1)
Fuse block (Passenger's side)
37 38 39 4041 42
43 44 4546
47 48 49 5051
52 5354 55 56 5758
59 60 61 6263 64
65 66 67 68 6970
71 72 73 74 75 76 77 78 79 80 81 82 83 84 8586
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
37D/
LOCK
215A Power door lock
38―― ―
39HEAD
HIGH L10A Headlight high beams (LH)
40HEAD
HIGH R10A Headlight high beams (RH)
41―― ―
42―― ―
43CIGAR 15A Lighter
44RADIO 7.5A Audio system
45 MIRROR10A Power control mirror
46TAIL R 7.5ATaillight (RH), Parking lights
(RH), License plate lights
47OBD 10AFor protection of various
circuits
48―― ―
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
49 TR/LOCK20A―
50CPU
PWR10A Control unit
51 HAZARD15ATurn signals, Hazard warning
flashers
52SUN
ROOF20A Moonroofí
53 WASHER20AFront washer, Rear window
wiper and washer
54―― ―
55P/
WIND
R30A―
56P/
WIND
L30A―
57 ALARM7.5A―
58M/DEF 7.5A Mirror Defroster
