MAZDA MODEL 3 HATCHBACK 2006 Owner's Manual (in English)

Black plate (181,1)
Fully Automatic Typeí
Climate control information is displayed on the information display.
Temperature control dial
Fan control dialMode selector switch
Air intake selector A/C Switch OFF switch
Auto switch
AMB (Ambient
Temperature) switch Windshield
defroster switch
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
lAmount of airflow
lSelection of airflow mode
lOutside/Recirculated air selection
lAir conditioner operation
lA/C or A/C ECO selection
Interior Comfort
Climate Control System
6-11íSome models. Mazda3_8U55-EA-05G_Edition2 Page181
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (182,1)
NOTE
AUTO switch indicator light
lWhen on, it indicates AUTO
operation, and the system will
function automatically.
lWhen off, indicates the operation of
other switches such as the mode
selector switch, fan control dial, A/C
switch and windshield defroster
switch. Other functions will continue
to operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
With the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature will
flow through the central, left and right
vents.
6-12
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page182
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (183,1)
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
lSelection of A/C and A/C ECO is
done automatically. Although air
conditioning and defogging ability is
reduced, the A/C ECO function is
designed to economize use of the air
conditioning system.
lThe air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F). (Indicator
remains on even when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.Recirculated air position (
)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (
)
Use this position for normal conditions
and defogging.
WARNING
The Recirculated Air Position:
Using the
position in cold or
rainy weather will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident. Do not use the
position in cold or rainy weather.
AMB (Ambient Temperature) switch
Press the AMB button to display the
ambient temperature.
Interior Comfort
Climate Control System
6-13
Mazda3_8U55-EA-05G_Edition2 Page183
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (184,1)
NOTE
lThe displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
lPress the AMB button again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Hot Cold
To turn off the system, press the OFF
switch.
NOTE
lFor an optimal cabin temperature, set
the temperature close to“72°F”.
Adjust to the desired temperature if
necessary.
lSetting the temperature to maximum
high or low will not provide the
desired temperature at a faster rate.
lWhen selecting heat, the system will
restrict airflow until it has warmed to
prevent cold air from blowing out of
the vents.
6-14
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page184
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (185,1)
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turned on. The
air conditioner will direct dehumidified air
to the front windshield and side windows
(page 6-4). Airflow amount will be
increased.
WARNING
Foggy Windshield:
Using the
position with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to hot or warm position when
using the
position.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly. Don't obstruct
the sensor.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda3_8U55-EA-05G_Edition2 Page185
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (186,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
RemoveInstall
CAUTION
To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do Not Adjust Audio While Driving
the Vehicle:
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a
serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the
vehicle.
NOTE
lDo not use the audio for long periods
of time while the engine is off.
Otherwise the battery could go dead.
lIf a digital cellular phone or CB
radio is used in or near the vehicle, it
could cause noise to occur from the
audio system, however, this does not
indicate that the system has been
damaged.
6-16
Interior Comfort
Audio System
Mazda3_8U55-EA-05G_Edition2 Page186
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (187,1)

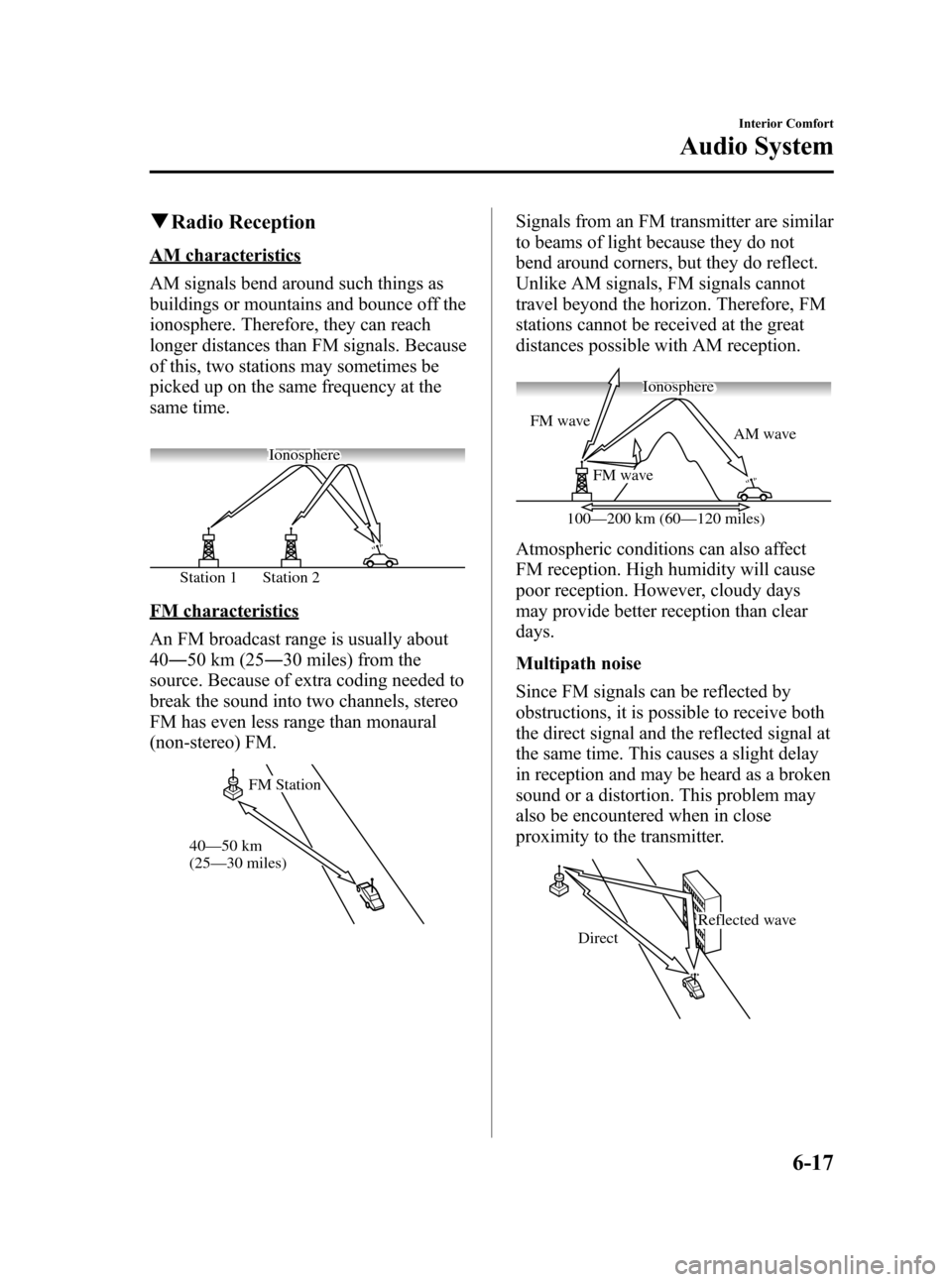

qRadio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.
Station 2 Station 1Ionosphere
FM characteristics
An FM broadcast range is usually about
40―50 km (25―30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
(25—30 miles)40—50 kmFM Station
Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.
AM wave FM wave
FM wave
100—200 km (60—120 miles)Ionosphere
Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.
Multipath noise
Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.
Reflected wave
Direct
Interior Comfort
Audio System
6-17
Mazda3_8U55-EA-05G_Edition2 Page187
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (188,1)
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz Station 1
88.1 MHz
6-18
Interior Comfort
Audio System
Mazda3_8U55-EA-05G_Edition2 Page188
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (189,1)
qOperating Tips for Cassette Tape
Player
Cleaning the cassette tape player
The tape head, capstans, and pinch rollers
will gather oxide residue from cassette
tapes. This can cause weak or wavering
sounds and damage to the cassette tapes
and player. Use a good quality head-
cleaning tape or a liquid cleaner cassette
tape to remove it.
Should the unit not operate normally,
consult an Authorized Mazda Dealer.
Never attempt to repair it or insert a
screwdriver or anything else.
Handling the cassette tape player
The following precautions should be
observed.
lDo not spill any liquid on the audio
system.
lDo not insert any objects, other than
cassette tape, into the slot.
lIf the cassette tape is loose, it may
produce poor sound or performance
during playback. Use a pencil or
something similar to remove any slack.
lOnly cassette tapes that play no longer
than 90 minutes should be used.
Cassette tape exceeding 90 minutes are
thin and may easily break.
lDo not leave a cassette tape in the tape
player slot when not in use. Remove it
completely to permit the slot door to
close and to protect the mechanism
from dust.
lStore cassette tapes away from extreme
heat, magnetic fields, and direct
sunlight. Protect the exposed cassette
tape from dirt and damage. Store
cassette tapes in their original cases or
other protective cases.
Interior Comfort
Audio System
6-19
Mazda3_8U55-EA-05G_Edition2 Page189
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (190,1)
qOperating Tips for CD Player/In-
Dash CD Changer
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in the
CD player/changer may become clouded
with condensation. At this time, the CD
will eject immediately when placed in the
unit. A clouded CD can be corrected
simply by wiping it with a soft cloth.
Clouded optical components will clear
naturally in about an hour. Wait for
normal operation to return before
attempting to use the unit.
Handling the CD player/In-dash CD
changer
The following precautions should be
observed.
lDo not spill any liquid on the audio
system.
lDo not insert any objects, other than
CDs, into the slot.
lThe CD revolves at high speed within
the unit. Defective (cracked or badly
bent) CDs should never be used.
lDo not use non-conventional discs
such as heart-shaped, octagonal discs,
etc. The CD player/changer could be
damaged.
lA new CD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player/changer will not play the CD.
Remove the rough edges in advance by
using a ball-point pen or pencil as
shown below. To remove the rough
edges, rub the side of the pen or pencil
against the inner and outer perimeter of
the CD.
6-20
Interior Comfort
Audio System
Mazda3_8U55-EA-05G_Edition2 Page190
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G
