qDashboard Illumination
When the exterior lights are on, rotate the
thumb-wheel to adjust the brightness of
the dashboard lights.
Bright
Dim
NOTE
Black-out meter
When the instrument cluster dimmer is
canceled, the instrument cluster
illumination intensity will not change
by rotating the thumb-wheel.
qInstrument Cluster Dimmer
Select Button (Black-out meter)
The instrument cluster dimmer select
button is operable when the ignition
switch is in the ON position.
Instrument cluster dimmer select button
Adjusting the instrument cluster
illumination intensity (With exterior
lights off)
When the exterior lights are off, the
instrument cluster illumination can be
adjusted to one of five levels by
successively pressing the instrument
cluster dimmer select button.
Canceling the instrument cluster
illumination dimmer (With exterior
lights on)
When the exterior lights are on, the
instrument cluster illumination dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster's visibility is reduced due to glare
from surrounding brightness, the
instrument cluster dimmer select button
increases the illumination intensity.
Press the button to increase the intensity
of the instrument cluster illumination.
Press the button again to return to the
previous illumination intensity.
5-32
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8U55-EA-05G_Edition2 Page146
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (157,1)
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
qCruise Main Indicator Lightí
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.
qCruise Set Indicator Lightí
This light comes on when a cruising speed
is set.
qLight-On Indicator Light (Black-
out meter)
This indicator light comes on when the
exterior lights and dashboard illumination
are on.
qPower Steering Malfunction
Indicator Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
The light illuminates to indicate that the
power steering is inoperable. If the light
illuminates, turn off the engine and restart
it.
If the light does not illuminate after
restarting the engine, this indicates that
the power steering is restored and normal
steering is possible.
If the light remains illuminated, the power
steering is still inoperable. Consult an
Authorized Mazda Dealer.
NOTE
The power steering system is inoperable
when the power steering malfunction
indicator light illuminates. Steering is
possible, but requires more physical
effort.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43íSome models. Mazda3_8U55-EA-05G_Edition2 Page157
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (160,1)

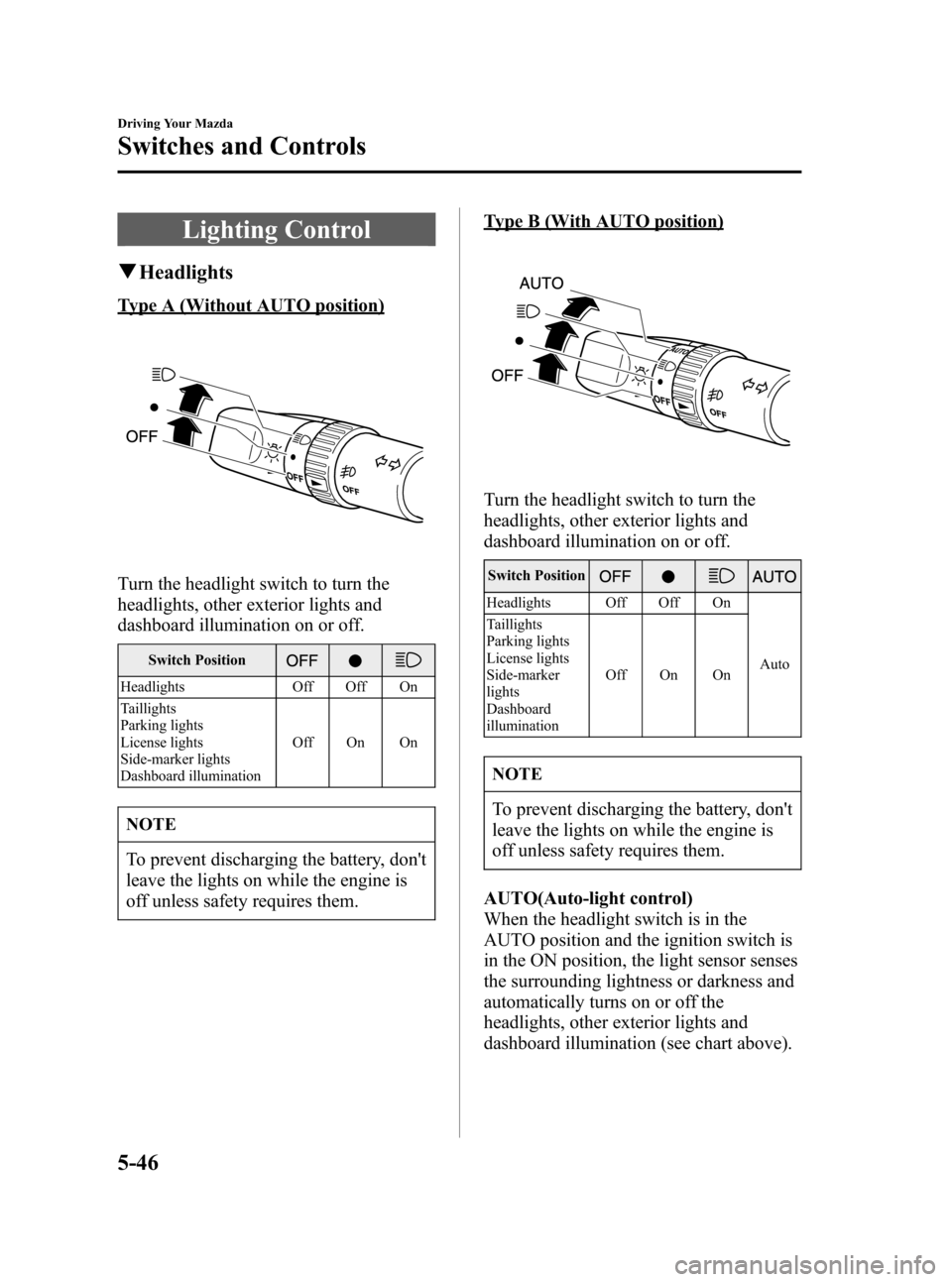

Lighting Control
qHeadlights
Type A (Without AUTO position)
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.
Type B (With AUTO position)
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
Switch Position
Headlights Off Off On
Auto Taillights
Parking lights
License lights
Side-marker
lights
Dashboard
illuminationOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.
AUTO(Auto-light control)
When the headlight switch is in the
AUTO position and the ignition switch is
in the ON position, the light sensor senses
the surrounding lightness or darkness and
automatically turns on or off the
headlights, other exterior lights and
dashboard illumination (see chart above).
5-46
Driving Your Mazda
Switches and Controls
Mazda3_8U55-EA-05G_Edition2 Page160
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (161,1)
CAUTION
lDo not shade the light sensor by
adhering a sticker or a label on the
windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
lThe light sensor also works as a rain
sensor for the auto-wiper control.
When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically. Be
careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers (page 5-50).
NOTE
lWhen the headlight switch is in the
AUTO position and the ignition
switch is turned to the ACC or
LOCK position, the headlights, other
exterior lights and dashboard
illumination will turn off.
lThe timing for turning on the
headlights, other exterior lights and
dashboard illumination can be
delayed by adjusting the sensitivity
of the light sensor. Consult an
Authorized Mazda Dealer regarding
sensor adjustment.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-47íSome models. Mazda3_8U55-EA-05G_Edition2 Page161
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (163,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
Fog Lightsí
The fog lights help you to see as well as
to be seen.
The headlights must be turned on to turn
on the front fog lights.
To turn the front fog lights on, rotate the
fog light switch to the
position.
Fog light switch
To turn the front fog lights off, rotate the
fog light switch to the OFF position or
turn the headlights off.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the headlight switch is in the
AUTO position, the front fog lights
can be turned on when the
headlights, the exterior lights and
dashboard illumination are on.
Driving Your Mazda
Switches and Controls
5-49íSome models. Mazda3_8U55-EA-05G_Edition2 Page163
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (174,1)
qSelecting the Airflow Mode
Dashboard and Floor Vents Defroster Vents
Floor Vents Dashboard Vents Defroster and Floor Vents
6-4
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page174
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (208,1)
Audio Control Switch
Operation (Steering Wheel)
í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.
lWhen the ignition switch is turned to
the LOCK position.
lWhen the power button on the audio
unit is pressed and the audio unit is
turned off.
lWhen a cassette tape/CD being
played is ejected. (For the In-dash
CD changer, when all CDs are
ejected.)
NOTE
Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.
qAdjusting the Volume
To increase the volume, press the volume
button (
).
To decrease the volume, press the volume
button (
).
6-38
Interior Comfort
íSome models.
Audio System
Mazda3_8U55-EA-05G_Edition2 Page208
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (312,1)
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with adampsoft cloth; then dry
and buff it with adrysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
8-64
Maintenance and Care
íSome models.
Appearance Care
Mazda3_8U55-EA-05G_Edition2 Page312
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (360,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda3_8U55-EA-05G_Edition2 Page360
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (369,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-32
Daytime Running Lights ................... 5-48
Defroster
Rear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-14
Flooded engine ........................... 7-14
Jump-starting .............................. 7-15
Push-starting .............................. 7-18
Emergency Towing ........................... 7-19
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-12
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-12
E
Engine Coolant Temperature
Gauge ................................................ 5-31
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-61
F
Flasher
Hazard warning .......................... 5-55
Headlights .................................. 5-46
Flat Tire ............................................... 7-3
Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-54
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel
Filler lid and cap ........................ 3-18
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52
Panel description ........................ 8-55
Replacement ............................... 8-52
G
Glove Box ......................................... 6-52
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-8
Index
11-3
Mazda3_8U55-EA-05G_Edition2 Page369
Thursday, June 23 2005 2:57 PM
Form No.8U55-EA-05G
