dimensions MAZDA MODEL 3 HATCHBACK 2007 Owner's Manual (in English)

Black plate (390,1)

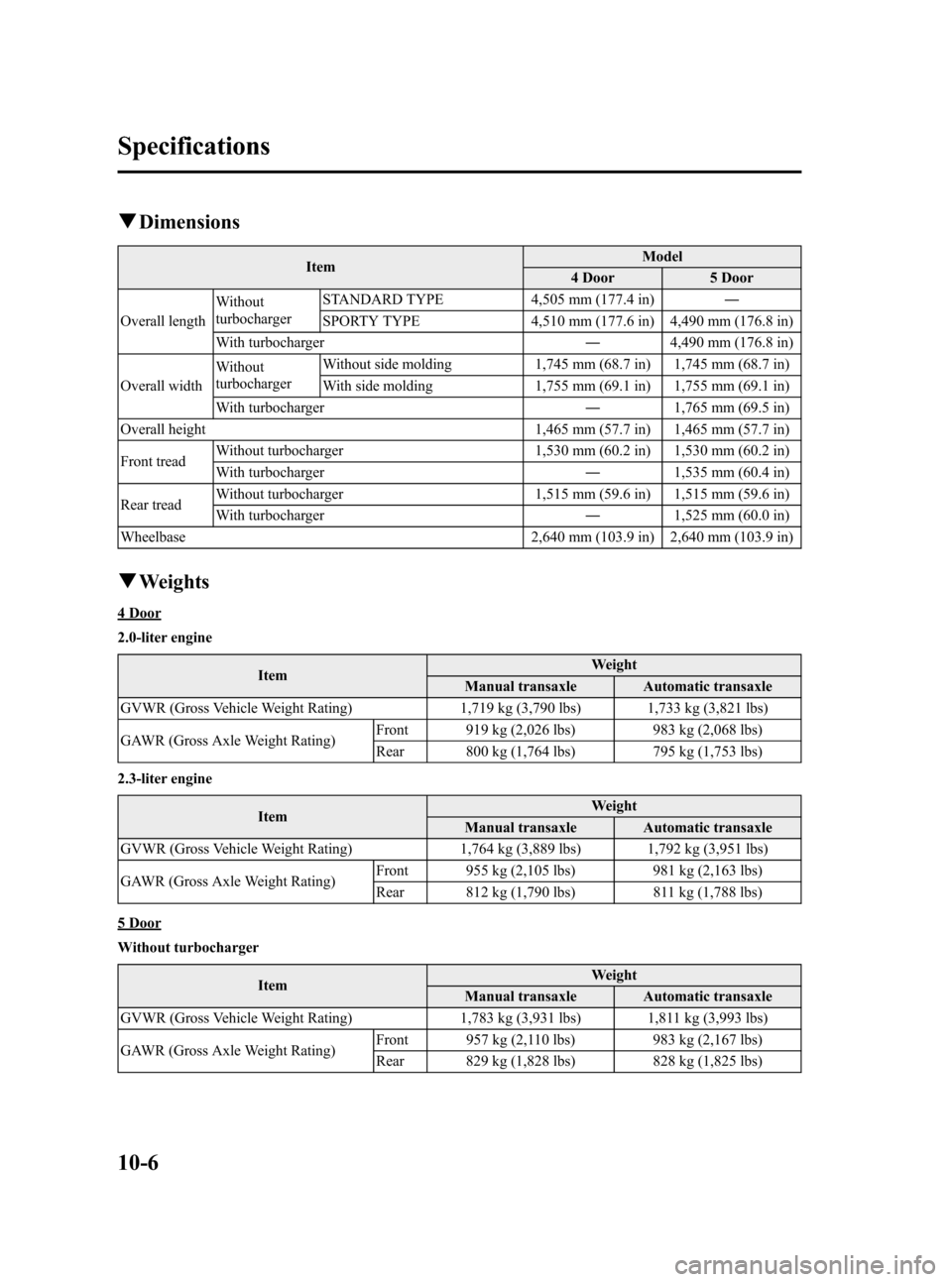

qDimensions
ItemModel
4 Door 5 Door
Overall lengthWithout
turbochargerSTANDARD TYPE 4,505 mm (177.4 in)―
SPORTY TYPE 4,510 mm (177.6 in) 4,490 mm (176.8 in)
With turbocharger―4,490 mm (176.8 in)
Overall widthWithout
turbochargerWithout side molding 1,745 mm (68.7 in) 1,745 mm (68.7 in)
With side molding 1,755 mm (69.1 in) 1,755 mm (69.1 in)
With turbocharger―1,765 mm (69.5 in)
Overall height 1,465 mm (57.7 in) 1,465 mm (57.7 in)
Front treadWithout turbocharger 1,530 mm (60.2 in) 1,530 mm (60.2 in)
With turbocharger―1,535 mm (60.4 in)
Rear treadWithout turbocharger 1,515 mm (59.6 in) 1,515 mm (59.6 in)
With turbocharger―1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in) 2,640 mm (103.9 in)
qWeights
4 Door
2.0-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,719 kg (3,790 lbs) 1,733 kg (3,821 lbs)
GAWR (Gross Axle Weight Rating)Front 919 kg (2,026 lbs) 983 kg (2,068 lbs)
Rear 800 kg (1,764 lbs) 795 kg (1,753 lbs)
2.3-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,792 kg (3,951 lbs)
GAWR (Gross Axle Weight Rating)Front 955 kg (2,105 lbs) 981 kg (2,163 lbs)
Rear 812 kg (1,790 lbs) 811 kg (1,788 lbs)
5 Door
Without turbocharger
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,783 kg (3,931 lbs) 1,811 kg (3,993 lbs)
GAWR (Gross Axle Weight Rating)Front 957 kg (2,110 lbs) 983 kg (2,167 lbs)
Rear 829 kg (1,828 lbs) 828 kg (1,825 lbs)
10-6
Specifications
Mazda3_8V66-EA-06F_Edition3 Page390
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (397,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-54
Defroster
Rear window .............................. 5-60
Dimensions ....................................... 10-6
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-13
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-23
DSC OFF indicator light ............ 5-24
DSC OFF switch ........................ 5-24
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-15
Flooded engine ........................... 7-15
Jump-starting .............................. 7-16
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-4
E
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-22
Oil .............................................. 8-18
Overheating ................................ 7-13
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-13
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-62
F
Flasher
Hazard warning .......................... 5-61
Headlights .................................. 5-51
Flat Tire ............................................... 7-3
Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-64
Fluids
Classification .............................. 10-5
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-55
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel
Filler lid and cap ........................ 3-21
Gauge ......................................... 5-35
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52
Panel description ........................ 8-55
Replacement ............................... 8-52
Index
11-3
Mazda3_8V66-EA-06F_Edition3 Page397
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F
