light MAZDA MODEL 3 HATCHBACK 2008 Owner's Manual (in English)

Black plate (200,1)
Handling the In-dash CD changer
lThis unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.
lStoring CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
lCD-R/CD-RW exceeding 700 MB
cannot be played.
lThis unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)
lIt is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.
lThe period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
lCompletely read the instruction manual
and cautions for CD-R/CD-RWs.
lDo not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.
qOperating tips for MP3
NOTE
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use this
product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems, such as
pay-audio or audio-on-demand applications.
An independent license for such use is
required. For details, please visit http://
www.mp3licensing.com.
lThis audio system handles MP3 files
that have been recorded on CD-R/CD-
RW/CD-ROMs. Discs that have been
recorded using the following formats
can be played:
lISO 9660 level 1lISO 9660 level 2lJoliet extended formatlRomeo extended formatlThis unit handles MP3 files
conforming to the MP3 format
containing both header frames and data
frames.
lThis unit can play multi-session
recorded discs that have up to 40
sessions.
lThis unit can play MP3s with sampling
frequencies of 16/22.05/24/32/44.1/48
kHz.
lThis unit can play MP3 files that have
been recorded in bit rates of 8 kbps to
320 kbps. Nonetheless, to insure
enjoyment of music with consistent
sound quality, it is recommended to use
discs that have been recorded at a bit
rate of 128 kbps or more.
6-22
Interior Comfort
Audio System
Mazda3_8X41-EA-07F_Edition2 Page200
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (228,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrorsí
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qIlluminated Entry Systemí
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).
lAbout 15 seconds after all doors are
closed.
lAbout 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes out
after about 30 minutes to save the battery.
The light turns on again when the ignition
switch is turned to the ON position, or when
any door is opened after all doors have been
closed.
6-50
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8X41-EA-07F_Edition2 Page228
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (229,1)
qOverhead Lightsí
Front
Switch
PositionFront Overhead Lights
Light off
lLight is on when any door is
open
l(With illuminated entry system)
Light is on or off when the
illuminated entry system is on
Rear
Switch
PositionRear Overhead Lights
Light off
Light is on when any door is open
(With illuminated entry system)
Light is on or off when the
illuminated entry system is on
Light on
qMap Lightsí
The map lights are switched on or off by
pressing the switches.
Switches
qLuggage Compartment Light (5
Door)
Interior Comfort
Interior Equipment
6-51íSome models. Mazda3_8X41-EA-07F_Edition2 Page229
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (230,1)
Switch
PositionLuggage Compartment Light
Light off
Light on when the liftgate is open
6-52
Interior Comfort
Interior Equipment
Mazda3_8X41-EA-07F_Edition2 Page230
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (235,1)
U.S.A.
CANADA
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 20 L(5.3 gal) of
fuel.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AV will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1 second.
After pressing the INFO switch,——
km/h (——mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Interior Comfort
Interior Equipment
6-57
Mazda3_8X41-EA-07F_Edition2 Page235
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (236,1)
Lighter
The ignition switch must be in the ACC
or ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
CAUTION
ØDon't touch the metal part of the
lighter, you may burn yourself.
ØDon't hold the lighter in because it
will overheat.
ØDon't use the lighter socket for
plug-in accessories such as
shavers and coffee pots. They may
damage it or cause electrical
failure. Use only a genuine Mazda
lighter or the equivalent.
ØIf the lighter doesn't pop out
within 30 seconds, remove it to
prevent overheating.
Ashtray
CAUTION
Do not use the ashtray for trash. You
might start a fire.
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
6-58
Interior Comfort
Interior Equipment
Mazda3_8X41-EA-07F_Edition2 Page236
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (238,1)
Bottle Holder
Bottle holders are on the inside of the
front doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Box
To open the glove box, pull the latch
toward you.
If the glove box has a lock, insert the key
and turn it clockwise to lock,
counterclockwise to unlock.
Unlock
Lock
6-60
Interior Comfort
Interior Equipment
Mazda3_8X41-EA-07F_Edition2 Page238
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (246,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8X41-EA-07F_Edition2 Page246
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (249,1)

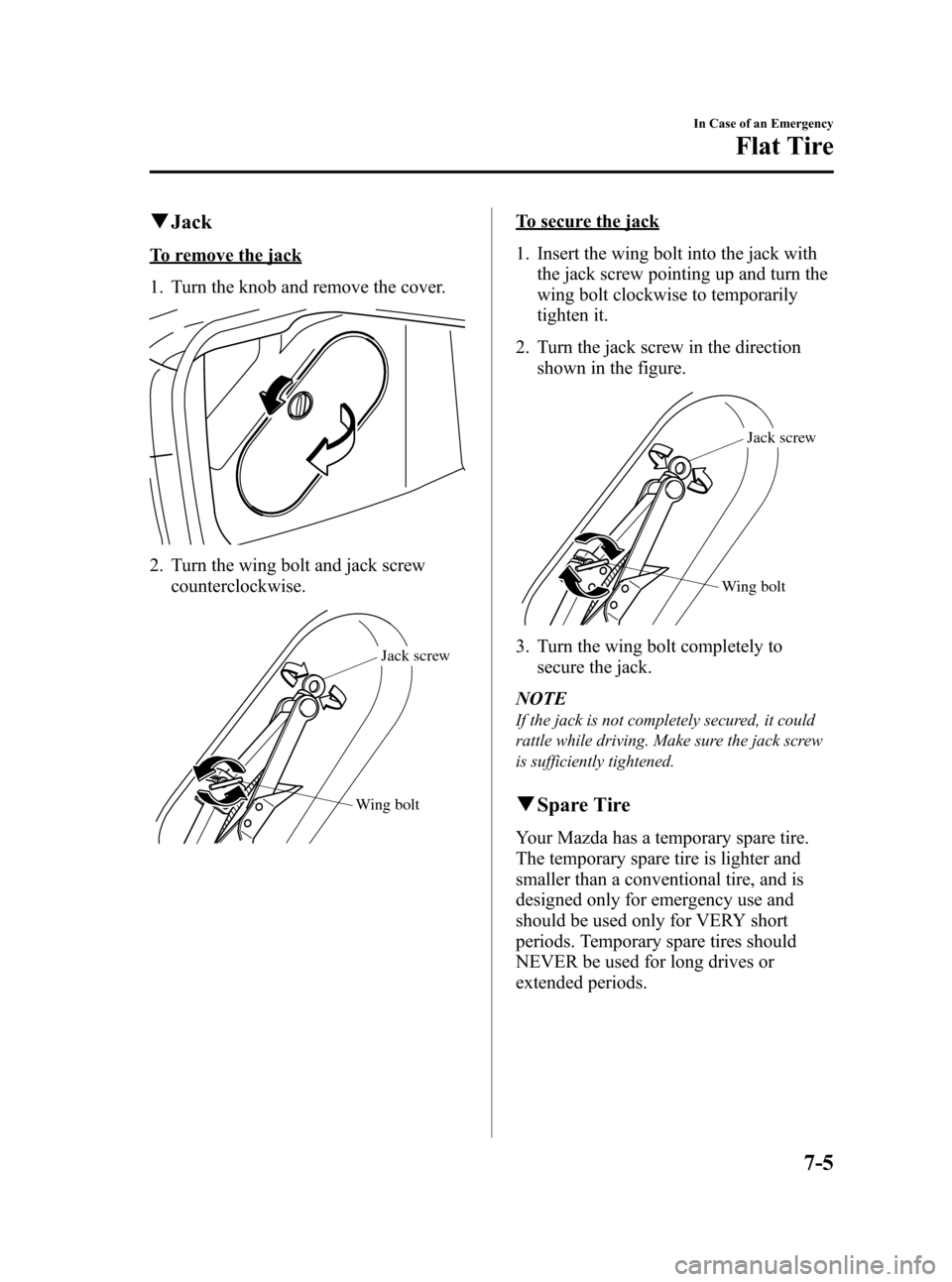

qJack
To remove the jack
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing boltJack screw
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing up and turn the
wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Wing boltJack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
In Case of an Emergency
Flat Tire
7-5
Mazda3_8X41-EA-07F_Edition2 Page249
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F

Black plate (250,1)
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels)
when driving on ice or snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the
ground clearance is reduced
about 25 mm (1 in).
ØDo not use a tire chain on this
tire because it won't fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
Ø(With limited slip differential)
When using the temporary spare
tire on the front axle, replace it
with a standard tire as soon as
possible. The size difference
between the spare and the
standard tire will cause the limited
slip differential to malfunction.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-28).
7-6
In Case of an Emergency
Flat Tire
Mazda3_8X41-EA-07F_Edition2 Page250
Monday, June 18 2007 1:29 PM
Form No.8X41-EA-07F
