MAZDA MODEL 3 HATCHBACK 2008 (in English) Owner's Guide

Black plate (21,1)
1. Unfasten the lap portion of the center-
rear seat belt (page 2-19).
CAUTION
Always unfasten the lap portion of
the belt before folding the rear-left
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, buckle and
seatback.
2. Position the outboard seat belts to the
side when folding the seatbacks down.
3. Support the seatback with your hand.
4. Push the rear seatback knob down.
To return the seatbacks to the upright
position
1. Position the outboard seat belts to the
side.
2. Lift the seatbacks upright.
3. Make sure the seat belts are fully
pulled out from under the seatbacks.
4. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
5. Fasten the center-rear lap/shoulder belt
and check that all seat belts are routed
properly for passenger use (page 2-19).
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication:
A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position
Red indicator
Essential Safety Equipment
Seats
2-7
Mazda3_8X41-EA-07F_Edition2 Page21
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (22,1)
qRear Seatback Lock (4 Door)
To lock or unlock a seatback, move the
lever.
NOTE
The seatback locks are part of the trunk
security system (page 3-15).
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.
2-8
Essential Safety Equipment
Seats
Mazda3_8X41-EA-07F_Edition2 Page22
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (23,1)

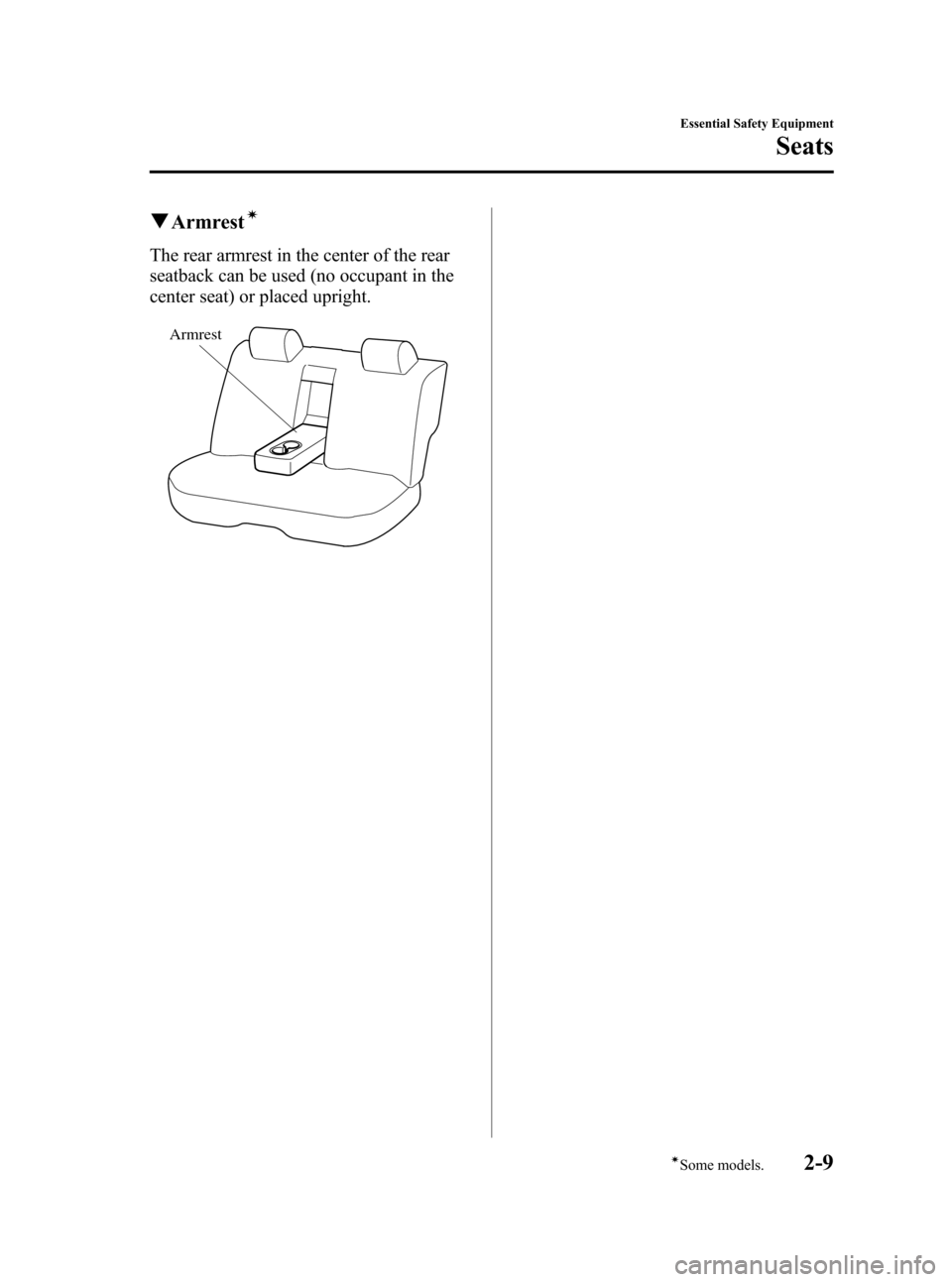

qArmrestí
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Armrest
Essential Safety Equipment
Seats
2-9íSome models. Mazda3_8X41-EA-07F_Edition2 Page23
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (24,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
2-10
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page24
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (25,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. While it is safer to use a crash-used seat belt that was
used in an accident than no seat belt at all, using a seat belt with an expended
pretensioner or load limiter loaded reduces the safety available to you. Like the air
bags, the seat belt pretensioners will only function once. After they are expended,
they will not function again and must be replaced immediately. If the seat belt
pretensioners are not replaced, the risk of injury in a collision will increase. Always
have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags
after any collision. Expended seat belt pretensioners and air bags must be replaced
after any collision which caused them to deploy. Additionally, the load limiter will
only limit loads on the chest once in a collision and this is another reason to have the
front seat belts inspected.
Essential Safety Equipment
Seat Belt Systems
2-11
Mazda3_8X41-EA-07F_Edition2 Page25
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (26,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing”(page 8-64).
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
2-12
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page26
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (27,1)
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-25).
Essential Safety Equipment
Seat Belt Systems
2-13
Mazda3_8X41-EA-07F_Edition2 Page27
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (28,1)
Seat Belt (Except Center-
Rear Position)
NOTE
When using the center-rear seat belt, refer to
“Center-Rear Position Seat Belt”(page 2-19).
qFastening the Seat Belt
1. Grasp the tongue.
2. Slowly pull out the lap/shoulder belt.
TongueBelt
3. Insert the tongue into the buckle until
you hear a click.
BuckleTongue
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible,
not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Keep low on
hip bone
Too high Take up slack
WARNING
Positioning the Lap Portion of the Seat
Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
2-14
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page28
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (29,1)
qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qShoulder Belt Adjusterí
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the adjuster and slide it
down. Make sure the adjuster is locked.
To raise To lower
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
Essential Safety Equipment
Seat Belt Systems
2-15íSome models. Mazda3_8X41-EA-07F_Edition2 Page29
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (30,1)
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The front seat belt
retractors remove slack quickly as the air
bags are expanding.
In addition, the pretensioner system for
the front passenger, like the front
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat. Any
time the air bags and seat belt
pretensioners have fired they must be
replaced. For details, refer to the front
passenger seat weight sensors (page 2-47).
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer.
WARNING
Wear seat belts only as recommended
in this owner's manual:
Incorrect positioning of the driver and
front passenger seat belts is
dangerous. Without proper
positioning, the pretensioner and
load limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to“Fastening the seat
belts”(page 2-14).
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page30
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F
