MAZDA MODEL 3 HATCHBACK 2008 Owner's Manual (in English)

Black plate (381,1)
qTire Pressure Label
qEngine Number
Without turbocharger
Forward
With turbocharger
Forward
Identification Numbers
10-3
Mazda3_8X41-EA-07F_Edition2 Page381
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (382,1)
Specifications
qEngine
ItemSpecification
Without turbocharger
With turbocharger
2.0-liter engine 2.3-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke87.5 × 83.1 mm
(3.44 × 3.27 in)87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement1,999 ml
(1,999 cc, 122.0 cu in)2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 10.0 9.7 9.5
qElectrical System
Item Classification
BatteryWithout
turbocharger2.0-liter engine 12V-40AH/5HR, 12V-52AH/5HR
2.3-liter engine12V-40AH/5HR, 12V-52AH/5HR,
12V-55AH/5HR
With turbocharger 12V-48AH/5HR, 12V-55AH/5HR
Spark-plug numberWithout turbocharger LFG1 18 110
*1, L3Y2 18 110
With turbocharger L3K9 18 110A*1, L3Y3 18 110
Spark-plug gapWithout turbocharger 1.25―1.35 mm (0.050―0.053 in)
With turbocharger 0.70―0.8 mm (0.028―0.031 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oilWithout turbochargerAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10°CAPI Service GL-4 or GL-5
SAE 80W-90
With turbochargerAPI Service GL-4
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8X41-EA-07F_Edition2 Page382
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (383,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWithout turbochargerWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
With turbochargerWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oilWithout turbocharger 2.87 L (3.03 US qt, 2.53 Imp qt)
With turbocharger 2.5 L (2.6 US qt, 2.2 Imp qt)
Automatic transaxle fluid4-speed transaxle 7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank55.0 L
(14.5 US gal, 12.1 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
ItemModel
4 Door 5 Door
Overall lengthWithout
turbochargerSTANDARD TYPE 4,505 mm (177.4 in)―
SPORTY TYPE 4,510 mm (177.6 in) 4,490 mm (176.8 in)
With turbocharger―4,490 mm (176.8 in)
Overall widthWithout
turbochargerWithout side molding 1,745 mm (68.7 in) 1,745 mm (68.7 in)
With side molding 1,755 mm (69.1 in) 1,755 mm (69.1 in)
With turbocharger―1,765 mm (69.5 in)
Overall height 1,465 mm (57.7 in) 1,465 mm (57.7 in)
Front treadWithout turbocharger 1,530 mm (60.2 in) 1,530 mm (60.2 in)
With turbocharger―1,535 mm (60.4 in)
Rear treadWithout turbocharger 1,515 mm (59.6 in) 1,515 mm (59.6 in)
With turbocharger―1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in) 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8X41-EA-07F_Edition2 Page383
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (384,1)
qWeights
4 Door
2.0-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,719 kg (3,790 lbs) 1,733 kg (3,821 lbs)
GAWR (Gross Axle Weight Rating)Front 919 kg (2,026 lbs) 983 kg (2,068 lbs)
Rear 800 kg (1,764 lbs) 795 kg (1,753 lbs)
2.3-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,792 kg (3,951 lbs)
GAWR (Gross Axle Weight Rating)Front 955 kg (2,105 lbs) 981 kg (2,163 lbs)
Rear 812 kg (1,790 lbs) 811 kg (1,788 lbs)
5 Door
Without turbocharger
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,783 kg (3,931 lbs) 1,811 kg (3,993 lbs)
GAWR (Gross Axle Weight Rating)Front 957 kg (2,110 lbs) 983 kg (2,167 lbs)
Rear 829 kg (1,828 lbs) 828 kg (1,825 lbs)
With turbocharger
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,866 kg (4,114 lbs)
GAWR (Gross Axle Weight Rating)Front 1,055 kg (2,326 lbs)
Rear 811 kg (1,788 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
10-6
Specifications
Mazda3_8X41-EA-07F_Edition2 Page384
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (385,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 60 HB3 (HB3)
Low beamHalogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Side-marker lights 27/8―(#1157NA)
Fog lights
íType A 55 H11 (H11)
Type B 51 HB4 (HB4)
Side turn signal lights
*15 WY5W (―)
High-mount brake light4 Door 18 W16W (#921)
5 DoorNon-LED bulb 18 W16W (#921)
LED bulb
*12.4―(―)
Rear turn signal lights 21 WY21W (―)
Brake lights/TaillightsNon-LED bulb 21/5 W21/5W (#7443)
LED bulb
*24/1―(―)
Reverse lights 21 W21W (#7440)
License plate light 5 W5W (―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 Bulb replacement is not possible. The rear combination component must be replaced.
Fog lights
Type A Type B
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (4 Door)
5W5W
Luggage compartment light (5 Door)―
Overhead light/Map lights (Front)
íW5W
Overhead light (Rear) 10―
Specifications
10-7íSome models. Mazda3_8X41-EA-07F_Edition2 Page385
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (386,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tire
Tire sizeInflation pressure
Front Rear
P195/65R15 89H 230 kPa (34 psi) 230 kPa (34 psi)
P205/55R16 89H 220 kPa (32 psi) 220 kPa (32 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
215/45R18 93Y 230 kPa (34 psi) 220 kPa (32 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M
420 kPa (60 psi) T125/70D16 96M
T125/70D17 98M
qFuses
Refer to the fuse rating on page 8-50.
10-8
Specifications
Mazda3_8X41-EA-07F_Edition2 Page386
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (387,1)

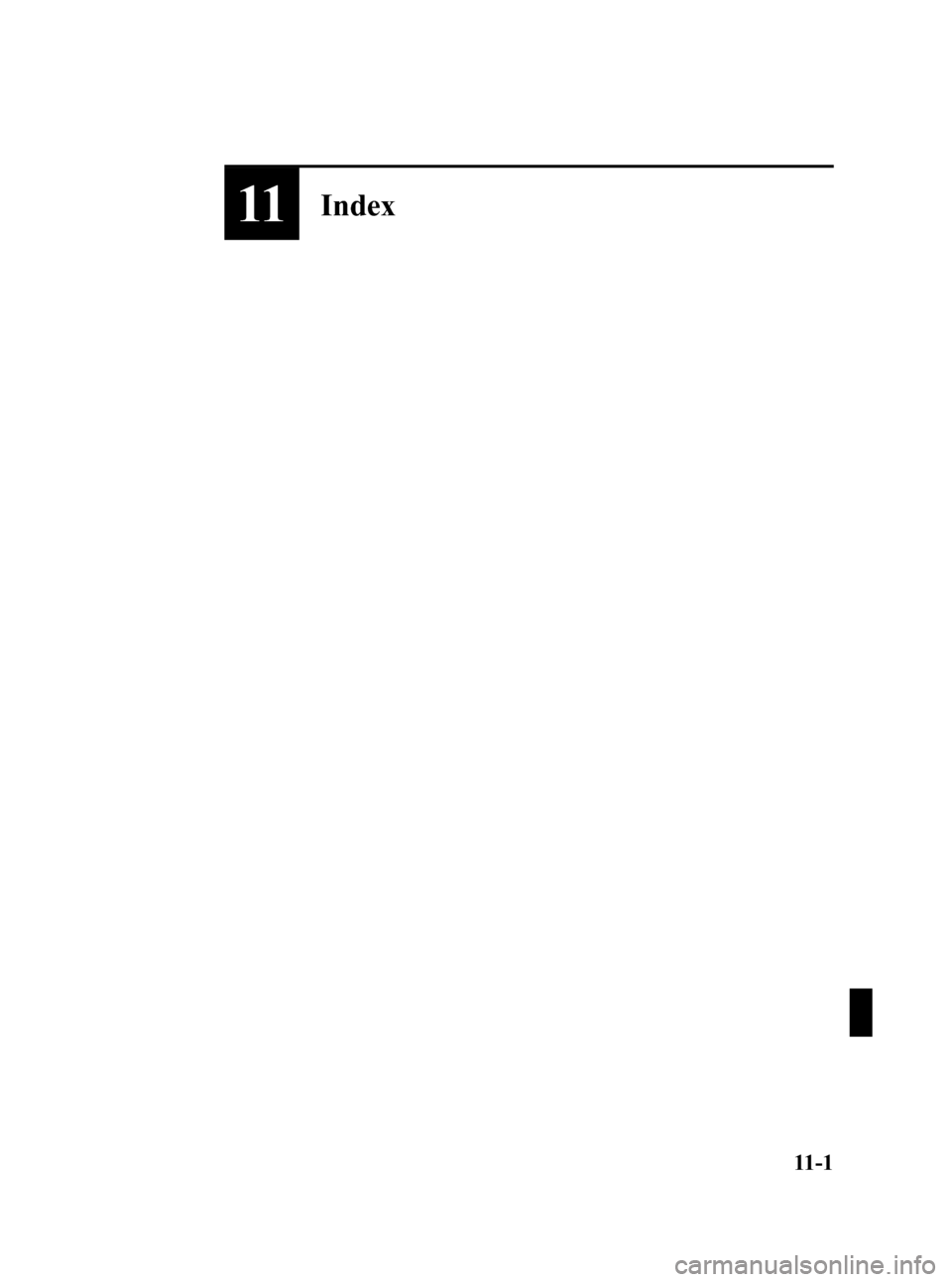

11Index
11-1
Mazda3_8X41-EA-07F_Edition2 Page387
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (388,1)
A
Accessory Socket .............................. 6-64
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-40
Ambient Temperature Display .......... 6-54
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7
Warning light ............................... 5-8
Appearance Care ............................... 8-58
Ashtray .............................................. 6-58
Audio System ................................... 6-15
Audio control switch .................. 6-44
Audio set .................................... 6-27
Auxiliary Input ........................... 6-46
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-49
Automatic Transaxle
Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
Battery
Emergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds
Ignition key reminder ................. 5-49
Lights-on reminder ..................... 5-49
Tire inflation pressure warning
beep ............................................ 5-49
Beeps
Seat belt warning beep Sounds ... 5-49
B
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-60
Brake/Clutch
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-61
Cargo Sub-Compartment .................. 6-61
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-17
Center Console .................................. 6-61
Child Restraint
Child restraint precautions ......... 2-25
Installing child-restraint
systems ....................................... 2-29
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-10
Cigarette Lighter ............................... 6-58
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-54
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-59
11-2
Index
Mazda3_8X41-EA-07F_Edition2 Page388
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (389,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-35
Daytime Running Lights ................... 5-53
Defroster
Rear window .............................. 5-58
Dimensions ....................................... 10-5
Door Locks ......................................... 3-8
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-12
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-24
DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-4
E
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-21
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-34
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher
Hazard warning .......................... 5-60
Headlights .................................. 5-50
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-62
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-54
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel
Filler lid and cap ........................ 3-20
Gauge ......................................... 5-35
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-50
Panel description ........................ 8-53
Replacement ............................... 8-50
Index
11-3
Mazda3_8X41-EA-07F_Edition2 Page389
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F

Black plate (390,1)
G
Glove Box ......................................... 6-60
H
Hazard Warning Flasher .................... 5-60
Hazardous Driving .............................. 4-8
Headlights
Control ....................................... 5-50
Flashing ...................................... 5-52
High-low beam .......................... 5-52
Leveling ..................................... 5-52
On reminder ............................... 5-52
Hood Release .................................... 3-21
Horn .................................................. 5-59
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-50
Immobilizer System .......................... 3-25
Indicator Lights ................................. 5-37
Cruise ......................................... 5-47
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-46
TCS/DSC ................................... 5-47
Turn-signal/hazard warning ....... 5-48
Information Display .......................... 6-53
Ambient temperature display ..... 6-54
Audio display ............................. 6-55
Climate control display .............. 6-55
Clock .......................................... 6-54
Information display functions .... 6-53
Trip computer ............................. 6-55
I
Inside Trunk Release Lever ............... 3-16
Instrument Cluster ............................. 5-32
Instrument Cluster Dimmer Select
Button ............................................... 5-35
Interior Care ...................................... 8-63
Interior Lights ................................... 6-50
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-53
Liftgate .............................................. 3-11
Luggage compartment ............... 3-12
Light Bulbs
Replacement ............................... 8-39
Specifications ............................. 10-7
Lighter ............................................... 6-58
Lighting Control ............................... 5-50
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-51
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
11-4
Index
Mazda3_8X41-EA-07F_Edition2 Page390
Monday, June 18 2007 1:31 PM
Form No.8X41-EA-07F
