Black plate (92,1)

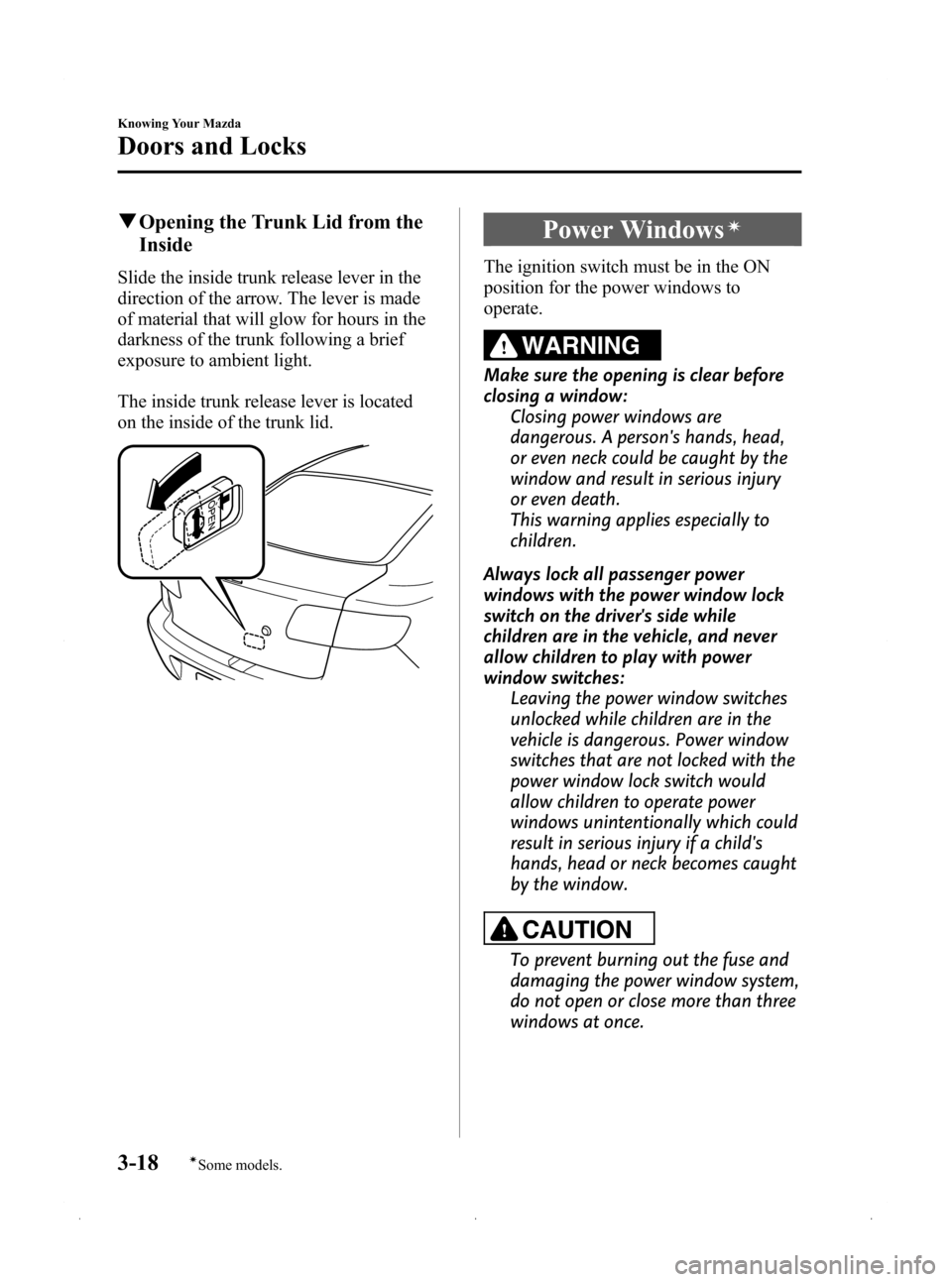

qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Power Windowsí
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
3-18
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda3_8Z87-EA-08F_Edition1 Page92
Monday, May 19 2008 9:56 AM
Form No.8Z87-EA-08F

Black plate (157,1)
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
With turbocharger
Without turbocharger
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
Driving Your Mazda
Instrument Cluster and Indicators
5-35
Mazda3_8Z87-EA-08F_Edition1 Page157
Monday, May 19 2008 9:57 AM
Form No.8Z87-EA-08F

Black plate (214,1)
qOperating the Radio
Channel
preset
buttons
Manual tuning dial/Auto memory button Scan button
Band selector buttons
Seek tuning buttons
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1 →FM2 →AM.
The selected mode will be indicated. If
FM stereo is being received, “ST ”will be
displayed.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise, and the
“ ST ”indicator will go out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
Seek tuning
Pressing the seek tuning button (
,)
will cause the tuner to seek a higher or
lower frequency automatically.
6-30
Interior Comfort
Audio System
Mazda3_8Z87-EA-08F_Edition1 Page214
Monday, May 19 2008 9:57 AM
Form No.8Z87-EA-08F

Black plate (215,1)
NOTE
If you continue to press and hold the button,
the frequency will continue changing without
stopping.
Scan tuning
Press the scan button (
)to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button (
) again during this interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.
2. Depress a channel preset button for about 2 seconds until a beep sound is
heard. The preset channel number and
station frequency will be displayed.
The station is now held in the memory.
3. Repeat this operation for the other stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.
Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels. Press and hold the auto memory button
(
) for about 2 seconds until a beep
sound is heard; the system will
automatically scan and temporarily store
up to 6 stations with the strongest
frequencies in each selected band in that
area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(
) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after scanning
operations, “A ” will be displayed.
Interior Comfort
Audio System
6-31
Mazda3_8Z87-EA-08F_Edition1 Page215
Monday, May 19 2008 9:57 AM
Form No.8Z87-EA-08F

Black plate (287,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-18
Engine Coolant ....................................................................... 8-21
Brake/Clutch Fluid .................................................................. 8-23
Power Steering Fluid ............................................................... 8-24
Automatic Transaxle Fluid (ATF)
í........................................ 8-25
Washer Fluid ........................................................................... 8-27
Body Lubrication .................................................................... 8-28
Wiper Blades ........................................................................... 8-29
Battery ..................................................................................... 8-32
Tires ........................................................................................ 8-35
Light Bulbs ............................................................................. 8-39
Fuses ....................................................................................... 8-50
Appearance Care ........................................................................ 8-58 How to Minimize Environmental Paint Damage .................... 8-58
Exterior Care ........................................................................... 8-60
Interior Care ............................................................................ 8-63
8-1íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page287
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (303,1)
Engine Compartment Overview
Main fuse
Automatic transaxle fluid-level dipstick
(Only for automatic transaxle) Brake/Clutch fluid
reservoir
Engine coolant
reservoir
Engine oil
dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil-filler cap BatteryFuse block
Without turbocharger
Main fuse
Brake/Clutch fluid
reservoir
Engine coolant reservoir
Engine oil dipstick
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil-filler cap BatteryFuse block
With turbocharger
Maintenance and Care
Owner Maintenance
8-17
Mazda3_8Z87-EA-08F_Edition1 Page303
Monday, May 19 2008 9:58 AM
Form No.8Z87-EA-08F

Black plate (336,1)
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system does not work,
first inspect the fuses on the front
passenger's side below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page336
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (337,1)
3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it'sblown.
Normal Blown
7. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8Z87-EA-08F_Edition1 Page337
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (338,1)
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page338
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (339,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3
4 5 6
789
10
11 12 13
1415
16 17 18
19 20 21
22
23
24
25
26
27
28
29
30 31
32
33
34
35
36
Without turbocharger
DESCRIPTION FUSE RATINGPROTECTED COMPONENT
1 FAN 40A Cooling fan
2 P/ST 80A Power steering
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 PTC ――
6 GLOW/P.SEAT 30A Power seat
7 ABS 1 30A ABS
í, DSCí
8ABS 2 20A ABSí, DSCí
9ENGINE 30A For protection of various circuits
10 ―― ―
11 IG KEY 1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY 2 30A Ignition switch
14 GLOW 1 ――
15 HEATER 40A Blower motor
16 GLOW 2 ――
17 DEFOG 40A Rear window defroster
Maintenance and Care
Owner Maintenance
8-53íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page339
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F
