width MAZDA MODEL 3 HATCHBACK 2010 Owner's Manual (in English)

Black plate (31,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. Like the air bags, the front seat belt pretensioners will
only function once. While it is safer to use a post-crash (a seat belt that was used in
an accident) than no front seat belt at all, using a front seat belt with an expended
pretensioner or load limiter loaded reduces the safety available to you. If the front
seat belt pretensioners are not replaced, the risk of injury in a collision will increase.
Expended front seat belt pretensioners and air bags must be replaced after any
collision which caused them to deploy. Additionally, the load limiter will only limit
loads on the chest once in a collision and this is another reason to have the front
seat belts inspected. Always have an Authorized Mazda Dealer inspect the front seat
belt pretensioners and air bags after any collision.
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda3_8AD6-EC-09A_Edition1 Page31
Tuesday, December 2 2008 2:26 PM
Form No.8AD6-EC-09A

Black plate (400,1)
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-23.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
Ø(With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-32.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-36
Maintenance and Care
Owner Maintenance
Mazda3_8AD6-EC-09A_Edition1 Page400
Tuesday, December 2 2008 2:28 PM
Form No.8AD6-EC-09A

Black plate (446,1)
WARNING
Keep your vehicle's tires properly inflated and not overloaded:
Driving with improperly inflated or overloaded tires is dangerous. Excessive speed,
underinflation, or excessive loading, either separately or in combination, can cause
heat buildup and possible tire failure. The temperature grade for this tire is
established for a tire that is properly inflated and not overloaded.
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
qUniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR 200 TRACTION AA
TEMPERATURE A
UTQGS MARK (example)
9-22
Customer Information
Uniform Tire Quality Grading System (UTQGS)
Mazda3_8AD6-EC-09A_Edition1 Page446
Tuesday, December 2 2008 2:28 PM
Form No.8AD6-EC-09A

Black plate (447,1)
Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifies and describes the fundamental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.
qInformation on Passenger Vehicle Tires
Please refer to the diagram below.
1. TIN: U.S. DOT tire identification number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Rim diameter code
7. Load index & speed symbol
8. Severe snow conditions
9. Tire ply composition and materials used
10. Max. load rating
Customer Information
Tire Information (U.S.A.)
9-23
Mazda3_8AD6-EC-09A_Edition1 Page447
Tuesday, December 2 2008 2:28 PM
Form No.8AD6-EC-09A

Black plate (448,1)
11. Tread wear, traction and temperature grades
12. Max. permissible inflation pressure
13. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).
215
“215”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“65”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R”is the tire construction symbol. R indicates“Radial ply construction”.
15
“15”is the wheel rim diameter in inches.
95
“95”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
9-24
Customer Information
Tire Information (U.S.A.)
Mazda3_8AD6-EC-09A_Edition1 Page448
Tuesday, December 2 2008 2:28 PM
Form No.8AD6-EC-09A

Black plate (451,1)
qInformation on Temporary Tires
Please refer to the diagram below.
1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index&speed symbol
T115/70D 16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
T
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
11 5
“115”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
Customer Information
Tire Information (U.S.A.)
9-27
Mazda3_8AD6-EC-09A_Edition1 Page451
Tuesday, December 2 2008 2:28 PM
Form No.8AD6-EC-09A

Black plate (452,1)

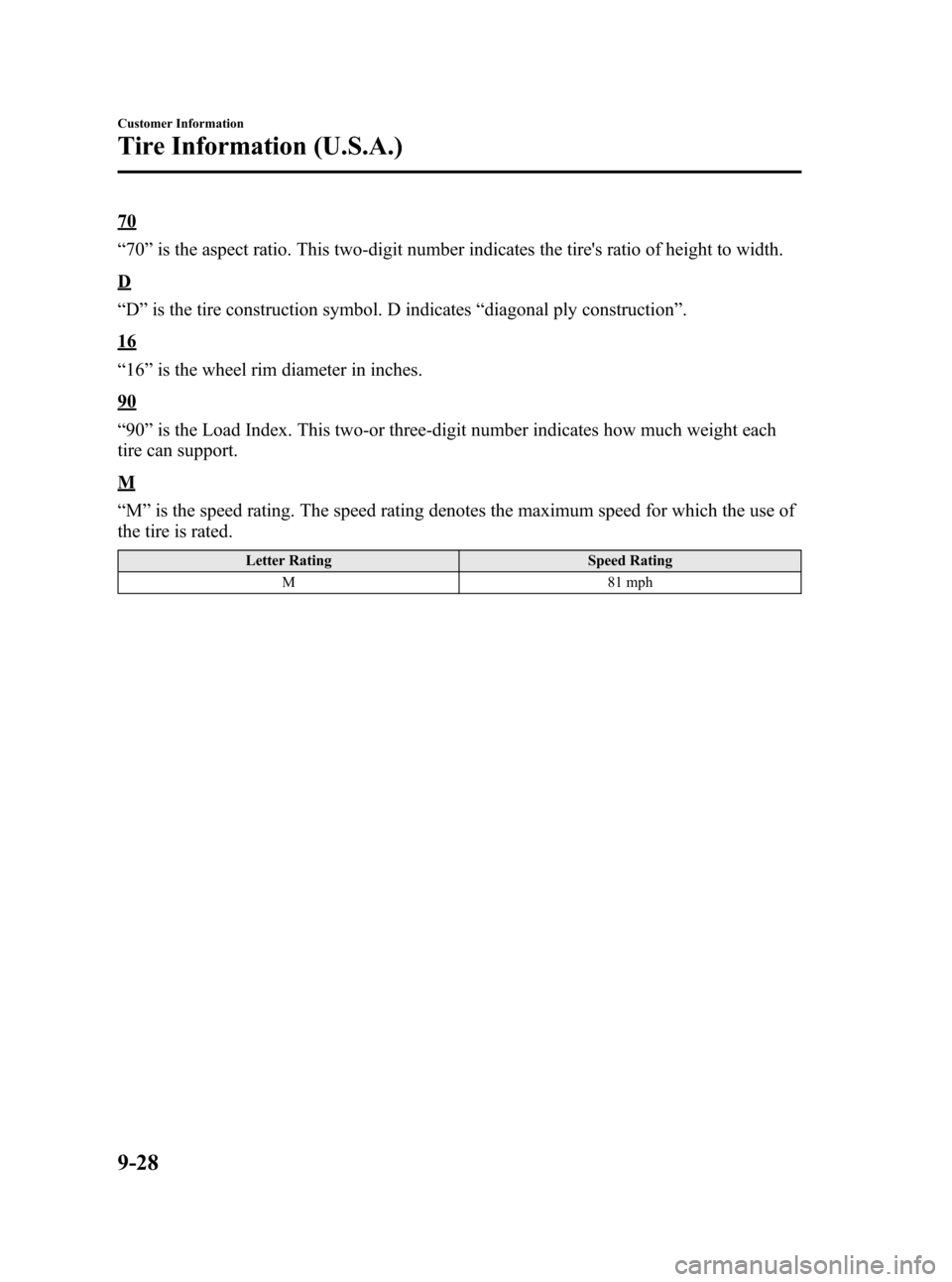

70
“70”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
D
“D”is the tire construction symbol. D indicates“diagonal ply construction”.
16
“16”is the wheel rim diameter in inches.
90
“90”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
M
“M”is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.
Letter Rating Speed Rating
M 81 mph
9-28
Customer Information
Tire Information (U.S.A.)
Mazda3_8AD6-EC-09A_Edition1 Page452
Tuesday, December 2 2008 2:28 PM
Form No.8AD6-EC-09A

Black plate (475,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.0-liter
engineWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
2.5-liter
engineWith oil filter
replacement5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle
oil5-speed transaxle 2.77 L (2.93 US qt, 2.44 Imp qt)
6-speed transaxle 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank2.0-liter engine 55.0 L (14.5 US gal, 12.1 Imp gal)
2.5-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
4 Door
Item Vehicle specification
Overall lengthSTANDARD TYPE 4,590 mm (180.7 in)
SPORTY TYPE 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16 inch 1,535 mm (60.4 in)
17 inch 1,530 mm (60.2 in)
Rear tread16 inch 1,520 mm (59.8 in)
17 inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8AD6-EC-09A_Edition1 Page475
Tuesday, December 2 2008 2:29 PM
Form No.8AD6-EC-09A

Black plate (476,1)
5 Door
Item Vehicle specification
Overall lengthSTANDARD TYPE
(Canada)4,500 mm (177.2 in)
SPORTY TYPE 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16 inch 1,535 mm (60.4 in)
17 inch 1,530 mm (60.2 in)
Rear tread16 inch 1,520 mm (59.8 in)
17 inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
qWeights
4 Door
2.0-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating)Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
2.5-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating)Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
5 Door
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,837 kg (4,050 lbs) 1,863 kg (4,107 lbs)
GAWR (Gross Axle Weight Rating)Front 977 kg (2,154 lbs) 1,006 kg (2,218 lbs)
Rear 860 kg (1,896 lbs) 857 kg (1,889 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
10-6
Specifications
Mazda3_8AD6-EC-09A_Edition1 Page476
Tuesday, December 2 2008 2:29 PM
Form No.8AD6-EC-09A
