MAZDA MODEL 3 HATCHBACK 2013 Owners Manual (in English)

Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY:1-800-424-9153); go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC,
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-13) in
this booklet.
9-42
Customer Information
Reporting Safety Defects

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information
Reporting Safety Defects
9-43

Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-017B-13 2013 WORKSHOP MANUAL (English)
9999-MX-017B-13 2013 WORKSHOP MANUAL (Spanish)
9999-95-019G-13 2013 WIRING DIAGRAM (English)
9999-MX-019G-13 2013 WIRING DIAGRAM (Spanish)
9999-95-038C-13R 2013 OWNER'S MANUAL (English)
9999-EC-038C-13R 2013 OWNER'S MANUAL (English and French)
9999-PR-038C-13R 2013 OWNER'S MANUAL (Spanish)
9999-95-MODL-13 2013 SERVICE HIGHLIGHTS
9999-95-NAV1-132013 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-NAV1-132013 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-NAV1-132013 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-44
Customer Information
Service Publications

qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
Customer Information
Service Publications
9-45

9-46

10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
Personalization Features .......................................................... 10-13
Personalization Features ........................................................ 10-13
10-1

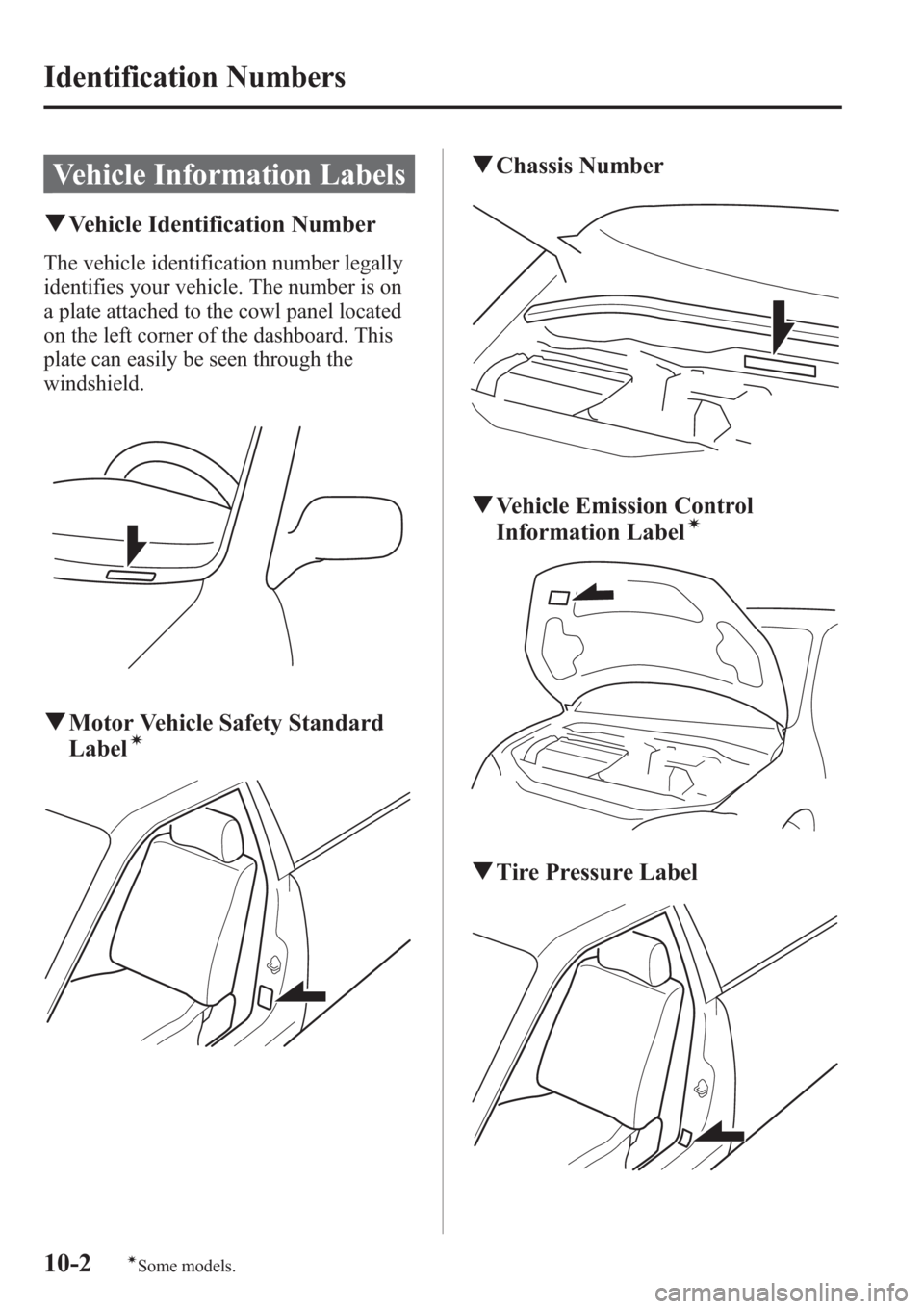

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Labelí
qChassis Number
qVehicle Emission Control
Information Labelí
qTire Pressure Label
10-2íSome models.
Identification Numbers

qEngine Number
MZR 2.0, MZR 2.5
Forward
SKYACTIV-G 2.0
Forward
MZR 2.3 DISI Turbo
Forward
Identification Numbers
10-3

Specifications
qEngine
ItemSpecification
MZR 2.0 SKYACTIV-G 2.0
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 83.1 mm (3.44 × 3.27 in) 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,999 ml (1,999 cc, 122.0 cu in) 1,998 ml (1,998 cc, 121.9 cu in)
Compression ratio 10.0 12.0
ItemSpecification
MZR 2.3 DISI Turbo MZR 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,261 ml (2,261 cc, 138.0 cu in) 2,488 ml (2,488 cc, 151.8 cu in)
Compression ratio 9.5 9.7
qElectrical System
ItemClassification
MZR 2.0 SKYACTIV-G 2.0
Battery 12V-50Ah/20HR or 12V-65Ah/20HR 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug numberMazda Genuine
spark plugLFJD-18-110 or
L3Y2-18-110Mazda Genuine
spark plug
*1PE5R-18-110 or
PE5S-18-110
ItemClassification
MZR 2.3 DISI Turbo MZR 2.5
Battery 12V-60Ah/20HR or 12V-65Ah/20HR12V-50Ah/20HR, 12V-60Ah/20HR, or
12V-65Ah/20HR
Spark-plug numberMazda Genuine
spark plugL3BD-18-110 or
L3YD-18-110Mazda Genuine
spark plugLFJD-18-110 or
L3Y2-18-110
*1 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda
Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
10-4
Specifications

qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-21.
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid5-speed transaxle Mazda Genuine ATF M-V
6-speed transaxle Mazda Genuine ATF FZ
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.
Specifications
