*Some models.4–19
When Driving
Instrument Cluster and Display
Active Driving Display *
Optical receiver Mirror Combiner
WARNING
Adjust the brightness or the display position while paying attention to safe driving:
If you do not pay attention to your driving while trying to make the adjustments, it could
lead to an unexpected accident.
CAUTION



¾ Do not try to adjust the angle or open/close the active driving display manually.
Fingerprints on the display will make it diffi cult to view and using excessive force when
operating it could cause damage.



¾ Do not place objects in the vicinity of the active driving display. The active driving display
may not operate or any interference with its operation could cause damage.



¾ Do not place beverages near the active driving display. If water or other liquids are
splashed on the active driving display, it could cause damage.



¾ Do not place objects above the active driving display screen or apply stickers to the
combiner as they will cause interference.



¾ A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display diffi cult to view.




¾ Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
NOTE




y It may be diffi cult to view the display when wearing sunglasses. Take off your sunglasses
or adjust the luminosity.



y If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.



y The display may be diffi cult to view or temporarily affected by weather conditions such
as rain, snow, light, and temperature.



y If the audio system is removed, the active driving display cannot be operated.
/C\FCA&('#*A'FKVKQPKPFD

4–20
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:



y Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-91 .



y Lane Departure Warning System (LDWS) Operation Conditions and Warnings
 Refer to Lane Departure Warning System (LDWS) on page 4-119 .



y Smart City Brake Support (SCBS) Operation Conditions and Warnings
 Refer to Smart City Brake Support (SCBS) on page 4-72 .



y Forward Obstruction Warning (FOW) Operation Conditions and Warnings
 Refer to Forward Obstruction Warning (FOW) on page 4-116 .



y Vehicle Speed Setting Using Cruise Control
 Refer to Cruise Control on page 4-100 .



y Turn-by-Turn (TBT) (Direction and Distance) and Lane Guidance



y Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the Type B audio
display.
1. Select the (
) icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.


y
Height : Active driving display position


y
Brightness Control : Method for adjusting screen brightness (Automatically/Manually)


y
Calibration : Brightness initialization setting (when selecting automatic adjustment)


y
Brightness : Brightness adjustment (when selecting manual adjustment)


y
Navigation : On/Off


y
Active Driving Display : On/Off


y
Reset
/C\FCA&('#*A'FKVKQPKPFD

4–21
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifi cations.
Warning/Indicator lights will appear in any of the highlighted areas Type A
Type B
Type C
Center of Dashboard(Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer)) Instrument Cluster
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–22
When Driving
Instrument Cluster and Display
Warning Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.
Signal Warning Lights Page
Master Warning Light *1 7-24
Brake System Warning Light *1*2 7-24
ABS Warning Light *1 7-24
Charging System Warning Light *1 7-24
Engine Oil Warning Light *1 7-24
Check Engine Light *1 7-24
(Red) High Engine Coolant Temperature Warning Light
*1 7-24
* Automatic Transaxle Warning Light *1 7-24
Power Steering Malfunction Indicator Light *1 7-24
Air Bag/Front Seat Belt Pretensioner System Warning Light *1 7-24
Low Fuel Warning Light 7-24
Check Fuel Cap Warning Light *1 7-24
Seat Belt Warning Light 7-24
Door-Ajar Warning Light 7-24
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–23
When Driving
Instrument Cluster and Display
Signal Warning Lights Page
Low Washer Fluid Level Warning Light 7-24
* Tire Pressure Monitoring System Warning Light *1 7-24
(Red) KEY Warning Light 7-24
(Red)
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Warning Light *1 4-78 ,
4-118
(Amber)
* Lane Departure Warning System (LDWS) Warning Light *1*3 7-24
(Amber)
* High Beam Control System (HBC) Warning Light *1 7-24
(Amber)
* Mazda Radar Cruise Control (MRCC) Warning Light *1 7-24
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
*3 The light turns on when the system on stand-by. The light fl ashes when the system has a malfunction.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–24
When Driving
Instrument Cluster and Display
Indicator Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.
Signal Indicator Lights Page
* BSM OFF Indicator Light 4-114
(Green)
* Lane Departure Warning System (LDWS) Indicator Light 4-122
(Green) KEY Indicator Light 3-9
(Green)
* High Beam Control System (HBC) Indicator Light 4-50
Wrench Warning Indicator Light *1 4-26
TCS/DSC Indicator Light *1 4-80 ,
4-81
DSC OFF Indicator Light *1 4-82
* AFS OFF Indicator Light *1 4-46
(Amber)
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Indicator Light *1 4-78
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS) OFF
Indicator Light *1 4-78
* i-ELOOP Indicator Light 4-85
(Blue) Low Engine Coolant Temperature Indicator Light 4-26
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–25
When Driving
Instrument Cluster and Display
Signal Indicator Lights Page
* Shift Position Indication 4-31
* SPORT Mode Indicator Light 4-89
Headlight High-Beam Indicator Light 4-45 ,
4-45
Turn Signal/Hazard Warning Indicator Lights 4-51 ,
4-58
Security Indicator Light *1 3-42
(Green)
* Mazda Radar Cruise Control (MRCC) Indicator Light 4-95
(Amber)
* Cruise Main Indicator Light 4-101
(Green)
* Cruise Set Indicator Light 4-101
Lights-On Indicator Light 4-41
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

4–26
When Driving
Instrument Cluster and Display
Wrench Warning Indicator Light
When the ignition is switched ON, the
warning light is illuminated and then turns
off after a few seconds.
The wrench warning indicator light is
illuminated when the preset maintenance
period arrives. Verify the content and
perform maintenance.
Refer to Maintenance Monitor on page
6-20 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suffi ciently warmed
up, the temperature sensor could have
a malfunction. Consult an Authorized
Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–28
When Driving
Transaxle
NOTE



y(For vehicles with type C instrument
cluster*1 )  If the engine speed is about to exceed
the permissible engine speed, the buzzer
sounds.
  Refer to Over Rev. Buzzer on page
7-39 .
*1 To determine which instrument
cluster is equipped on your Mazda,
Refer to Meters and Gauges on page
4-12 .



y If shifting to R is diffi cult, shift back
into neutral, release the clutch pedal,
and try again.
Gear Shift Indication *
The gear shift indication supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as notifi es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving
situation might require shift operations
diff erent from indication. To avoid the
risk of accidents, the road and traffi c
conditions have to be judged correctly
by the driver before shifting.
NOTE
The gear shift indicator turns off when the
following operations are performed.



y The vehicle is stopped.



y The vehicle is put in neutral.



y The vehicle is driven in reverse.



y The clutch is not fully engaged when
accelerating from a stop.



y The clutch pedal remains depressed for
2 seconds or longer while driving.
/C\FCA&('#*A'FKVKQPKPFD

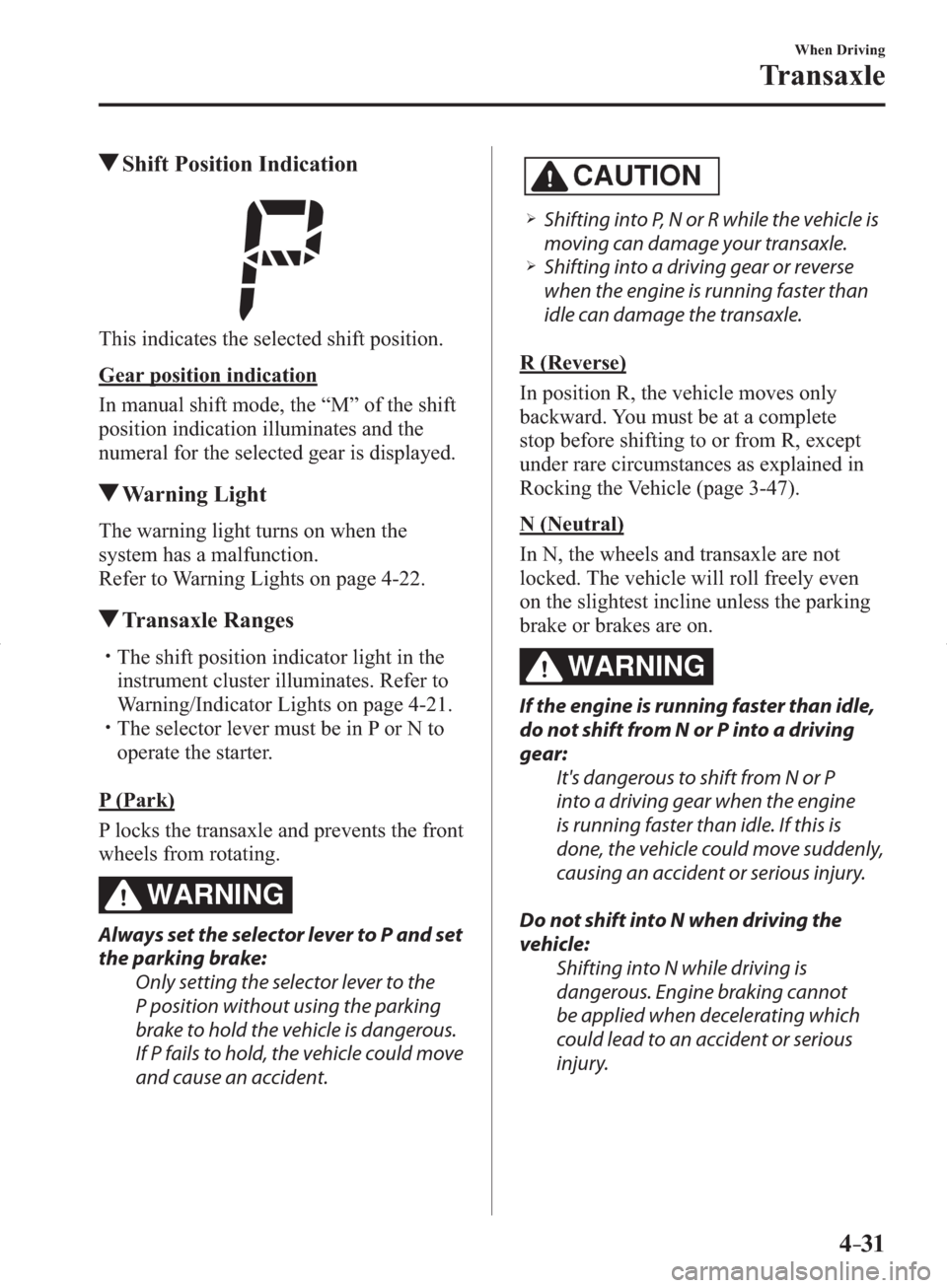

4–31
When Driving
Transaxle
Shift Position Indication
This indicates the selected shift position.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
Warning Light
The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-22 .
Transaxle Ranges





y The shift position indicator light in the
instrument cluster illuminates. Refer to
Warning/Indicator Lights on page 4-21 .



y The selector lever must be in P or N to
operate the starter.
P (Park)
P locks the transaxle and prevents the front
wheels from rotating.
WARNING
Always set the selector lever to P and set
the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could move
and cause an accident.
CAUTION



¾ Shifting into P, N or R while the vehicle is
moving can damage your transaxle.



¾ Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-47 ).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than idle,
do not shift from N or P into a driving
gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.

Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot
be applied when decelerating which
could lead to an accident or serious
injury.
